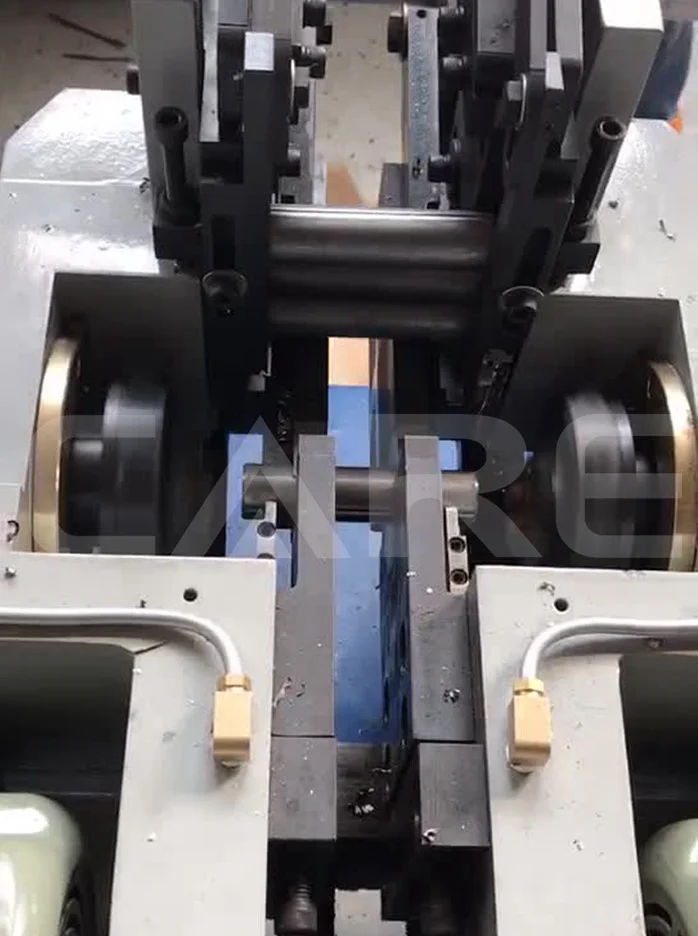

Автоматическая пневматическая фаски машина с двойным концом для стальные трубы/стержни

Product Overview

Description

Automatic pneumatic chamfer machine of double end for steel pipes/tubes/rods



Main specification

It is easy to adjust the cutting feeding speed.

Dies clamper and cutter head are special designed, can finish internal angle, external angle and flat angle at the same time.

Rotate speed can be adjustable according to the change of belt pulley, suit for all kinds of metal material pipes.

Technical parameter

MODEL	DEF-FA/52
SPEC.
Main motor	2x1.5kw/4P (for steel, iron tube/pipe)
	2x1.5kw/1.0, 2/4P (for aluminum, bronze)
	2×1/0.75kw,4/8P (for SS)
Hydraulic motor	2HPx4P
Air pressure	0.6-0.8Mpa, 120ml/min.
Cutter head range	Φ9-Φ50mm for steel pipe Φ9-Φ25mm for steel rod
Workpiece length	18-700mm

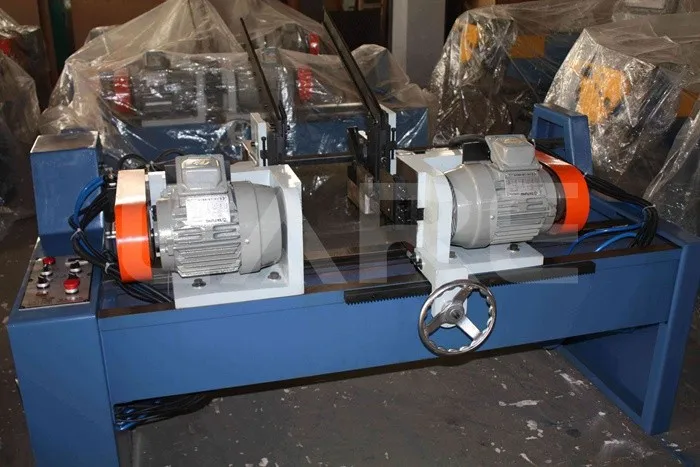

Machine photo

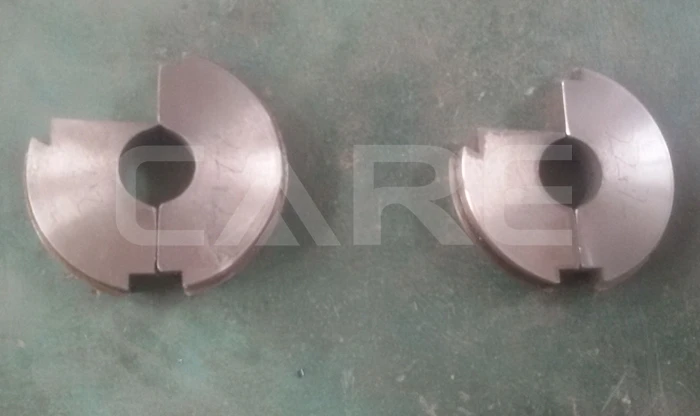

Clamp molds

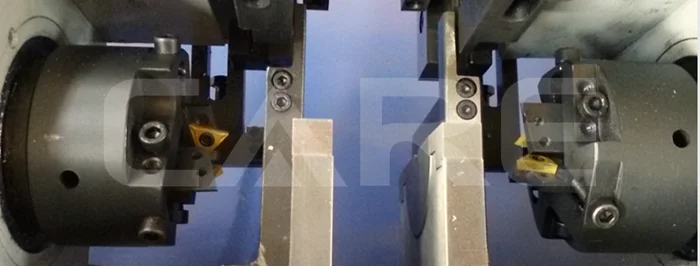

Cutter plate

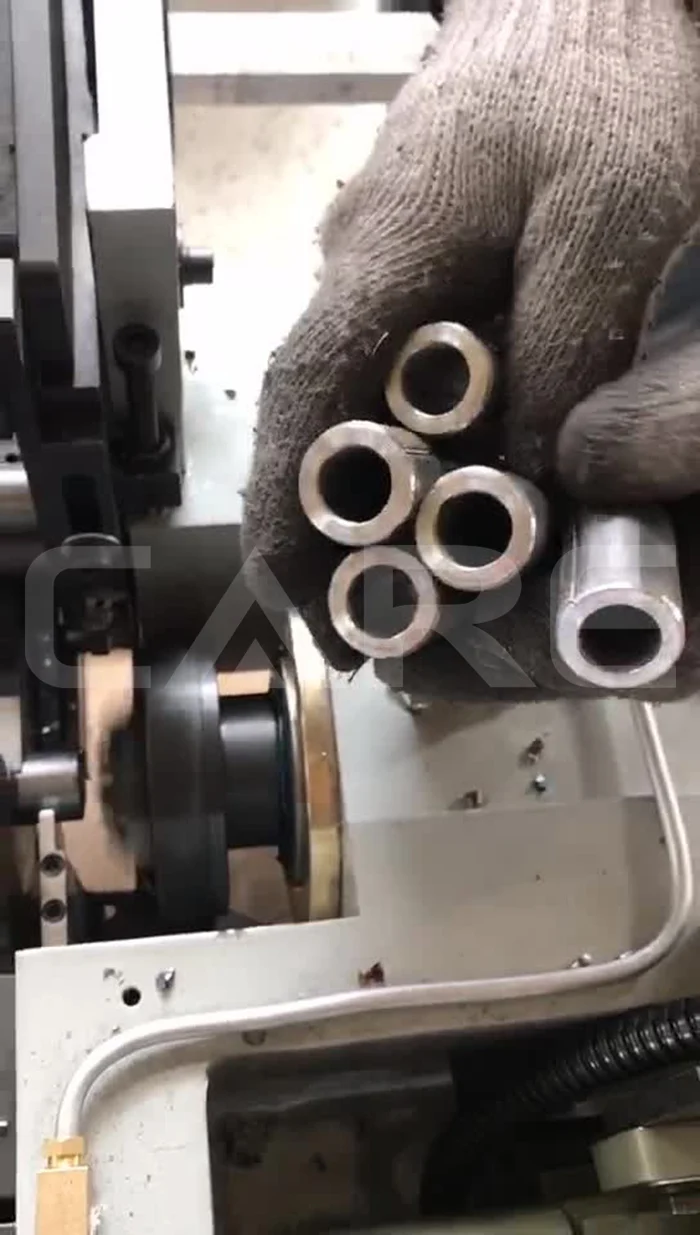

Pipe/rod sample



To know more information, please contact us at any time.
