ASTM D3597 Wyzenbeek Abrasion Tester
- Category: >>>
- Supplier: Anytester (hefei) Co. Ltd.
Share on (60659730955):
Product Overview
Description
Product Description

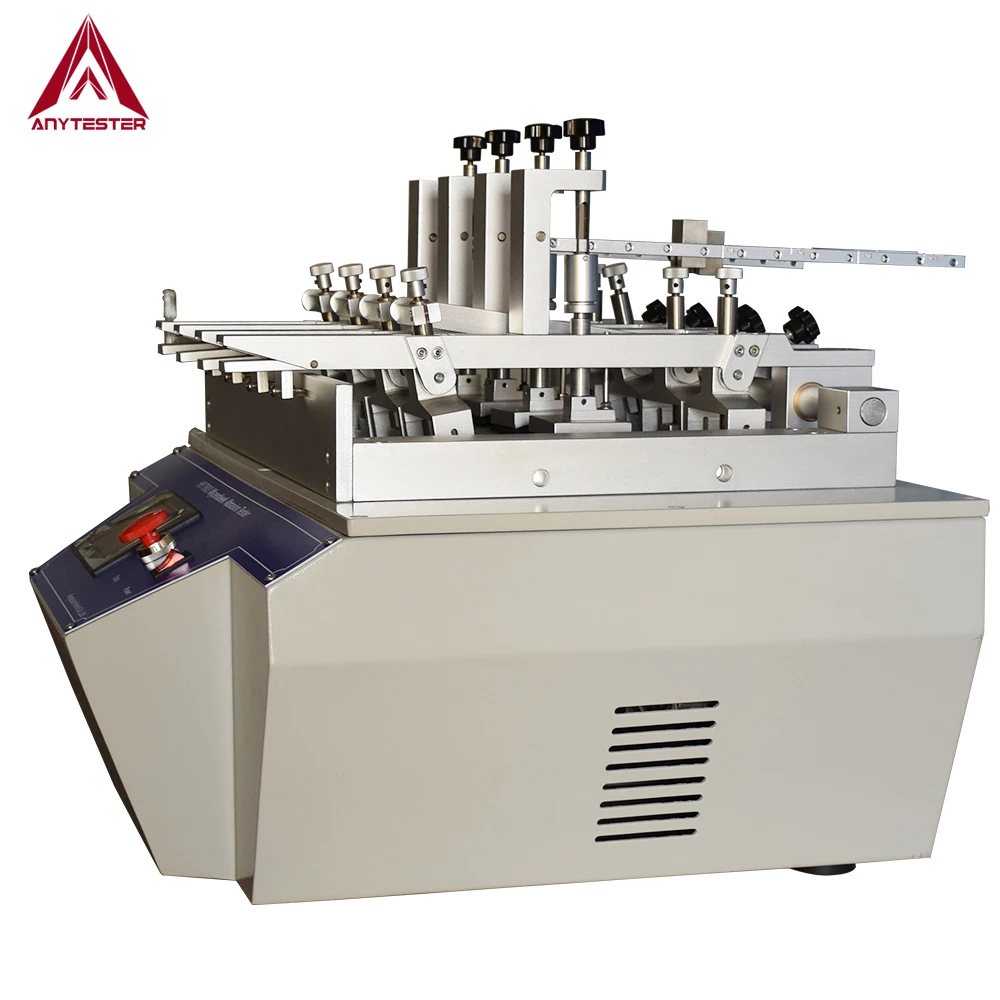

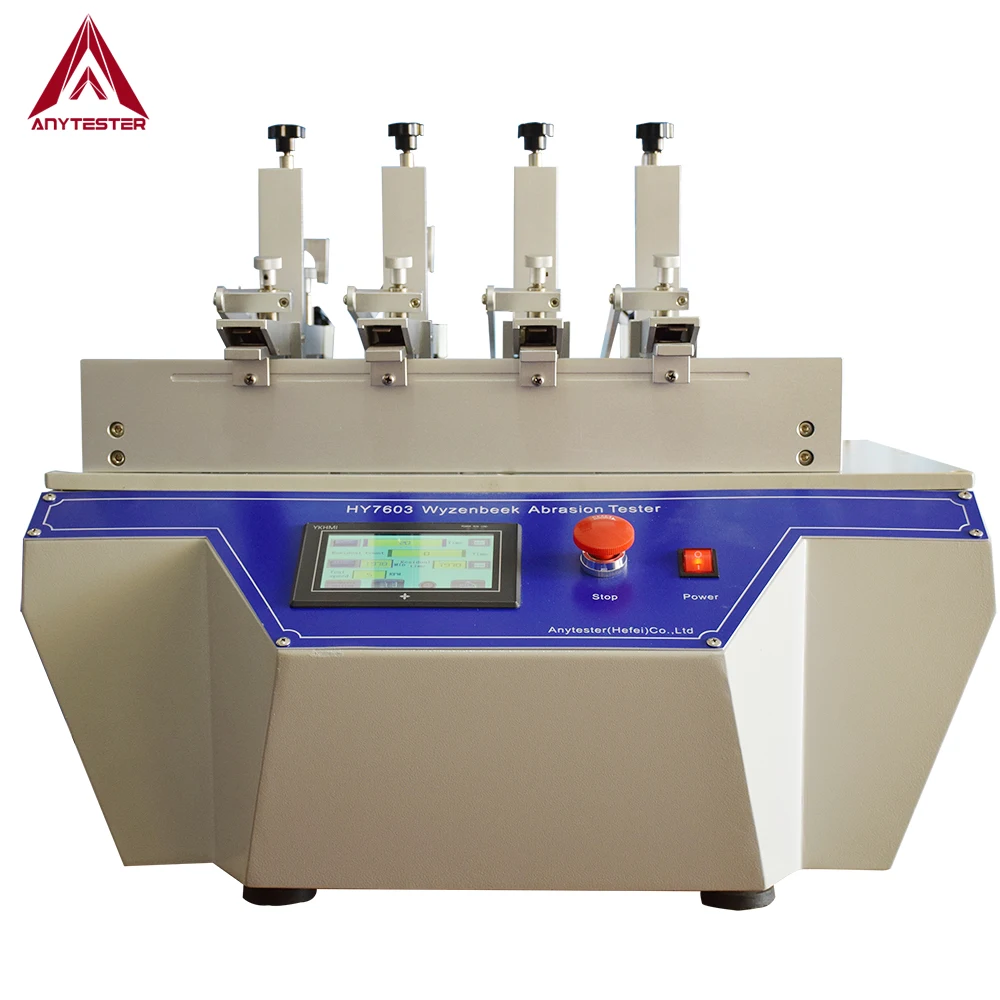

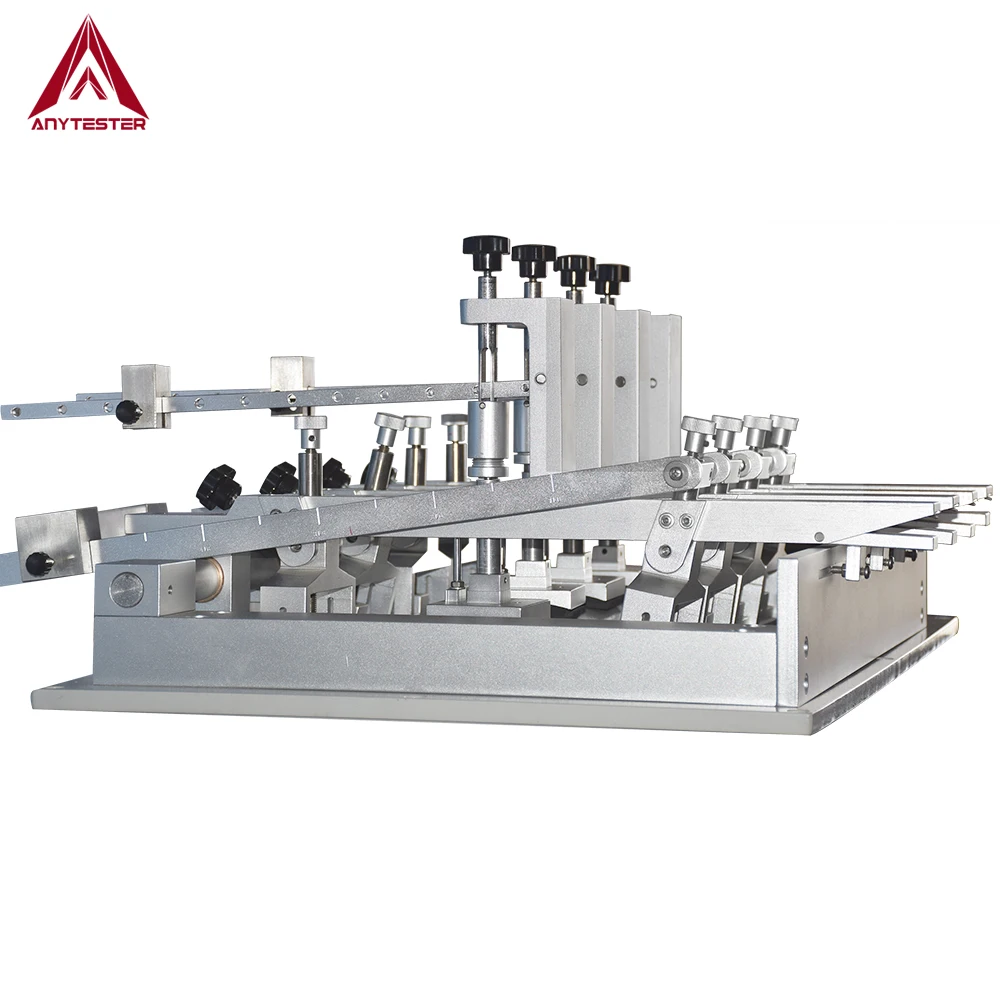

HY7603 Wyzenbeek Abrasion Tester is suitable for testing fabric for standard friction medium or metal and surface friction and movement wear-resisting performance, such as car decoration and furniture woven articles wear resistance test.
Standard
ASTM D4157 |
|
|
Note: this Wyzenbeek Abrasion Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Specification
Model | HY7603 Wyzenbeek Abrasion Testerer |
Test stroke | 76 ± 2 mm |
Test speed | 90 time/min, adjustable |
Test number | 4 |
Abrasion table | cambered surface: R 100 mm, length: 400 mm |
Load weight | 150 g |
Pre-setting tension | 1 ~ 6 lbf adjustable |
Pressure | 1 ~ 3.5 lbf adjustable |
Test board size | 570 * 590 * 720mm |
Test board weight | 125 Kg |
Power | 220V, 50Hz |
