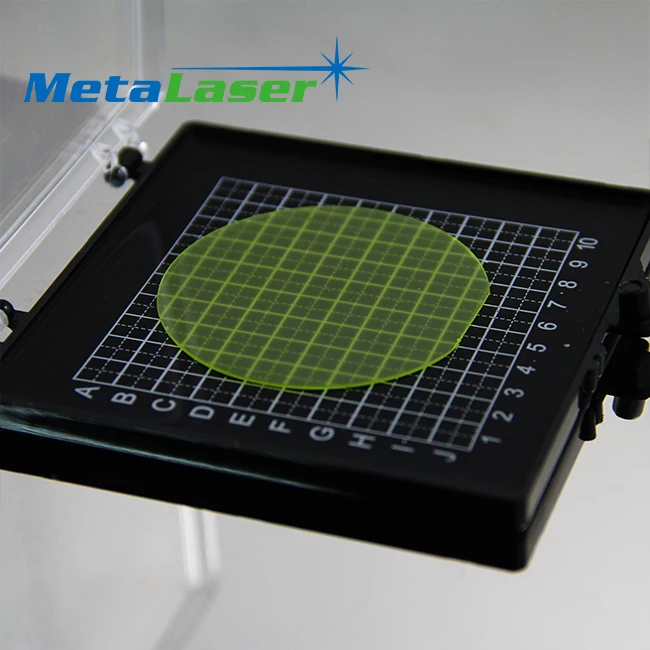

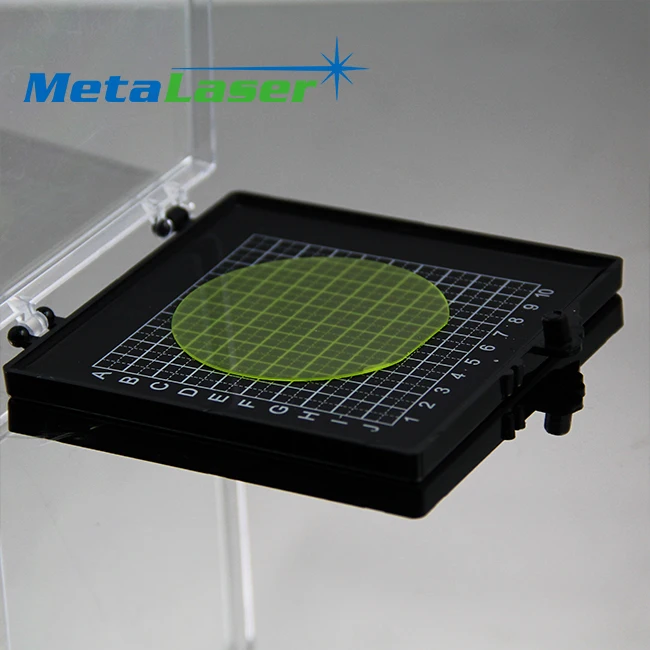

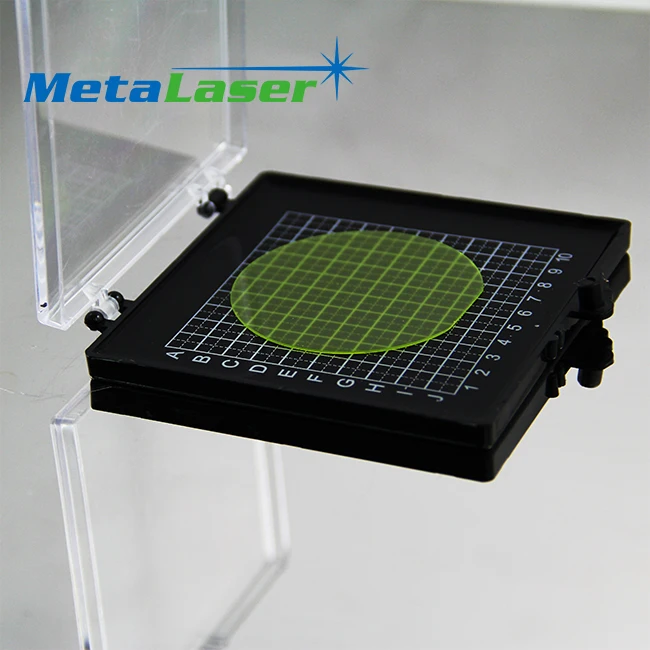

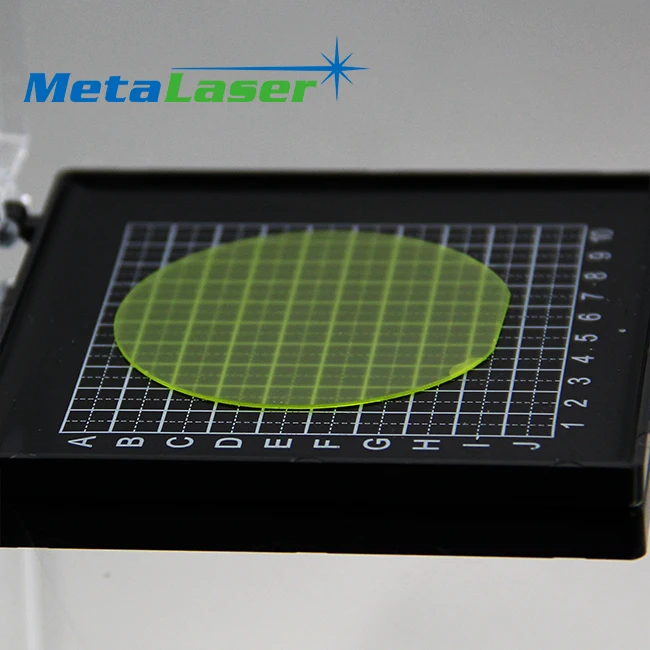

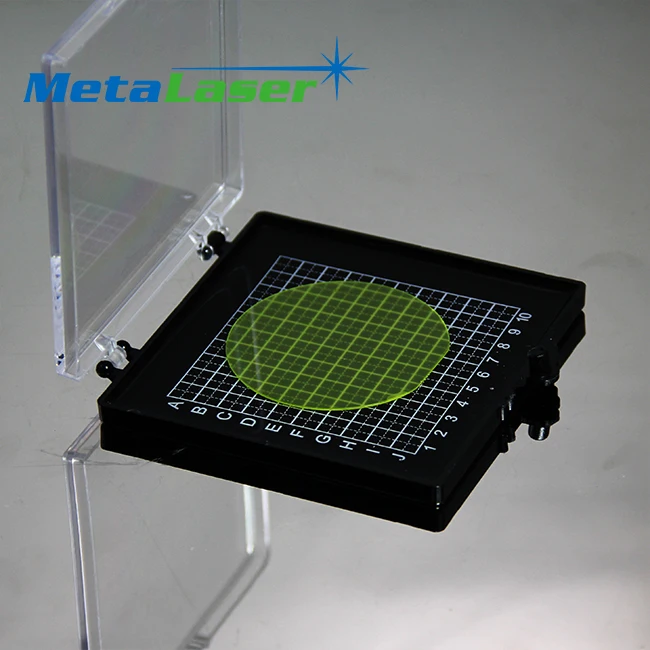

Scintillation Detector Ce:YAG crystal

Product Overview

Description

Product Description

1. A well-established scintillator and has many attractive properties

2. Fast decay (60~70ns), high light yield, emission peaks at 520-550nm that well matched with the sensitivity of

    commercial Si-CCD detectors

3. Good mechanical and chemical stability.

4. A very appropriate crystal for imaging screens, LED lighting and laser lighting.

Features

1. Virtually no afterglow emissions

2. Emission peaking at 550nm is well matched with CCD detectors

3. Reasonably fast with a decay time of 70ns

4. YAG (Ce)'s light yield increases linearly with the total energy of the electron beam,

    whereas the response of phosphors dramatically decreases.

Applications

1. CT

2 .Particle accelerator

3. PET

4. SPECT

5. LED lighting

6. Laser lighting

Properties

Property	Ce:YAG
Chemical composition	Y3Al5O12
Melting (℃)	1970℃
Symmetry	Cubic
Structure	Ia3d
Cell parameters(Å)	12.01
Hardness	8.5
Density(g/cm3)	4.56
Thermal conductivity(Wm-1K-1)	1.13
expanding coefficient(10-6/℃)	7.7
Refractive index(λ=550nm)	1.82
Emission peak (nm)	533
Light yield (Photons•Mev-1)	15000
Decay time(ns)	60-70
Relative light output(%NaI:Tl)	20
Absorption length (cm)	2.61
Radiation Length(cm)	3.5
Energy Resolution	<8%
Zeff	35
Afterglow(% after 6ms)	<0.005

 Polishing Specification

Orientation Tolerence	<0.5°
Thickness/Diameter Tolerance	±0.05 mm
Parallel	10"
Perpendicular	5'
surface Quality	10/5
Clear Aperture	>90%
Chamfer	<0.2×45°
Maximum dimensions	dia 100 mm
