Agriculture is the trend of all over the world. And the intelligent drone act as a important role in this world plan.

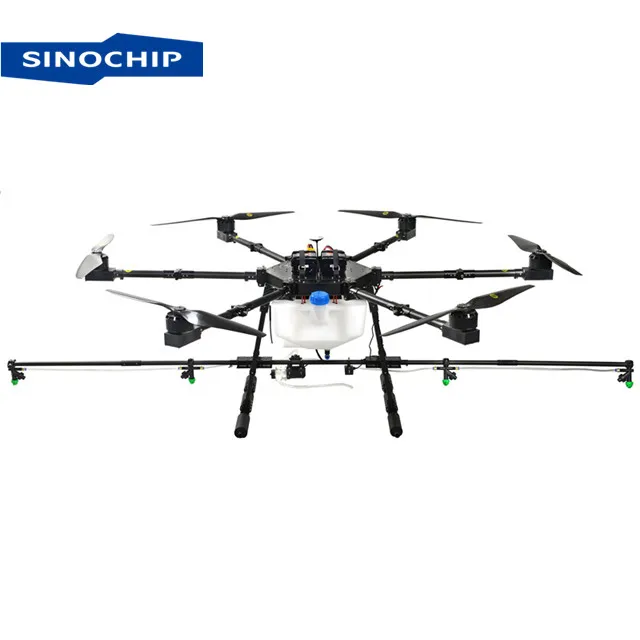

DF-T4B Agriculture spraying drone can replace the traditional pesticide sprayer and it's speed is 50times of the hand sprayer. It will save 90% water and 30%-40% pesticide. Small droplet diameter make the pesticide more well-distribute and improve the effect. At the same time, it will make the people faraway from the pesticide and reduce the pesticide remain of the crop.
Specification
Rotor number
Six rotor
Axis distance
1000mm
Net weight
19KG
pesticidesload
20KG
Maximum take-off weight
43KG
working hours
25min
Control distance
800-1000m
Self stabilizing module
GPS
Flight speed
3-6 m/s
Spray flow
0.25-0.75 L/min
work efficiency
30-50 Mu/h
Charging times
300-500 time
size
1950*1950*700mm
fold size
710*710*700mm
Main Features

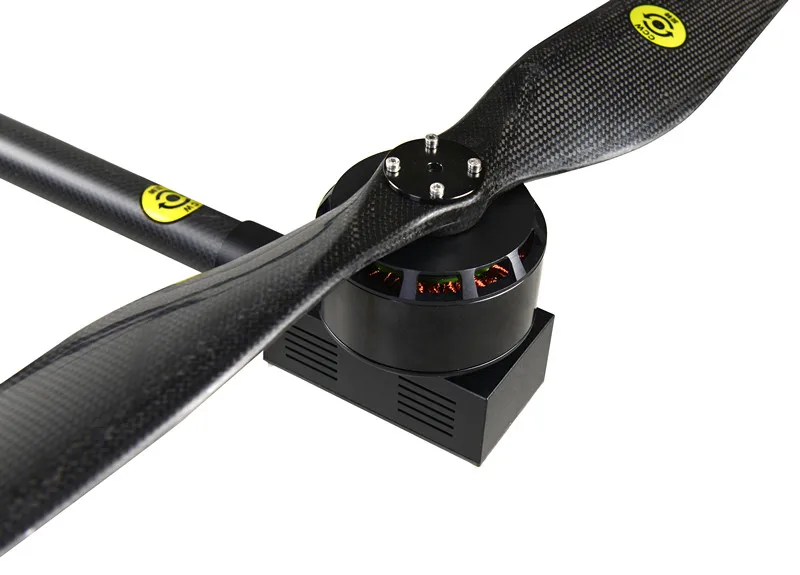

Power system: high rate charge, high Capacity batteries, strong torque motors, Carbon fiber paddles, high response ESC. Control system: RC & ground station. Spray system: anti-shake pesticide box, Centrifugal brushless spray system, Booster pumps. Smart spraying Dose detection Resume spray Lose control auto-return Broken oar protection Low voltage protection Smart operate mode Portable fram
Packaging & Shipping
Package include
Radar set-high module Aircraft DF-T4B*1 Lipo battery*2 Recharger*1 Remote Control*1 Remote Control Battery*1 Remote Control Battery charger*1 Propeller*6 Spray lance*2 Funnel*1 User manual*1 Toolkit: screw, screwdriver, OTG, USB cable, 4 nozzles, certification)*1 Material: Plywood, HPL, aluminium alloy
Packing, Dimension and Weight
1PC/AL Case G.W.: 19KG AL case size: 870*770*870MM
Our Services
Pre-Sales After-Sales Service * Inquiry and consulting support. Drone Arms:N/A:6 months * Sample testing support. Fiber Cube:3Months:6 months * View our Factory. Water Tank:12 months
Drone Charger:12 months
Power Management Module:12 months
Remote Control:12 months
Flight Control:12 months
Electronic Speed Controller:12 months
Electronic Components:12 months
Company Information
About Us
Established in 2011, Shenzhen Top-peak Electronics Co., Ltd.(SINOCHIP) is a High-Tech company that involved in R&D, production and sale of UAV systems, embedded IOT products, RF products, and cloud storage systems.
With 8 years’ effort in UAV industry, SINOCHIP is now China leading agriculture drone brand. We have more than 30 technical talents of high-quality; 1 Independent Design House, 2 regional headquarters (Shenzhen, Guiyang) and multiple holding manufacturing factories. We have hundreds of agents and distributors throughout the country domestic and overseas.
By embracing up and down-stream suppliers, SINOCHIP is able to provide latest UAV solutions to government, organizations, media center and other institutions. We now have a product line covering toy drones, photography drones, agriculture drones, industrial drones, police drones and more.
Enjoy technology at ease! That’s what we do and you are always welcome to join us for this ambitious career!
