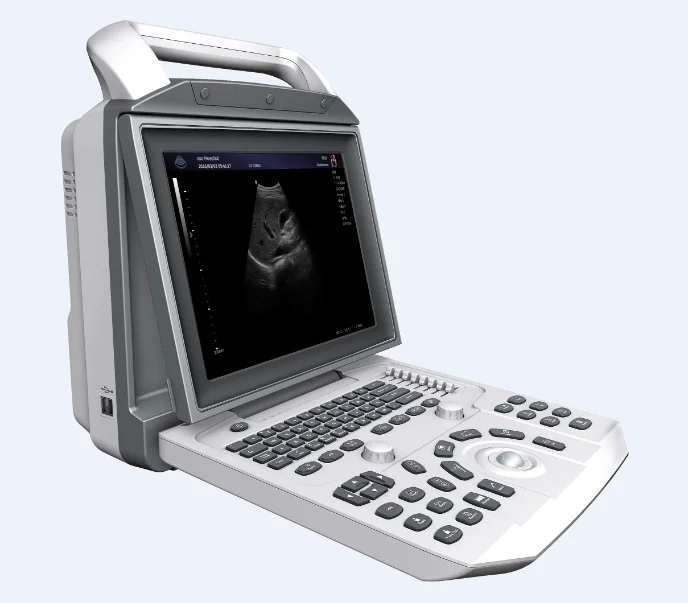

Portable black white ultrasound for cardiac cardiology CW, PW TDI, THI

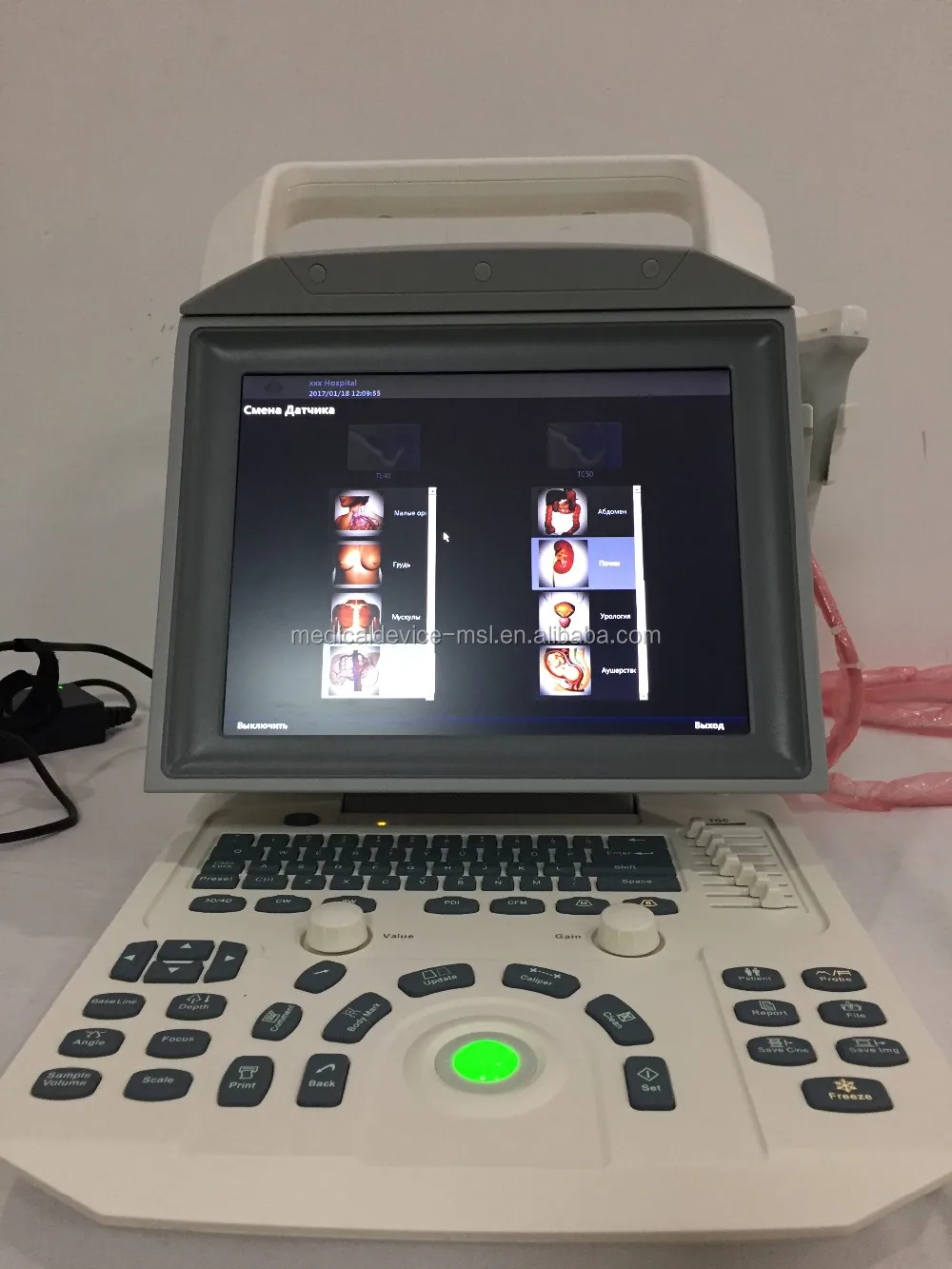

System Overview

 Physical Specification

Clinical Applications

 Dimension & weight

Abdomen

       Main Unit Dimensions:

Obstetrics

             155mm×360mm×370mm;  6.0kg

Gynecology

       Package  Dimensions:

Urology

         460mm×370mm×565mm ; 11.5kg

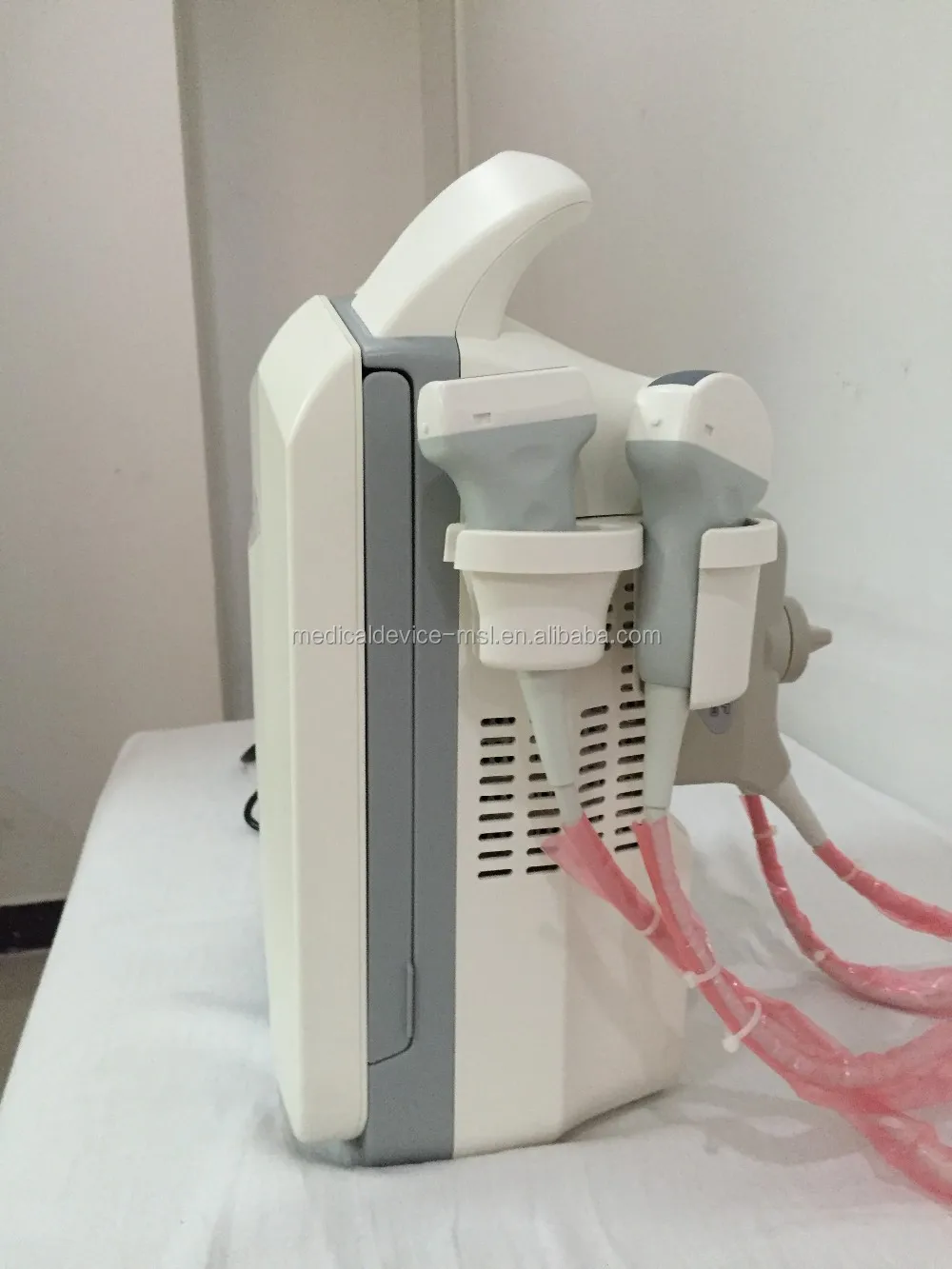

 Probe Port & Holder

Cardiology

     Probe Ports:  2Activated Ports

Small Parts

 Probe Parameters

     Probe Holders: 2 Probe Holders

Vascular

      Convex Array Probe   UT-C-3.5

      Central Frequency:   3.5MHz

 Electrical power

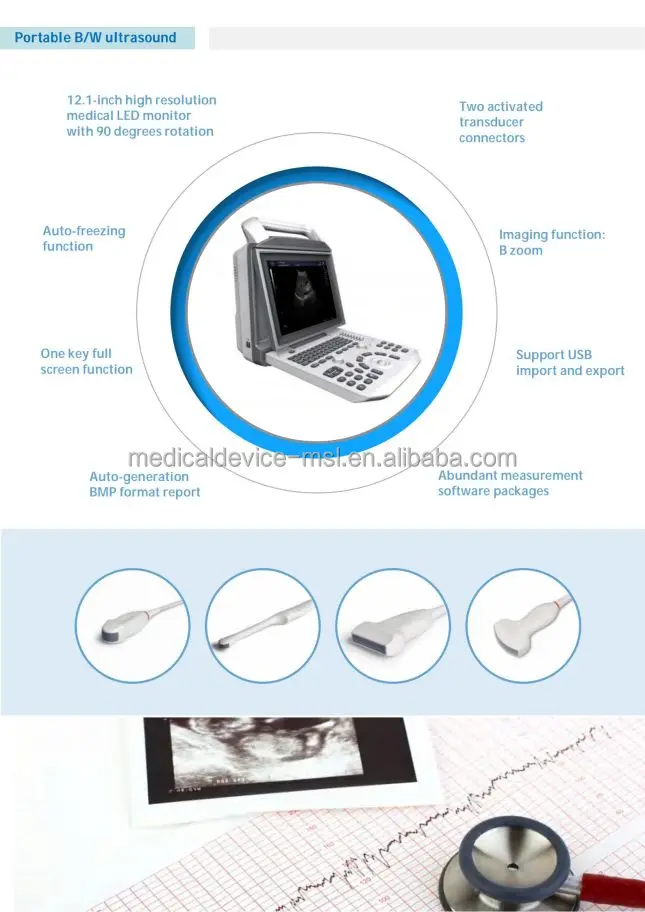

Features

      2.0MHz,  3.0MHz, 3.5MHz,  5.0MHz

      Input Voltage:  AC 100V ~240V

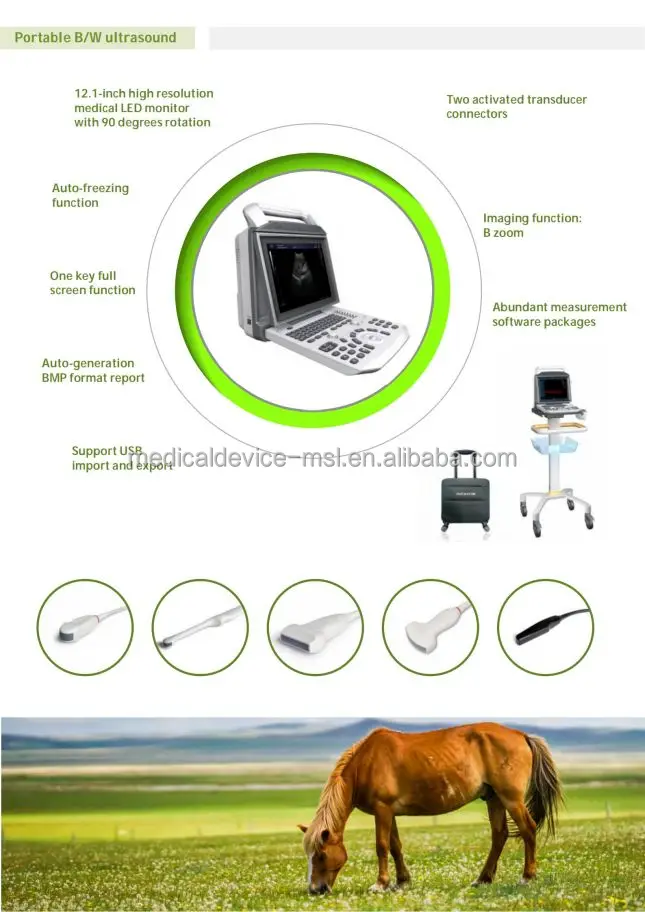

    Outstanding portable model,compact and

      THI4.0MHz,

      Frequency:       50Hz/60Hz

    streamlined design

      Max. Scanning Depth: 295mm

      Input power:    100VA

12.1-inch high resolution medical LED monitor

      Abdomen/Obstetric/Gynecology/Urology

      Fuse:                F3.15AL250V (φ5×20 mm)

with 90 degrees rotation

    Two activated transducer connectors

      Linear Array Probe    UT-L-7.5

 Operating Environment

    Auto-freezing function

      Central Frequency: 7.5MHz

      Ambient Temperature:  +5°C ~+ 40°C

Imaging function: B zoom

      5.0MHz, 7.5MHz, 10.0MHz, 12.0MHz

      Relative Humidity:        25% ~ 80%

One key full screen function

      TH10.0MHz

      Atmospheric Pressure:  70kpa ~106kpa

Abundant measurement software packages

      Max. Scanning Depth: 110mm

Auto-generation BMP format report

      Small Parts/Vascular

 Transportation & Storage

    Support USB import and export

     Ambient Temperature:   -20°C ~ +55°C

    Laser/Ink Jet printer module optional

      Transvaginal Probe  UT-C-6.5

     Relative Humidity:        10% ~ 95%

Optional built-in lithium battery

      Central Frequency:  6.5MHz

     Atmospheric Pressure:  50kpa-106kpa

Optional trolley and suitcase

      5.0MHz,  6.0MHz, 7.5MHz,
