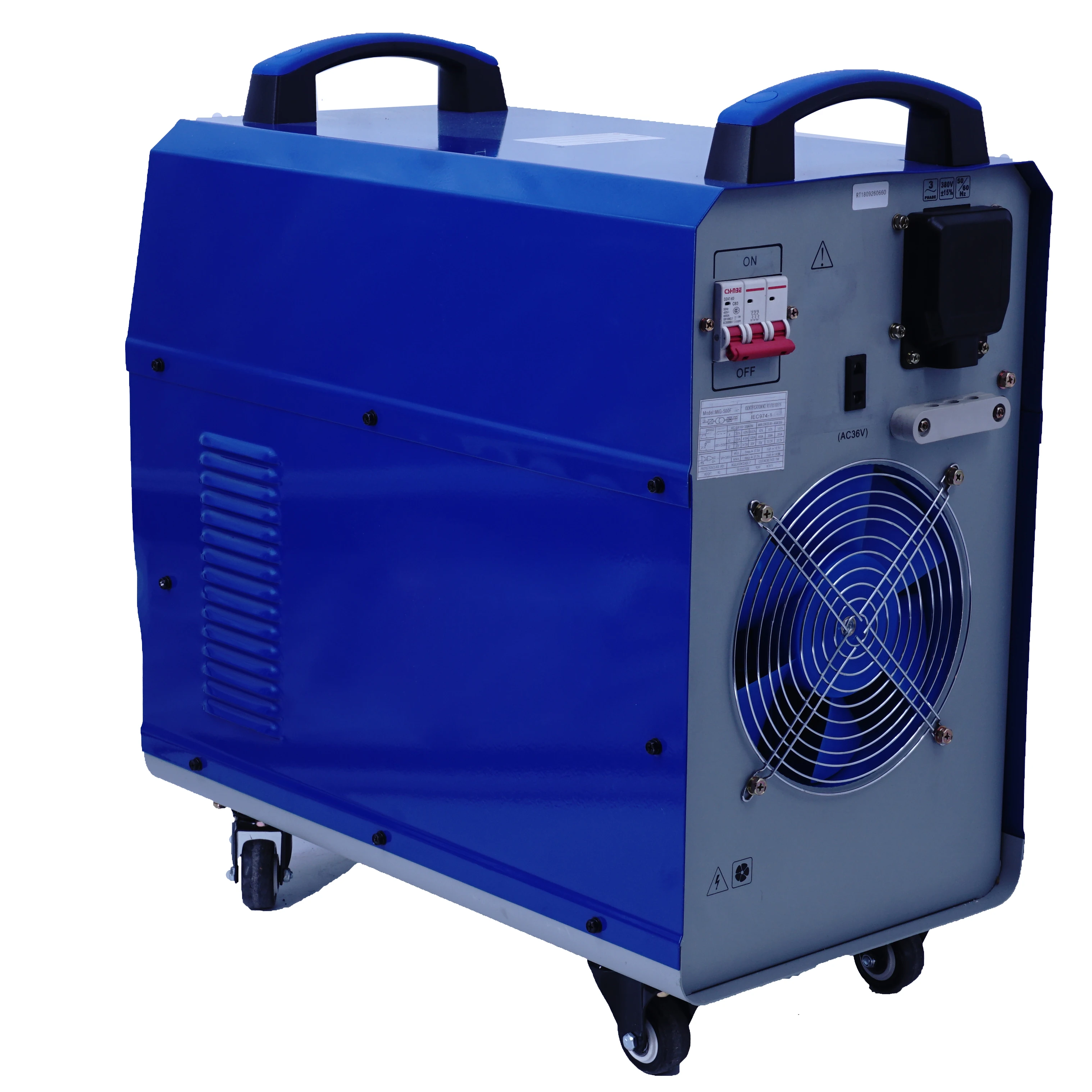

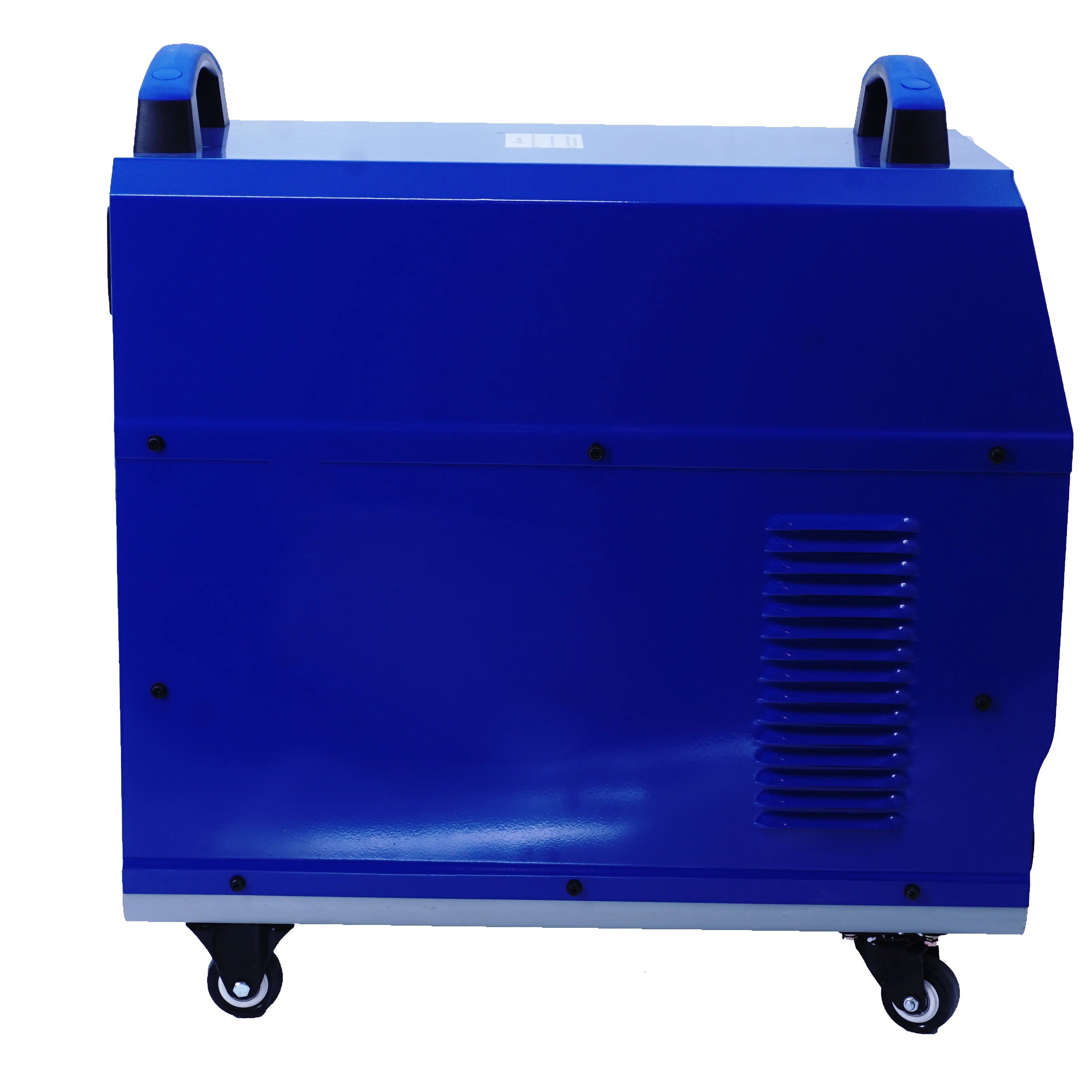

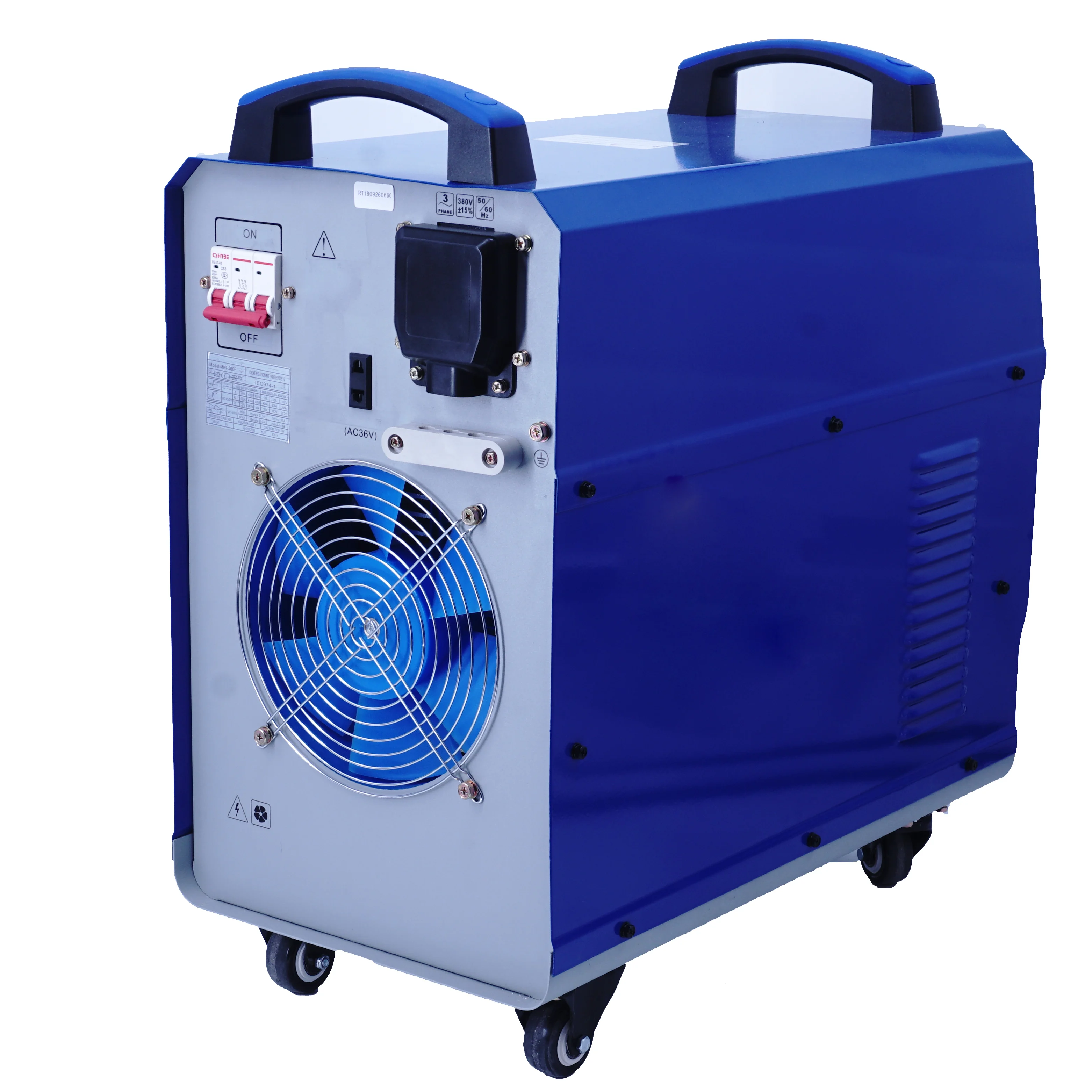

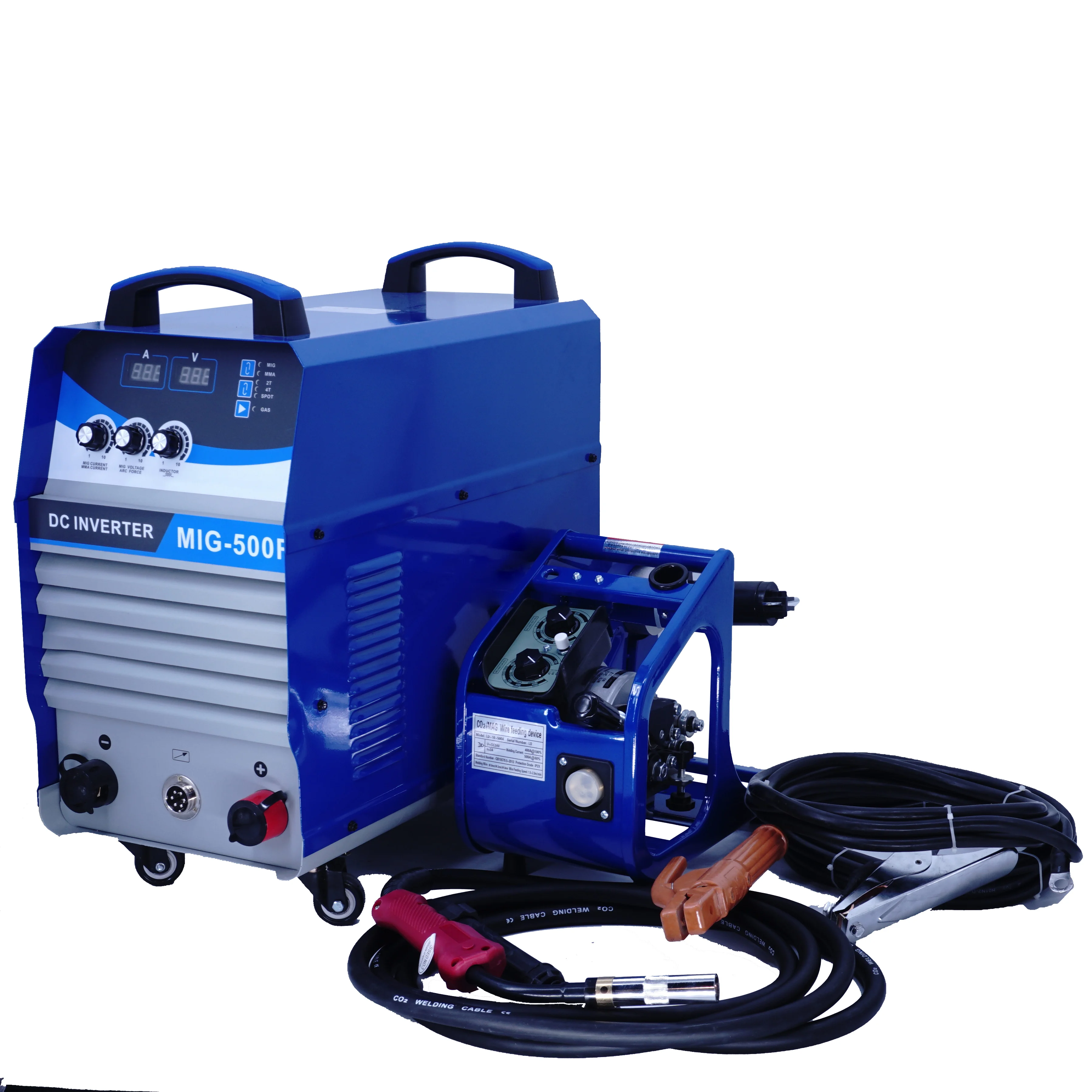

Three phase 500 amp inverter welder co2 aluminium mig welding machine
Three phase 500 amp inverter welder co2 aluminium mig welding machine
Three phase 500 amp inverter welder co2 aluminium mig welding machine
Three phase 500 amp inverter welder co2 aluminium mig welding machine
Three phase 500 amp inverter welder co2 aluminium mig welding machine
Three phase 500 amp inverter welder co2 aluminium mig welding machine
Three phase 500 amp inverter welder co2 aluminium mig welding machine

Three phase 500 amp inverter welder co2 aluminium mig welding machine

Share on (60660074957):


Price:$440.00 - $470.00

Quantity:


Product Overview

Description



Product Description


SEPARATED SERIES MIG-280/350/500
Suitable for cutting carton steel,stainless steel,alloy steel,copper,and aluminum,etc.




Main Features

(1)Double IGBT Module technology and PWM control,high quantity and superior performances.

(2)Digital display,accurate current control,stable arc transition,and excellent welding characteristics.

(3)Adjustable wire feeding speed,tip ball removing and electronic induction regulating.

(4)Effective spatter control,improved penetration and better welding effect.Thermal overload protection.

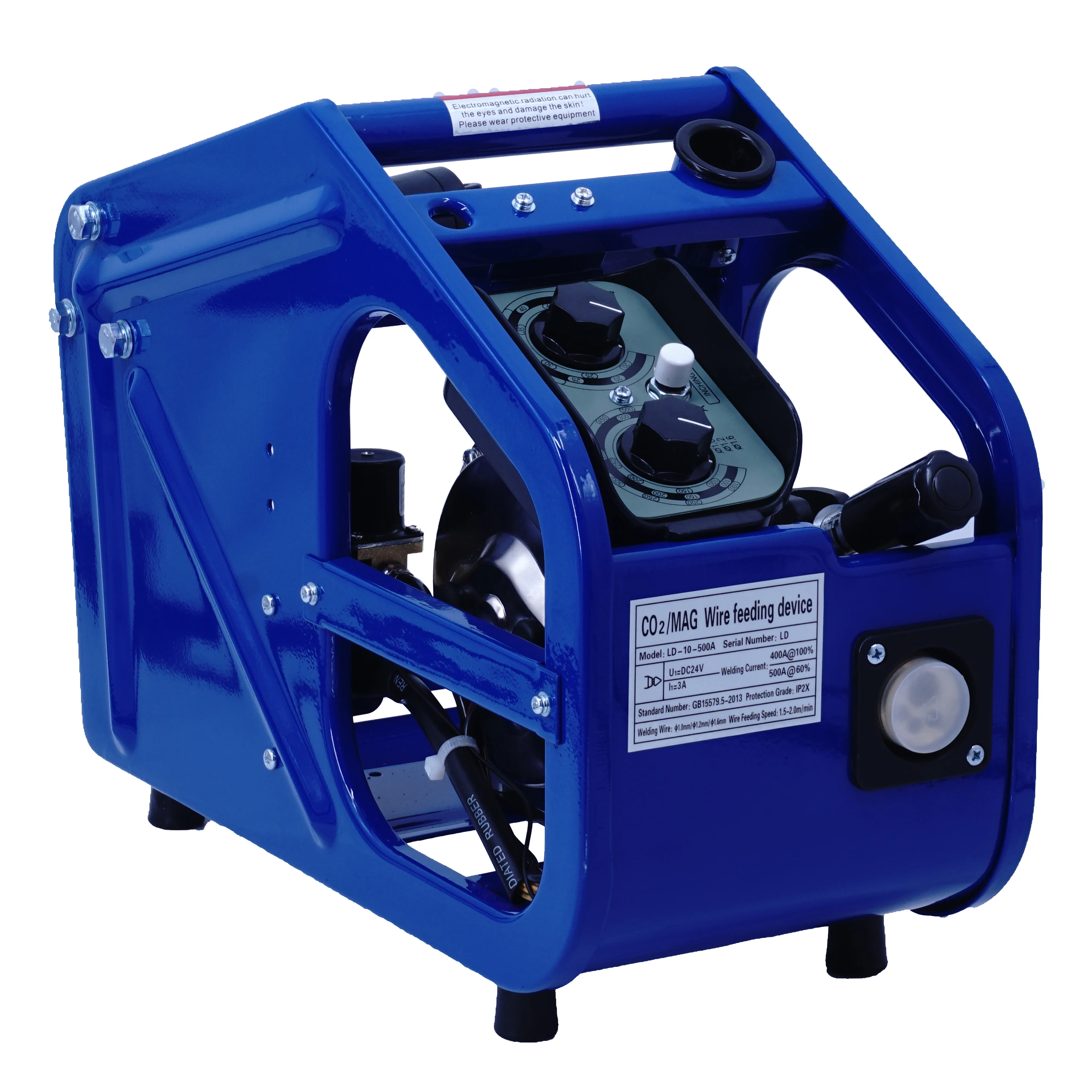

(5)Separated welder and the wire feeder;suitable for welding at high placesor special position.

(6)Wide range of working material,such as low carbon steel,low ally steel,etc.


ITEM
UNIT
MIG-280
MIG-350
MIG-500
Input Power Voltage
V
AC400V
AC400V
AC400V
 Input Power Frequency
Hz
50/60
50/60
50/60
 Rated Input Capacity
KVA
9.4
14
25
Output Current Range
A
50-270
50-350
50-500
load Voltage
V
16.5-27.5
16.5-31.5
16.5-39
Rated Duty Cycle
%
60
60
60
Wire feed speed
M/min
3-15
3-15
3-15
Gas flow
L/min
15-20
15-20
15-20
Dimensions
mm
500*235*400
500*235*400
500*270*450
Weight
Kg
18
20
25
