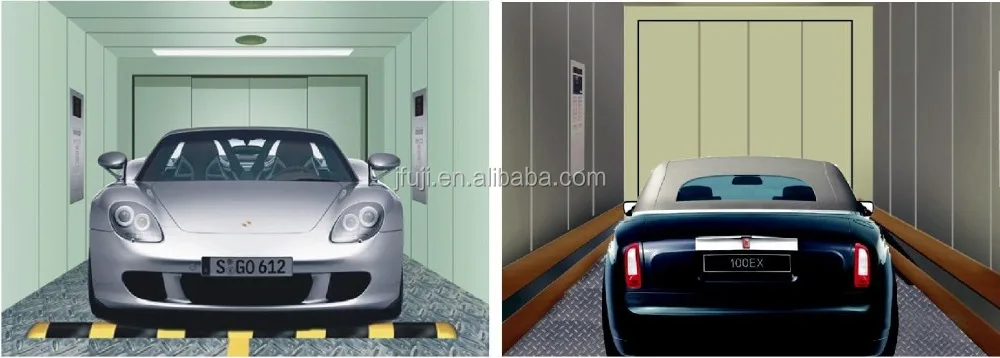

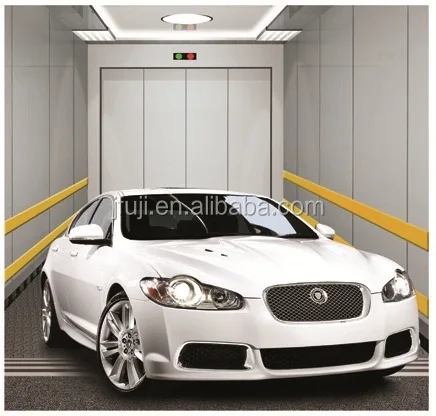

5000 кг JFUJI VVVF ISO CE автомобильный Лифт/стоимость гаражного лифта/стоимость автомобильного подъема

Product Overview

Description



5000kg JFUJI VVVF ISO CE car elevator /  garage car elevator cost/ car lift cost

HOMEFRIEND & FUJI series car elevator adopts matured VVVF control technology, and through the special frequency converter for extremely accurate speed control, greatly improving the operation stability while saving energy . It could make the car on the way up and down to enjoy the best service.

HOMEFRIEND & FUJI series car elevator has the characteristics of safety, reliability, stable and comfortable, and the mm-grade accuracy of leveling. For two points of not enough rigidity and the large torque of the ordinary car and the whole lift, we design the overall structure from analyzing the torque , and increase the quantity of the elevator guide rail, adopting a symmetric four rail or six rail,  not only improve the overall stiffness, but also reduce the torque, solve the unfavorable factors of car shaking. A light curtain protection device is furnished in the door to ensure that your car can go in and go out safety without wear bump accident.

In order to improve the safety of the car go in and go out,HOMEFRIEND & FUJI series car elevator make the extension of the VVVF control technology applied to the door machine system --VVVF speed control driving device controlling by computer from the elevator drive system, and connecting matched rod structure of door machine , that to make the elevator door switch more reliable, stable, flexible, and make the car entry and go out more freedom and safety.

At the same time, using a new-type data network system -- every floor of the elevator and the car, are equipped with computer control system (CPU), and connects through the serial transmission line, greatly reduces the connection between the various components, which makes the system control more efficient and accurate. The configuration of the diagnosis program and backup system between computers to ensure the high reliability of every elevator parts.



The Company is situated in Foshan, Guangdong, one of two largest elevator manufacturing sites in China. It has total investment of 53 million dollars ($) and floor space of about 200 acres, and boasted a production center, R&D and training center and marketing service center; It is known as one of most competitive and powerful elevator manufacturers and service providers in the world by introducing Japanese RMADA multi-station CNC punching machine, CNC shearing machine and CNC bending machine and other world-class production and test equipment as well as scientific and rigorous management models and providing manufacturing capacity of 10000 sets per year.

With the development of the economy at home and abroad, Chinese domestic industrialization has been rapid developed, the rapid development of industrial level to promote the emergence of a large number of modern plant buildings, building construction land increasingly nervous, and dispersed plant brought problems such as management, warehousing, transportation and other costs increased. In order to alleviate the above problems, there have been a variety of cargo elevator in elevator industry in recent years, but most of the carrying capacity of 5 tons or below, the individual manufacturers try to produce 8 tons freight elevator, but its traction machine and the other safety components which are rarely special, and is very hardly introduce to the market.

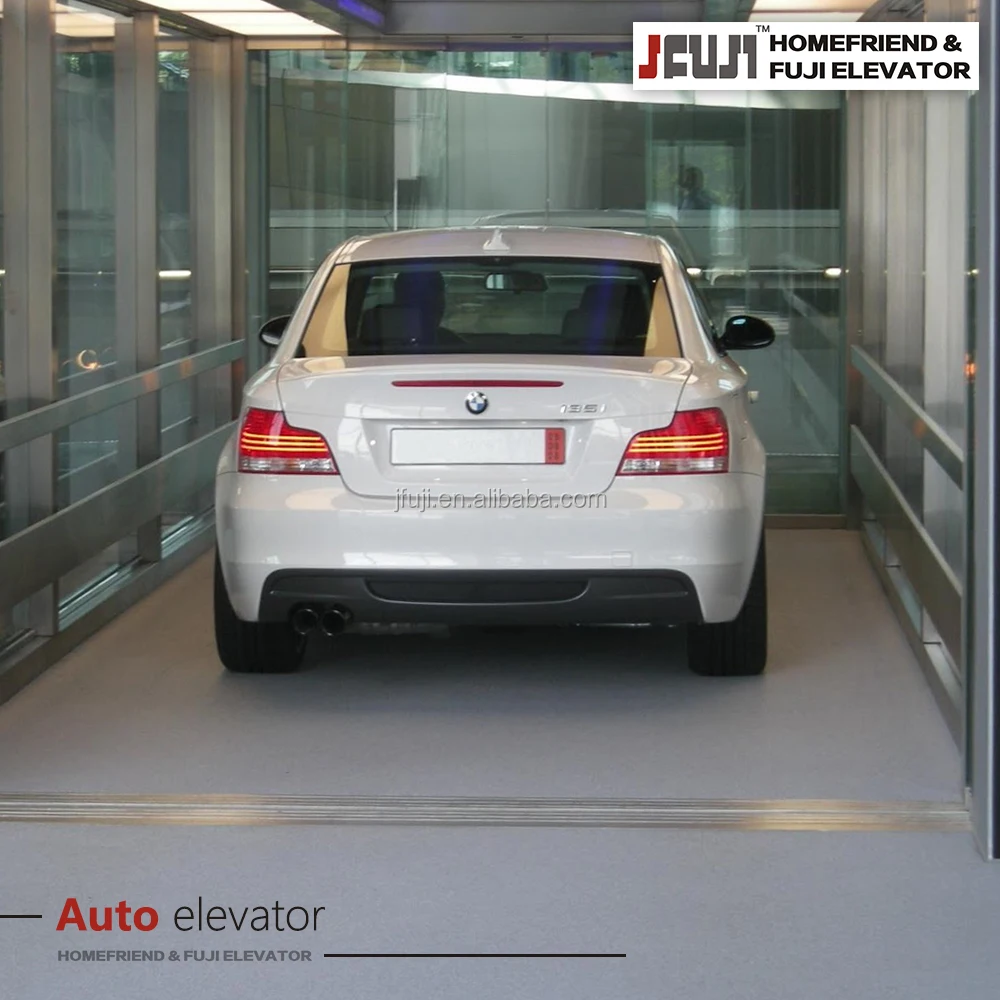

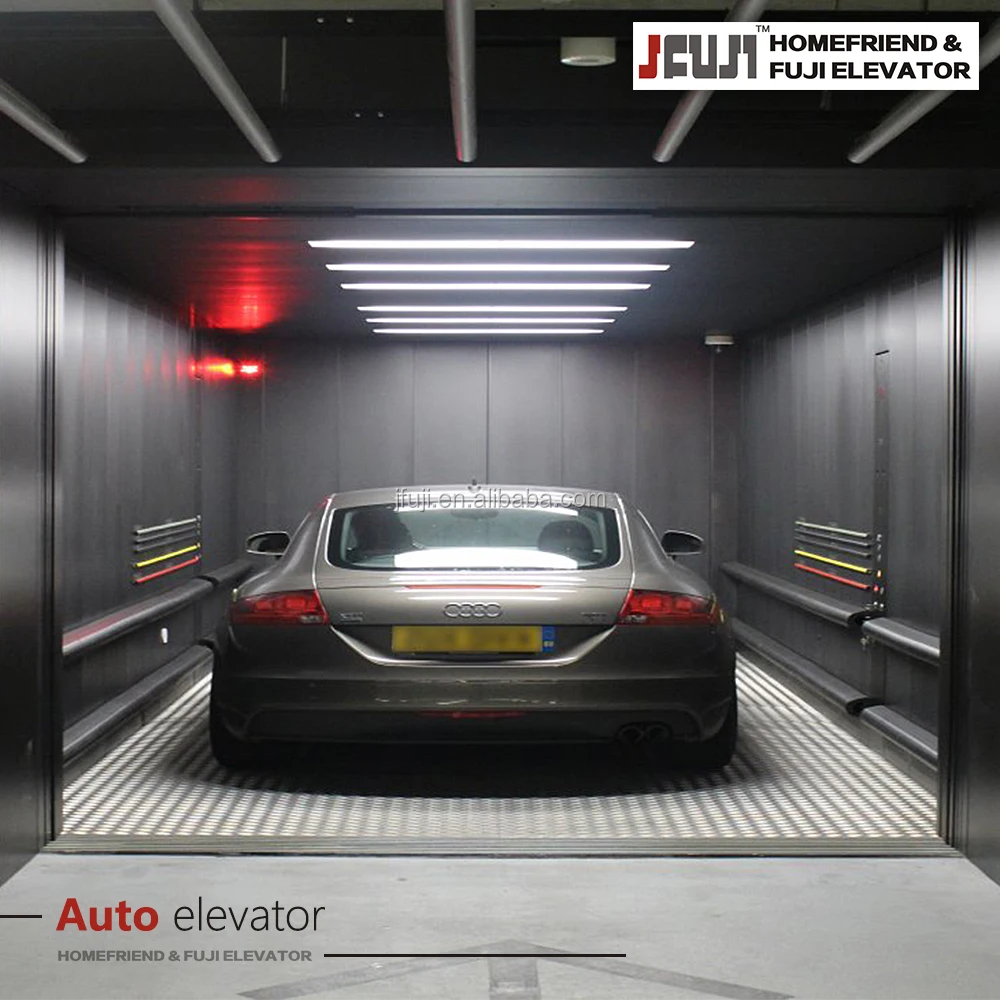

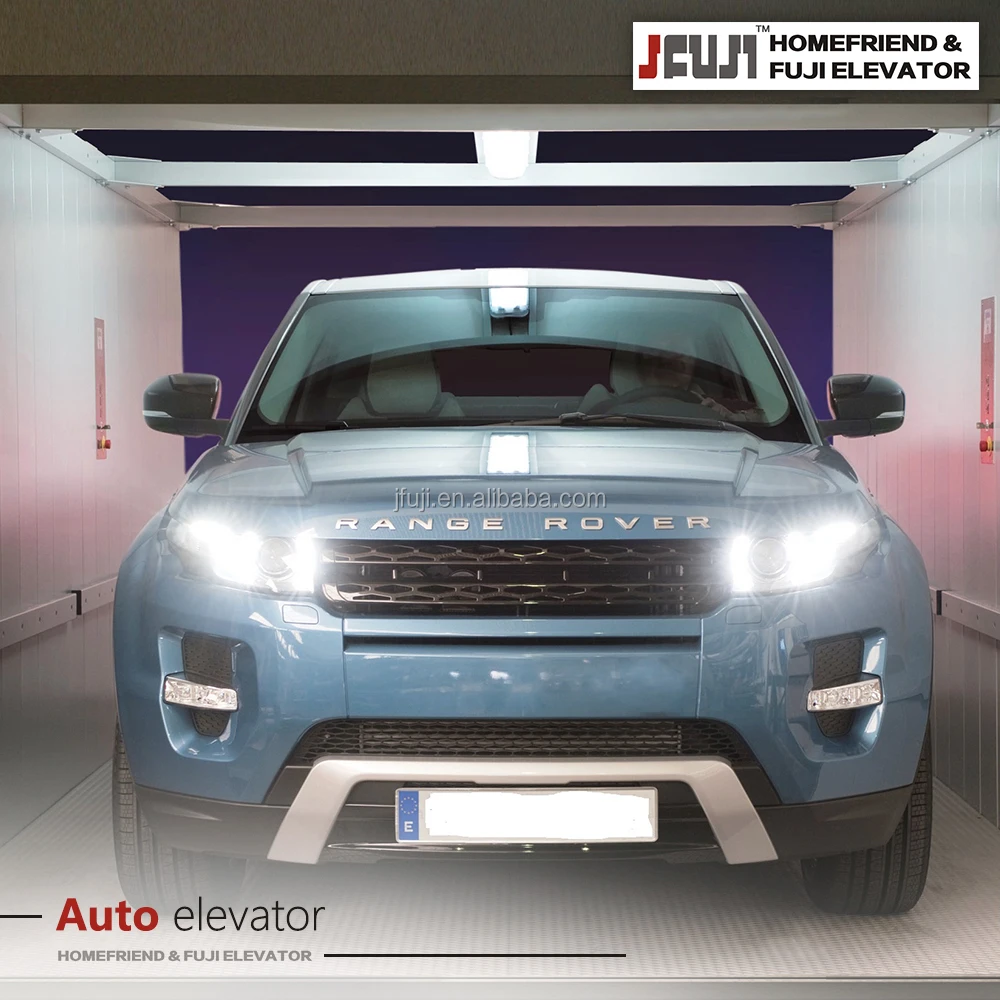

Auto elevator Details



HOMEFRIEND & FUJI series car elevator has the characteristics of safety, reliability, stable and comfortable, and the mm-grade accuracy of leveling. For two points of not enough rigidity and the large torque of the ordinary car and the whole lift, we design the overall structure from analyzing the torque , and increase the quantity of the elevator guide rail, adopting a symmetric four rail or six rail,  not only improve the overall stiffness, but also reduce the torque, solve the unfavorable factors of car shaking. A light curtain protection device is furnished in the door to ensure that your car can go in and go out safety without wear bump accident.

HOMEFRIEND & FUJI series car elevator has the characteristics of safety, reliability, stable and comfortable, and the mm-grade accuracy of leveling. For two points of not enough rigidity and the large torque of the ordinary car and the whole lift, we design the overall structure from analyzing the torque , and increase the quantity of the elevator guide rail, adopting a symmetric four rail or six rail,  not only improve the overall stiffness, but also reduce the torque, solve the unfavorable factors of car shaking. A light curtain protection device is furnished in the door to ensure that your car can go in and go out safety without wear bump accident.

In order to improve the safety of the car go in and go out,HOMEFRIEND & FUJI series car elevator make the extension of the VVVF control technology applied to the door machine system --VVVF speed control driving device controlling by computer from the elevator drive system, and connecting matched rod structure of door machine , that to make the elevator door switch more reliable, stable, flexible, and make the car entry and go out more freedom and safety.

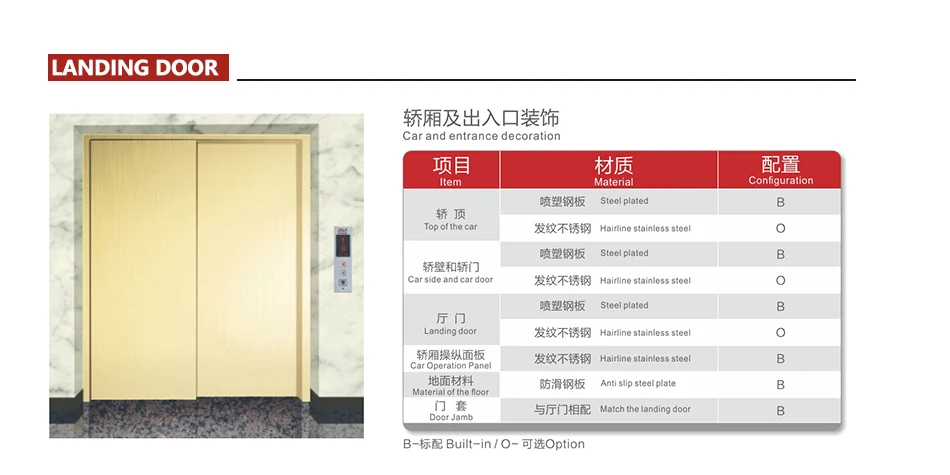

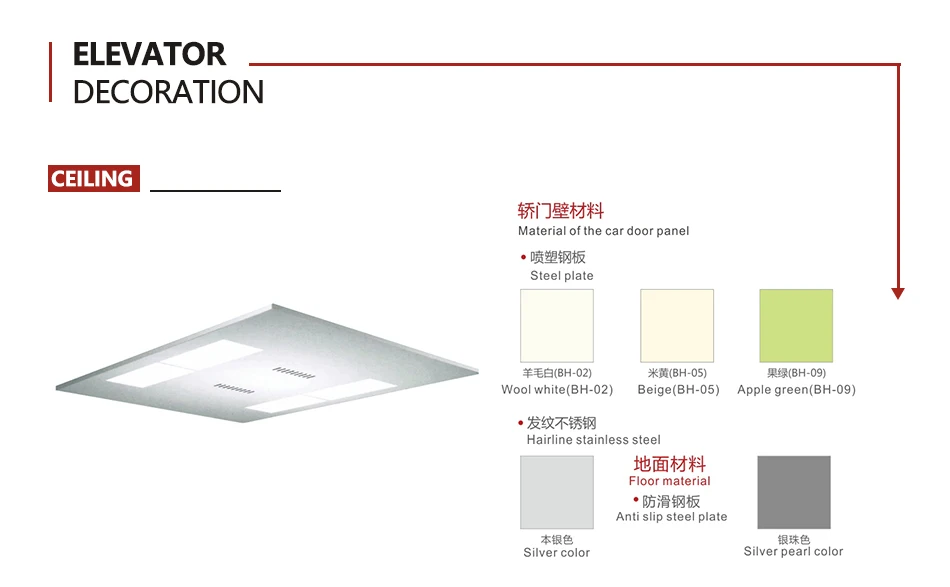

Auto elevator Decoration



At the same time, using a new-type data network system -- every floor of the elevator and the car, are equipped with computer control system (CPU), and connects through the serial transmission line, greatly reduces the connection between the various components, which makes the system control more efficient and accurate. The configuration of the diagnosis program and backup system between computers to ensure the high reliability of every elevator parts.



 Technical features and design style

Traction machine: worm-gear traction machine

Control Cabinet: International leading dual 32 bit CPU Control

frequency transformer: JFUJI Special Integrated controller.

Door machine: Permanent magnetic variable frequency driving door machine (DC door machine for optional)

Light Curtain: Infrared light curtain protection.

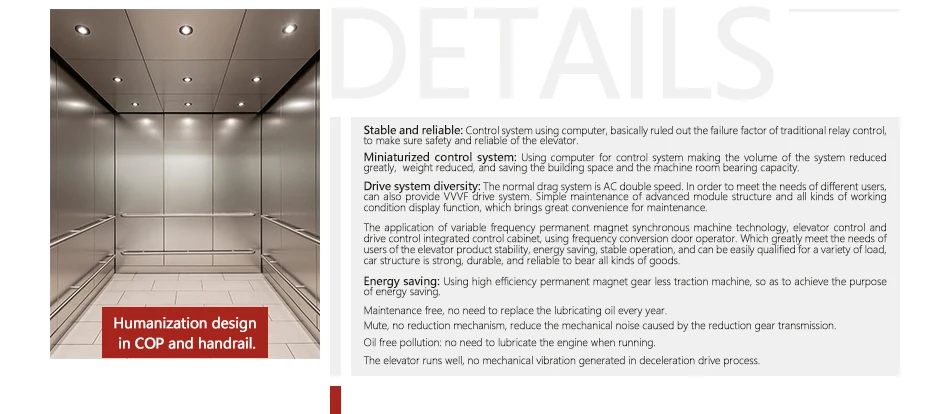

Stable and reliable:

Control system using computer, basically ruled out the failure factor of traditional relay control, to make sure safety and reliable of the elevator.



Miniaturized control system:

Using computer for control system making the volume of the system reduced greatly,  weight reduced, and saving the building space and the machine room bearing capacity.



Drive system diversity:

The normal drag system is AC double speed. In order to meet the needs of different users, can also provide VVVF drive system. Simple maintenance of advanced module structure and all kinds of working condition display function, which brings great convenience for maintenance.

The application of variable frequency permanent magnet synchronous machine technology, elevator control and drive control integrated control cabinet, using frequency conversion door operator. Which greatly meet the needs of users of the elevator product stability, energy saving, stable operation, and can be easily qualified for a variety of load, car structure is strong, durable, and reliable to bear all kinds of goods.



Energy saving: Using high efficiency permanent magnet gear less traction machine, so as to achieve the purpose of energy saving.

Maintenance free, no need to replace the lubricating oil every year.

Mute, no reduction mechanism, reduce the mechanical noise caused by the reduction gear transmission.

Oil free pollution: no need to lubricate the engine when running.

The elevator runs well, no mechanical vibration generated in deceleration drive process.

Our Company

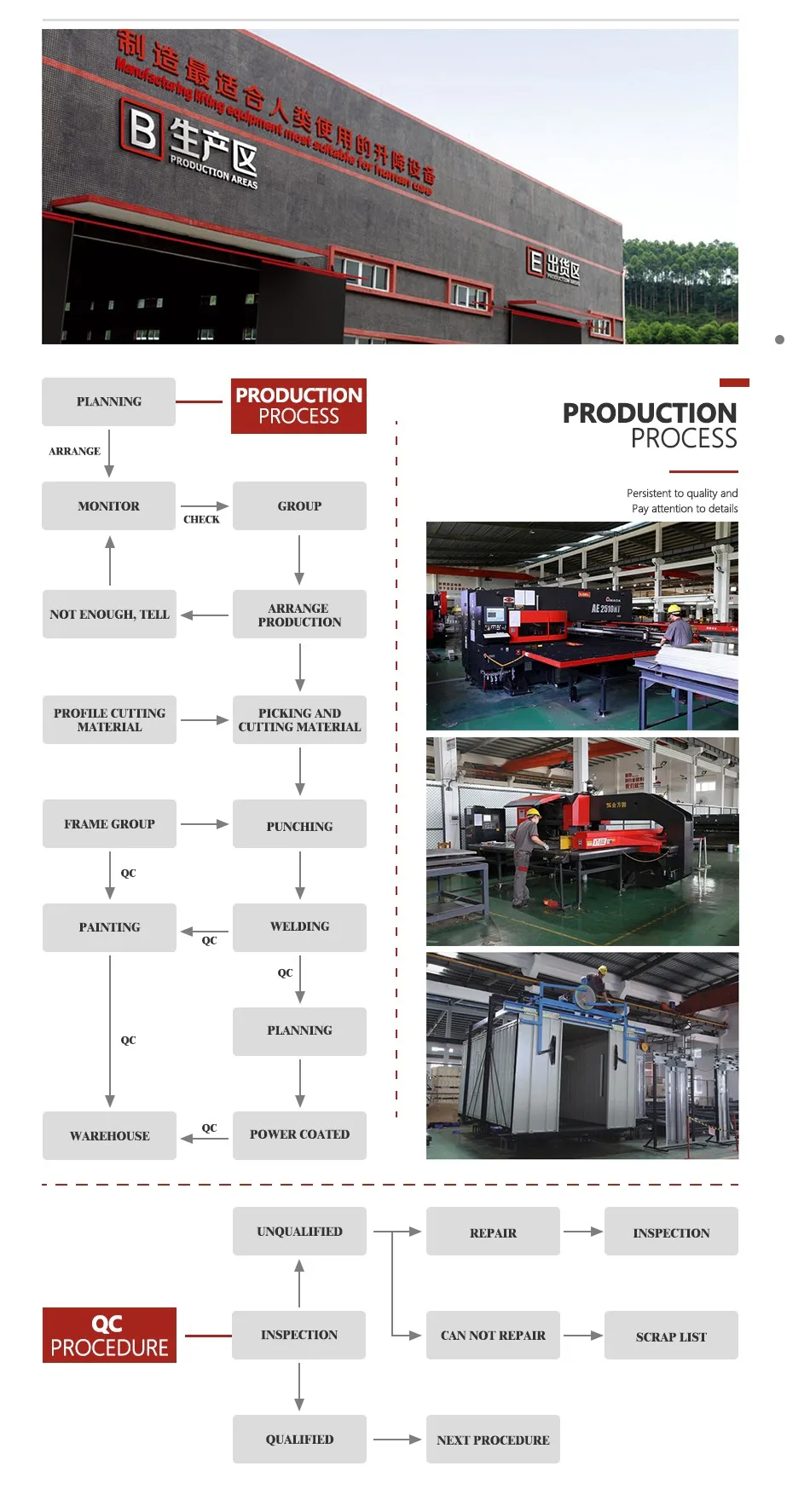

Production Process



Safety Protection



Overload protection: Overload buzzer alerts when car load exceeds the permissble upper load limit.In such a case, the elevator will display "Overload" and refuse to start up.

Drive overheating: Elevator will automatically enter into a protection state where motor temperature is higher than the per-defined value due to the excessively high temperate or operation induced heat in machine room.

Elevator will park at the nearest point, open the door for safe evacuation of passengers,and turn off the lamps and fans inside the car, after the temperature returns to normal level, the elevator will resume normal operation.

Terminal floor protection: If the running speed of elevator fails to reach the predetermined value when it arrives at terminal floor, the system will perform deceleration forcibly so as to assure the operation safety of elevator.

Car top inspection:Elevator car top is furnished with inspection box for more efficient inspection and maintenance.

Intercom: Maintain verbal communication with machine room and monitoring center through intercom arramged at car operation pannel,top, and bottom under special circumstances.

Fault self-diagnosis: When detecting control loop anomaly automatically, the control system will automatically stop  elevator to assure passenger's personal safety.

Local hall door opening: When the call buttoms of hall and elevators in the same direction are pressed during normal door closing process,the elevator will open the door again.

Car opening protection:Where the predetermined time is elapsed due to the failure to open the door because of mechanical jamming etc. internal and external cll signals will be automatically canceled, in which case the elevator car would move to the djacent floor, open the door and unload the passengers.

Grid filter monitoring: The system will automatically give an alarm in case of frequent grid voltage flutuations.



Certificate

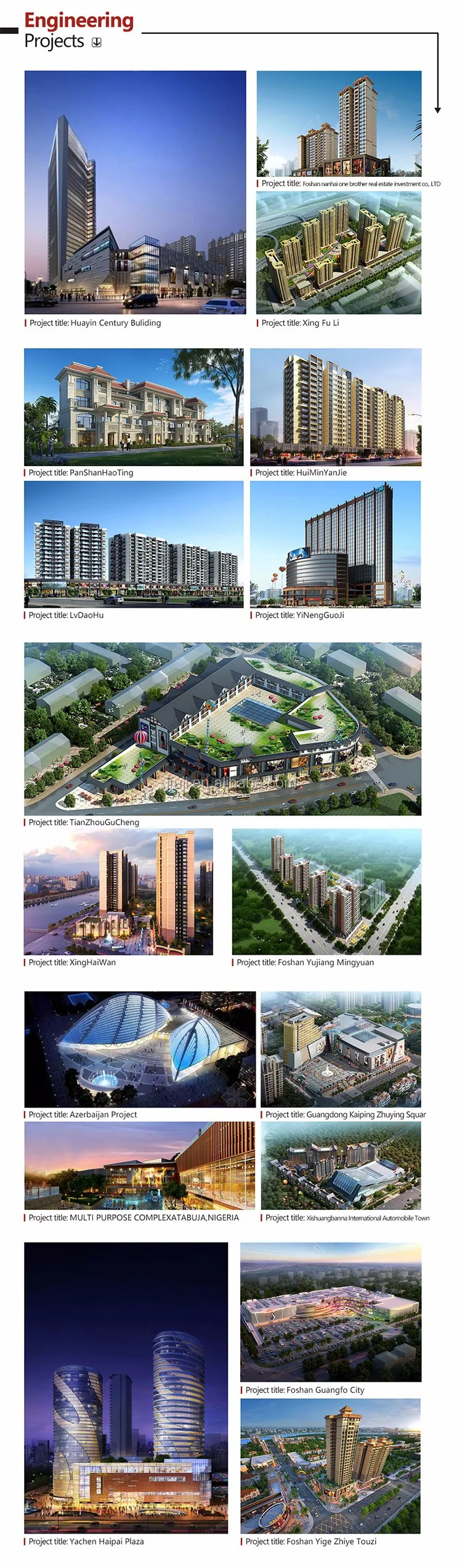

Engineering Projects







Exhibition Review



Our Services



Before Sale Service
1. Your inquiry of our villa elevator will be reply in 24 hours.
2. We will provide you with newest quotation and the specific product specifications.
3. Good quality product, quick delivery time, competitive price, strong packing.
4. We have good translations, enthusiastic sales and service who can speak fluently in English.
5. We offer OEM services.
6. Our engineers have R&D experiences and have strong ability to do ODM projects.
7. Every villa elevator will be checked well in order to ensure the high quality.





Transaction Details


1. Payment: TT: 30% down payment and balance fully paid before shipment.
2. Delivery time: within 40 days after receiving the deposit.
3. Shipping freight is quoted under your requests.
4. Shipping port: Foshan/Guangzhou/Shenzhen, China.
5. Discounts: We offer discount for mass order.



Q & A

9.FAQ:

1. Inquiry: Please send us inquiry from alibaba, we will send you quotation to you within 24 hours, when you sent us  inquiry, please offer quantity, load capacity, rated speed, and how many floors, stops, openings.

2. Production lead time: Standard product is about 25 days.

3. Package: plywood case for separate packing mode.

4. Payment: 30% T/T down payment and balance shall be paid before loading, please note that it will take 3-5 days for us to receive the dollar remittance, which not include the off day of bank.

5. Warranty period: 12 months after the delivery.

6. Installation and maintenance: We have the professional maintaining team, which can provide guidance for high  quality installation and maintenance.

7.Factory location: Foshan city which is one hour’s drive from Guangzhou city.

8.Port of loading: Guangzhou,Shenzhen,foshan or as request.
