Заводская цена, гомогенизатор высокого давления для Сывороточного Белка

Заводская цена, гомогенизатор высокого давления для Сывороточного Белка

Category: Homogenizer >>>
Supplier: Liaoyang Pharma Machinery Imp. & Exp. Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

Factory price high pressure homogenizer machine for whey protein

The JJ series homogenizer is the new product developed by our company based on the up-to-date international technology of 1990's. It is used to homogenize, emulsify, atomize and transport liquid materials whose viscosity is lower than 0.2P.aS, temperature is lower than 80℃ (liquid-liquid phase or liquid -solid phase).

In working, with the advance and return movement of plunger piston, open and close of rebound valve and covered core inside the pump, to control the slight clearance between the valve head and valve base inside the adjusting valve effectively, so as to form strong high-pressure energy. The materials could fulfill the purpose of homogenization and emulsification under the instant action of combined force of turbulent flow, shearing, collision, and cavity.

With the novel design, complete types, reliable performance, wide application scope, the product is the ideal equipment for micro-fabrication industries of foodstuff and beverage, medicament, chemical grease, etc.

Main Technical Data

Type	Flow	Maximum Pressure	Rated Pressure	Power rate of Motor	*Overall Dimension ( Length Width * Height )**	Main functions
SB-4/3	4000	3	3	5.5	1590860630	Material transportation
SB-3/10	3000	10	10	11	16458501030	Material transportation
JJ-0.3/25	300	25	20	3.0	960540980	Homogenizing, emulsifying, atomizing
JJ-0.5/25	500	25	20	5.5	960540980	Homogenizing, emulsifying, atomizing
JJ-1/25	1000	25	20	7.5	10306501120	Homogenizing, emulsifying, atomizing
JJ-1.5/25	1500	25	20	11	1030745990	Homogenizing, emulsifying, atomizing
JJ-2/25	2000	25	20	18.5	131511001290	Homogenizing, emulsifying, atomizing
JJ-2.5/25	2500	25	20	22	131511001290	Homogenizing, emulsifying, atomizing
JJ-3/25	3000	25	20	30	131514801400	Homogenizing, emulsifying, atomizing
JJ-4/25	4000	25	20	37	163014802050	Homogenizing, emulsifying, atomizing
JJ-5/25	5000	25	20	45	163014802050	Homogenizing, emulsifying, atomizing
JJ-8/25	8000	25	20	75	203414172246	Homogenizing, emulsifying, atomizing
JJ-10/25	10000	25	20	90	344020301538	Homogenizing, emulsifying, atomizing
JJ-12/25	12000	25	20	110	344020301538	Homogenizing, emulsifying, atomizing
JJ-16/25	16000	25	20	160	368020101824	Homogenizing, emulsifying, atomizing
JJ-0.5/30	500	25	20	5.5	960540980	Homogenizing, emulsifying, atomizing
JJ-1/30	1000	30	25	160	1030745990	Homogenizing, emulsifying, atomizing
JJ-2/30	2000	30	25	22	368020101824	Homogenizing, emulsifying, atomizing
JJ-3/30	3000	30	25	30	131514801400	Homogenizing, emulsifying, atomizing
JJ-4/30	4000	30	25	45	163014802050	Homogenizing, emulsifying, atomizing
JJ-5/30	5000	30	25	55	163014802050	Homogenizing, emulsifying, atomizing
JJ-6/30	6000	30	25	75	203414172246	Homogenizing, emulsifying, atomizing
JJ-8/30	8000	30	25	90	203414172246	Homogenizing, emulsifying, atomizing
JJ-10/30	1000	30	25	110	343020301538	Homogenizing, emulsifying, atomizing
JJ-12/30	12000	30	25	132	368020101824	Homogenizing, emulsifying, atomizing
JJ-14/30	14000	30	25	160	368020101824	Homogenizing, emulsifying, atomizing
JJ-0.5/40	500	40	35	7.5	10306501120	Homogenizing, emulsifying, atomizing
JJ-1/40	1000	40	35	15	131511001290	Homogenizing, emulsifying, atomizing
JJ-1.5/40	1500	40	35	22	131511001290	Homogenizing, emulsifying, atomizing
JJ-2/40	2000	40	35	30	131514801400	Homogenizing, emulsifying, atomizing
JJ-2.5/40	2500	40	35	37	131514801400	Homogenizing, emulsifying, atomizing
JJ-3/40	3000	40	35	45	163014802050	Homogenizing, emulsifying, atomizing
JJ-3.5/40	3500	40	35	55	163014802050	Homogenizing, emulsifying, atomizing
JJ-4/40	4000	40	35	55	163014802050	Homogenizing, emulsifying, atomizing
JJ-5/40	5000	40	35	75	200314692246	Homogenizing, emulsifying, atomizing
JJ-6/40	6000	40	35	90	200314692246	Homogenizing, emulsifying, atomizing
JJ-8/40	8000	40	35	110	203414172246	Homogenizing, emulsifying, atomizing
JJ-10/40	10000	40	35	160	368020101824	Homogenizing, emulsifying, atomizing
JJ-12/40	12000	40	35	160	368021001824	Homogenizing, emulsifying, atomizing
JJ-1/50	1000	50	45	18.5	131511001290	Homogenizing, emulsifying, atomizing
JJ-6/50	6000	50	45	110	200314692246	Homogenizing, emulsifying, atomizing
JJ-0.06/60	50	60	50	2.2	950610970	Homogenizing, emulsifying
JJ-0.1/60	100	60	50	3	950610970	Homogenizing, emulsifying
JJ-0.5/60	500	60	50	11	131511001290	Homogenizing, emulsifying, atomizing
JJ-1/60	1000	60	50	22	131511001290	Homogenizing, emulsifying
JJ-1.5/60	1500	60	50	30	131514801400	Homogenizing, emulsifying, atomizing
JJ-2/60	2000	60	50	37	131514801400	Homogenizing, emulsifying, atomizing
JJ-3/60	3000	60	50	75	163014802050	Homogenizing, emulsifying
JJ-4/60	4000	60	50	90	200314692246	Homogenizing, emulsifying
JJ-6/60	6000	60	50	160	368020101824	Homogenizing, emulsifying, atomizing
JJ-1/70	1000	70	60	37	131514801400	Homogenizing, emulsifying
JJY-2/25	2000	25	20	22	131514801400	Homogenizing of grease and sticky materials
JJY-4/25	4000	25	20	37	171511001592	Homogenizing of grease and sticky materials
JJY-1/50	1000	50	45	18.5	131514801400	Homogenizing of grease and sticky materials
JJY-0.5/60	500	60	50	11	131511001290	Homogenizing of grease and sticky materials

Product Picture

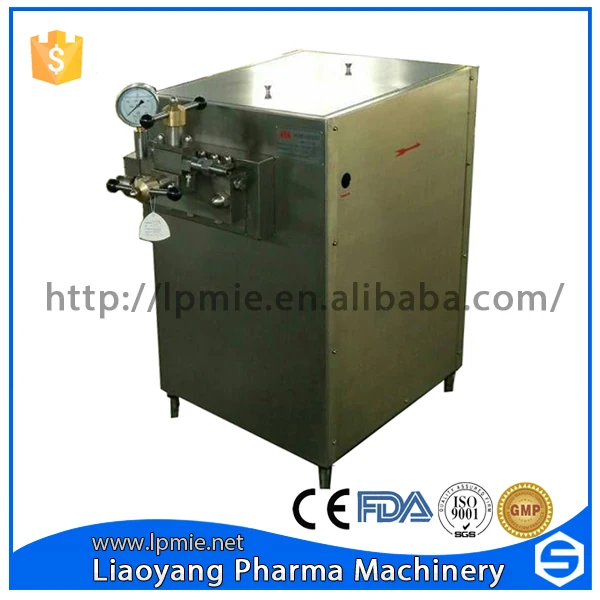

high pressure homogenizer.jpg

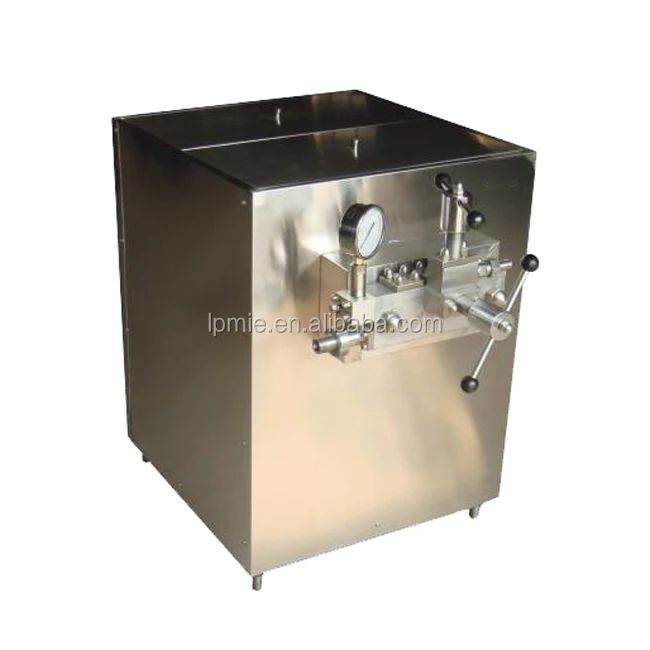

homogenizer (1).jpg

Packaging & Shipping

Packaging:

Whole machine and every parts wrapped by plastic film for dusting-proof.

Packed in export standard wooden case with pallet, conducive to forklift handling.

packing

Shipping:

Shipping method: by sea, by air, by international express company.

Delivery time: 30-45 days after order confirm.

Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.

shiping

Our Services

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1, Technical support by phone, email or MSN/Skype around the clock

2, Friendly English version manual and operation video CD disk

3, Engineer available to service machinery overseas

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.

You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.

our service
