Battery powered vacuum lifter for 1500kg loading

Product Overview

Description

Main specifications:



l         Dual vacuum system

l         1500 kg maximum carrying capacity

l         including one width extension each on both sides

l         14 of diameter 310mm suction cups, 10 of them mounted on main frame, the other 4 cups mounted on the extension arms

l         DC12V powered hydraulic pump station,0.75KW

l         Dual 12V vacuum pump

l         2 of DC 12V, 500W, powered motor with gear for rotation 360°

l         Hydraulic ram for tilting 90°

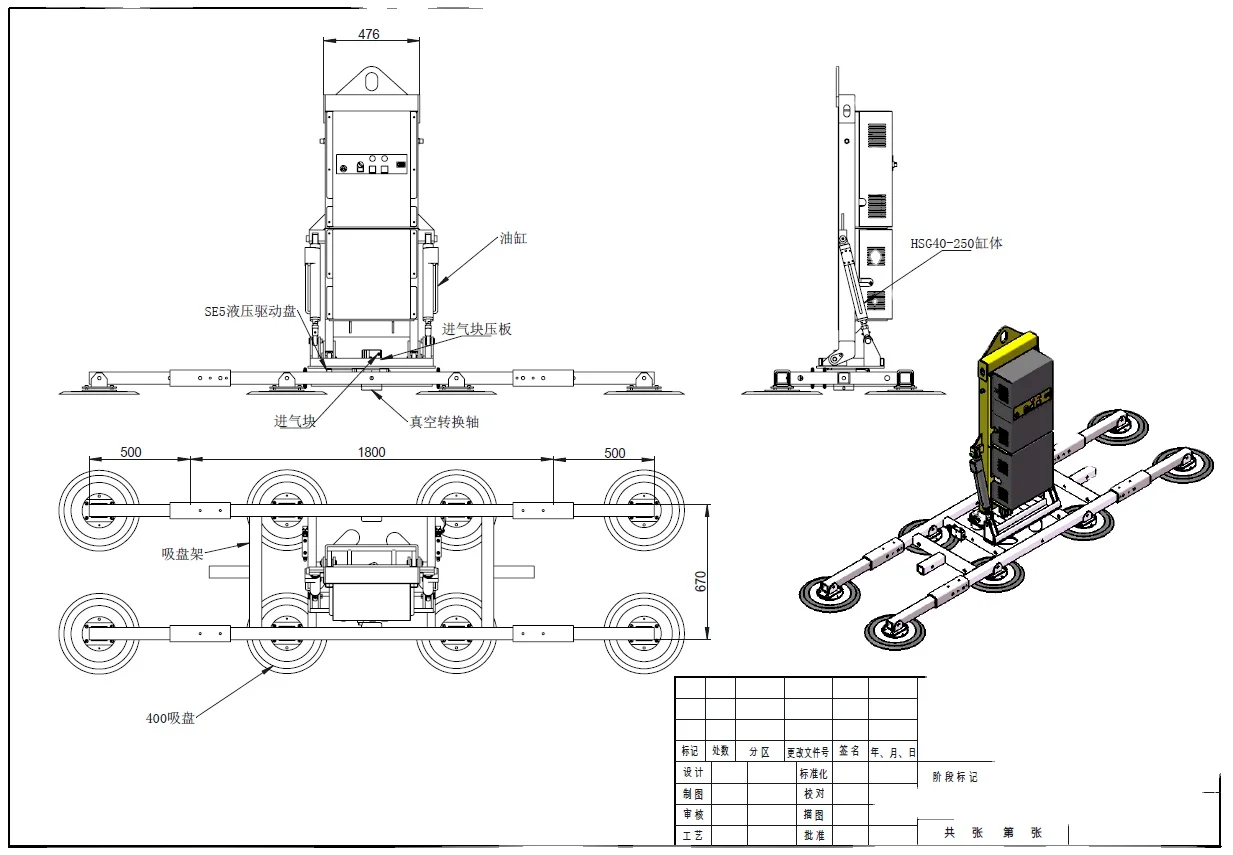

l         frame: 1225x862x370

l         including one width extension: 3000 x 862x370

l         Wired remote control for vacuum release, hydraulic tilting and motor rotating

l         2 of High volume DC battery, DC12V, 55ah

l         Battery charger of AC110-230V input, 15Ah
