Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;Meshing gear shift, gear brake mechanism to ensure that the product is durable.
MODEL | HR120/130/150 | ||
Overall dimensions:(L×W×H) | 2140×905×1175mm Without tiller | ||
Overall dimensions:(L×W×H) | 2600×1000×1175mm With tiller | ||
Front wheel size | 4.00-8/4.00-12 | ||
Back wheel size | 6.00-12/6.50-16 | ||
Ground clearance | 180mm | ||
Working weight (with rotary tiller,plough) | 483kg/538kgs | ||
Working weight (without anything) | 433kg/488kgs | ||
Transmission style | Vee-belt tension | ||
Vee-belt model | B3200 | ||
Steering style | Steering wheel power steering system | ||
Brakes | Two side wheel brake | ||
Starter | Electric start | ||
Seat | Adjustable | ||
Gear style | (3+1)*2; 6 Forward, 2 Reverse | ||
Speed | Forward | 1.68, 2.61, 4.22, 6.79, 10.57, 17.08 | |
Reverse | 1.29, 5.22 | ||
Rotary tiller | Transmission Type | Middle Gears Transmission | |
Width | 1000mm Adjustable | ||
Number of blades | 20pcs | ||
Working depth | 150-250mm | ||
Up and down control | Hydraulic system | ||
Engine | Model | R195NDL | |
Type | 1cylinder,4-stroke,horizontal,water-cooled,diesel | ||
Cooling mode | Condenser (Radiator) | ||
1 hour power | 8.8kw/12hp | ||
12 hour power | 8kw/10.38hp | ||
Combustion system | Direct Injection | ||
Cylinder bore | 95mm | ||
Piston stroke | 95mm | ||
Compression ratio | 18:01 | ||
Rated speed | 2400rpm | ||
Fuel efficiency: | ≤245g/kw.hr | ||
Displacement | 0.694L | ||
Main farm implements | |||
Seeder | Single Plow | Mower | 1 Ton Trailer |

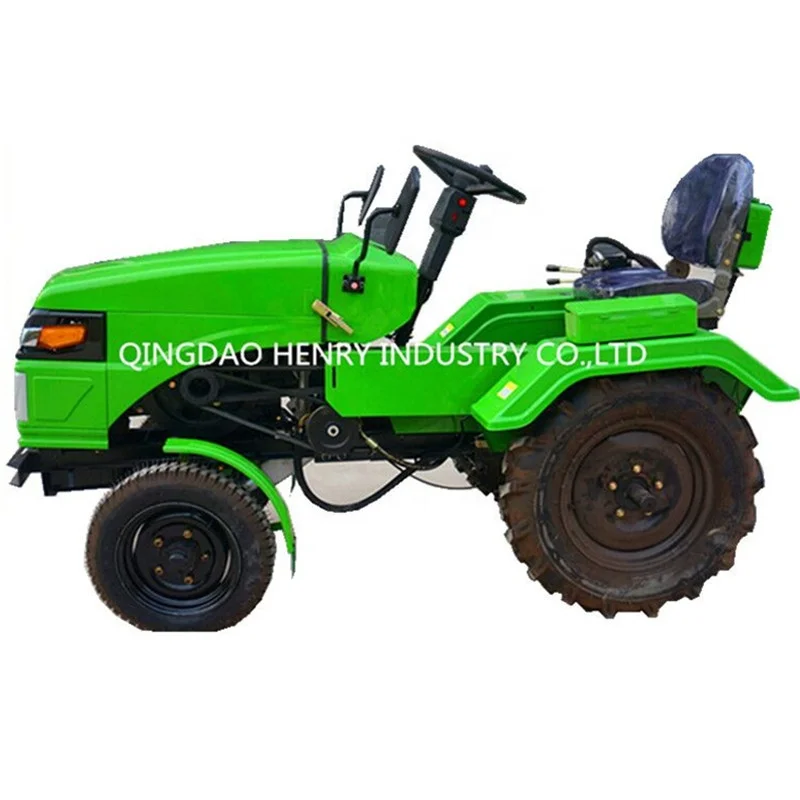

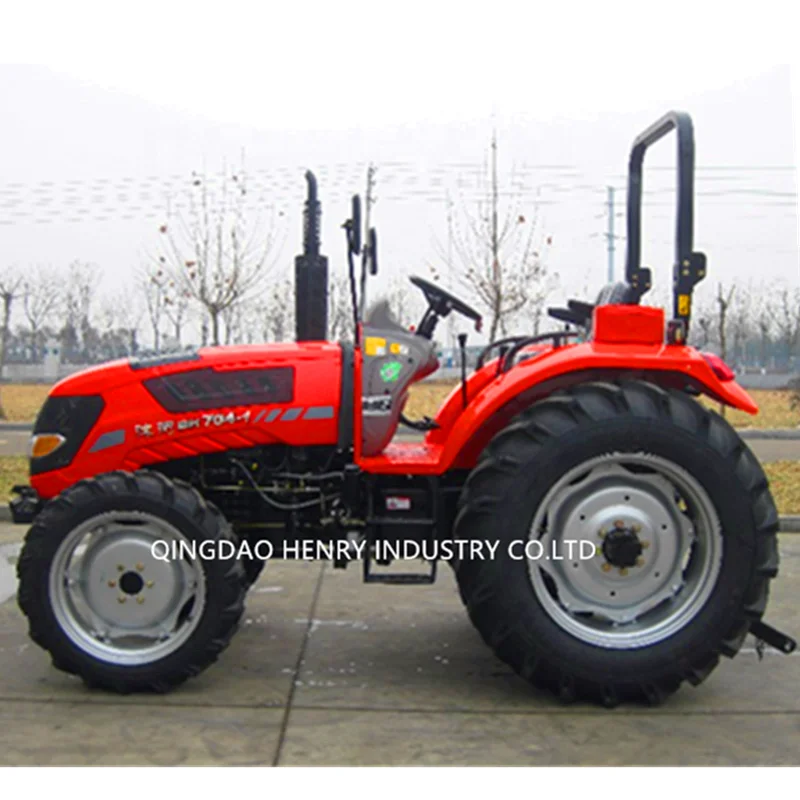

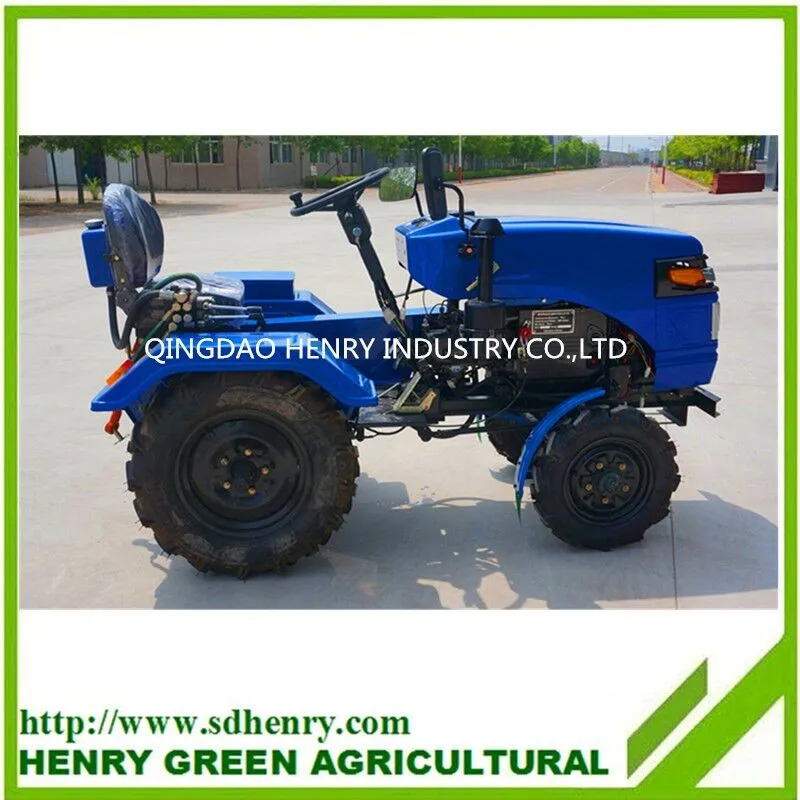

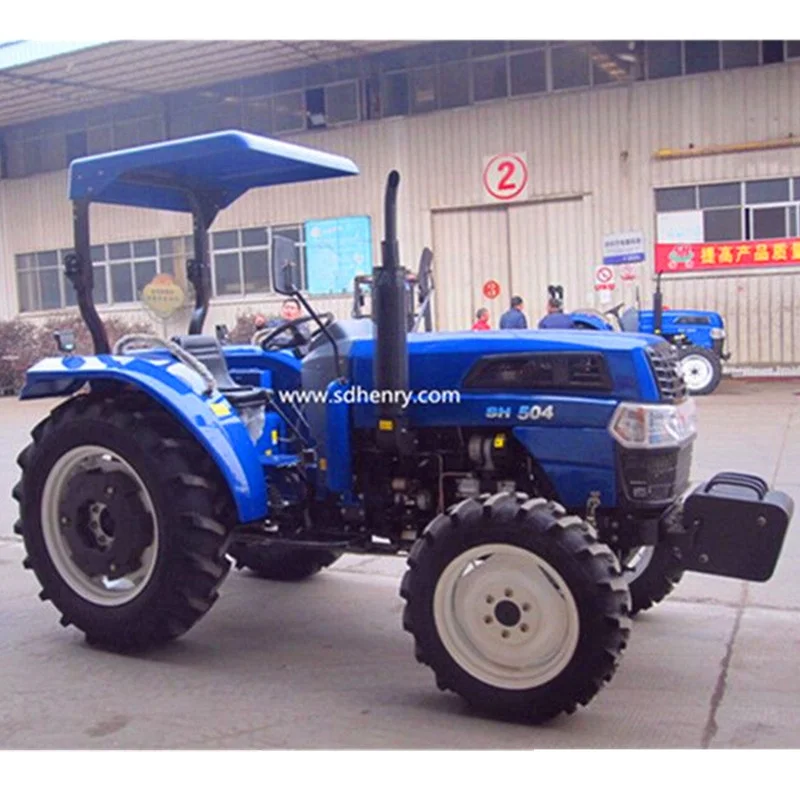

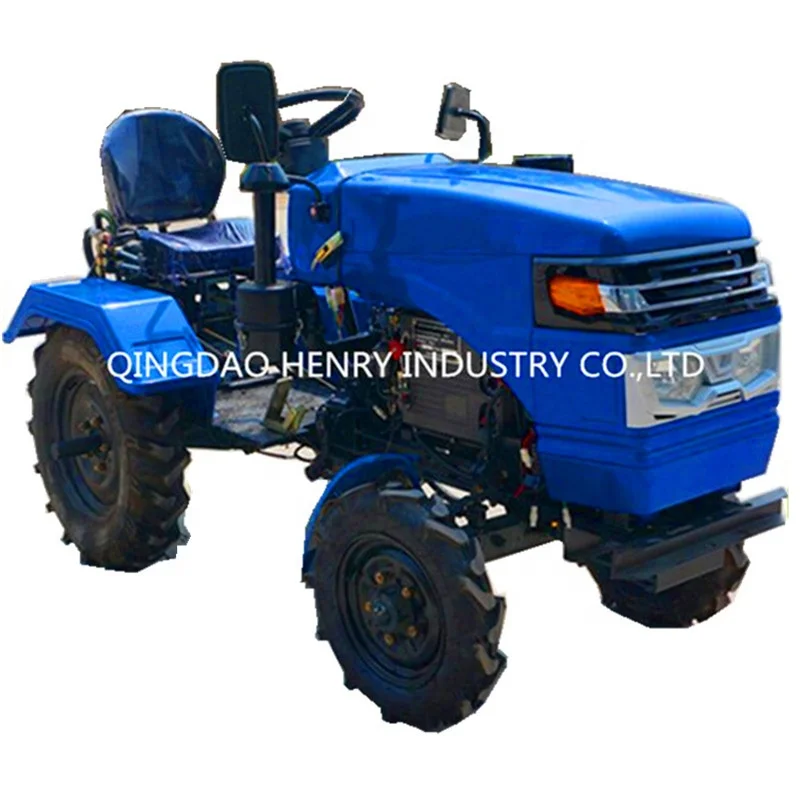

MODEL SHOW:

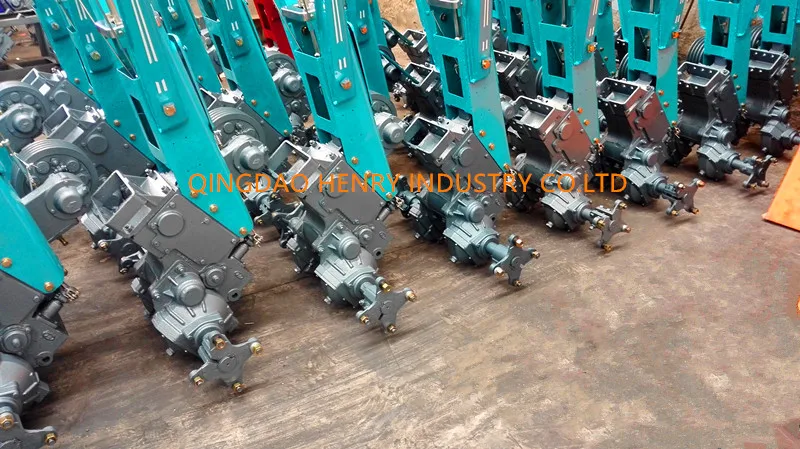

CHOICE OF TOOLS:

OUR COMPANY SHOW:


FACTORY SHOW:
Established in 2005,is a professional manufacturer of agricultural machinery in china. About 1000 employees.






PACKING SHOW:




WHY CHOOSE US?
1. we are china leading manufacturer.
2. Alibaba assessed 5 year Gold supplier.
3. Inspection can accept BV or SGS.
4. 100% QC inspecition before shipment.
5.Best quality and best service with competitive price.
