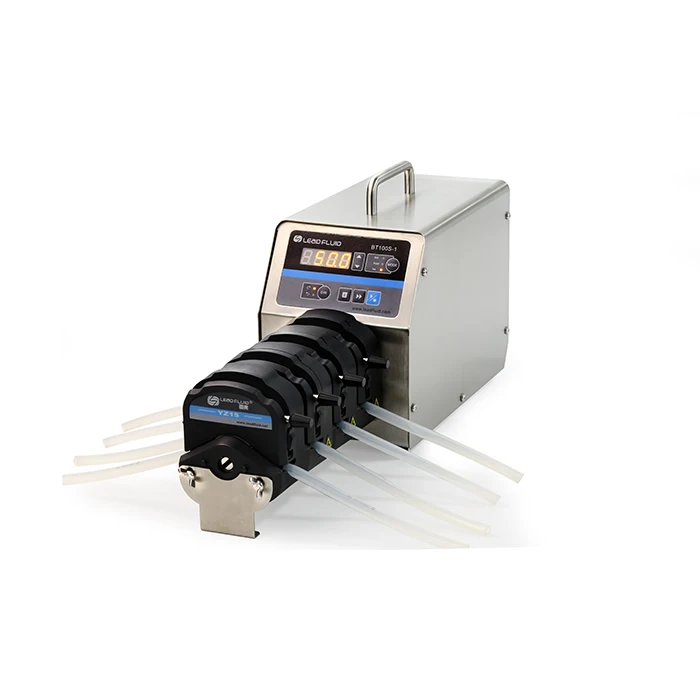

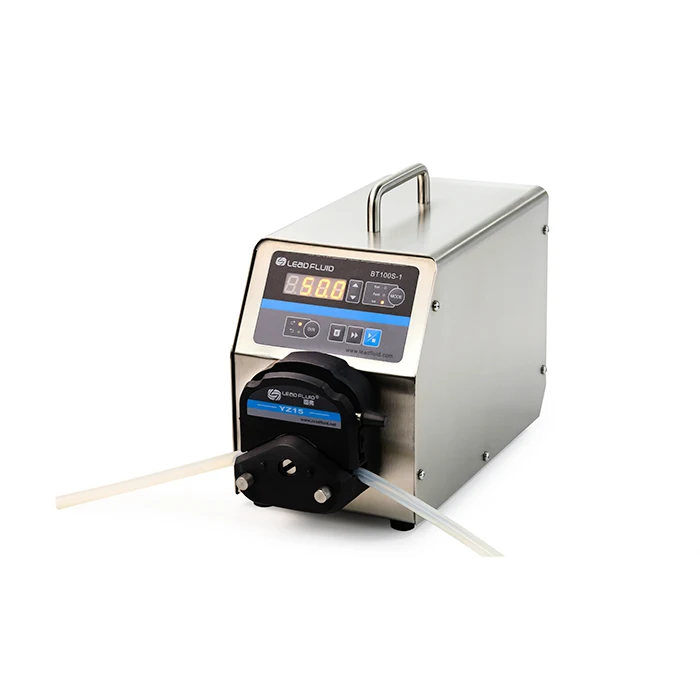

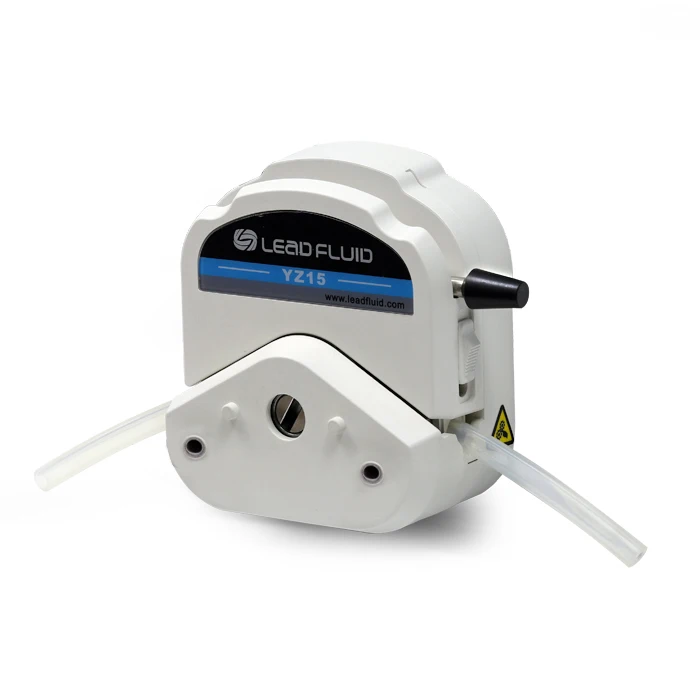

lead fluid dual channel peristaltic pump large torque Peristaltic Pump BT100S 1 with YZ15 heads flow:1700ml per min
- Category: >>>
- Supplier: Baoding Lead Fluid Technology Co. Ltd.
Share on (60660446111):
Product Overview
Description
Product Description
* Four-figure digital LED indicator displays working speed.
* LED indicator displays the reversible direction, internal control, external control, footswitch and other working mode.
* Start/stop, reversible direction, full speed, adjust speed, state memory (power down memory).
* Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
* The speed resolution is 0.1-100 rpm, the speed resolution is 0.1 rpm.100-150 rpm, the speed
resolution is 1 rpm.
* Large torque, can drive multi-channels and various types of pump heads.
* Super anti-interference feature, wide input voltage range, acceptable for complex power
environment.
* External high-low electrical level controls the start/stop, reversible direction and easy
dispensing function, optically coupled isolator, external analog adjusts the rotate speed.
* RS485 interface, MODBUS protocol is available, easy to connect other equipments.
* External foot switch can control start-stop or time dispensing can control start-stop and realize simple dispensing filling function.
* LED indicator displays the reversible direction, internal control, external control, footswitch and other working mode.
* Start/stop, reversible direction, full speed, adjust speed, state memory (power down memory).
* Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
* The speed resolution is 0.1-100 rpm, the speed resolution is 0.1 rpm.100-150 rpm, the speed
resolution is 1 rpm.
* Large torque, can drive multi-channels and various types of pump heads.
* Super anti-interference feature, wide input voltage range, acceptable for complex power
environment.
* External high-low electrical level controls the start/stop, reversible direction and easy
dispensing function, optically coupled isolator, external analog adjusts the rotate speed.
* RS485 interface, MODBUS protocol is available, easy to connect other equipments.
* External foot switch can control start-stop or time dispensing can control start-stop and realize simple dispensing filling function.
DG pump head
Tubing:wall 0.8-1,ID≤3.17
Flow range:0.0002-49ml/min
YT pump head
Number of channel:1,2,4
Tubing:15#24#35#36#
Flow range:0.16-720ml/min
Flow range:0.16-720ml/min
KZ25 pump head
Tubing:15#24#35#36#
Flow range:1-1700ml/min
Flow range:1-1700ml/min
Specification
Flow range | 0.0001-1700 ml/min |
Speed accuracy | ＜±0.5% |
Speed range | 0.1～150 rpm |
Speed resolution | 0.1 rpm |
Power supply | AC 100～240V 50Hz/60Hz |
Power consumption | ＜60W |
External control: | external control input electrical level 5V, 12V(standard), 24V(optional). External control analog 0-5V(standard), 0-10V,4-20mA (optional) |
Communication interface | RS485 communication interface, MODBUS protocol is available |
Environment temperature | 0 ～ 40℃ |
Relative humidity | ＜80% |
IP grade | IP31 |
Dimension | （L×W×H）278mm×150mm×237mm |
Weight: | 4.7KG |
Flow Parameters
Drive Type | Pump Head | Channel | Tube（mm） | Single Channel Flow Rate（mL/min） |
DG (6 Rollers) | 8, 12, 16, 24 | Wall thickness 0.8～1，ID≤3.17 | 0.0002～49 | |
DG (10 Rollers) | 8, 12, 16, 24 | Wall thickness 0.8～1，ID≤3.17 | 0.0001～41 | |
DT10-88 | 8 | 13#14#Wall thickness 0.8～1，ID≤3.17 | 0.0002～82 | |

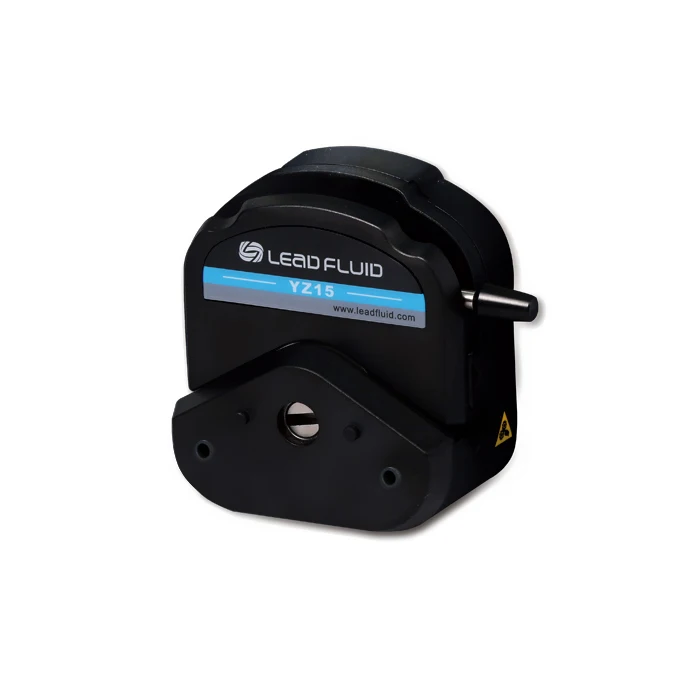

YZ15 | 1, 2, 4 | 13#14#16#19#25#17#18# | 0.006～570 | |
YZ25 | 1, 2, 4 | 15#24# | 0.16～420 | |
YT15 | 1, 2, 4 | 13#14#16#19#25#17#18# | 0.006～570 | |
YT25 | 1, 2, 4 | 15#24#35#36# | 0.16～720 | |
KZ25 | 1, 2 | 15#24#35#36# | 1～1700 | |
DT15-44 | 4 | 19#16#25#17# | 0.07～560 |

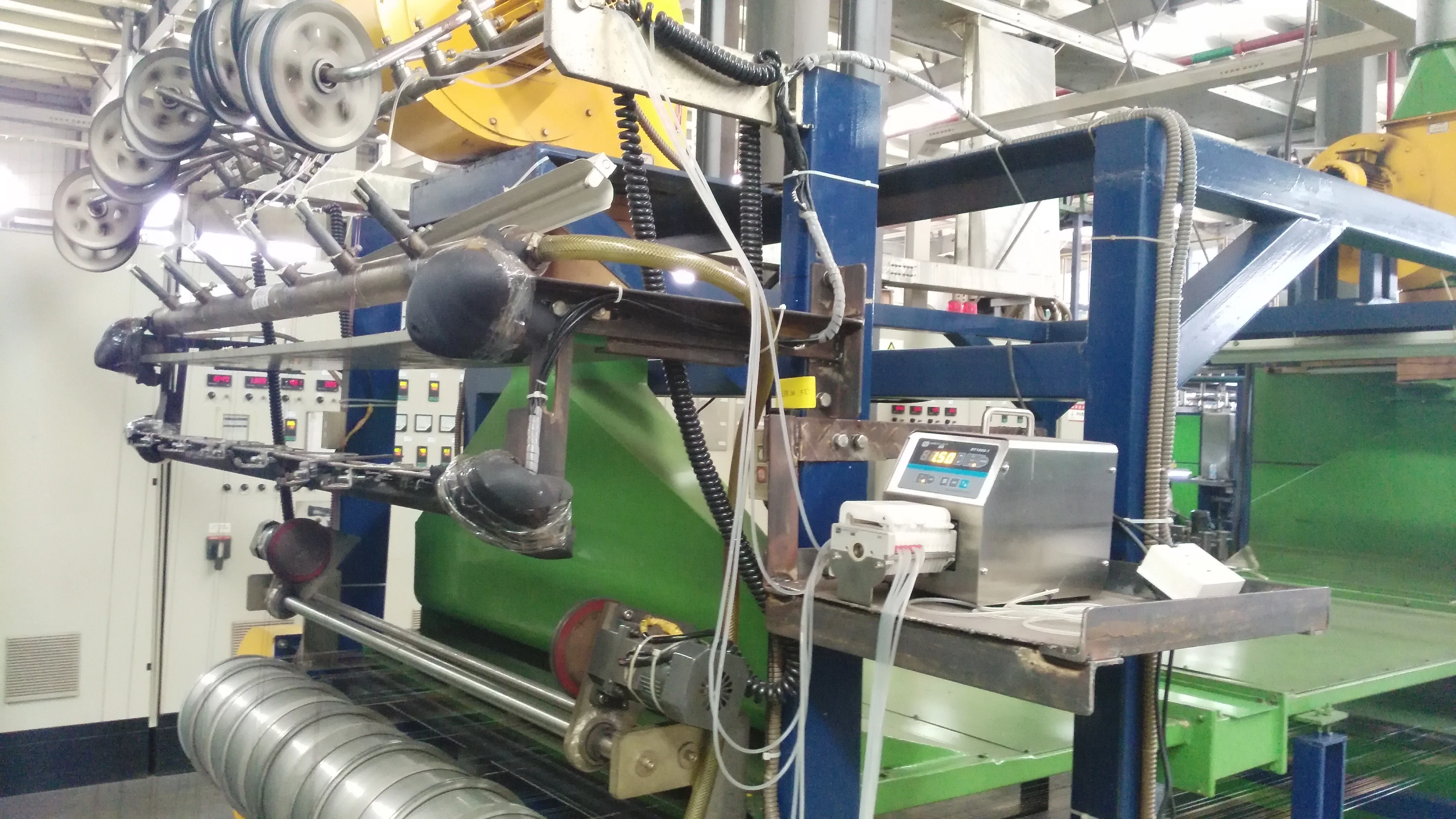

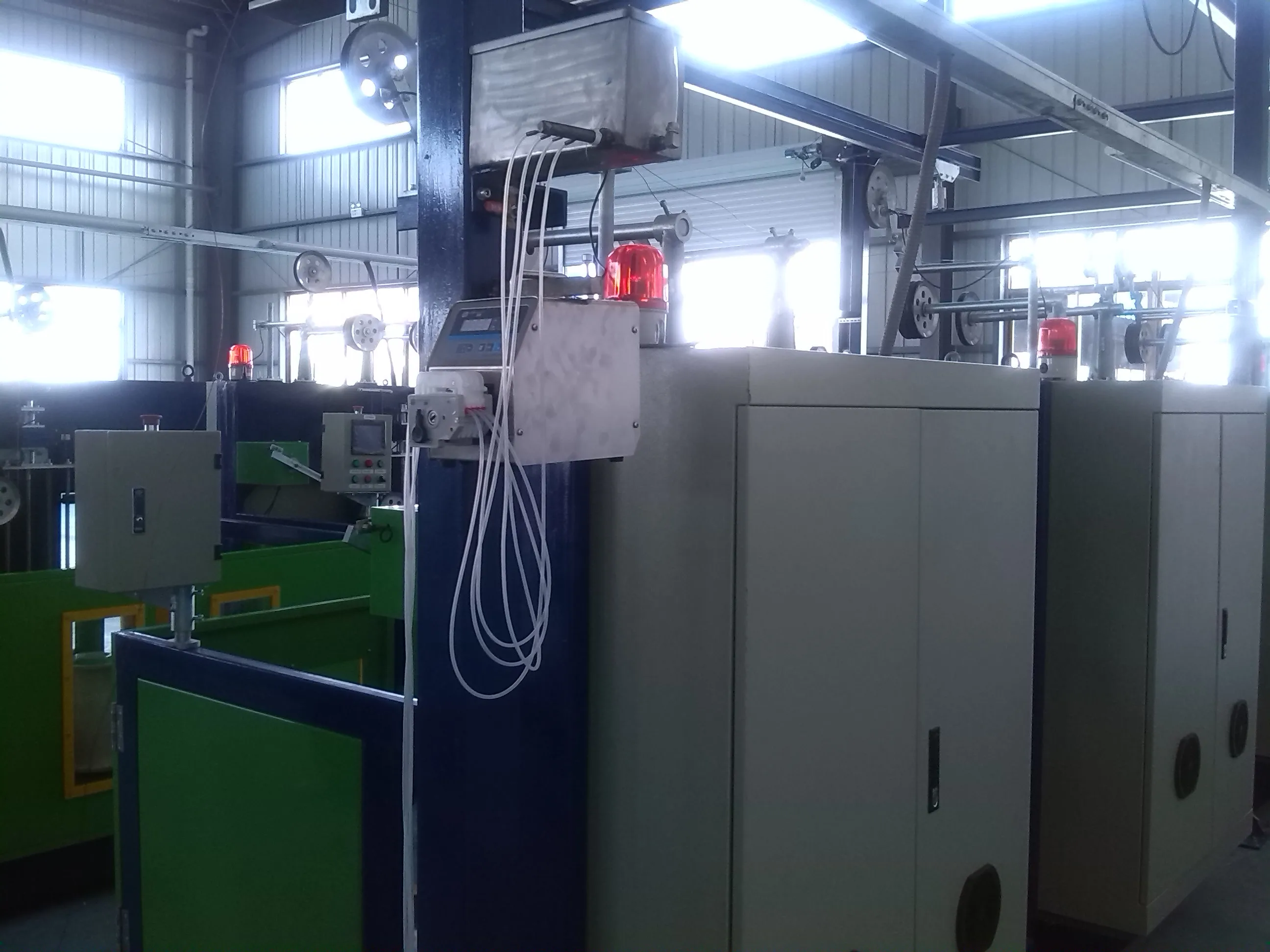

Application
Lead Fluid peristaltic pump widely used in laboratory research, environmental, industrial, chemical, food and beverage, pharmacertical. Complete and mature product development experience can provide you with fast application guidance and suggestions for peristaltic pumps and syringe pumps, and provide users with high-quality, high-precision, and cost-effective fluid transfer solutions.
Company Profile
Baoding Lead Fluid Technology Co., Ltd. focuses on the design, development, manufacturing and marketing of peristaltic pumps and precision syringe pumps, and has been committed to providing users with high-quality products and perfect technical services. In addition to having the most complete series of peristaltic pumps and syringe pump product lines, Lead Fluid can also provide OEM customized services according to user needs. Lead Fluid's mature product development experience can provide you with fast application guidance and suggestions for peristaltic pumps and syringe pumps, and provide users with high-quality, high-precision, and cost-effective fluid delivery solutions.
