NNC high Power Relay NNC71A(JQX 30F), electromagnetic relay 24V
- Category: >>>
- Supplier: Clion Electric Co. Ltd.
Share on (60660447352):
Product Overview
Description
NNC Power Relay NNC71A(JQX- 30F), electromagnetic relay dpdt relay 24V
Banner

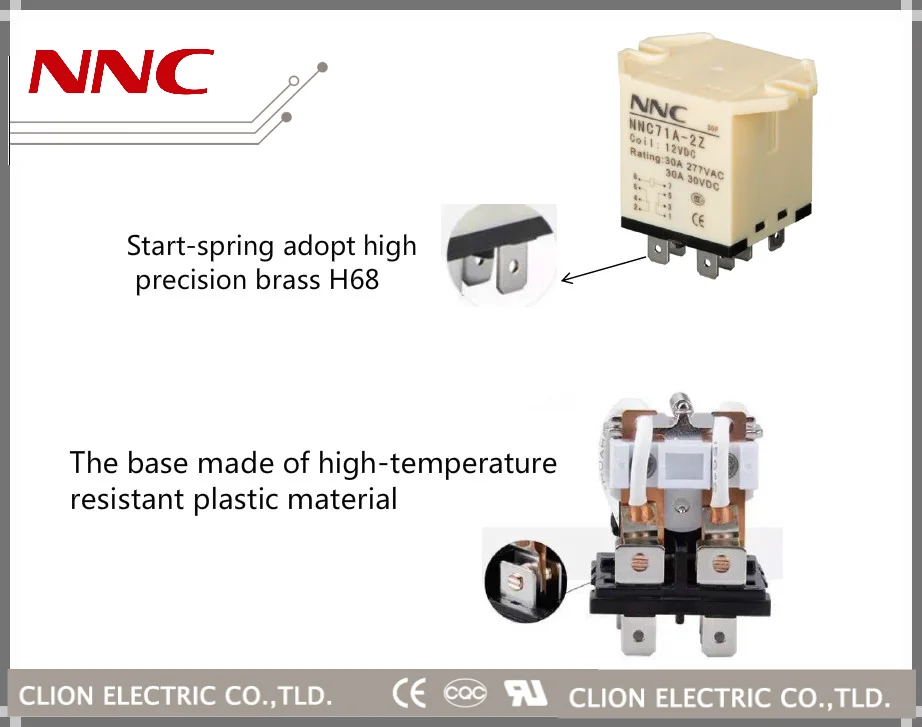

Product display
Product display

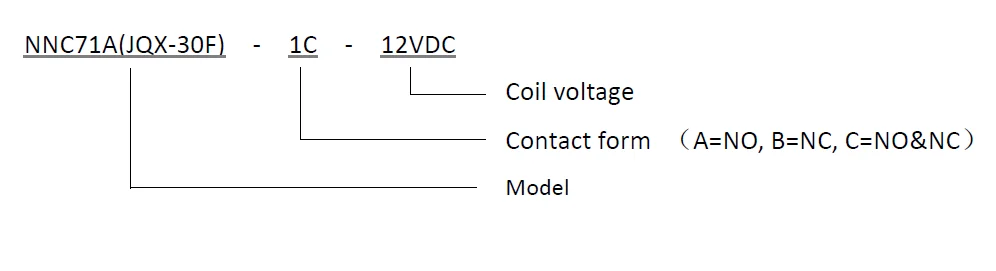

Model Description
Part NO. | NNC71A(JQX-30F) | ||||
Dimension | 43*35.5*48 | ||||
Contact Feature | Form | 1A,1B,1C | 2A,2B,2C | ||
Rated load | 30A/240VAC 28VDC | ||||
Contact resistance | ≤100mΩ | ||||
Material | Silver Alloy | ||||
Electrical life | ≥1*105 | ||||
Mechanical life | ≥1*107 | ||||
Operate voltage (25 ℃) | DC: ≤75%*Rated voltage | ||||
AC: ≤80%*Rated voltage | |||||
Release voltage (25 ℃) | DC: ≥10%*Rated voltage | ||||
AC: ≥30%*Rated voltage | |||||
Maximum voltage (25 ℃) | 110%*Rated voltage | ||||
Normal coil voltage | DC | 6-220V | |||
AC | 6-380V | ||||
Normal coil power | DC | 2.0W | |||
AC | 4VA | ||||
Pick-up time(Rated voltage) | ≤30ms | ||||
Release time(Rated voltage) | ≤20ms | ||||
Dielectric strength | Between Same-pole contacts | 1500VAC/1min(leakage current 1mA) | |||
Between Opposite-pole contacts | 1500VAC/1min(leakage current 1mA) | ||||
Between contacts and coil | 2500VAC/1min(leakage current 1mA) | ||||
Insulation resistance | ≥500mΩ(500VDC) | ||||
Ambient temperature | -25 ℃ ~55℃ | ||||
Ambient humidity | 25%-75%RH | ||||
Atmospheric pressure | 86-106KPa | ||||
Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||||
Vibration resistance | 10-55Hz (double amplitude: 1.0mm) | ||||
Installation | PCB,SCREW | ||||

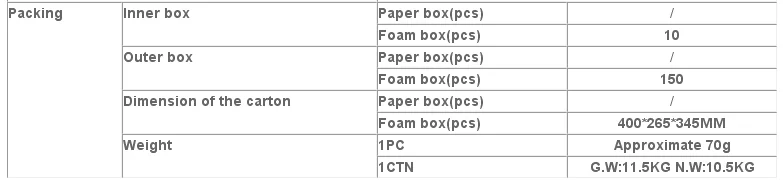

Packing | Inner box | Paper box(pcs) | / | ||
Foam box(pcs) | 10 | ||||
Outer box | Paper box(pcs) | / | |||
Foam box(pcs) | 150 | ||||
Dimension of the carton | Paper box(pcs) | / | |||
Foam box(pcs) | 400*265*345MM | ||||
Weight | 1PC | Approximate 70g | |||
1CTN | G.W:11.5KG N.W:10.5KG | ||||
