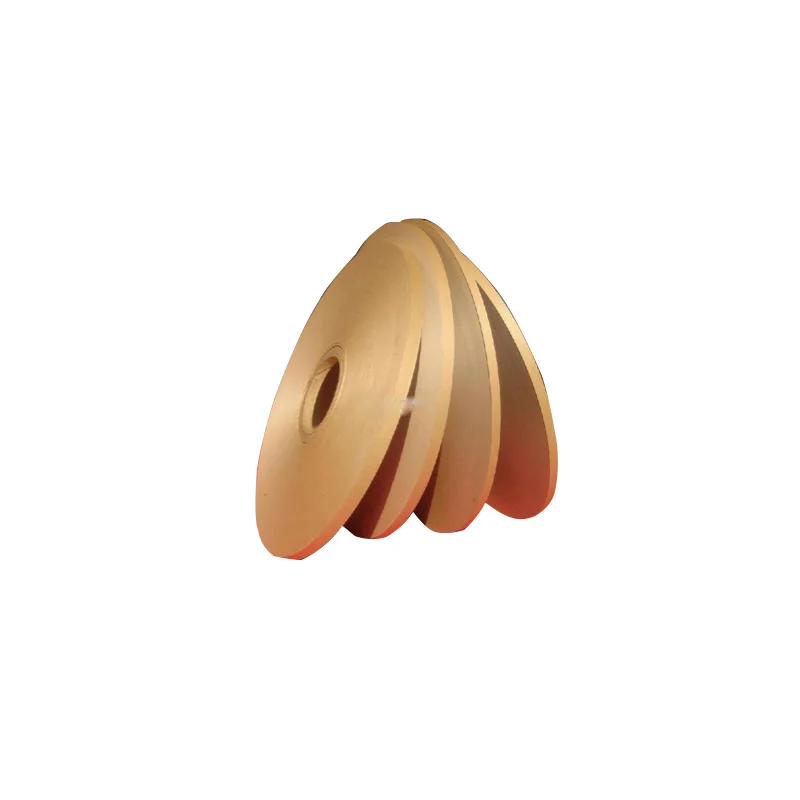

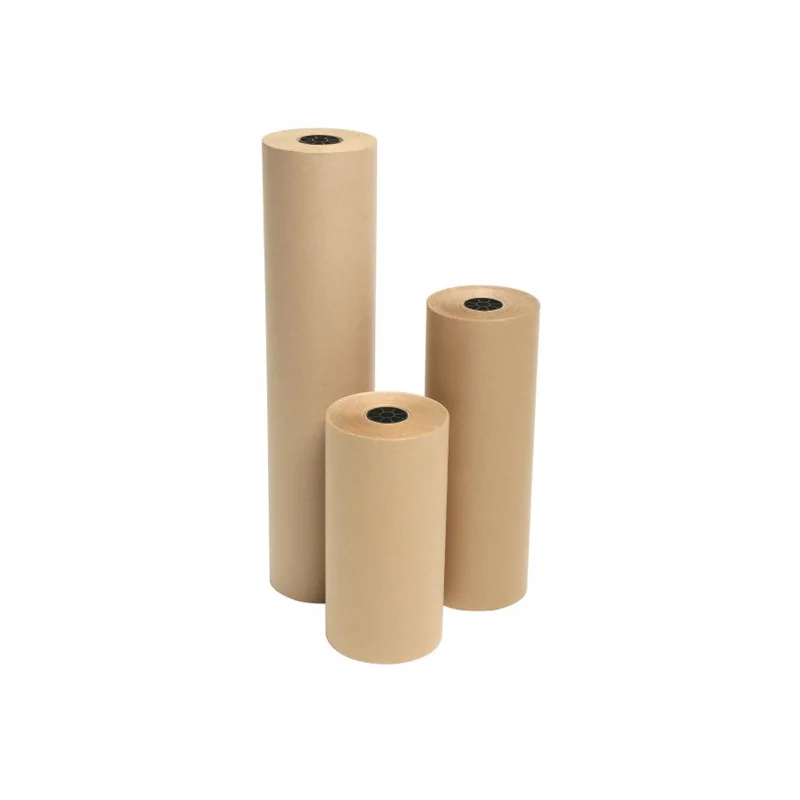

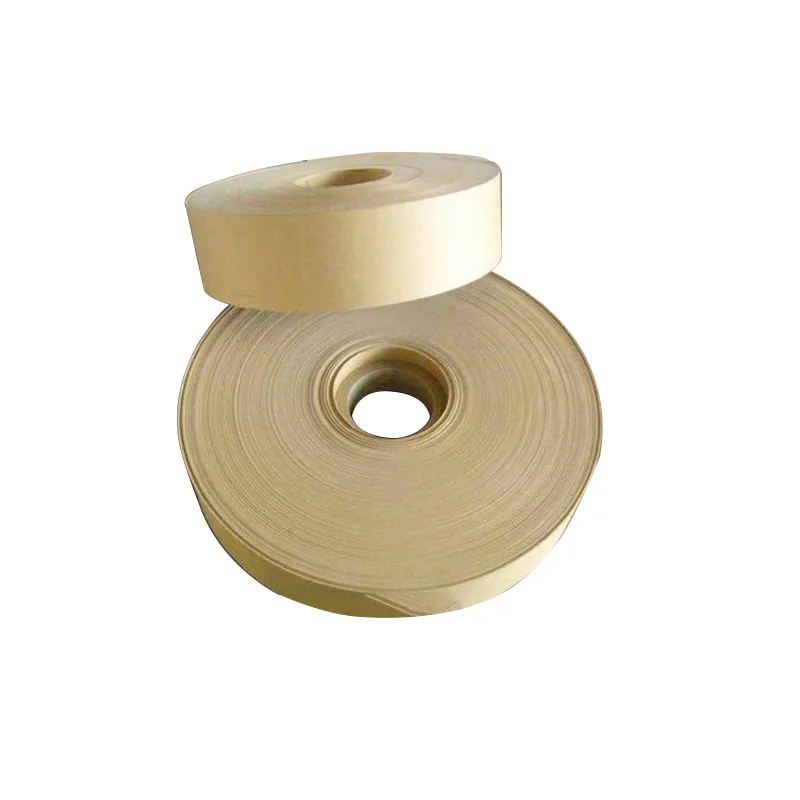

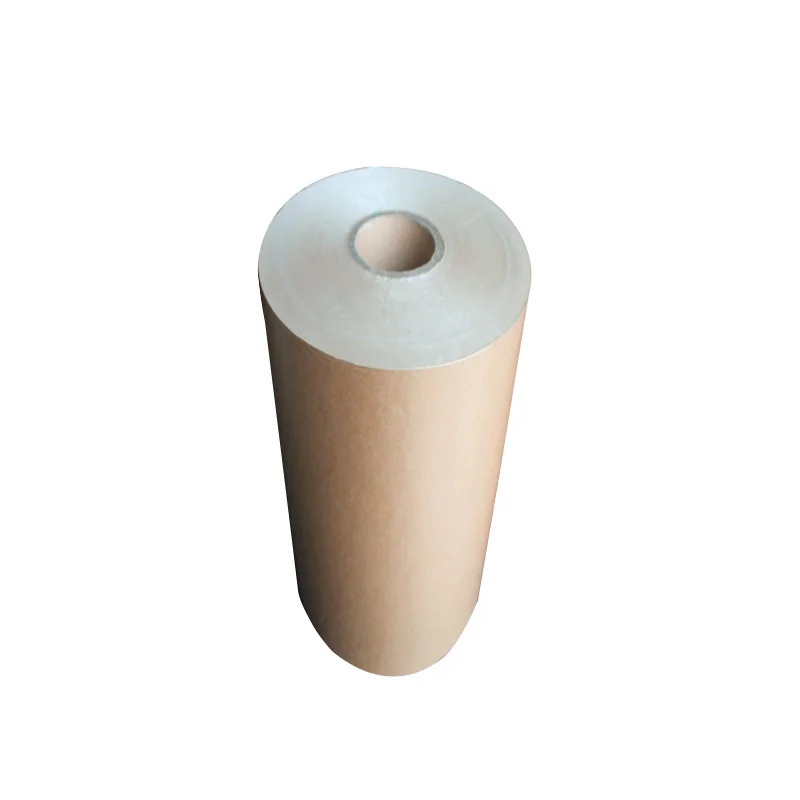

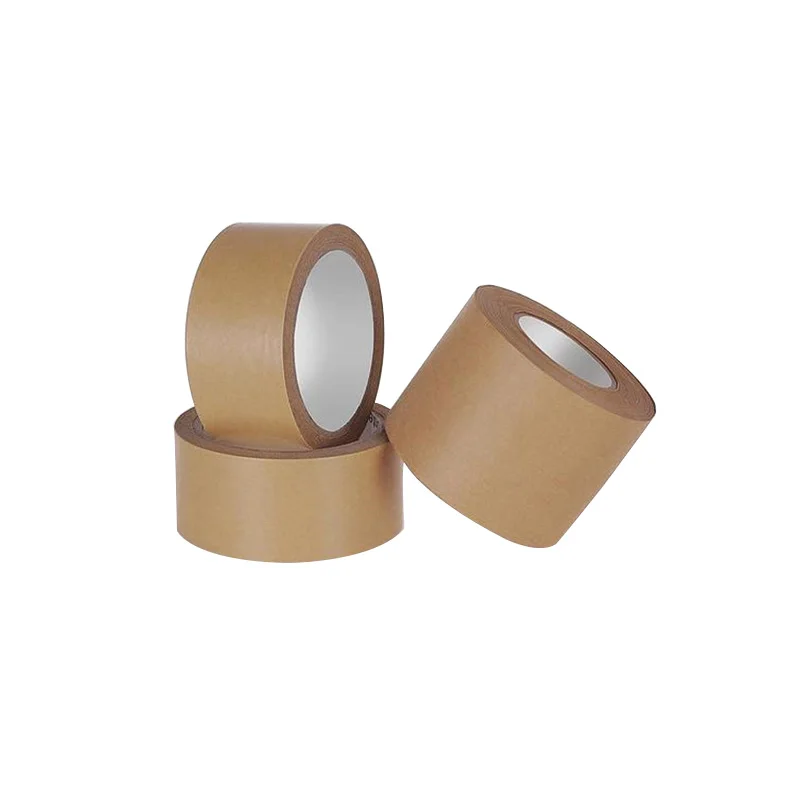

Insulation kraft paper for transformer and motor winding
- Category: >>>
- Supplier: Shenyang Youda Insulation Materials Co. Ltd.
Share on (60660653108):
Product Overview
Description
Product Description
Detail of electrical insulation condenser paper :
All insulating paper with 100% unbleached sulphate pulp copied into, the outermost layer of the cable to protect the conductive core insulation seal, not to moisture intrusion, do not let the destruction of the insulating layer, paper tough, Leveling. A higher tensile. For high-voltage power cables, control cables and signal cables with an insulating paper. It packs in the outermost layer of the cable to protect the conductive core insulation seal, not to moisture intrusion, do not let the destruction of the insulating layer. For the web.
MAIN TECHNICAL CHARACTERISTICS
properties | Unit | Values | ||||||||
Ⅰ-type | Ⅱ-type | |||||||||
Grade | A | B | C | Thickness | A | B | C | |||
Thickness tolerance | % | 8µm | ±7 | ±8 | ±8 | 4-6µm | ±10 | ±10 | ±10 | |
10-15µm | ±6 | ±7 | ±8 | 7-8µm | ±7 | ±8 | ±8 | |||
17-25µm | ±6 | ±6 | ±7 | 10-12µm | ±5 | ±6 | ±6 | |||
15-17µm | ±5 | ±6 | ±6 | |||||||
Density | g/cm3 | 8-15µm | 1.00 ± 0.05 | 4-6µm | 1.2 ± 0.05 | |||||
17-25µm | 1.15± 0.05 | 7-17µm | 1.22 ±0.05 | |||||||
Stretch MD | N·m/g | A: ≥70.0 B: ≥55.0 | A: ≥78.0 B: ≥60.0 | |||||||
Water content | % | 4.0-6.0µm: 6.0-10.0 7.0µm and up:5.0-9.0 | ||||||||
Ash content | % | ≤0.35 | ||||||||
Acid of water extract | % | ≤0.0070 | ||||||||
Electric conductivity of water extract | mS/m | A: ≤3.0 B&C: ≤4.0 | ||||||||

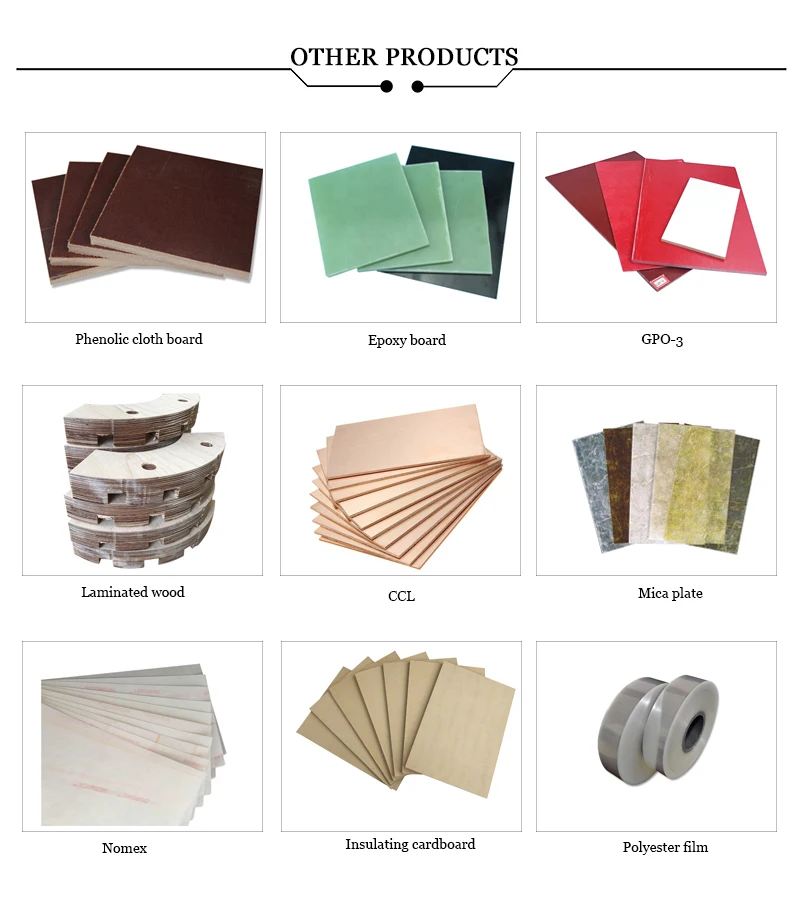

other products
Certifications
Cooperative Partner
Application
Packaging & Shipping
Company Information
Shenyang Youda Insulation Materials - Insulation Material Specialist for supporting Transformer and Electric machinery. Shenyang Youda Insulation Materials Co., Ltd. was founded in 1990, private high-tech enterprise with R&D, production, sales, and exporting.
Our company is specialized in producing, processing, selling different kinds of insulation materials, such as laminated boards, bars, tubes, molded products, composite materials, dipping materials, insulating paper, insulating ribbon, insulation varnish, mica products, engineering plastics. Our products are widely used for transformer, electric machinery, mutual inductor, electric reactor, heavy industry machinery, mine, railway, aerospace and so on.
Our company takes the core value of technology - leading, supreme customers, honesty and trustworthiness. Safety production, quality guaranteed, eco-friendly material is our promise. All the staff in Youda will provide high-quality products and best service for domestic and abroad customers through our exquisite technology and our best work style.
FAQ
(1). Q: Can you give me a discount price?
A: It is depending on the volume.
(2). Q: Why is your price higher than other suppliers?
A: We can offer the products of different quality levels depends on customer’s target price and quality requirement.
(3). Q: How can I get a sample?
A: Non custom samples are free of charge. You only pay for the goods. We promise to deliver the sample within 48 hours.
(4). Q: How can you guarantee the quality of mass production is same with the sample sent to me before?
A: Our process will base on the samples which is the same as yours.
(5).How do I know the progress of my product?
Production department upload production schedule every day, you only need to consult the customer service staff.
