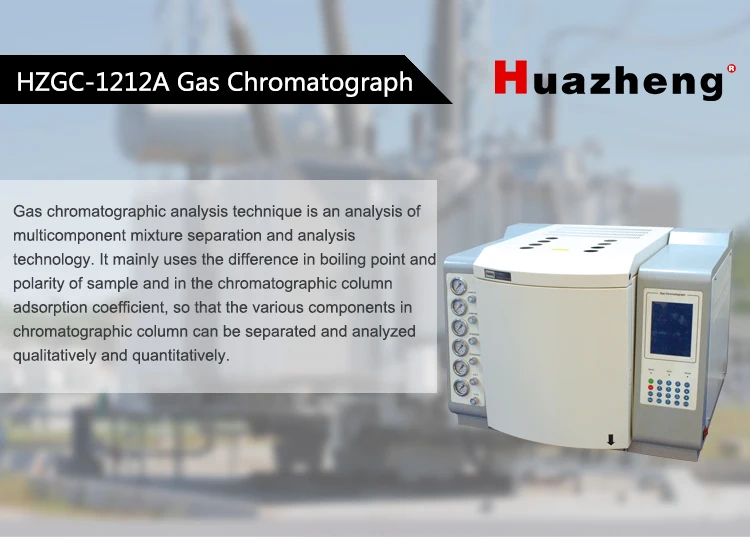

HZGC 1212 A portable transformer oil gas chromatography

Application:

Products have been widely used in electric power, petroleum, chemical industry, agricultural chemicals, public safety, liquor, environmental monitoring, health and epidemic prevention, institutions, scientific research and other departments.

Technical index:

(1)Operation display:5.7 inch lattice localization color LCD

(2)Temperature control region:6 Road

(3)Temperature range:Above room temperature 8 ℃ ~ 450 ℃,Incremental: 1 ℃,Accuracy: + / - 0.1 ℃

(4)Temperature programmed order number:16 order

(5)Cheng Sheng rate:0.1~39℃/min

(6)Gas Control:Mechanical valve control mode, electronic flow controller (EFC) and electronic pressure controller (EPC) method

(7)External event:4 way; Auxiliary control output 4 road.

(8)Injector type:Packed column sample or 10 quantitative sampling valves.

(9)Number of detector:3; double FID, TCD

(10)The parameters of the Ni conversion furnace:More than 85% or higher; Working temperature 350 ℃

(11)Boot into the sample: manual, automatic optional

(12)Communication interface: Ethernet: IEEE802.3

Flame ionization detection (GC-FID).

Detection limit: Mt≤3×10-12g/s (Sixteen alkanes)

 Noise:≤5×10-14A;

Drift:≤1×10-13A/30min;

 Linearity range: ≥106

Thermal conductivity detector(TCD)

Sensitivity:S≥3500mV•ml/mg(Sixteen alkanes)(1, 2, 4, 8 x magnification optional)

Noise:≤10μV;

Baseline drift:≤30μv/30min
