Product Overview

Description

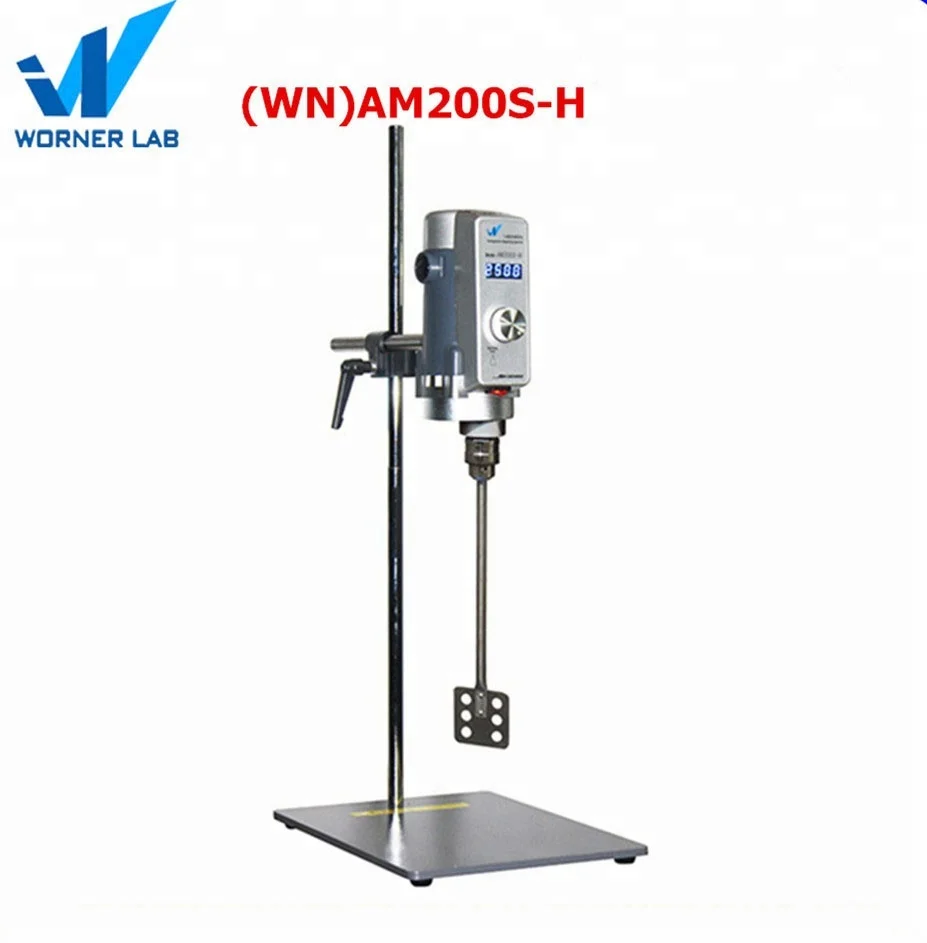

Functions of (WN)AM200S-P/H liquid soap mixer soap making machine price



The overhead stirrer consists of driven motor, Controller and the moment institutions and other components. The mixer console is made of high quality engineering plastic and die-cast aluminum to ensure stable operation. A Variable force amplifier is used at the power output end to multiply the output torque. The Stirring speed is controlled by a microprocessor that can compensate for any sudden speed change caused by overload changes or voltage fluctuations. The constant rate and built-in soft-startup can ensure the operating safety. Stepless regulation of the speed can make sure you can modify the speed accordingly.



Overhead stirrer	AM200S-P	AM200S-H	AM300S-P	AM300S-H
Rated voltage	AC220V
Rated frequency	50/60Hz
Stirring quantity (H2O)	50~40000ml		50~60000ml
Motor rating input	340 W		510 W
Motor rating output	200 W		300 W
Nominal torque	1.45Nm		1.96Nm
Viscosity max	100000mPa.s		100000mPa.s
Speed display	NO	Digital speed display	NO	Digital speed display
Speed range	100~1800 rpm
Dimensions(mm)	215x310x720
Permissible ambient temp	≤40°C
Permissible relative humidity	≤80%











Advantages





1.Our sales man  will be most delighted to answer all your inquiries



2. We can print your logo if you need.



3. We can customised your plug and power as your need.



4. We will check the quality before packing.



5.If you sale the overhead stirrer in your country well , we also are glad to set up distributer in your country .



6 All  overhead stirrer
are supplied with a warranty of 12 Months from the date of shipment.
