2018 bathroom floor decoration polished porcelain ceramic tile making machine
- Category: >>>
- Supplier: Hubei Tengcang Building Materials Technology Co. Ltd.
Share on (60660921808):
Product Overview
Description
Product Description
3D microcrystalline-glass ceramic tile is a composite of ceramic tiles and the microcrystalline-glass which has been printed personalized graphics by 3D high-definition printer in high temperature. And then grind edge and anti-skid to be finised.
The structure of the tile
Machine description

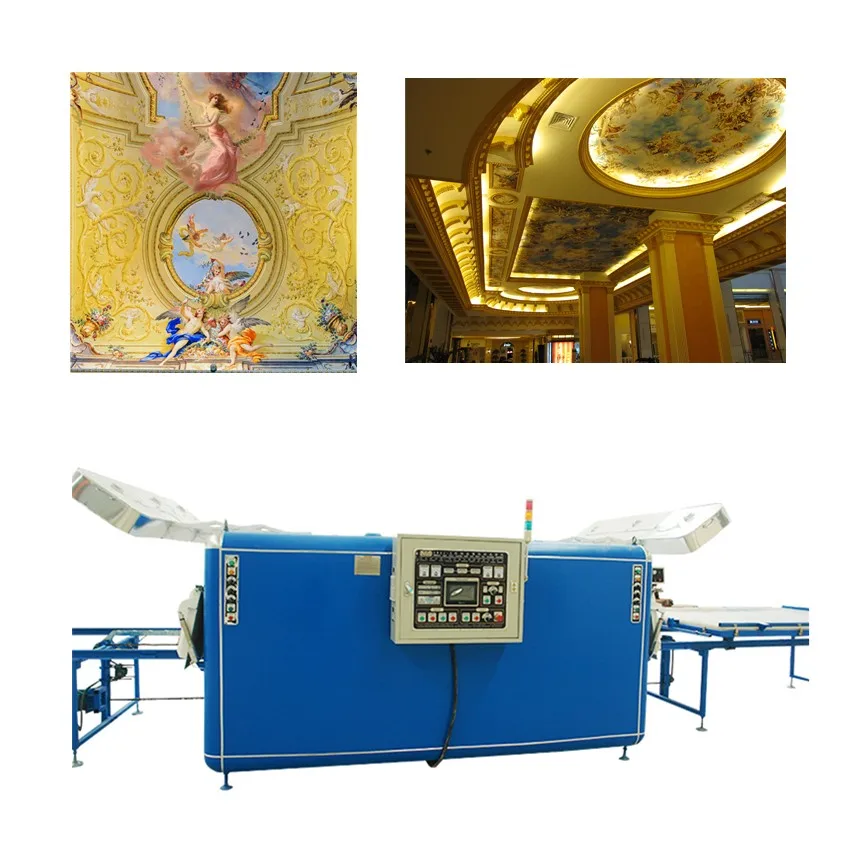

3D Microcrystalline-glass ceramic tile making machine technical parameters | ||
Voltage | 380V | |
Power | 24.4KW | |
Max working size | 1900mm×2500mm | |
Processing thickness | 3-20mm | |
machine size | 10044mm×3170mm×1892mm | |
Weight | 2250kg | |

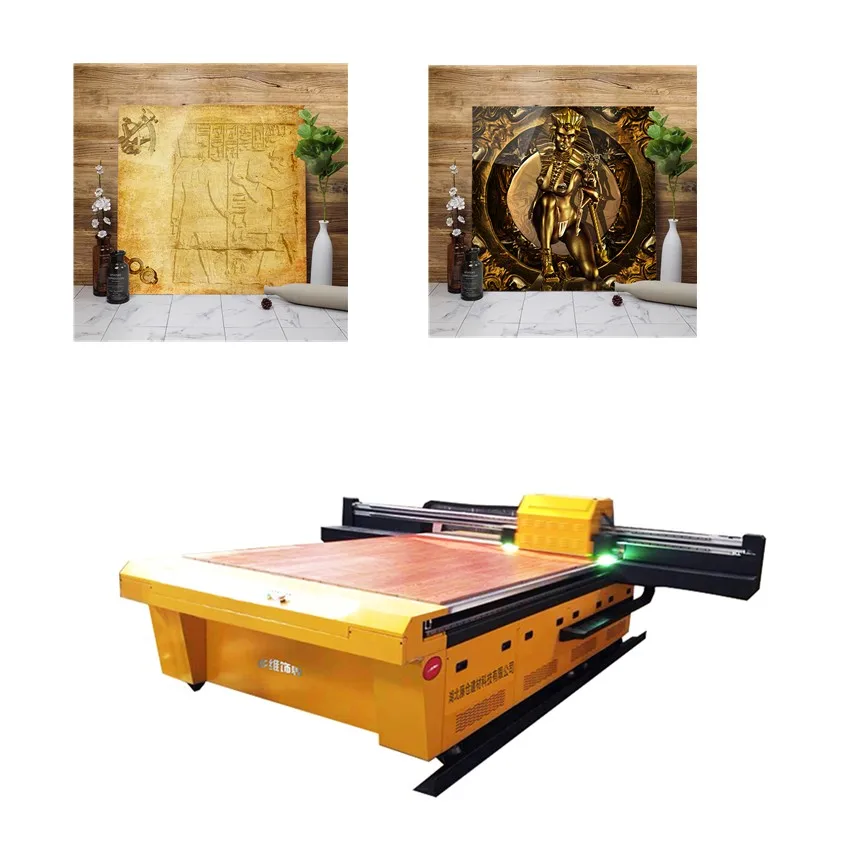

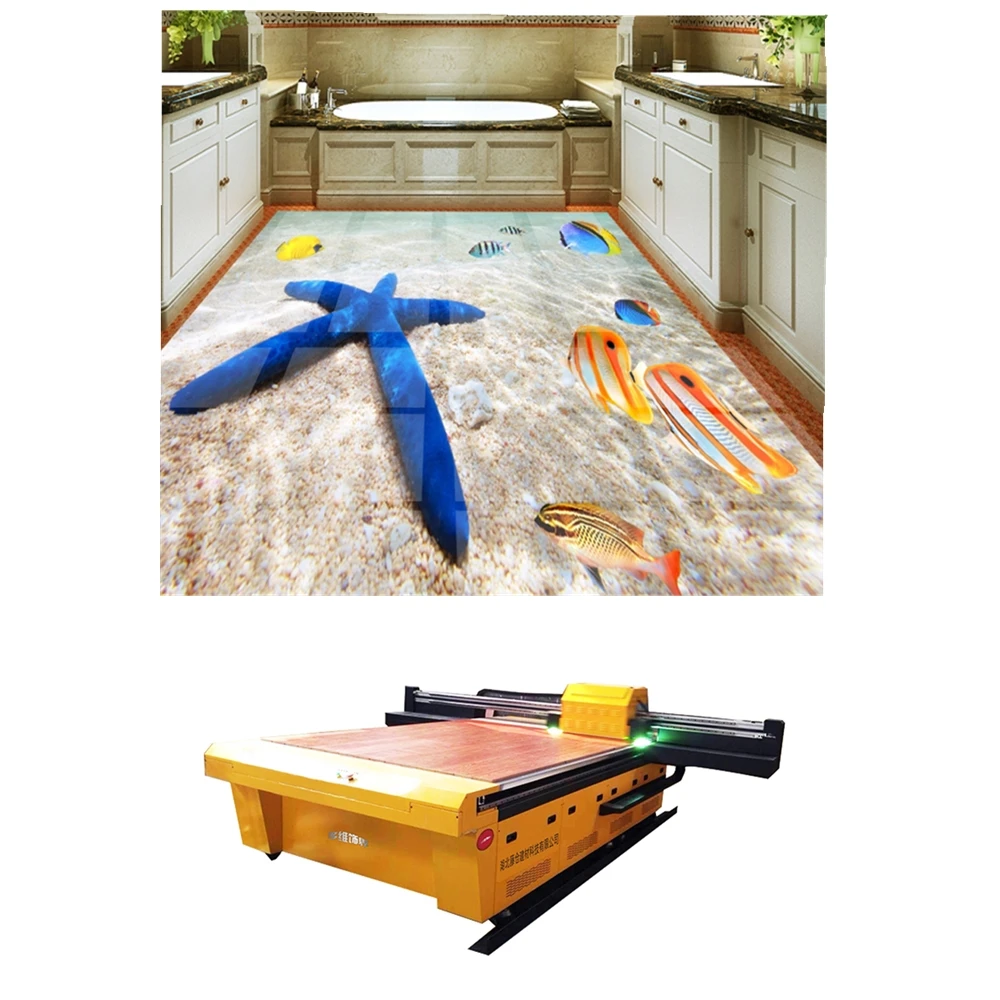

2 UV Flatbed Printer technical parameters Type DWSJ-6030 | ||||||
Print size | 2500mm*1300mm | Nozzle technology | Piezoelectric ink-jet printing | |||
Print color | 2 Epson head(four color) | Ink Box | Continuous ink/ 3000ml | |||
Print head | Epson head | voltage/ power | 220V/3600W(UV light 2000W) | |||
Print height | Max.100MM | Drying system | UV lamp | |||
Bearing weight | Max.100KG | Color control | onform to ICC , with curve and density adjustment functions | |||
Print speed | 720dpi 6-8 m2/h | Image format | TIF,JPEG,PSD,CDR etc | |||
Automatic cleaning system | Positive pressure cleaning | Interface mode | USB 2.0 Interface | |||
Ink System | UV ink | Material handling | ceramic tile, glass, wood, metal, leather, handicrafts, painting, PVC, ABS, etc. | |||

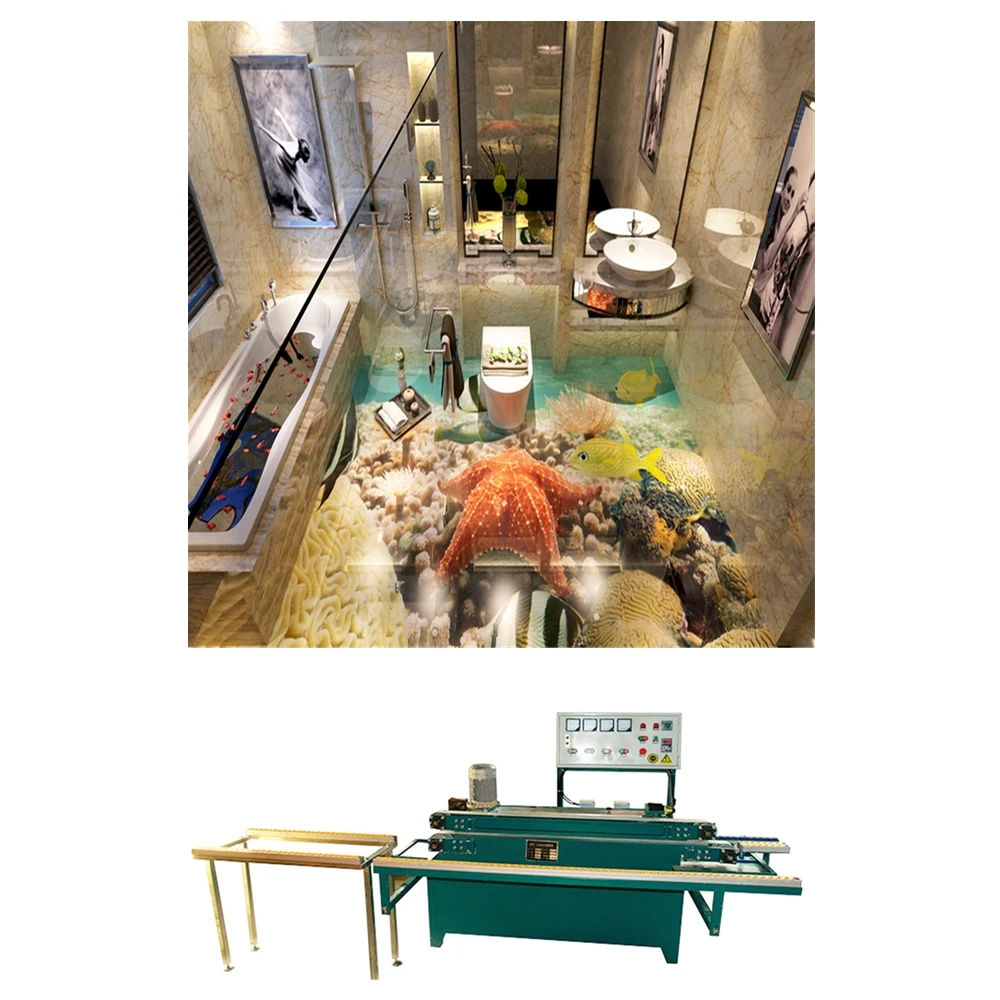

3 Grinding machine | ||||||
Working speed | 1-5m/min | grinding thickness | 2-30mm | |||
Max grinding size | 2000*2000 | Min grinding size | 40mm*40mm | |||
machine size | 2700*1200*1500 | voltage | 380v | |||
power | 9.55KW | Weight | 1200kgs | |||
For the video about the operation,pls check : //youtu.be/5ZuvotwfZx0
The three materials needed to produce the tile:full body tile,hot-melt film,3d microcrystalline glass,we can provide the supplier contact information or we can buy for you.
Application
Main application fields
a) For Home Decorations: TV background wall , sofa background wall, bedroom decoration, kitchen decoration, bathroom decoration, setting wall of hallway, children's room, study room, the wall decorations of dining-room etc.
b) For Places of Business: companies, corporate image walls, storefront decorations, hotels, KTV, clubs, teahouses etc.
c) Public Space: setting walls of stations, wharfs, airport lounges, sports stadiums, theater, photographic studios, the booths, television studios, halls and meeting room's ceilings etc.
Our Service
> Warranty: 1 Years.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board ,hotel,and other n
ecessary things.
> We will provide more than 1000 designs free together with the machine.
>TERMS:
1. Delivery: in stock
2. Package: Export Standard package for container
3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine )
4. Validity: for 30days
Packing & Delivery
Our Company
Hubei Tengcang building material technology company have built a new five-star Industrial Park, covering 23,000 square meters, located in the "Dongyong hometown"Wuhan city circle Hubei Xiaogan city National High-tech Development Zone, with research buildings, office buildings, standardized plant and automation equipment and other hardware facilities .we have more than 100 Scientific and technical staff, are specialized in producing the new decorative materials, construction materials, building materials ,building equipment and opto-electrical devices entity enterprise
FAQ
Q: How can I contact you?
A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you
Q: What is the status of After-sale Services for customers and machineries?
A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee $65/day . We will provide the technical support for the whole life of the equipment and free training.
Q: How to visit our company?
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to wuhan station (4 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to wuhan station (4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport: By air From Guangzhou to wuhan; By high speed train From Beijing Nan to Wuhan (3 hour),then we can pick up you.
4.Fly to Wuhan Tianhe Airport(about 1 hour to our factory),we can pick you up .
