1080P 2.1MP full HD IP wireless hidden camera
- Category: >>>
- Supplier: Jinan Hope-Wish Photoelectronic Technology Co. Ltd.
Share on (60660998212):
Product Overview
Description
Product Description

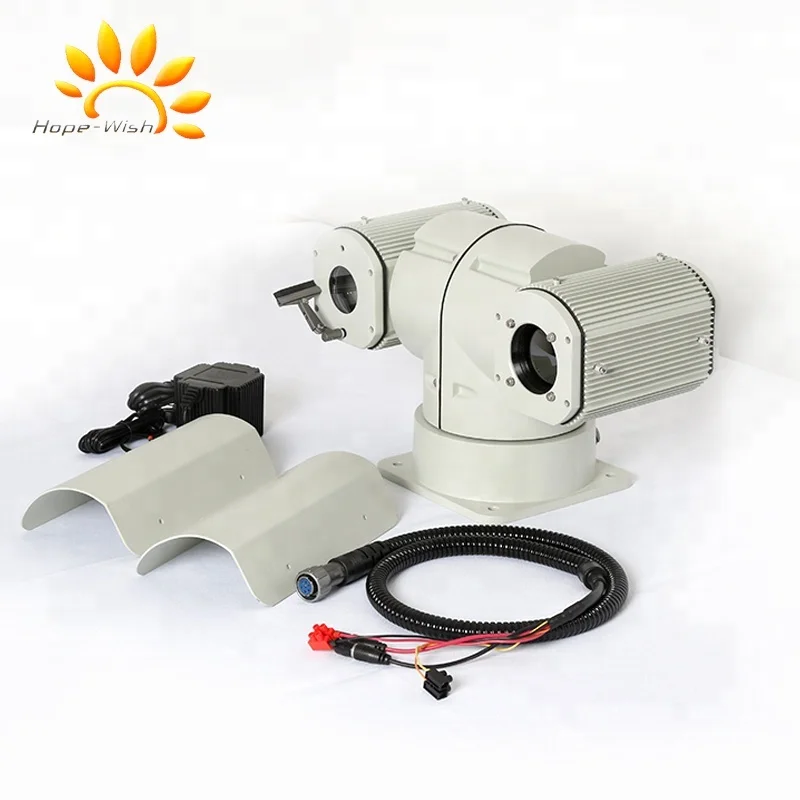

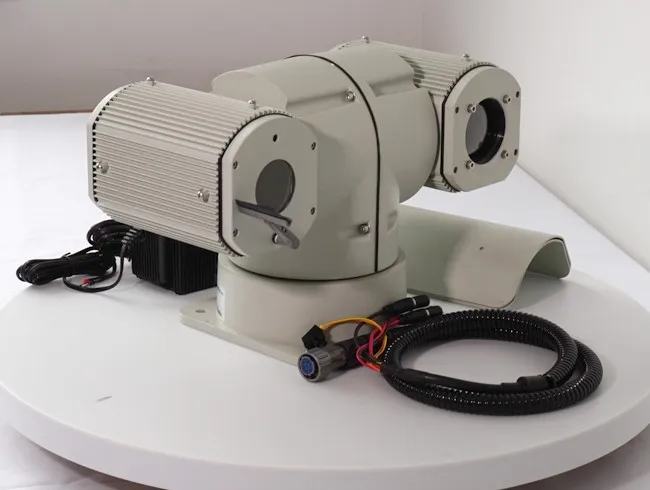

BRC19 Series HD T Shape Laser Camera
BRC19 series HD infrared laser camera consist of infrared laser illuminator, PTZ platform, precise gearing, 2 megapixel HD lens, digital decoder, CCD and CU. The mechanical design of PTZ is simple and stable.
BRC19 camera could rotate to the proposed position quickly and accurately. The camera has 128 preset, recording and patrol function and could preset anywhere. It also have automatic exposure, automatic focus function.
Feature.

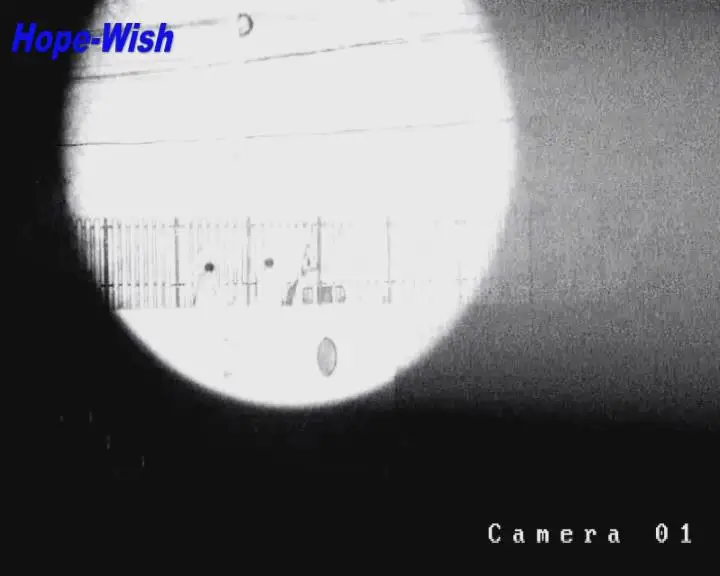

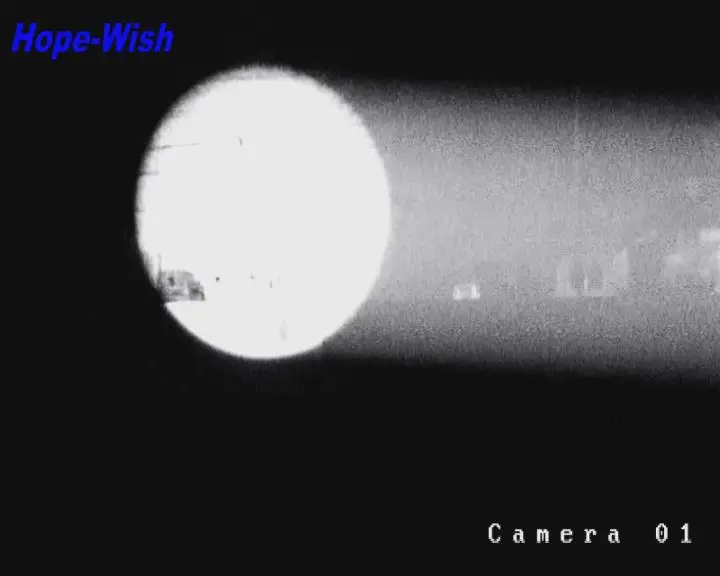

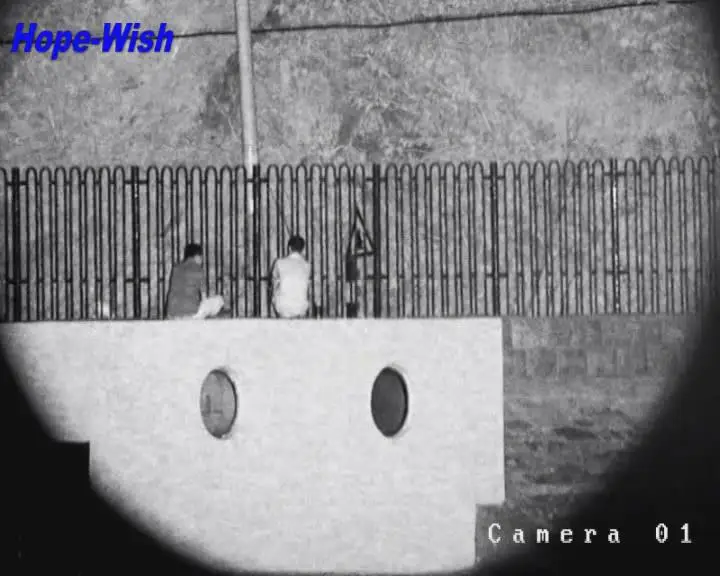

50°laser source, max illumination distance 300~420m.
Unique DSS digital illumination angle control, 0.1°minimum zooming accompany camera.
GHT-II super homogenizing ensures a better imaging effect.
Independent photos which ensures the synchronization of B&W conversion and laser source turning on.
Built-in intelligent delay to avoid the influence of car light.
One integral aluminum alloy housing, water proof and dustproof, IP66 ingress protection.
Application.
City security, oilfield monitoring, lake&river monitoring, expressway&railway monitoring, seaport&airport monitoring.
Technical specification.
Model | BRC1930X |
Detection | Day: 700m |
Night: 420m | |
Sensor | 1/2.8'' B&W Sony CCD, 2.1 MP, 1920X1080, automatic ICR switch |
Encoding | Video compression: H.264, code stream 32k～16Mbps，support dual stream,the heart, smart restructuring,electronic shutter, white balance, 3D noise reduction、WDR，automatic exposure, support SD card,motion detection,mask alarm |
Image setting | Lightness, contrast radio, saturation |
Lens | 4.3～129mm，30 optical zoom,F1.6～F5.0 |
FOV | 65°～2.3° |
Min.Illumination | 0.005lux B/W0.05lux Color/ |
Consumption | 5W，808nm ,NIR |
Laser lens | 30mmF1.4 telephoto lens，GHT-II homogenizing |
Laser angle | 1.2°～40° |
Angle control | DSS digital illumination control，30ms fast track response, min 0.1° illumination zooming, manual/automatic |
Optical axis aiming | 0.01°SLM automatic axis automatic aiming and locking ,external interface reserved, maintaining without take out the case |
Pan rotation | 0°~360° continuously |
Tilt rotation | -90°~+90° |
Rotation speed | Pan: 0°~100°/s，Tilt: 0°~80°/s |
Preset | 128 |
Line scan | 3 path(User could set up the starting point, destination and scanning speed) |
Patrol | 6 path(each path have 16 staying point,staying time at each point is adjustable) |
Customized function | Customizable privacy shade, 3D box chosen magnification |
Interface | RJ45，10M/100M adaptive Ethernet，TCP/IP，RTP/RTCP，HTTP |
Compatibility | Support ONVIF,GB/T28181 |
Heat/demisting/ wiper | Yes |
Laser switch | Auto/manual |
Ingress protection | IP66，TVS4000V anti-lighting，anti-wave |
Operational temp. | -35~55℃ |
Power supply | AC24V/2.5A，DC12V/3.5A common≤40W,peak≤60W |
Weight | 7kg |
Install mode | Outdoor seat install |
\t\t\t\t\t\t\t\t\tFactory & Office \t\t\t\t\t\t\t
Company reception desk.
R & D center.
Workshop & warehouse.

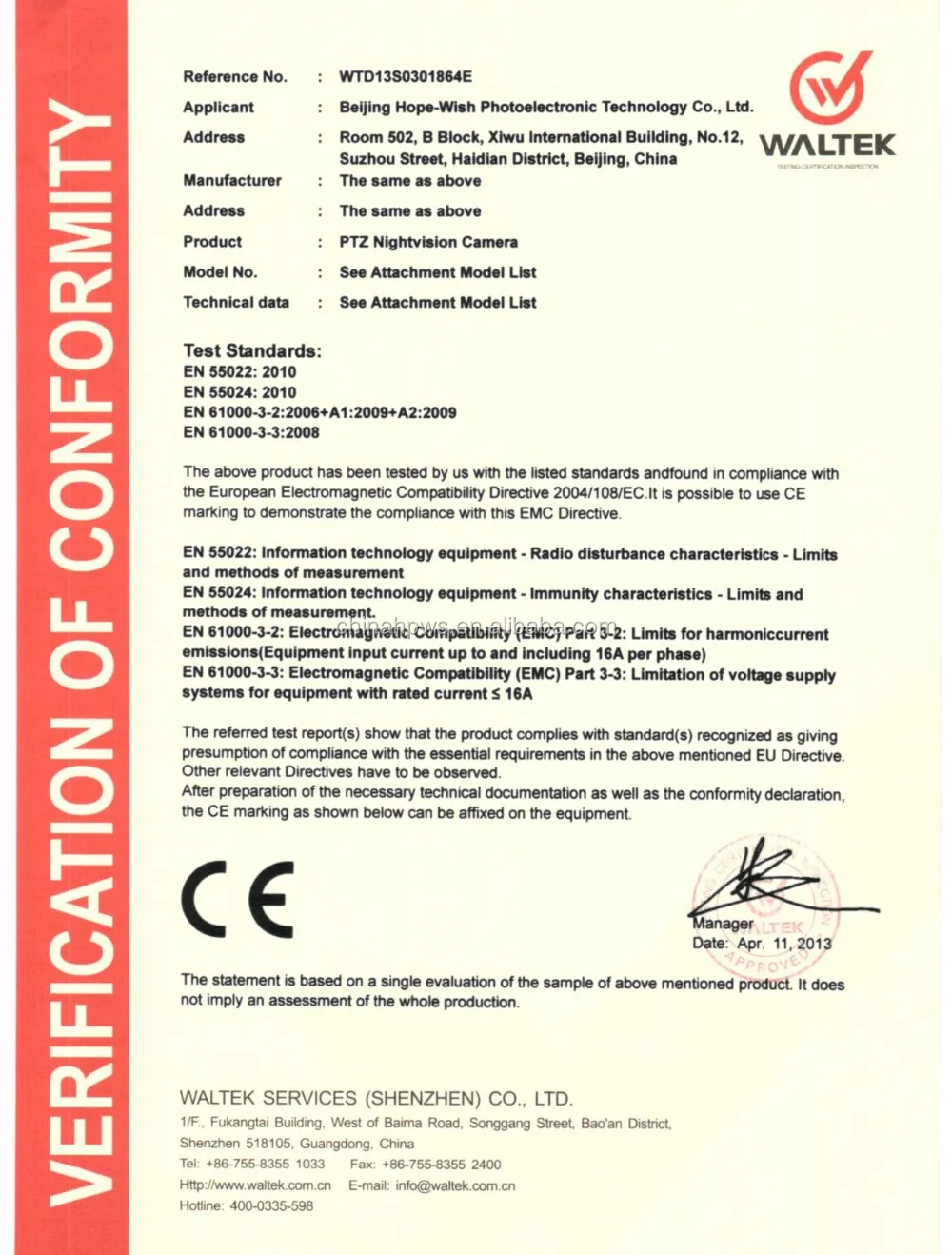

\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t

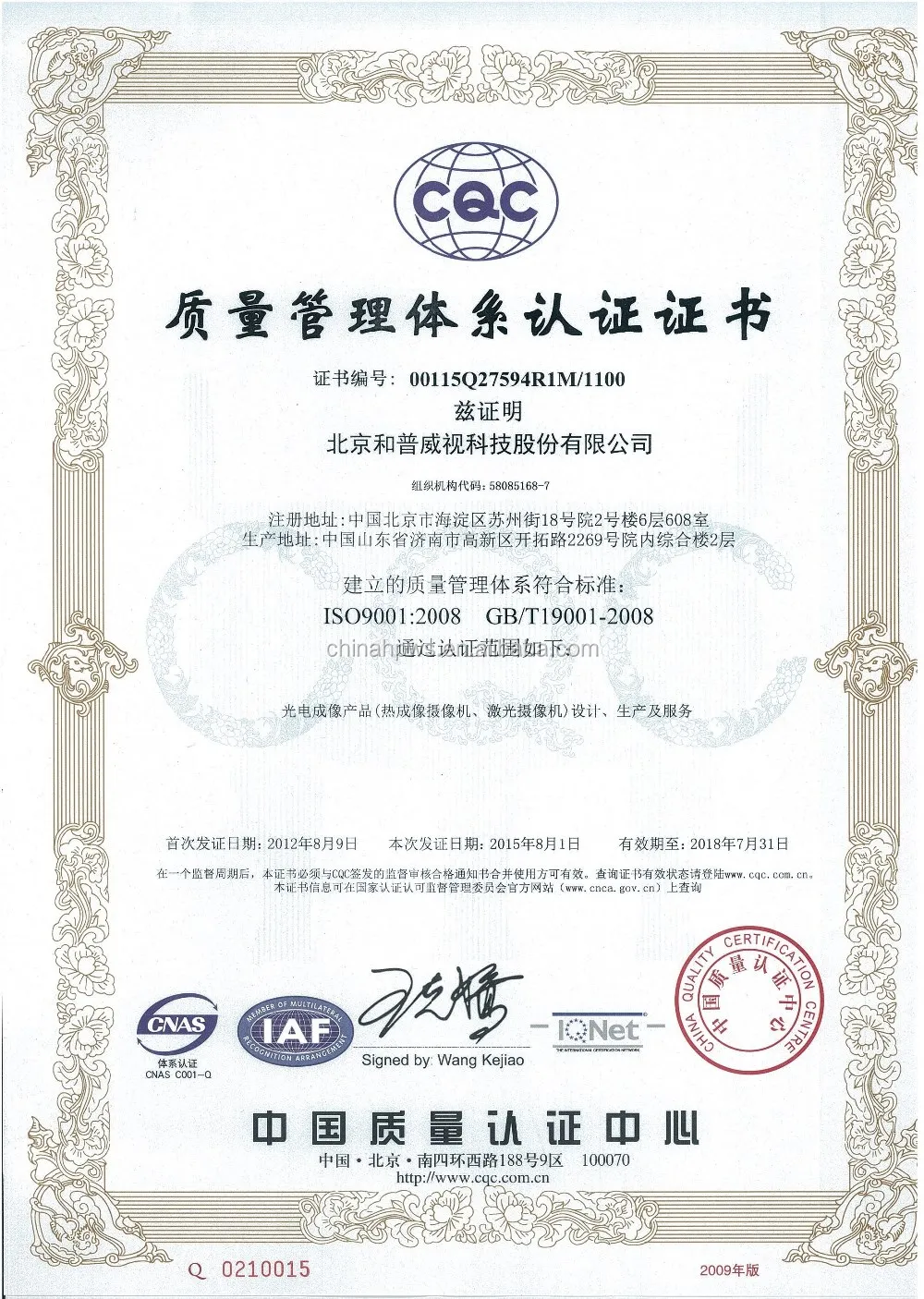

ISO9001:2008 GB/T19001-2008
.

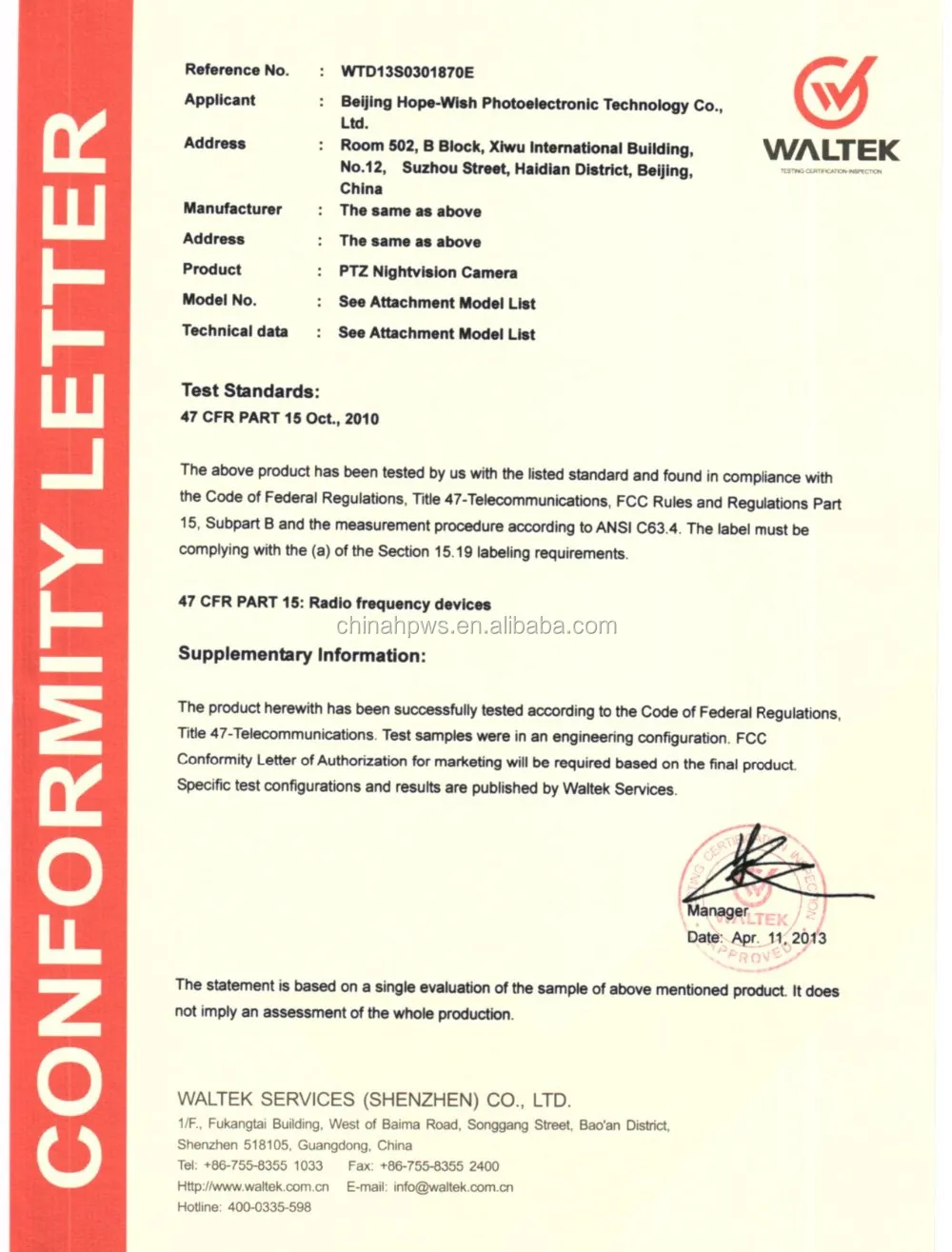

FCC
