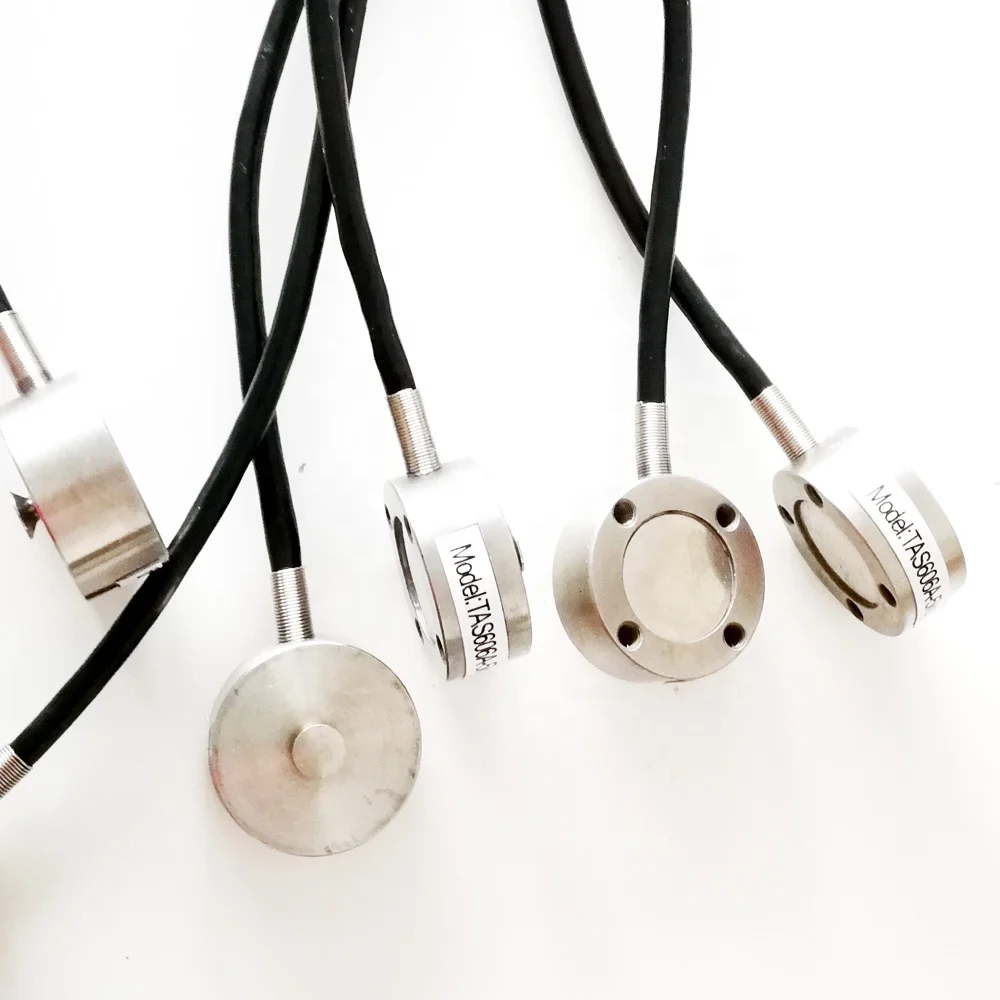

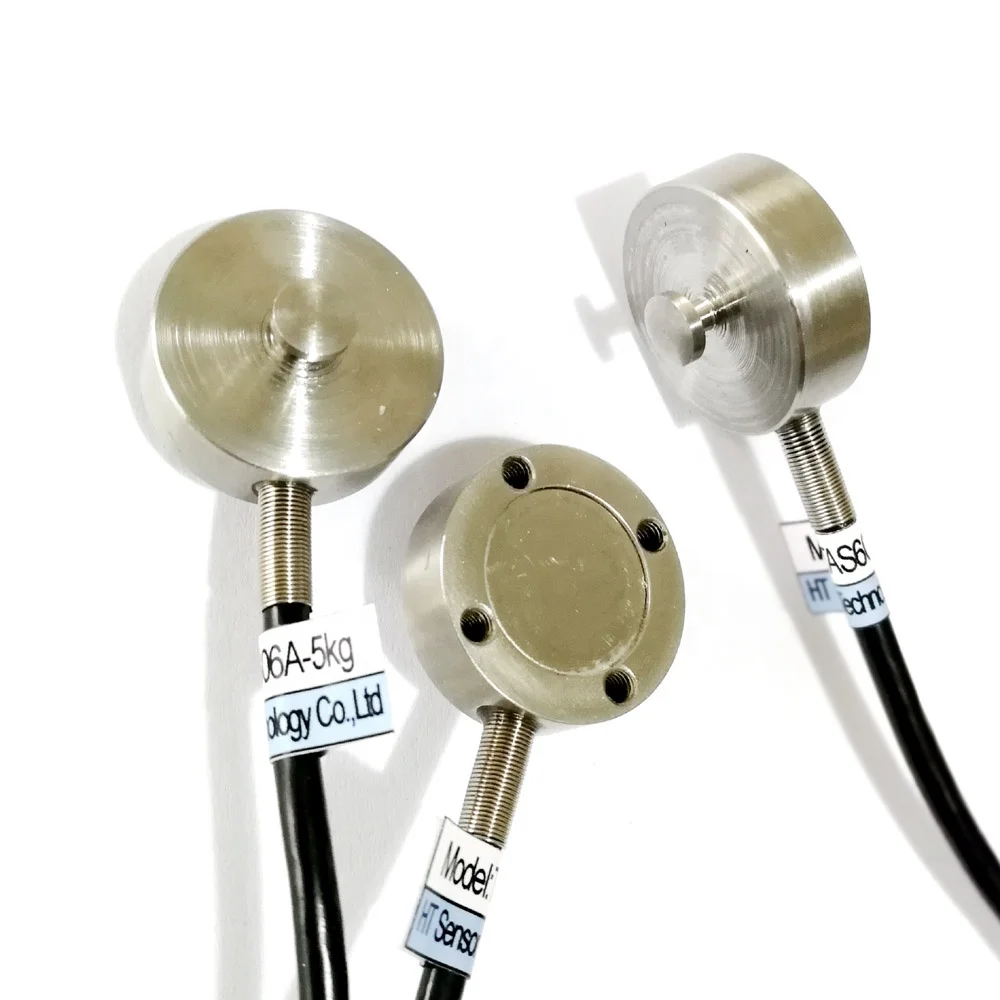

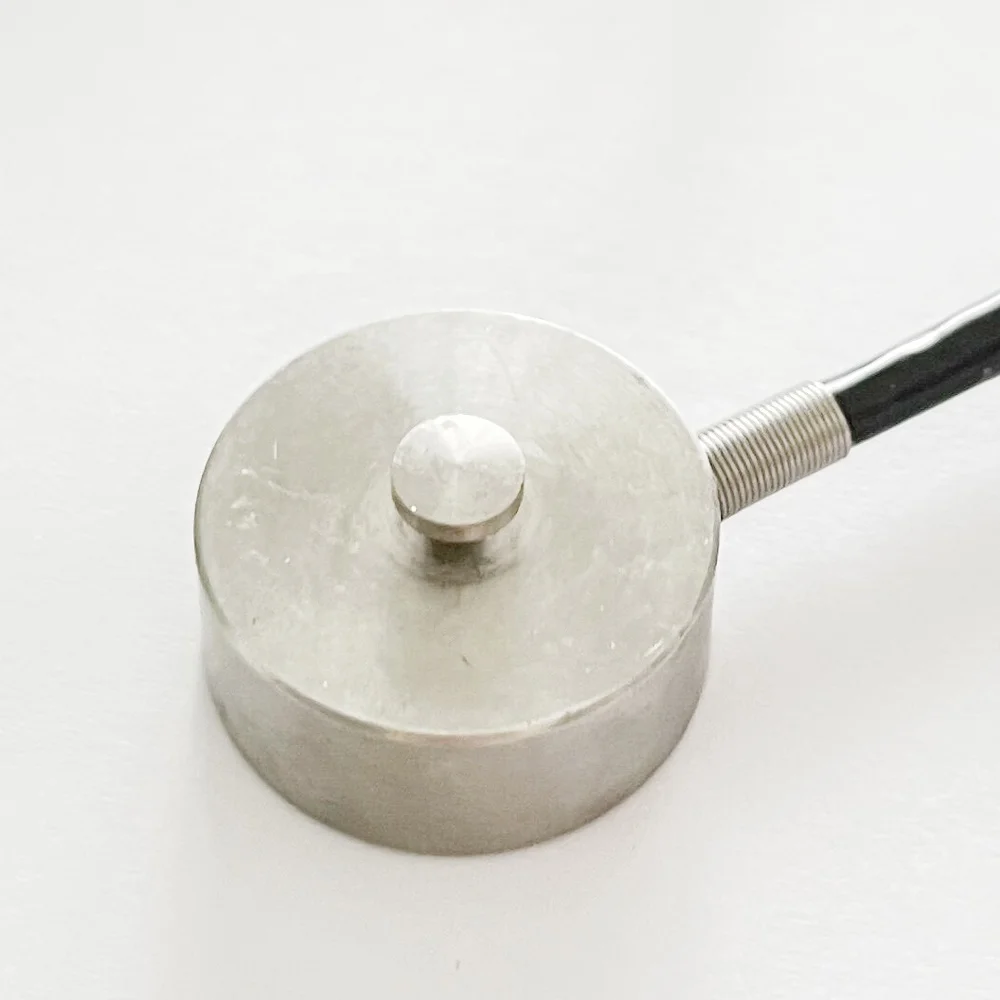

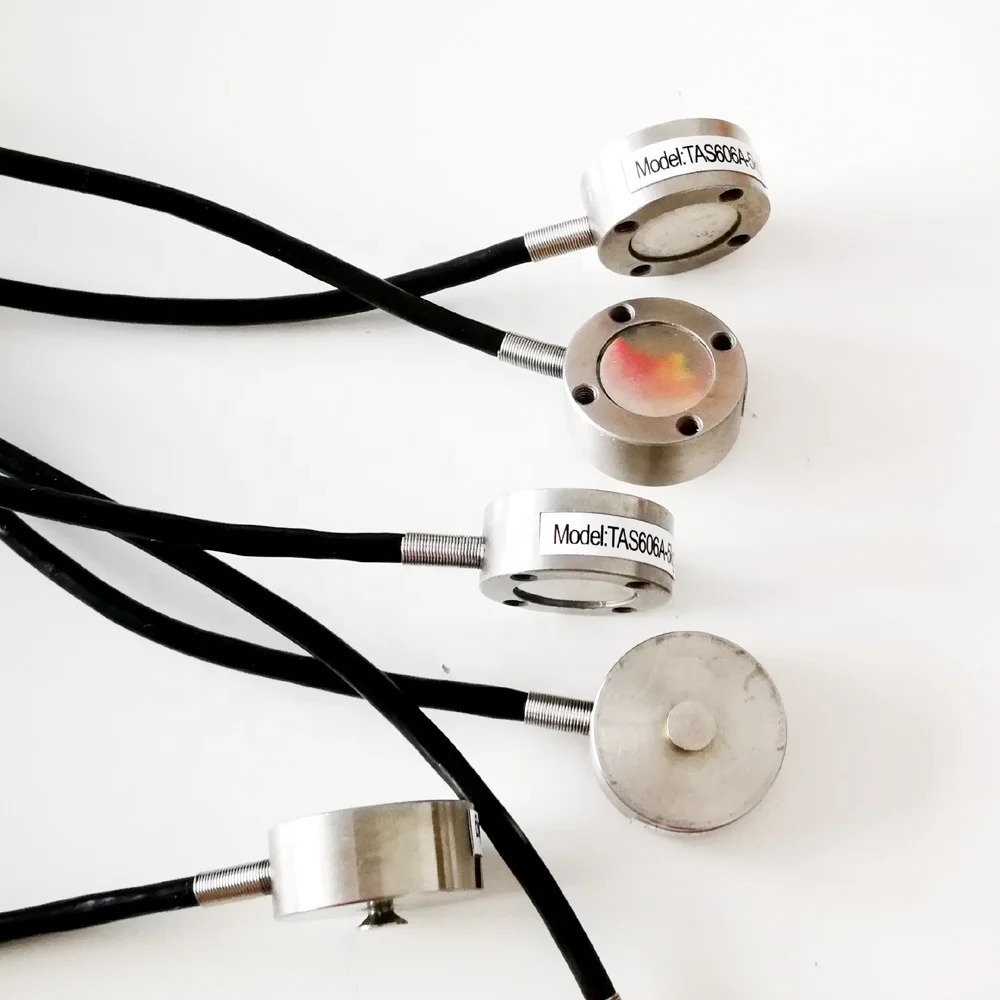

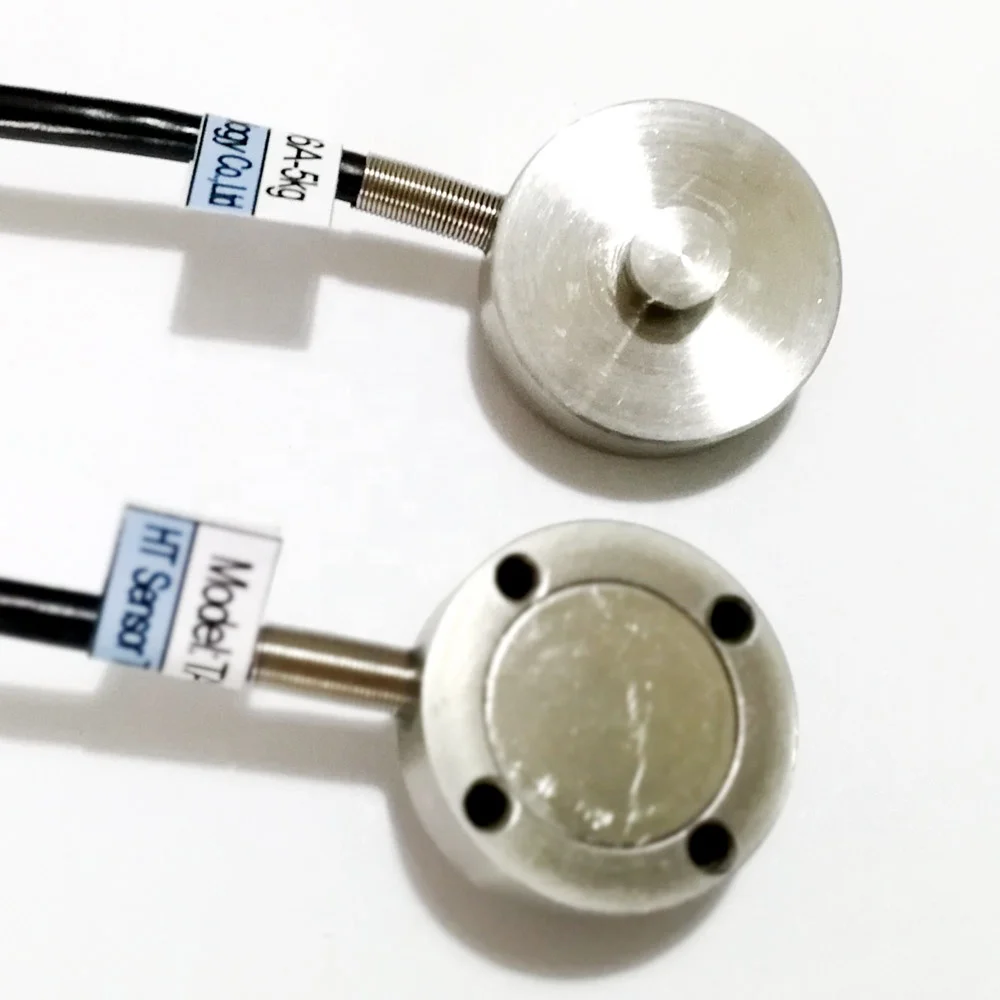

5kg 10kg 20kg 50kg 100kg 200kg mini button type force transducer TAS606A
- Category: >>>
- Supplier: HT Sensor Technology Co. Ltd.
Share on (60661028009):
Product Overview
Description

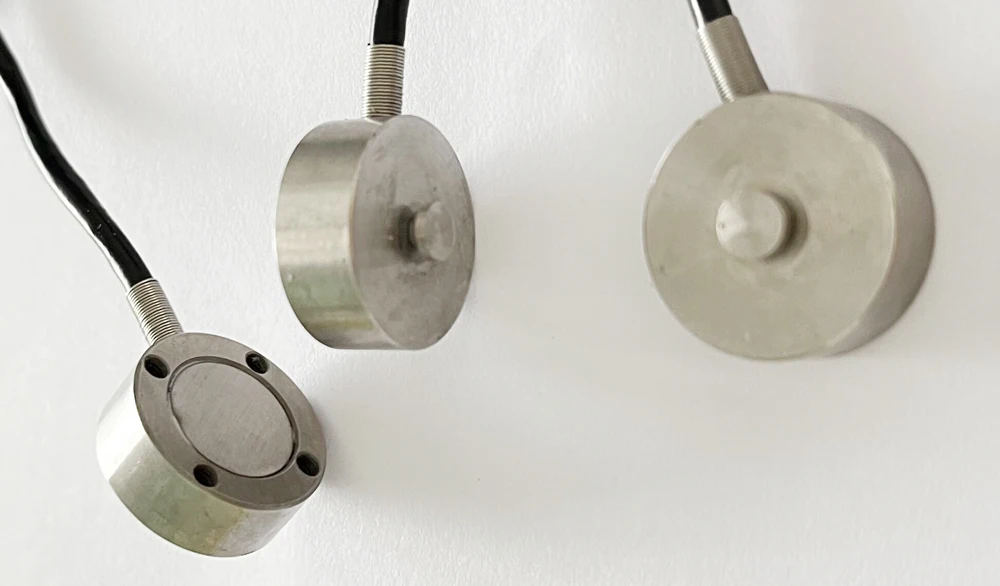

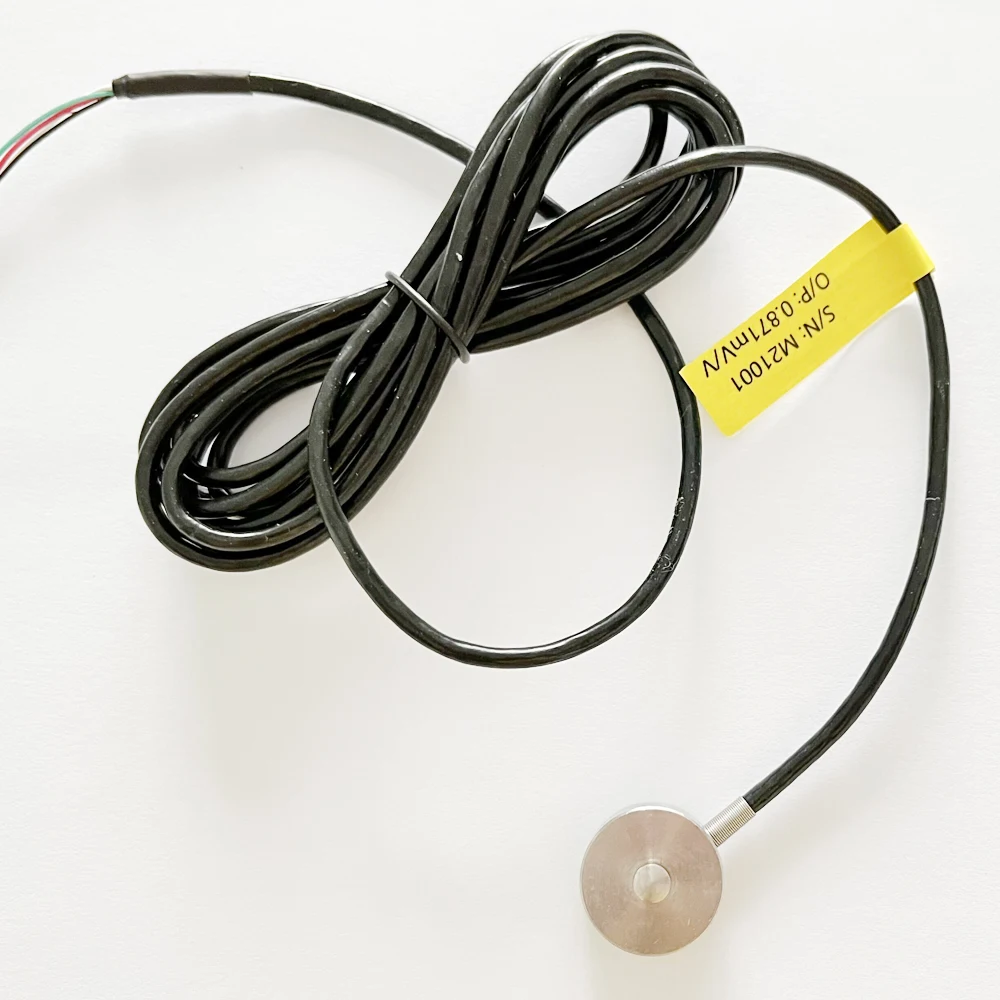

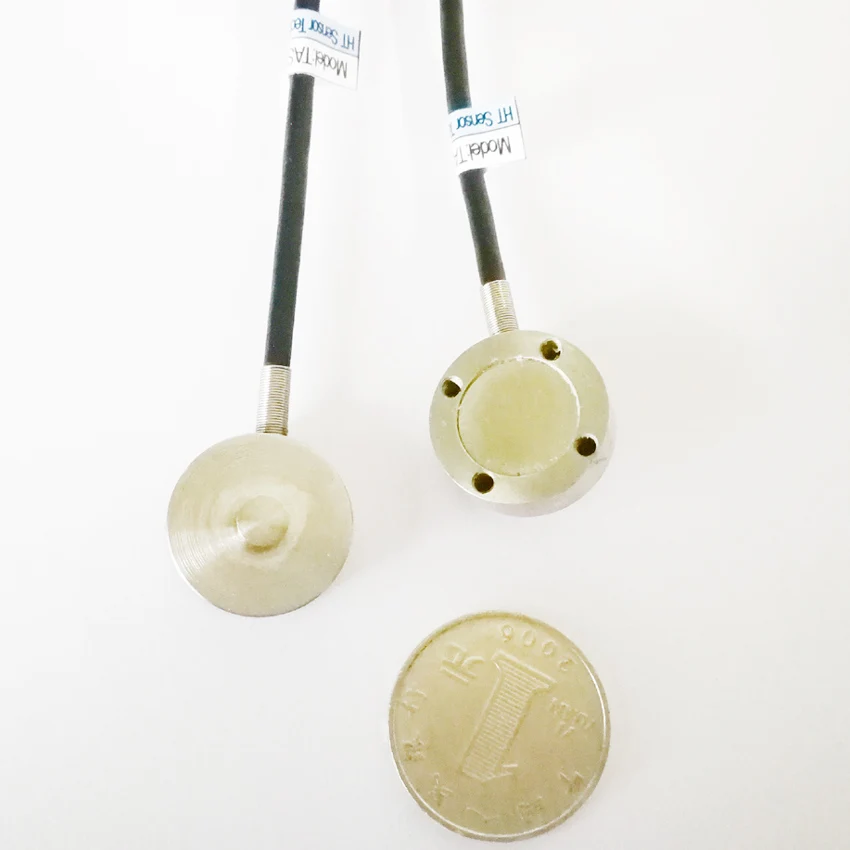

TAS606A MINIATURE COMPRESSION TYPE FORCE SENSOR
◆Capacity ：5kg 10kg 20kg 50kg
◆Material: stainless steel
◆Defend grade: IP66
◆Application: suitable for force control in production control, vibratory feeding equipment
and other electronic weighing or force measuring fields.
Capacity: | 5kg 10kg 20kg 50kg | Safe overload: | 120%FS | ||
Rated output: | 1.0~2.0mV/V | Ultimate overload: | 150%FS | ||
Excitation voltage: | 5~12Vdc | Input resistance: | 385 ± 35Ω | ||
Combined error | ± 0.3%FS | Output resistance | 300 ± 3Ω | ||
Zero balance | ± 0.1%FS | operating temperature range: | -10 ~ +55 | ||
non-linearity: | ± 0.1%FS | compensated temperature range | -10 ~ +40 | ||
hysteresis: | ± 0.3%FS | temperature coefficient of SPAN | ± 0.3%FS/10℃ | ||
Creep: | ± 0.3%FS/3min | temperature coefficient of ZERO | ± 0.3%FS/10℃ | ||

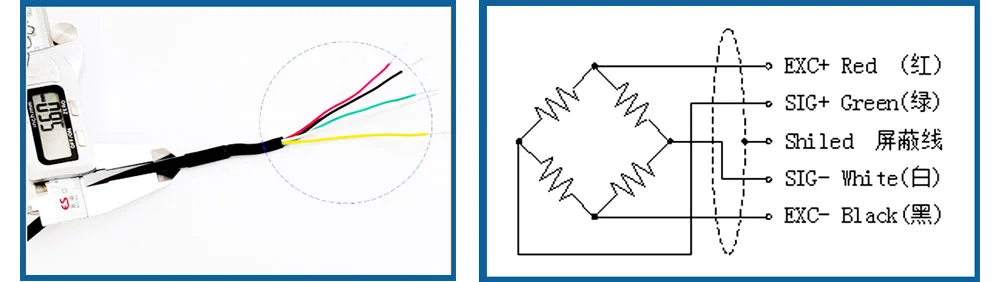

Electrical connection | 4 color wire, Ø3 × 2m Excitation(+):Red Excitation(-):Black Signal(+):Green Signal(-):White | ||||
