360 degree rotation panoramic camera network monitoring laser night vision vehicle cruiser mount car ptz camera
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60661179347):
Product Overview
Description
Product Description

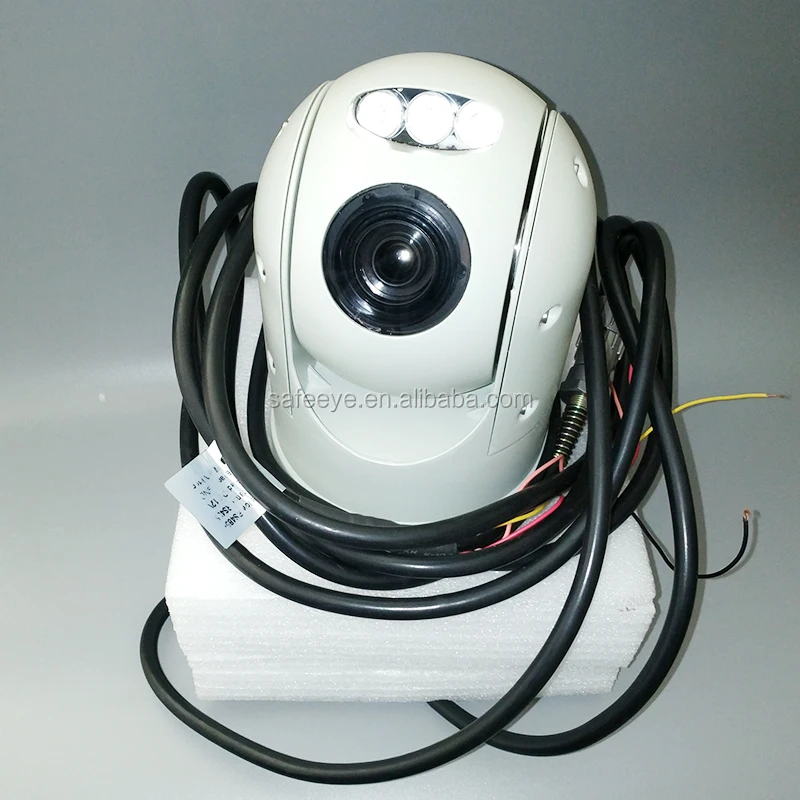

360 degree rotation panoramic camera network monitoring laser night vision vehicle cruiser car mount ptz camera
Features & Fuctions:
With infrared LED range up to 120 meters. It could catch image promptly at night.
Weatherproof design, high die-cast aluminum casing ,protection grade IP66 with wiper

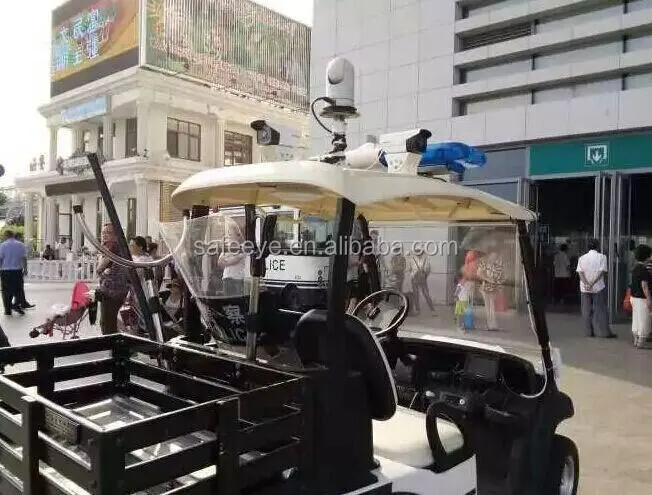

Super shockproof ,especially suitable for car surveillance
360°continuously pan rotation, tilt -30° - 90°.
6 cruising tracks, each cruising track has 16 preset positions.
128 preset positions.

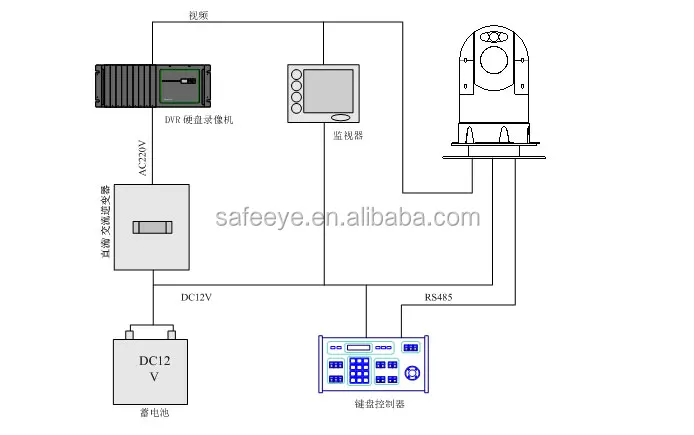

Input voltage :DC10.5V~DC18V/3.5A(for car surveillance)
Mechanism Parameter
| Pan preset speed | 100°/s |
| Tilt Preset speed | 60°/s |
| Pan speed | 0°/s~80°/s |
| Tilt Speed | 0°~60°/s |
| Pan range | 360° Continuously |
| Tilt range | -30°~+90° |
| Preset/ cruising tracks | 128 presets/6 cruising tracks |

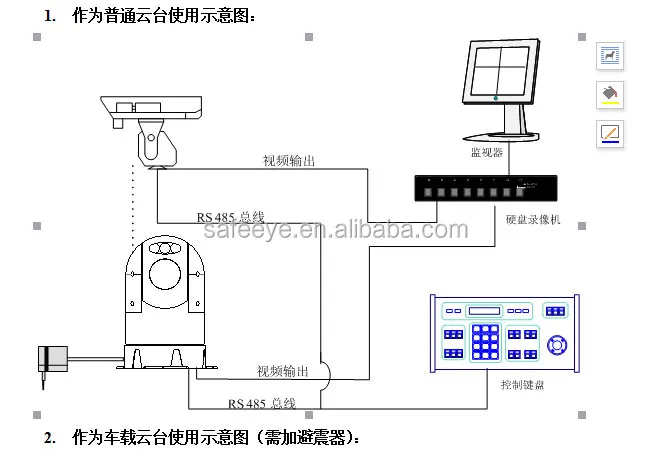

| Communication | Multi-protocol,Baud Rate from 2400bps to 19200bps for optical,RS485 control |
| Language | Chinese-English |
| IR Distance | 120M |
| IP grade | IP66 |
| Relative humidity | 90%RH without agglomeration |
| Work temperature | -45℃ ~ 65℃ |
| Power Supply | DC10.5V~DC18V/2.5A(for car surveillance) |
| Weight | 3KG |
Camera specification:
| Model | PTZ-L100 |
| Image sensor | 1/3 Exview HAD CCD |
| Active pixels | 1280*720 |
| Synchronization | Internal/External |
| Video output | 1.0Vp-p/75Ω |
| White Balance | Auto/Manual |
| Scanning frequency | 15.625kHz(H) 50Hz(V) |
| Horizontal Resolution | 1200TVL |
| S/N Ratio | ≥50dB |
| Electronic shutter | 1/50~10,000s |
| Min. illumination | 0.01Lux |
| Focal length | f = 3.4~122.4mm |
| Zoom | Optical 30x |
| Focal & Iris | Auto/Manual |
Order part No.
Analog PTZ Camera SONY 700TVL | PTZ-100 |
Analog PTZ Camera SONY 1200TVL | PTZ-100-T1 |
2.0 Megapixel AHD PTZ Camera | PTZ-100AP2 |
2.0 Megapixel IP PTZ Camera | PTZ-100-IP2 |
3.0 Megapixel IP PTZ Camera | PTZ-100-IP3 |
2.0Megapixel SDI PTZ Camera | PTZ-100SDI |
Our Services
- The product is based on Ex-works for 1-50pcs, FCA shenzhen for 50-500pcs, FOB shenzhen for above 500pcs.
- Payment term:100% payment in advance before shIpment (T/T, Western Union ,paypal,cash or any other means at your convenience)
- Delivery Time:sample order: 1-3 working day, Normal order:longer than 3 working days according to the order quanity
- All the above products have CE ,FCC and ROHS certificates
- Welcome OEM & ODM order,MOQ for OEM is 50pcs/model

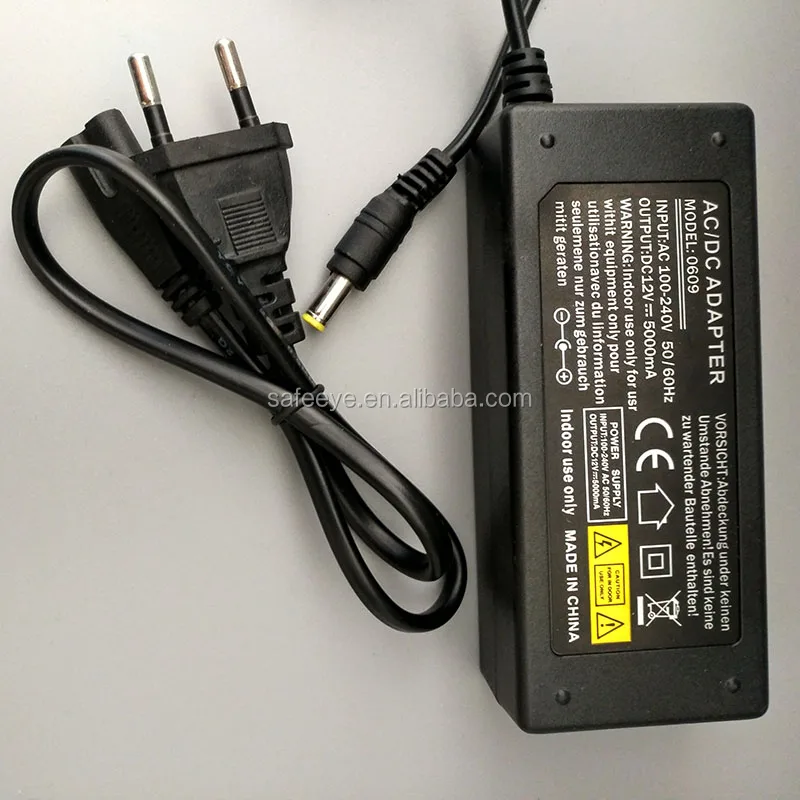

- Power adapter isn't included in above prices, it's optional
- Price Validity: 30 days from issuing date.
- Warranty: 2 years after receiving goods,unlimited lifetime Technique support.
- If quanity more than 100pcs one model, we will free supply some camera parts for preapre exchange
Packaging & Shipping
1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.
2. Air freight (we have strong cooperation with DHL, TNT, FEDEX, EMS, you can also choose your own shipping forwarder)
- DHL (3-7 business days)
- //www.dhl.com
- FedEX (3-7 business days)
- //www.fedex.com/cn
- UPS (3-7 business days)
- //www,ups.com
- EMS (5-9 business days)
- //www.17track.net/en/
TNT:(3-7 working days)
//www.tnt.com.cn
- Air mail (7-25 business days)
- The shipping way depends on your address.
FAQ
What the Payment terms:
T/T,Western Union,VISA,Mastercard,Escrow, paypal and so on.
1. We can arrange to produce in advance once we get the bank slip of deposit.
2. Order value less than 20,000USD, 100% payment before production;
3. Order value more than 20,000USD, 30% deposit. 100% paid before shipment.
Q.May I print our company logo on package box and products?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is Minimum Order Quantity?
A:Min Order Quantity is 10pcs,but sample order is welcome.
Q: Can We to be your Agency in our Country?
A: Of Course, welcome to be SafeEye Security Products agency in your country, we will try best support for you.
