royal cord 3.5 mm sq philippines electrical house wiring

Product Overview

Description

royal cord 3.5 mm sq philippines electrical house wiring

Porduct name	royal cord 3.5 mm sq philippines electrical house wiring
size(mm²)	0.5,0.75,1,1.5,2.5,4,6,10...
Insulation Material	PVC:EU RoHS environmental protection and low smoke halogen free material
Conductor Material	Anaerobic Copper Wire:Pure 99.99% Copper Conductor
Color	black,white,red,green,yellow,grey,blue etc
Rated Voltage(V)	300/500 OR 450/750

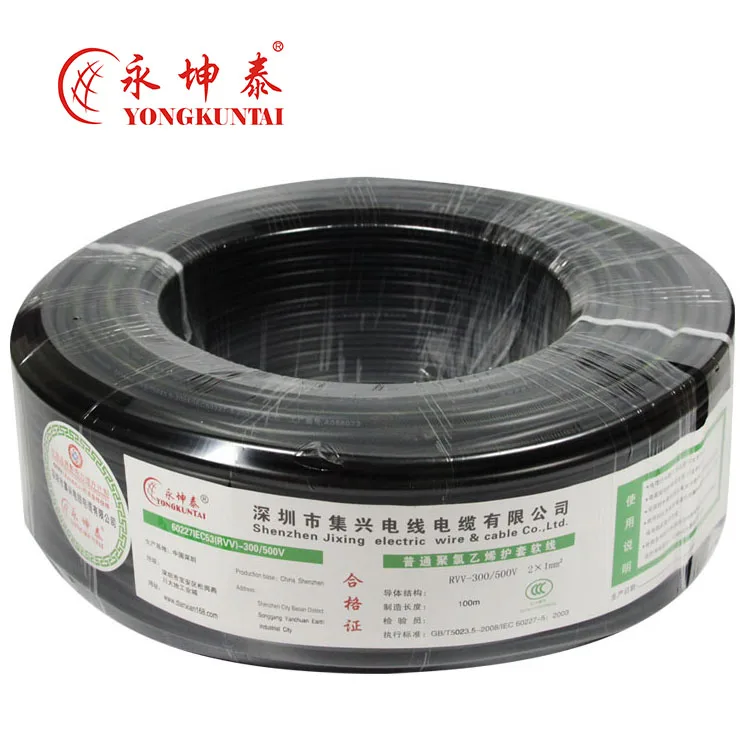

Pakege	100 meter/roll
Certificate	CCC,CE,SGS,ISO9001,RoHS
Delivery period	20-40 days,depending on your order quantity and destination
Sample service	support

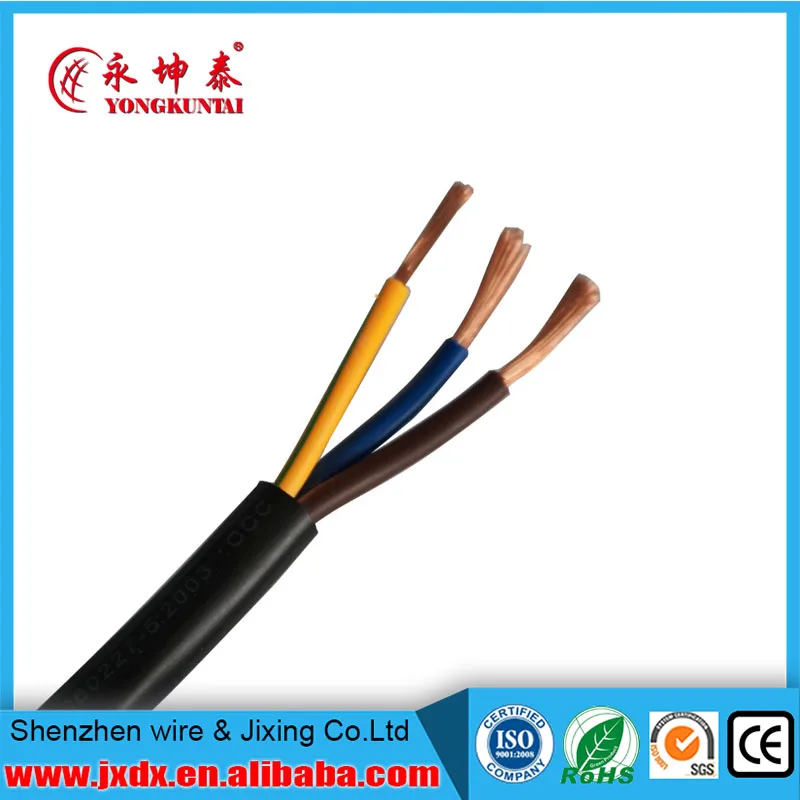

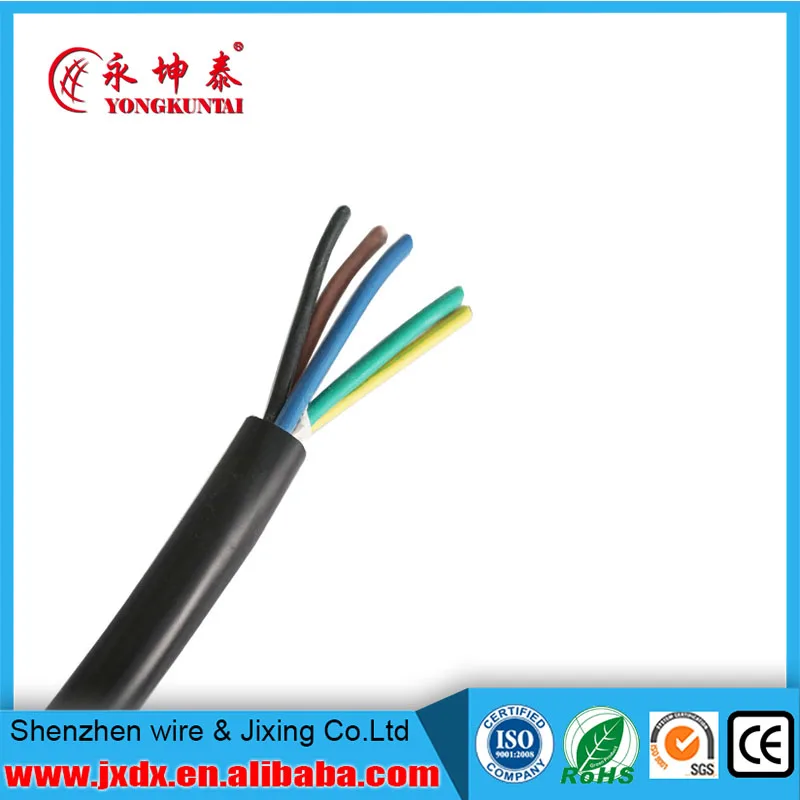

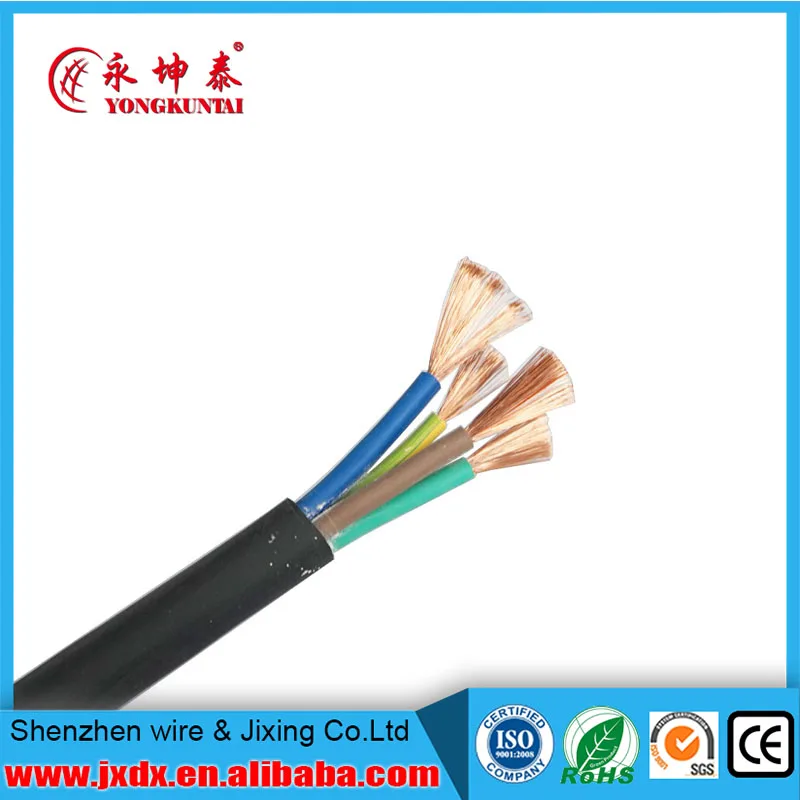

 The full name of H05VV-F/RVV is Copper conductor PVC insulated and sheathed flexible cable,  commonly known as Soft-sheathed cable, is one kind of sheathed cable. H05V-F/RVV wire and cable is consisted of two or even more H07V-K/RV lines plus one jacket outside.



Model: H05VV-F/RVV.



VV means PVC insulation and sheath,R means flexible,05 means voltage is 300/500V.



Specification:



number of cores*section-area of each core(sq mm)



2×0.50, 3×0.50,4×0.50,5×0.50,6×0.50,7×0.50,8×0.50,10×0.50,12×0.50,18×0.50,25×0.50,36×0.50.
2×0.75, 3×0.75,4×0.75,5×0.75,6×0.75,7×0.75,8×0.75,10×0.75,12×0.75,18×0.75,25×0.75,36×0.75.
2×1.0,   3×1.0,  4×1.0,   5×1.0,  6×1.0,  7×1.0,   8×1.0,  10×1.0,   12×1.0,  18×1.0,  25×1.0,   36×1.0.
2×1.5,   3×1.5,  4×1.5,   5×1.5,  6×1.5,  7×1.5,   8×1.5,  10×1.5,   12×1.5,  18×1.5,  25×1.5,   36×1.5.
2×2.5,   3×2.5,  4×2.5,   5×2.5,  6×2.5,  7×2.5,   8×2.5,  10×2.5,   12×2.5,  18×2.5,  25×2.5,   36×2.5.
2×4.0    3×4.0,  4×4.0,   5×4.0,               7×4.0.
2×6.0    3×6.0,  4×6.0,   5×6.0,               7×6.0.
2×10     3×10.   4×10.    5×10.0.
2×16     3×16    4×16.    5×16.0.
2×25     3×25    4×25.    5×25.0.
2×36     3×36    4×36.0  5×36.0.





Product Structure: Conductor + Insulation+sheath.Oxygen-free pure copper conductors + PVC Insulation+PVC sheath.composed by multi-strand annealed copper cable,PVC insulation and sheath.





Implementation of the standards:  GB/T5023.5-2008



Quality Standard: CCC,CE,ROhs,SGS,ISO 9001 certifications.



Rated voltage:300/500V



 Soaked one hour, Wire subjected to alternating current  50Hz 250V (450 / 750V), 2000V (300 / 500V) voltage test 5 minutes without breakdown.



Operating temperature: normal operating temperature does not exceed the maximum 70 ℃.



Color: color of sheath:black,  white;color of insulation yellow-green,blue,brown.





Nominal crosssection (mm²)	Upper limit O.D.(mm)	Max D.C. resistance at 20℃(Ω/km)	Max insulation resistance at 70℃(MΩ/km)	Recommended ampacity(A)	Reference weight of cable(kg/km)
2x1.5	10.5	12.1	0.01	20	117
2x2.5	11.5	7.41	0.01	27	151
2x4	12.5	4.61	0.0085	38	195
2x6	13.5	3.08	0.0065	50	272
2x10	17.5	1.83	0.0065	69	447
2x16	20	1.15	0.0052	92	618
3x1.5	10.5	12.1	0.011	13	130



 This table is just part of the date.If you are not sure where it is what you need,you need  our support.



 package 1:2+4+5

 package 2:1+5

 package 3:3+5

 package 4:6 (this package is use for big size cable.)

Which package as you wish.

Model specification(mm²)	Internal diameter(mm)	Extral diameter(mm)	Weight (kg / 100 meters)	Packing size for each roll/100meter(mm)
2x0.5	2.3	6.2	5.35	270*270*100
2x0.75	2.5	6.4	6.3	280*280*100
2x1	2.65	6.9	7.65	300*300*100
2x1.5	2.85	7.5	9.5	310*310*100
2x2.5	3.25	8.5	11.75	340*340*100
2x4	4	10	16.35	400*400*100
3x1.5	3.05	11.2	12.5	410*410*100
4x1.5	4.15	12.3	15.5	380*380*100



 Similar Products

 Application

Application:  used as control signal transmission line, electrical equipment, instrumentation, automation equipment, security alarm system, high-rise building intercom systems, home lighting cable etc.



Special Items:  Similarly, according to the choice of different materials,H05VV-F/RVV wire is also divided into fire-retardant wire (ZR-RVV), fire-resistant wire (NH-RVV),low smoke halogen free wire (WDZ-RVV).Users can choose according to their own needs depending on different occasion. The low smoke halogen free wire and produce a very small amount of smoke in the flame, the release of gas does not contain halogen (low halogen) elements, non-toxic (low toxicity). When a fire occurs, it can greatly reduce the damage of apparatus, equipment and the human body.That's why it has been widely used in high-rise buildings, hospitals, large library, gymnasium, disaster prevention and control building, railway stations and civil airports, passenger waiting room, key cultural relics protected places and subway, underground shopping malls or densely populated public places.
