CONCOX 2017 new car gps tracking system GT800 with two way talk sos alarm waterproof door sensor
- Category: >>>
- Supplier: Shenzhen Jimi Iot Co. Ltd.
Share on (60661377154):
Product Overview
Description

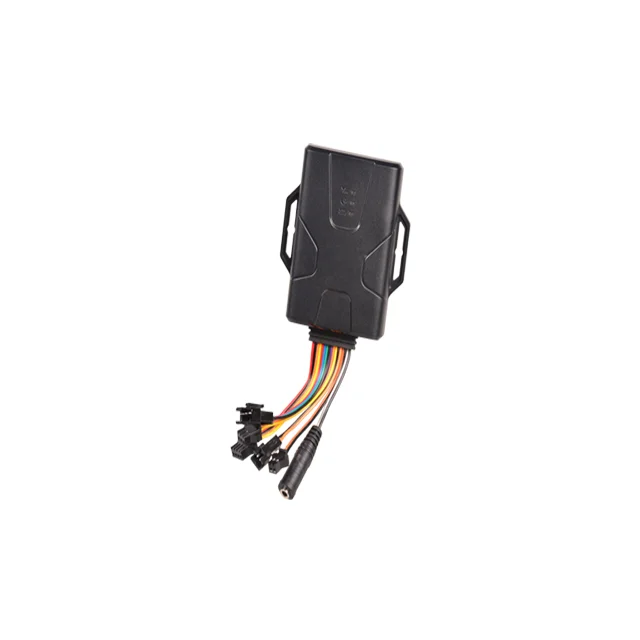

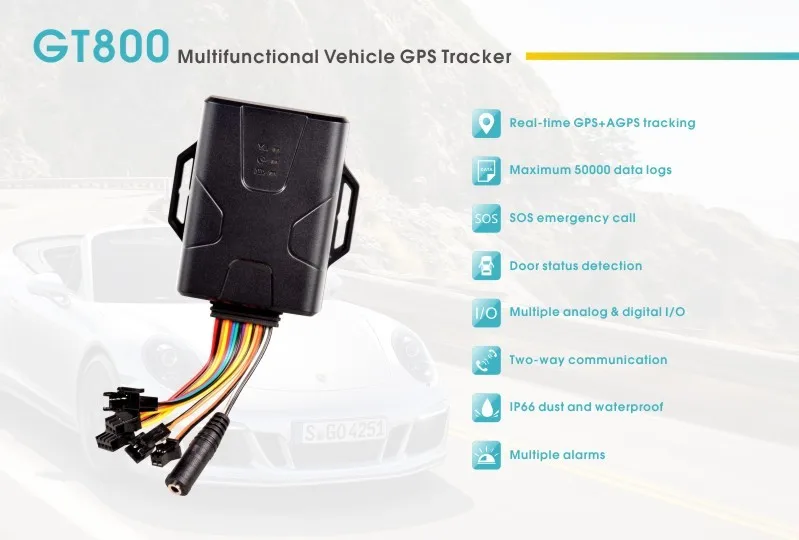

CONCOX 2017 new car gps tracking system GT800 with two-way talk sos alarm waterproof door sensor
Product Description
Feature List
1.GSM 850 / 900 / 1800 / 1900 MHZ Quad-band

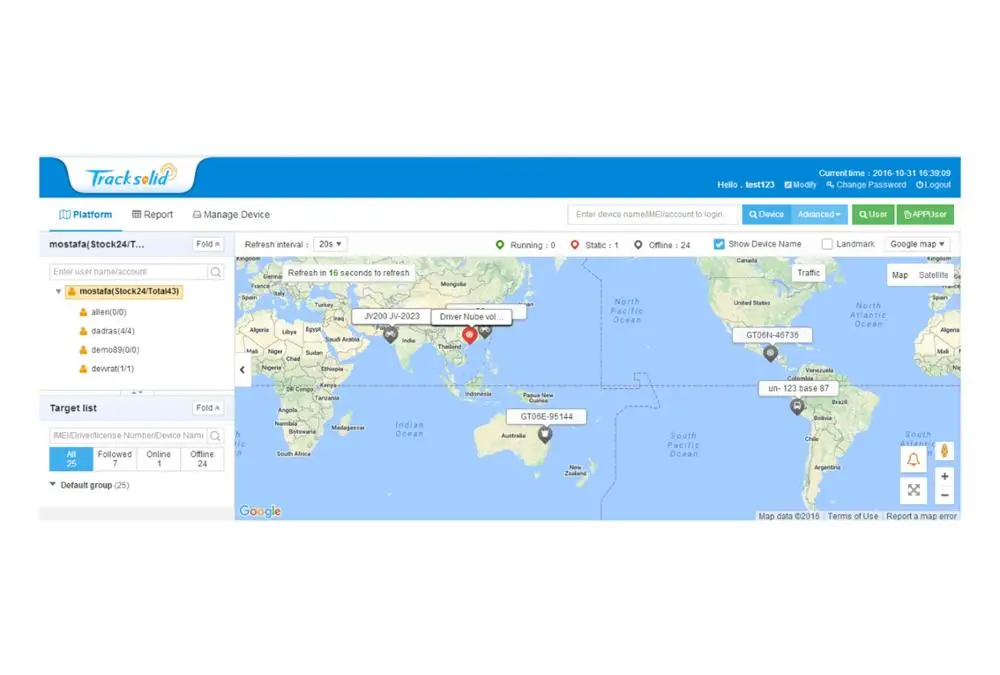

2.Web-based online tracking platform and App
3.Geo-fence alarm function
4.High sensitive GPS chipset
5.Built-in GSM & GPS antenna
6.ACC status detection and alarm
7.IP66 protection grade
8.Compact size and fast installation design
9.Remote cut off (petrol / electricity) function
10.Built-in battery standby when the engine is off
Hardware Specification | |
GSM Specification | |
Communication Model | GSM |
GSM Frequency | 850/900/1800/1900MHz |
GPRS | Class 12,TCP/IP |
Memory | 64MB |
Phrase Error | RMSPE<5,PPE<20 |
Max Output | GSM850/GSM900:33±3db |
| GSM1800/GSM1900:30±3db |
Max Frequency Error | ±0.1ppm |
Sensitivity | Class ⅡRBER2%(-10dBm) |
GPS Specification | |
GPS Chip | MTK high sensitivity GPS chip |
Frequency | L1,1575.42MHz C/A code |
Channels | 66 |
Location Accuracy | <10 meters |
Tracking Sensitivity | -165dBm |
Acquisition Sensitivity | —148dBm |
Positioning Time | Hot-start:≤2 sec(open sky) |
| Cold-start:≤35 sec(open sky) |
Main Specification | |
Antenna | Built-in GPS antenna,GSM four frequency antenna |

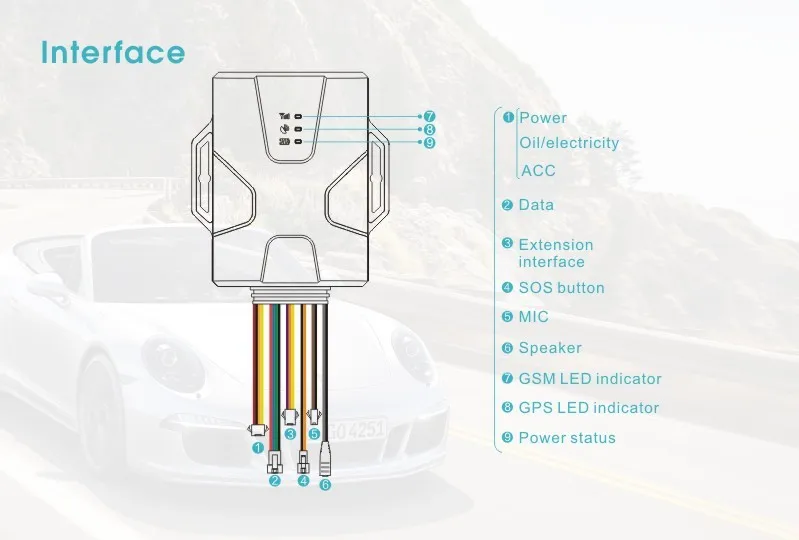

LED Indicator Light | GPS(blue),GSM(green),Power(red) |
Battery | 800mAh/3.7V industrial-grade lithium-polymer battery |

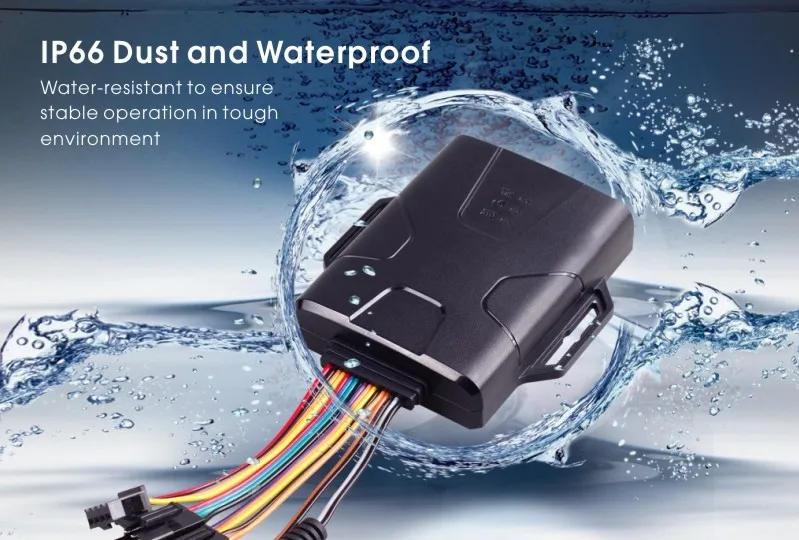

Dustproof Waterproof Level | IP66 |
Voltage/Current | 9-36VDC/45mA(12VDC), 28mA(24DVC) |
Standby Time | 90 hours after external power disconnected,continuous orientation tracking for 5 hours |
color | Black |
Dimensions | 87.0(L)*74.0(W)*18.7.0(H)mm |
Weight | 93.5g |
Operating Temperature | -20℃ — +70℃ |
| |
Packing & Shipping
Dimentions: 90.3x76.0x18.0 (mm) Weight: 95g
Box size: 218x148x66(mm)Weight:546g
20pcs/Carton Carton size: 45.5x34.5x31.5(cm) Weight:14.15kg/Carton Stardard

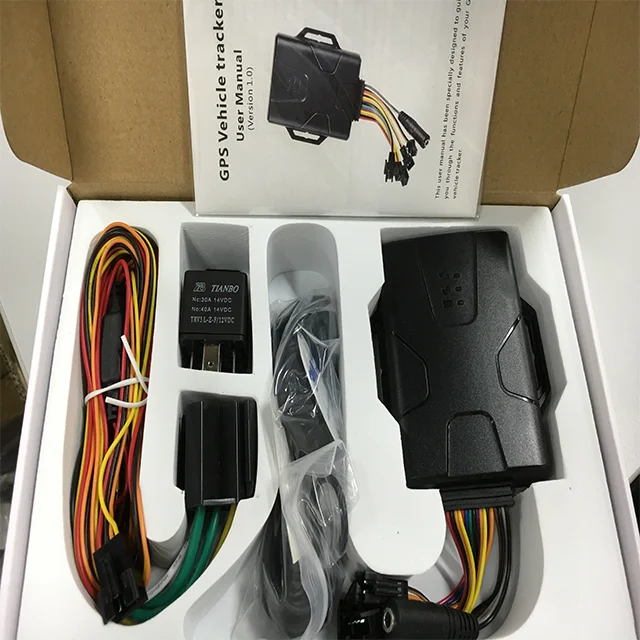

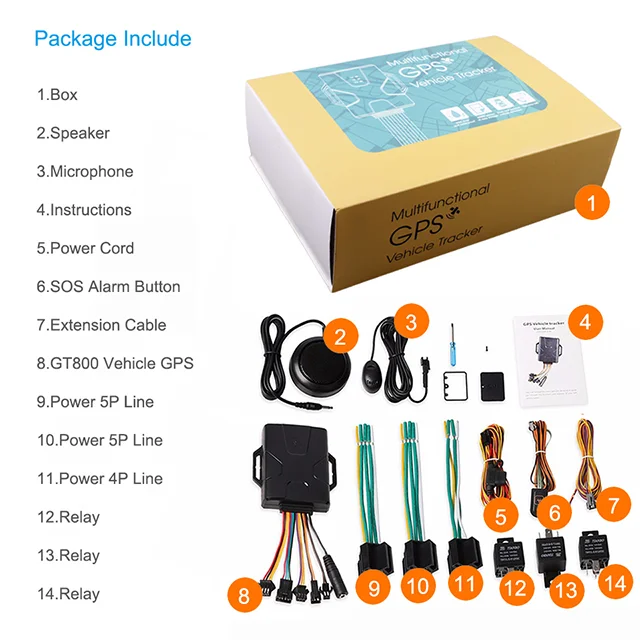

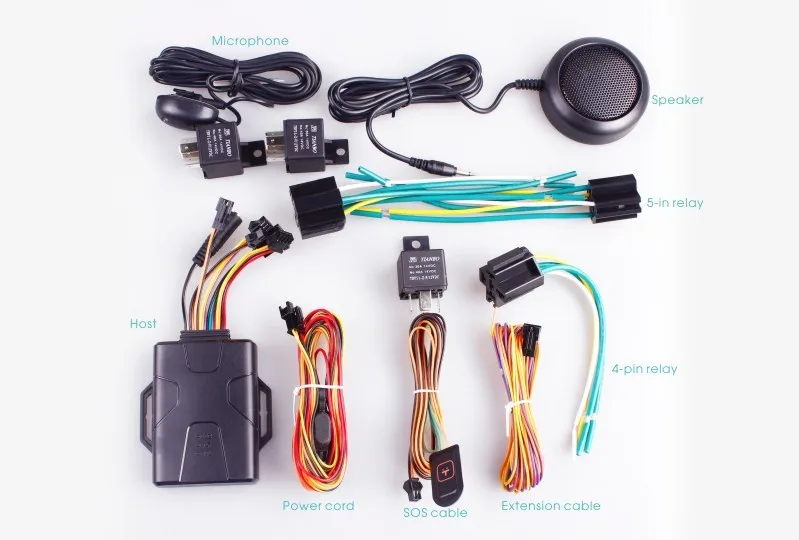

Accessories: Power cable, SOS cable, Microphone, Relay(4pin), 2*Relay(5pin), Horn, I&O cable
Delivery
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4-6weeks after the receipt of payment. Please contact our sales to make sure the current inventory.
Our Service
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
4.24 hours technocial support.
Company Information
Jimi Electronics is a leading and advanced wireless communication solution provider in China, we mainly manufacture GPS Tracker.
Our advantages:
1. Focus on wireless communication with more than 14 years experiences.
2. Powerful R&D team with 80+ engineers.
3. 3 factories for manufacturing chips ,integrating and assembling.
4. Complete Solution –hardware/software and mobile APP.
