| Three Phase Gearmotor | Single Phase Gearmotor | ||
| Reducer | Gear Material | High Quality alloy steel machined and carburized with precision tooth grinding or skiving | |
| Housing | Aluminum alloy Casting for model 18,22,28. Cast Iron for model 40,50 | ||
| Lubrication | High Qually #0 Lubrication Oil (lubricated when shipped) | ||
| Ratio Range | 1/3 to 1/1800 | ||
| Motor | HP | 1/10HP to 5HP (75W to 3.7kW) | 1/10HP to 3HP (75W to 2.2kW) |
| Voltage | 208/415, 220/380, 220/440, 230/460, 240/480 | 110/220, 120/240 | |
| Frequency | 50 / 60 Hz | 50 / 60 Hz | |
| Enclose Type | Total Enclosed Fan Cooled, IP54 | Partially Enclosed Fan Cooled | |
| Staring | Full Voltage Drive On Line | Capacitor Start | |
| Housing | Auminum alloy | ||
| Insulation | F Grade Continuous S1 Duty | ||
Brake (optional) | Function | Safety Brake | |
| Voltage | DC90-110V with AC 220V Rectifier | DC90-110V with AC 110V Rectifier | |
| Environmental Specifications | Temperature | -10° - 40°C (14° - 104°F) | |
| Humidity | Under 90% RH (Non-Condensation) | ||
| Place | Indoor, Below sea level 1000 m (3,300 ft) | ||
- Quality & SilenceEvery gear motor tested before delivery.
and if have quality problem, we will offer you best solution, if the motors discard, we supply you one in free.

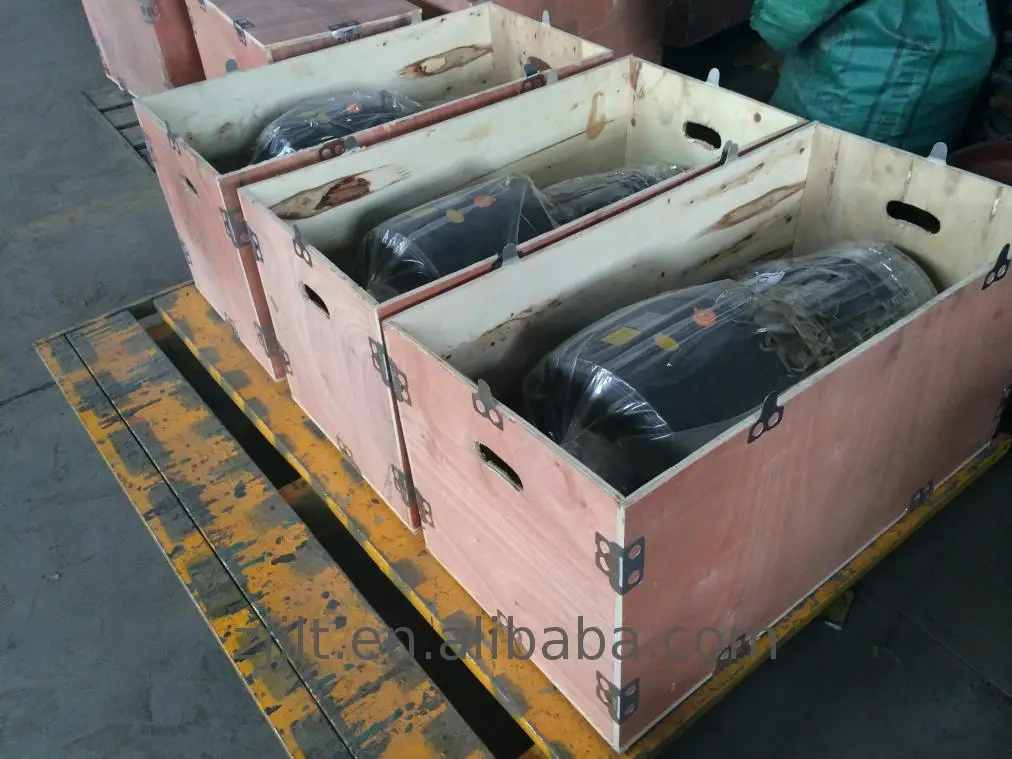

Standard export carton and plywood case packing
15-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
