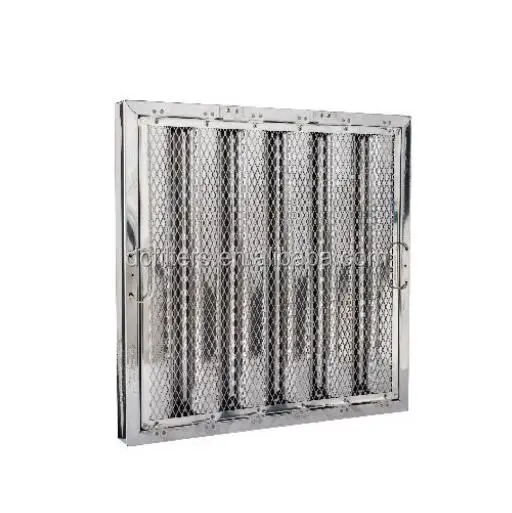

Spark Arrestor Baffle Grease Filter

Product Overview

Description

Spark Arrestor Baffle Grease Filter

Spark Arrestor grease filters are required in solid fuel cooking applications where airborne sparks and embers are generated.



Spark Arrestors prevent sparks or embers from entering the baffle filter, kitchen hood and air ventilation system for optimum safety and performance.



Model #          Description                                                    SIZE(HXWXD)

UW1016     10”x16”Standard With Spark ArrreStor Screen         9-5/8x15-3/4x1-3/4

UW1020     10”x20”Standard With Spark ArrreStor Screen         9-5/8x19-5/8x1-3/4

UW1025     10”x25”Standard With Spark ArrreStor Screen         9-5/8x24-5/8x1-3/4

UW1216     12”x16”Standard With Spark ArrreStor Screen         11-5/8x15-3/4x1-3/4

UW1220     12”x20”Standard With Spark ArrreStor Screen         11-5/8x19-5/8x1-3/4

UW1225     12”x25”Standard With Spark ArrreStor Screen         11-5/8x24-5/8x1-3/4

UW1616     16”x16”Standard With Spark ArrreStor Screen         15-3/4x15-3/4x1-3/4

UW1620     16”x20”Standard With Spark ArrreStor Screen         15-3/4x19-5/8x1-3/4

UW1625     16”x25”Standard With Spark ArrreStor Screen         15-3/4x24-5/8x1-3/4

UW2016     20”x16”Standard With Spark ArrreStor Screen         19-5/8x15-3/4x1-3/4

UW2020     20”x20”Standard With Spark ArrreStor Screen         19-5/8x19-5/8x1-3/4

UW2025     20”x25”Standard With Spark ArrreStor Screen         19-5/8x24-5/8x1-3/4

UW2516     25”x16”Standard With Spark ArrreStor Screen          24-5/8x15-3/4x1-3/4

UW2520     25”x20”Standard With Spark ArrreStor Screen          24-5/8x19-5/8x1-3/4





Higher Performance. Higher Standards.

• Spark Arrestor constructed of stainless steel mesh in tin-plated steel frame


• All-in-one construction for ease of handling


• Available in same sizes as standard baffle filter, as well as special sizes


• Easy cleaning: Hot water and dish soap can clean standard grease build up


• Supplied with Snap-In-Handles for easy installation and removal
