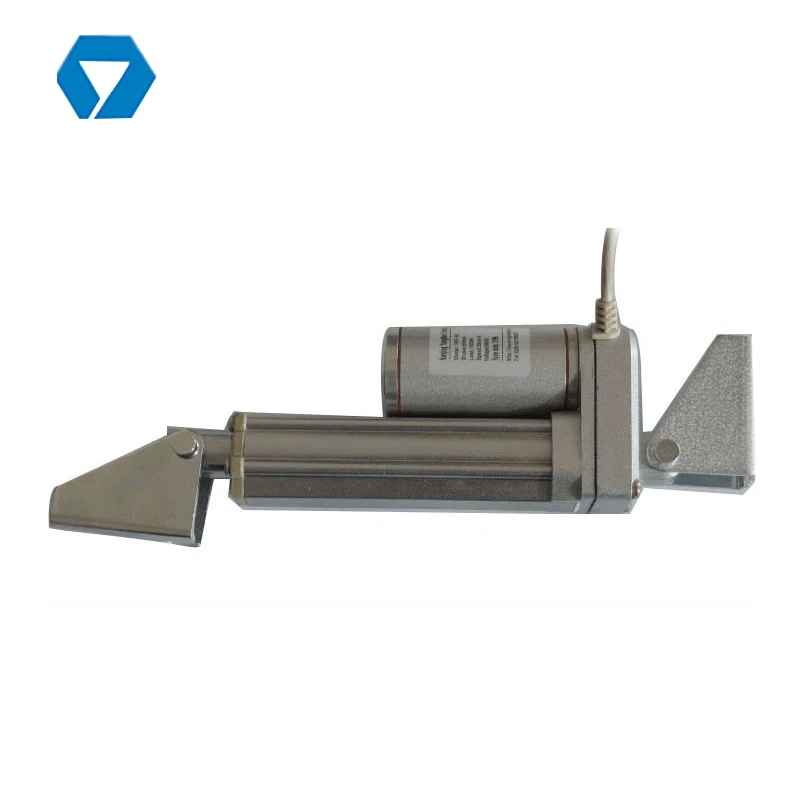

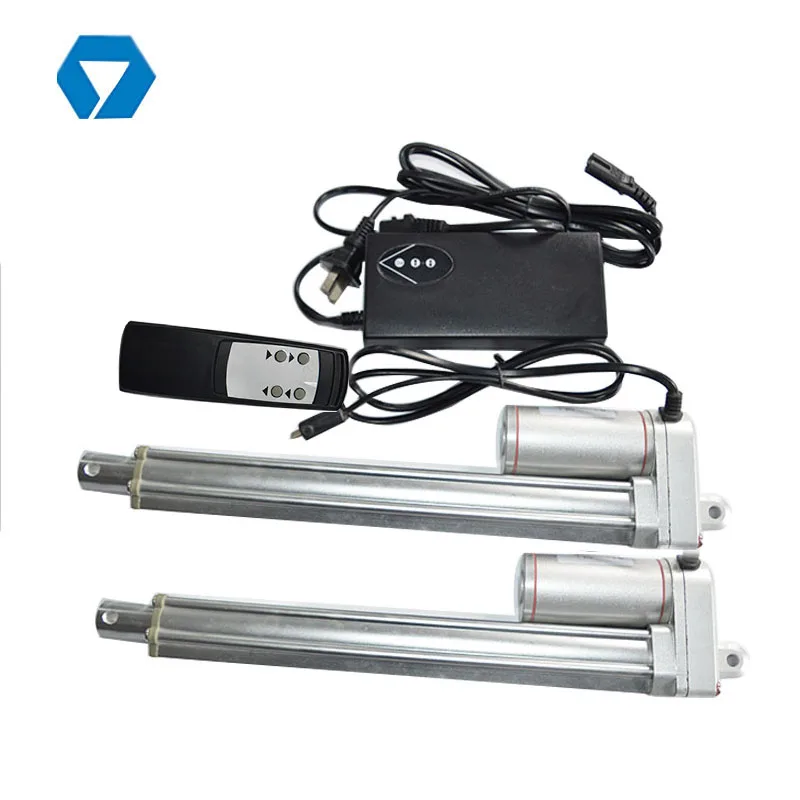

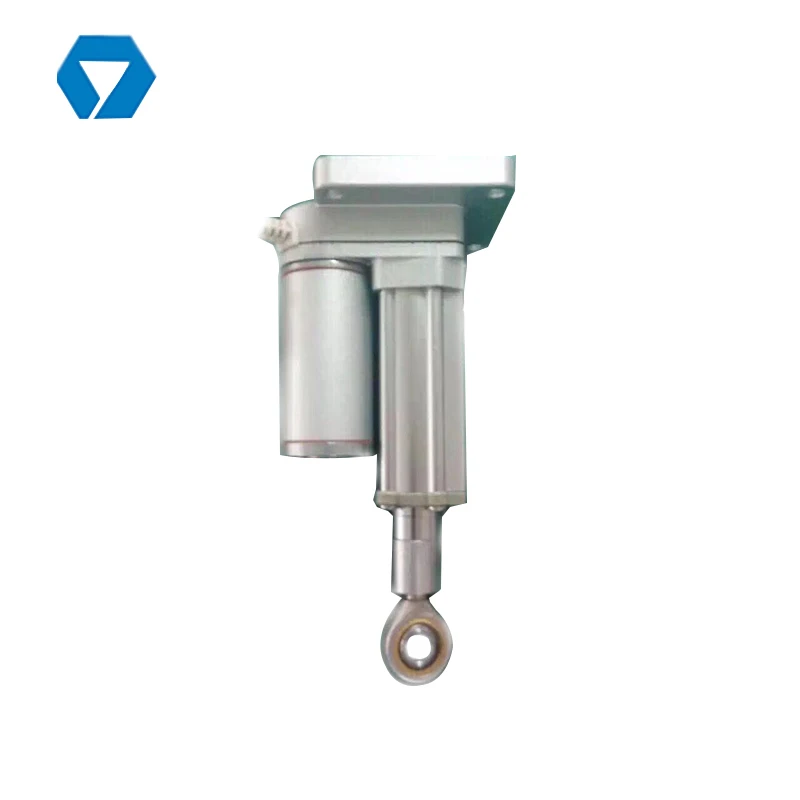

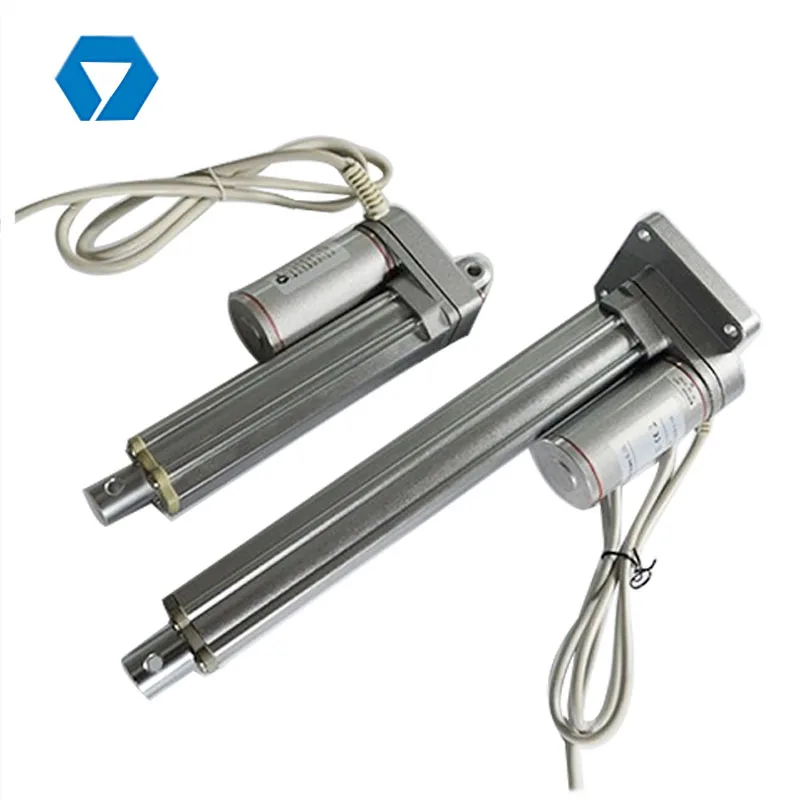

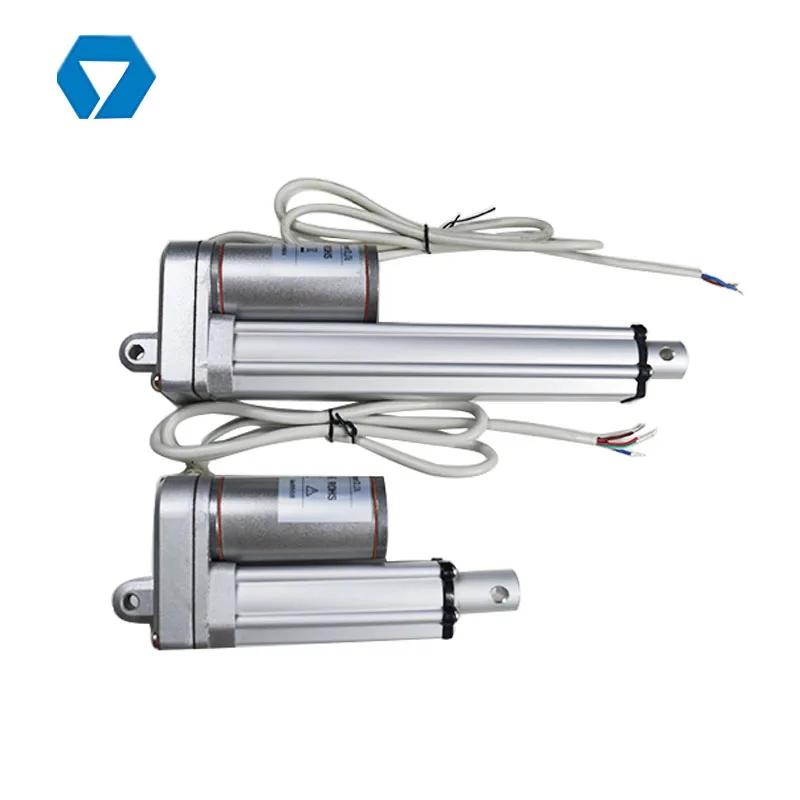

Waterproof linear actuator mini size for automotive engine electric push rod, ce linear actuator for modified car

Product Overview

Description

Applicable scope:

Production machinery, agricultural machinery, agricultural machinery, new energy vehicles, sex machines, special vehicles, modified vehicles, small motorcycles, motor vehicles, military, stage, textile, sewage treatment, ATV, cooking machine, throttle, solar energy......

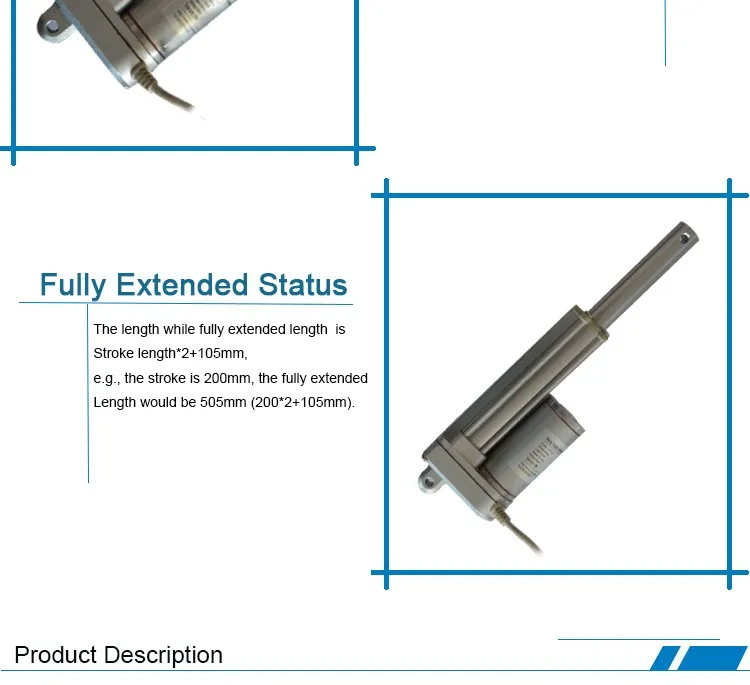

Stroke length	Customizable
Free load max speed	40mm/s(100N)
Full load max speed	5mm/s(1200N)
Limit switch	Built-in
Duty cycle	20%
Outer tube	Aluminum tube
Inner tube	Aluminum tube

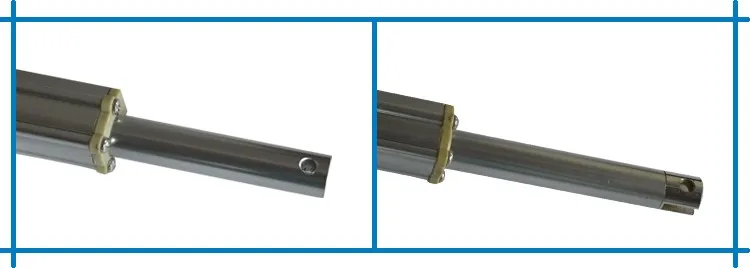

End clevis	Aluminum alloy
IP grade	IP65
Operating temperature	-26℃~65℃
Standard	CE,ROHS
Potentiometer	YES

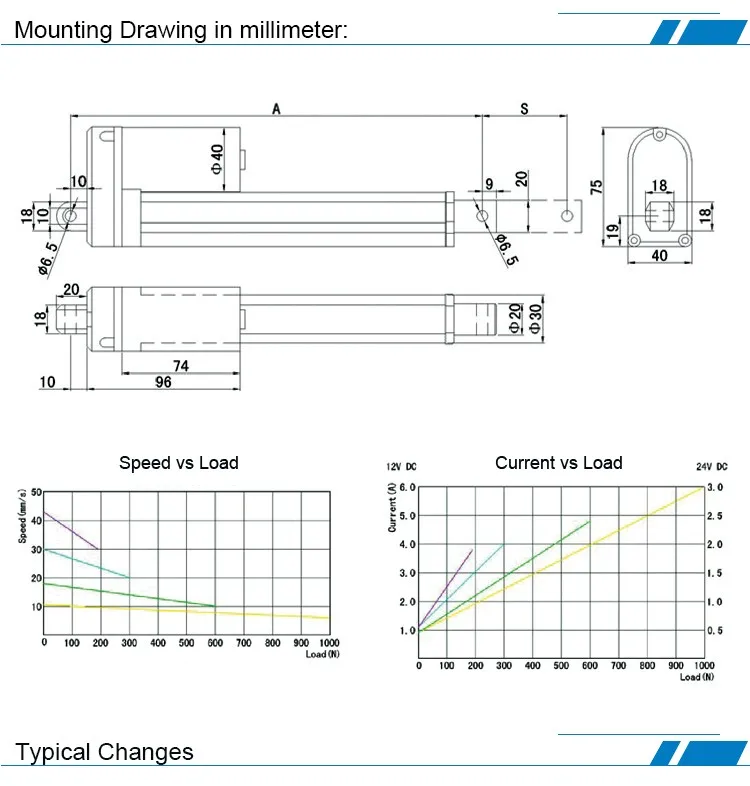

Specification of different load force and speed by using different gear ratio.(Customizable)



Load capacity (N)	1200	600	400	300	200	100
Static load (N)	1200	600	400	300	200	100
Speed at full load (mm/s)	5	10	15	20	30	40
Input (VDC)	12/24/36/48

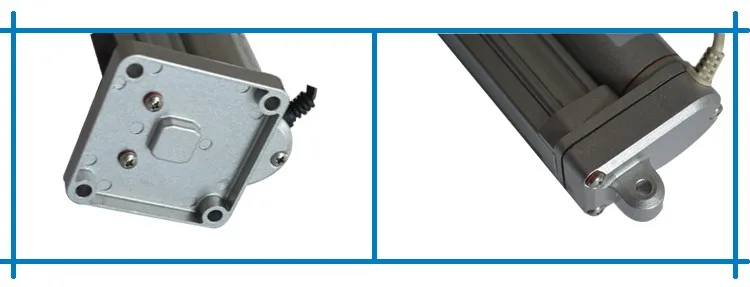

Base

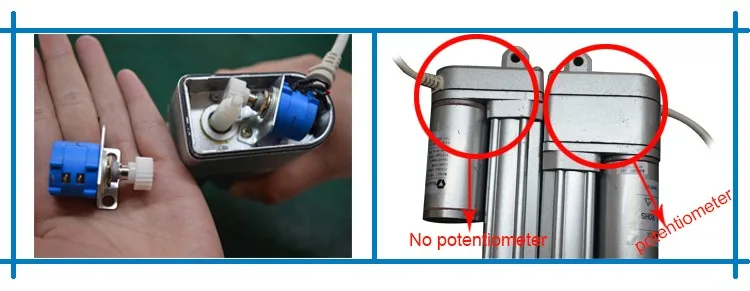

Potentiometer

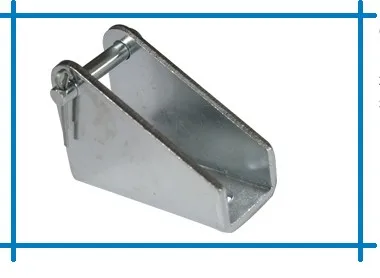

Common stent (YN-02) 1. Material: Steel A3 (Q235) 2. Size: 44*56*26mm 3. Hold Load 200Kg   We also accept bracket & holder customization, please tell us your requirements, we will give out a 3D drawing and a good price for you.

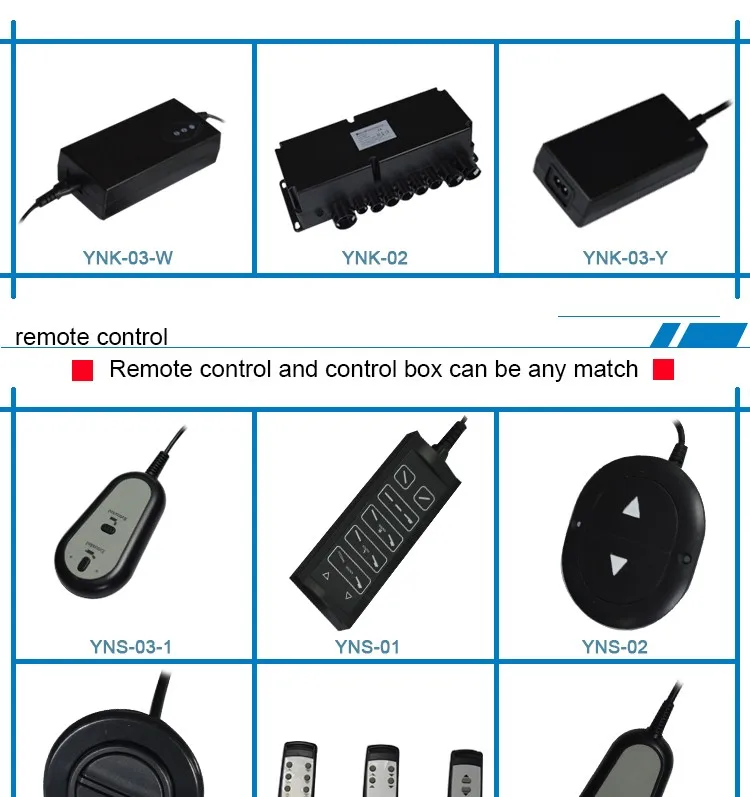

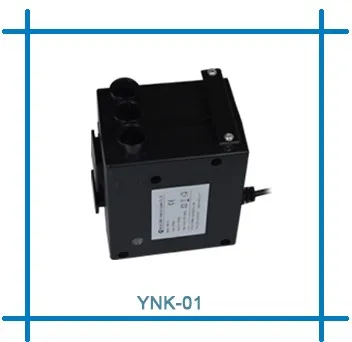

Remote or Wired Control Box Input vollage (VAC)  110/230 Output vollage (VDC) 12/24 Color Black Transformer power 60W Duty cycle 20% Overload protection YES Fuse Inside IP grade  IP43 Operation temperation -26℃~65℃ Standard CE,ROHS

Welcome to YONGNUO!

We specialize in manufacturing linear actuator, control box and handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success!

1.Q: Are you trading company or manufacturer ?

A: We are factory.



2.Q: How much is the packaging size?

A: Packing size is in accordance with your order, your product specifications to determine the package size.



3.Q: How much does shipping cost and what shipping methods do you support?

A: Shipping cost  is calculated based on the weight of the order and the distance it is travelling;

Transport of large trucks to the seaport and international transport cooperation



4.Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



5.Q: Do you provide customized Functions ?

A: Yes, we can design and program as your requirements.



If you have another question, please feel free to contact us
