SP RACING F4 EVO Brush MINI Flight Controller board (Updated Version of F3) For RC Multirotor Parts Indoor 4 axis Quadcopter

Share on (60661763403):


Price:

Quantity:


Product Overview

Description


Product Description

SP RACING F4 EVO Brush MINI Flight Controller board (Updated Version of F3) For RC Multirotor Parts Indoor 4-axis Quadcopter

Features:
1. The highest frequency rate reached 168MHZ, far beyond the 72MHZ F3 series controller, the performance was further improved.
2. F4_Brush Flight Controller support 1S or 2S power input. and equipped with 1S/2S power switch.
3. Flight control circuit design perfect, cabin pressurization and depressurization technology, both 1s and 2S power input, UART1/2/3 output 5V, DSM output 3.3V.
4. With a large current NMOS transistors, operating current of up to 10A or more. Each machine is equipped with freewheeling diodes.
5.Support SBUS/DSM/DSM2/DSMX Receiver.

Receiver configuration:
1. DSM/DSM2/DSMX receiver soldered directly to the DSM/DSM2/DSMX Receiver interface 3.3V, GND, RX3. Enable Seria_RX for UART3 and Set Receiver mode RX_SERIAL,   Select Spektrum1024(DSM/DSM2) or Spektrum2048(DSMX) in Raceflight configurator.
2. SBUS receiver welded to the UART1 GND, + 5V, RX1. Then Enable Seria_RX and Set Receiver mode RX_SERIAL , Select Sbus signal in Raceflight configurator.

Package included:

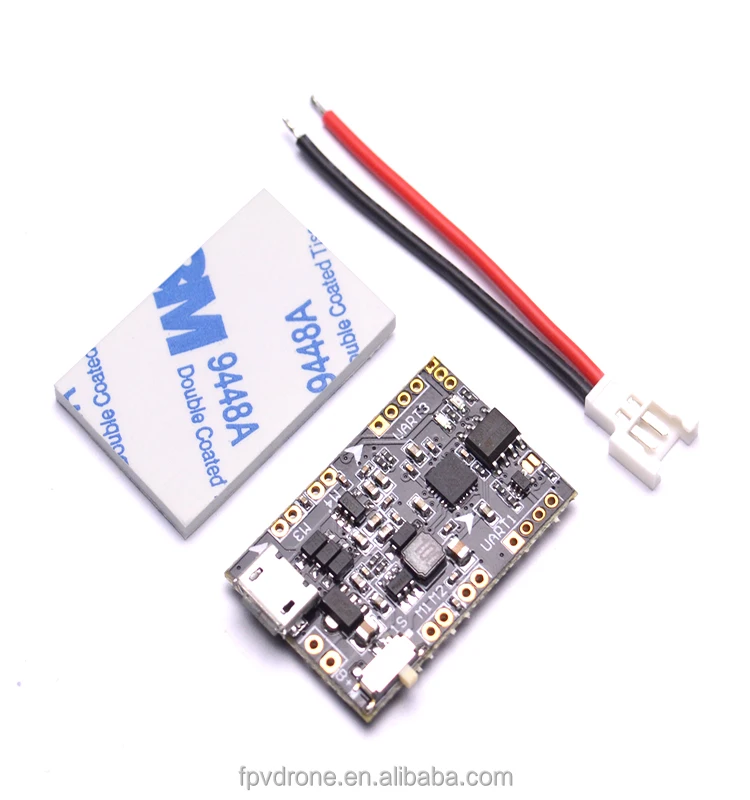

1 x F4_Brush Flight Control Board

F4 EVO Brush Flight ControllerSP RACING F4 EVO Brush MINI Flight Controller boardf4 evo brush flight controllersf4 evo brush flight controller to rcf4 evo brush flight controller kitf4 evo brush flight controller firmware



Packaging & Shipping

   Instruction:the weight and size we marked in the package details is not actual information of the goods.If you need to know the actual information,please contact us.



  Shipping:1~5 days after payment.
