General Specifications:

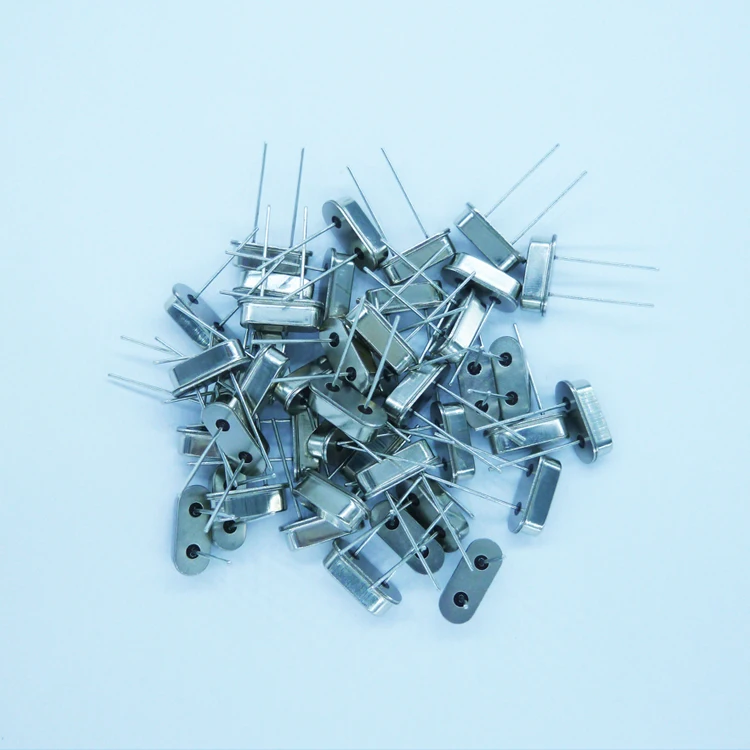

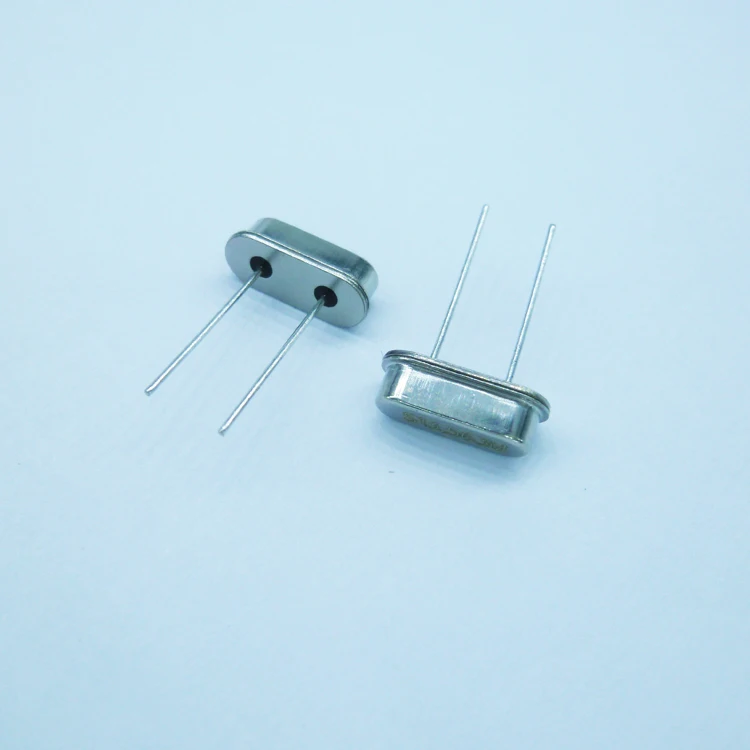

| Holder Type | HC-49S | |
| Normal Frequency | 4.897000MHz | |
| Oscillation Mode | AT-Fundamental | |
| Load Capacitance | 20pF | |
| Frequency Tolerance | ±20ppm | |
| Effective Series Resistance | ≤60Ω | |
| DLD2 | ≤18Ω | 0.01uW ~ 100uW 10 steps |
| RLD2 | ≤60Ω | 0.01uW ~ 100uW 10 steps |
| FDLD | ≤8ppm | 0.01uW ~ 100uW 10 steps |
| Shunt Capacitance | ≤7pF | |
| Typical Drive Level | 100uW TYP. | |
| Operation Temperature | -20℃ to +70℃ | |
| Stability Over Temperature | ±20ppm at -20℃ to +70℃ | |
| Insulation Resistance | ≥500MΩ DC 100V | |
| Aging | ±5ppm/yr | |
| Storage Temperature | -50℃ to 105℃ | |
| Test Circuit | S&A 250B Pi-Network Crystal Measurement System | |
Dimension:

More Crystal Oscillator Choices:

1. The goods will be shipped within 1-3 weeks after receiving payment by DHL, UPS, FedEx, EMS or according to your request.
2. 1-2pcs free samples are available for test.
3. OEM/ODM is available

1. Why choose CY Wireless?
a. High Service Quality: OEM & ODM service; Reply in 24 hours; 7 years experience in overseas export.
b. High Product Quality: Quality inspection in factory and double check in company.
c. Professional Manufacturer: We possess several production bases, gathering over 300 staff, a professional R&D team and many other cooperation manufacturer, all products are directly from factory.
d. Competitive Price: Every order must follow our quoted price rule; We never allowed the higher price.
e. Advantaged Shipment: Our partner: DHL, UPS, FedEx, EMS; Delivery time: 4-7 working days.
2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products were shown on alibaba, please have a detailed looking and choose the interested models in our site.
4. If I want cheaper quality, can you produce?
Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.
5. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
