Refrigerator Factory Prices Timer Solid State Relay
Solid State Relay

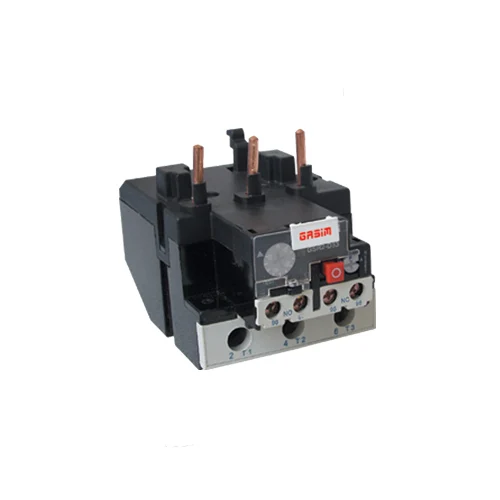

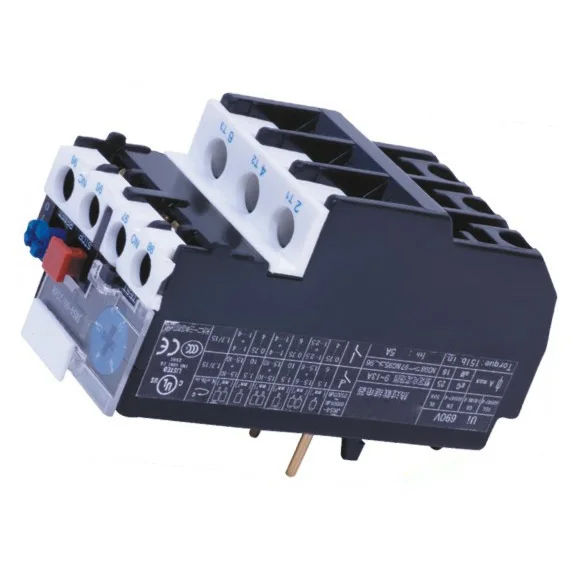

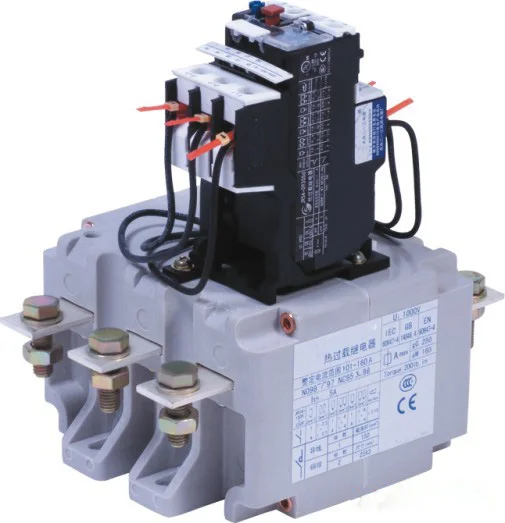

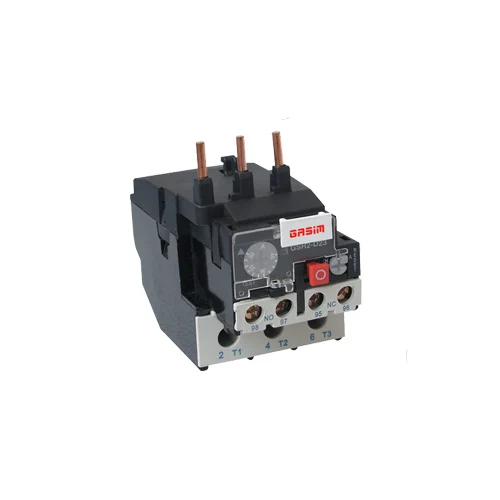

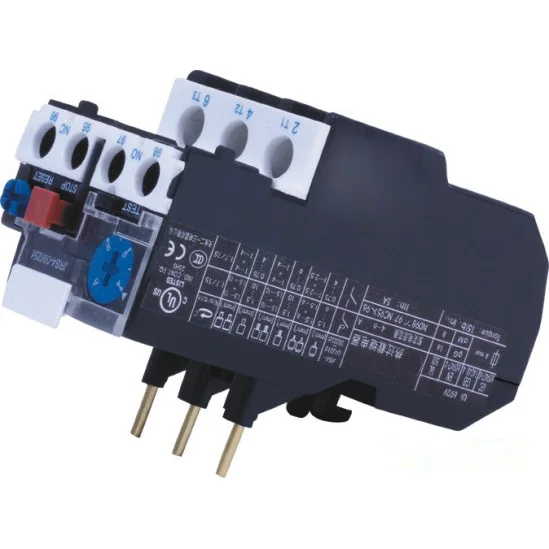

GSR2-D Thermal Overload RelaySolid State Relay
 Solid State Relay | Application | |||
|---|---|---|---|---|
| This series of thermal overload relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be pluged in GSC1-D series AC contactor. It is the most advanced thermal relay in the nineties in the world. The products comply with IEC 60947-5. Solid State Relay | ||||
| Characteristics | ||||
| a. Fundamental parameter of the main circuit (a). Rated insulation voltage 660V. (b). Rated working current 25,36,93A separately. (c). The regulator seal of rated setting current. (d). Current of the Thermal component (see list 1) b. Auxiliary Circuit (a). There is one pair of N/O and N/C contact with electric insulation. (b). Rated insulation Voltage 500V. (c). Rated frequency 50-60Hz. (d). Use group, rated working voltage, appoint thermal current and rated current. | ||||
| Specifications Solid State Relay | ||||
| Type | Rated Working current | Thermal component | ||
| Rated current(A) | Regular or scale rated current(A) | |||
| GSR2-D13 | 25 | GSR2-D 1301 | 0.16 | 0.10-0.16 |
| 1302 | 0.25 | 0.16-0.25 | ||
| 1303 | 0.40 | 0.25-0.40 | ||
| 1304 | 0.63 | 0.40-0.63 | ||
| 1305 | 1.0 | 0.63-1.0 | ||
| 1306 | 1.6 | 1.0-1.6 | ||
| 1307 | 2.5 | 1.6-2.5 | ||
| 1308 | 4.0 | 2.5-4.0 | ||
| 1310 | 6.0 | 4.0-6.0 | ||
| 1312 | 8.0 | 5.5-8.0 | ||
| 1314 | 10.0 | 7.0-10.0 | ||
| 1316 | 13 | 9.0-13.0 | ||
| 1321 | 18 | 12.0-18.0 | ||
| 1322 | 25 | 17.0-25.0 | ||
| GSR2-D23 | 36 | GSR2-D 2353 | 32 | 23.0-32.0 |
| 2355 | 36 | 28.0-36.0 | ||
| GSR2-D33 | 93 | GSR2-D 3353 | 32 | 23.0-32.0 |
| 3355 | 40 | 30.0-40.0 | ||
| 3357 | 50 | 37.0-50.0 | ||
| 3359 | 65 | 48.0-65.0 | ||
| 3361 | 70 | 55.0-70.0 | ||
| 3363 | 80 | 63.0-80.0 | ||
| 3365 | 93 | 80.0-93.0 | ||
Types of contactor
Packaging & Shipping
Diversified modes of transport for Solid State Relay
Standard export packaging for Solid State Relay
Company Information
Solid State Relay
Certifications
Related Products
GSC1-N AC Contactor GSC1-D AC Contactor GSC1-F AC Contactor
GSC1-Y Energy Saving Contactor 3TF AC Contactor GMC AC Contactor
Solid State Relay
Our Services
Lead Time for Solid State Relay
1. Solid State Relay's sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.Solid State Relay
3. Bulk orders will be delivered from our factory within 25 working days at most.Solid State Relay
Shippment Solid State Relay
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China.
Warranty ( 24 months warranty ) Solid State Relay
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.Solid State Relay
