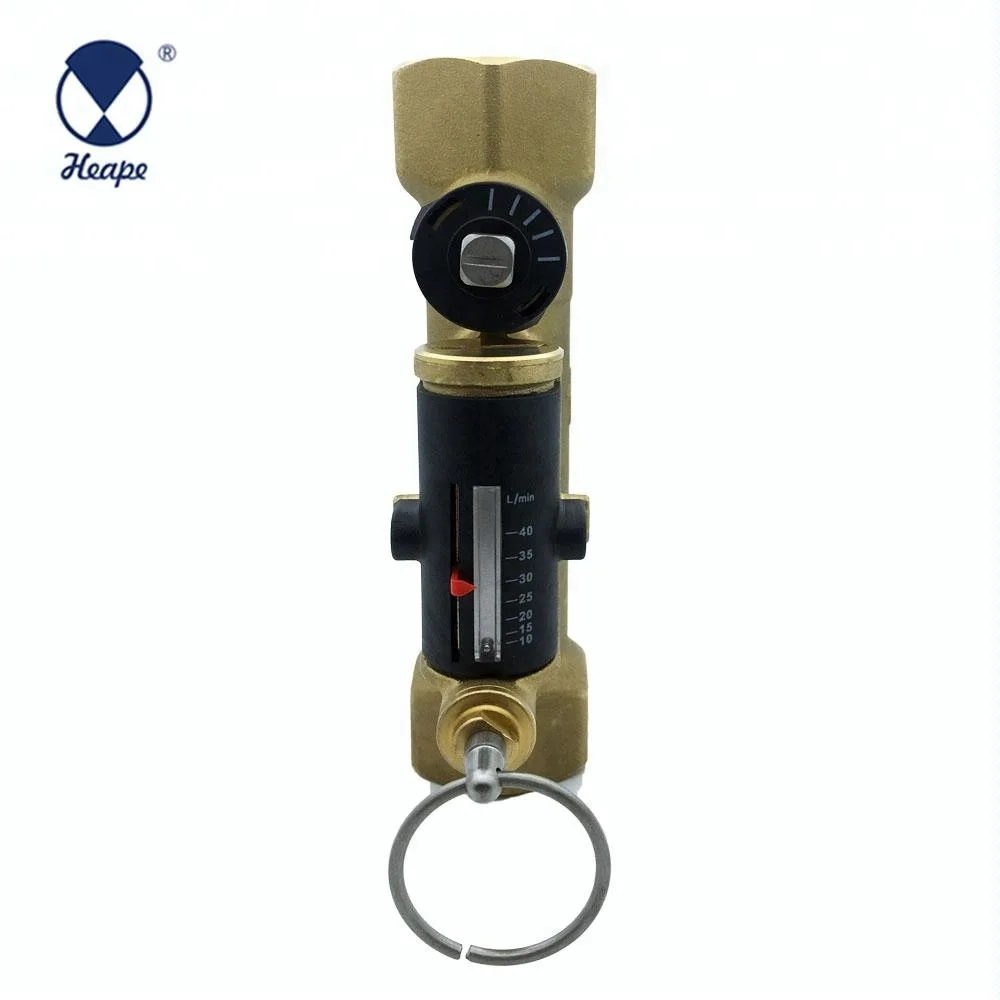

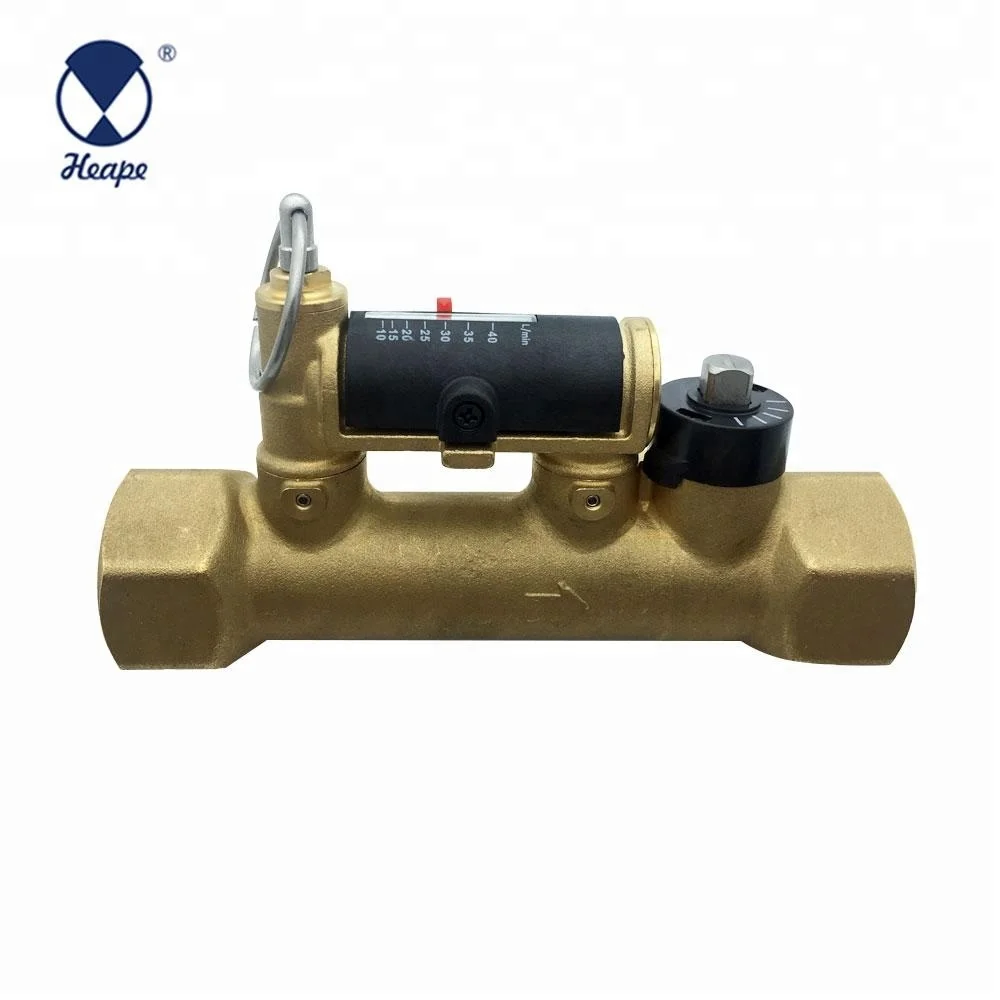

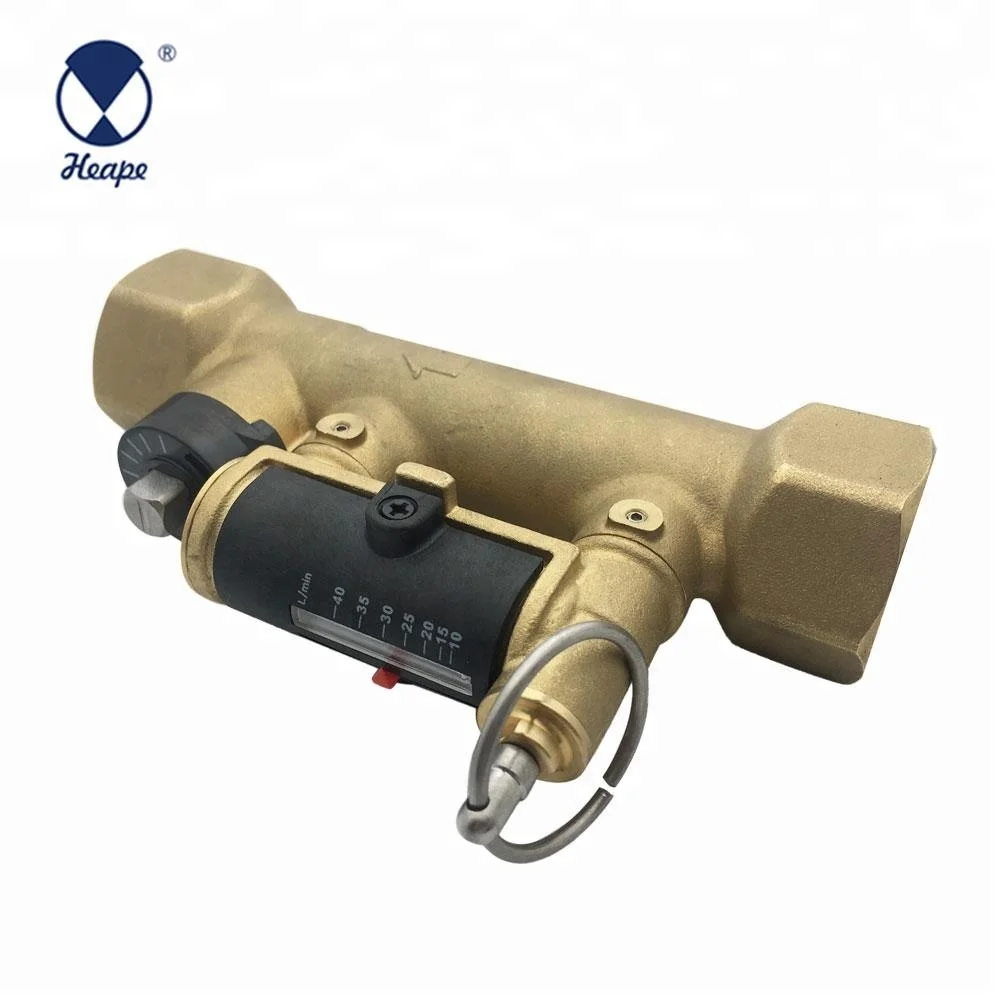

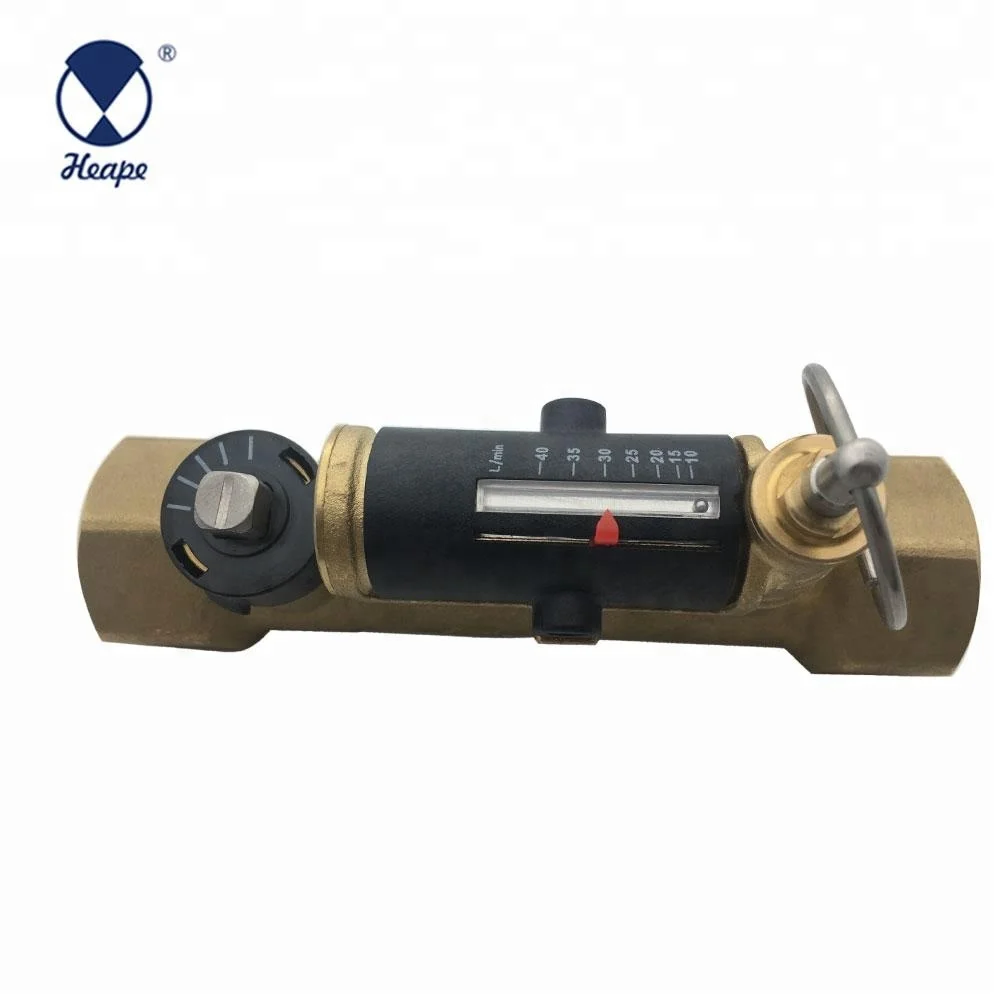

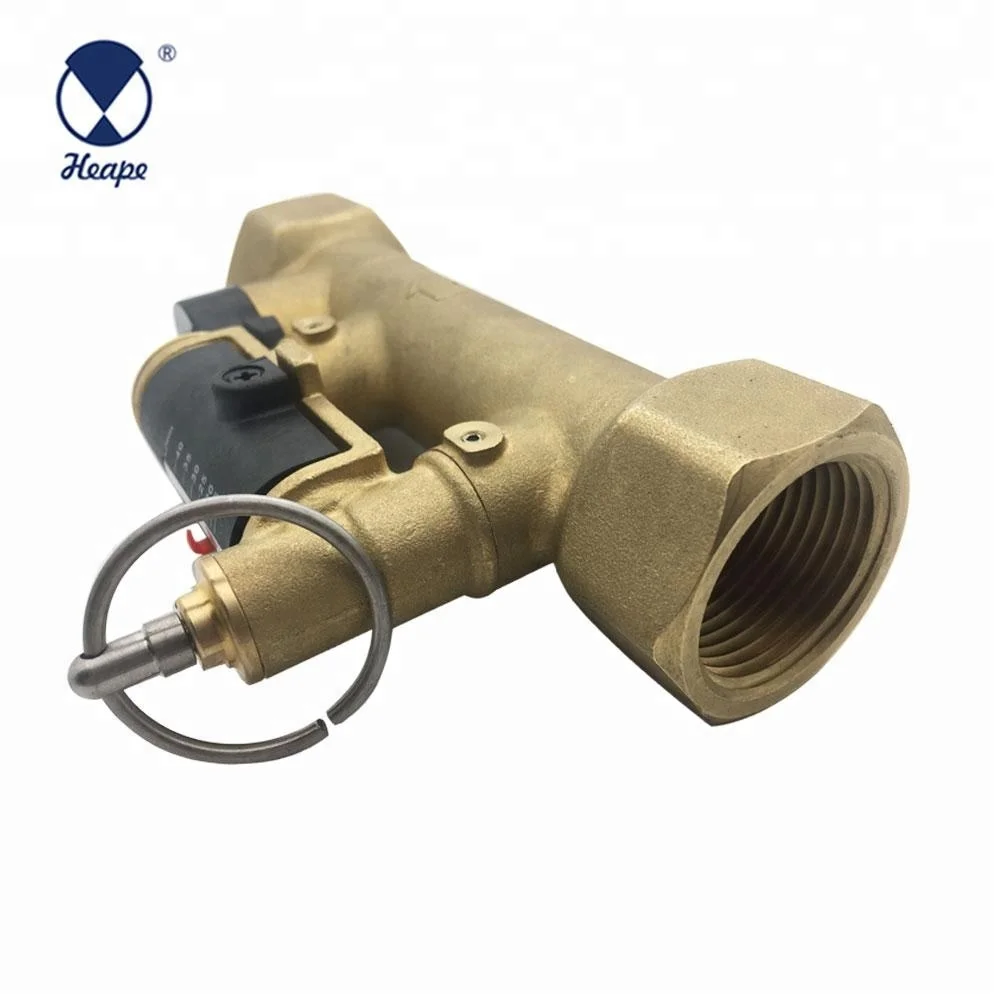

Сбалансированный клапан HEAPE с расходомером

Product Overview

Description

The balancing valve is an hydraulic device that accurately regulates the flow rate of heating medium supplied to system terminals. A correct balancing of hydraulic systems is essential to guarantee the systerm operation according to its design

specifications,high thermal confort and low energy consumption.This particular series of valves is equipped with a flow meter for a direct reading of the regulated flow rate, The flow meter,housed in a by-pass circuit on the valve body and that can be shut off during normal functioning,allows a fast and easy balancing of circuits without the need for differential pressure gauged or diagrams.The balancing valve is equipped with hot pre-formed shell insulation to ensure a perfect thermal performance in case of use both with hot and chilled water.





size	1/2''	3/4''	3/4''	1''	1 1/4''	1 1/2''	2''
flow rate rang(1/min)	2-7	5-13	7-28	10-40	20-70	30-120	50-200
