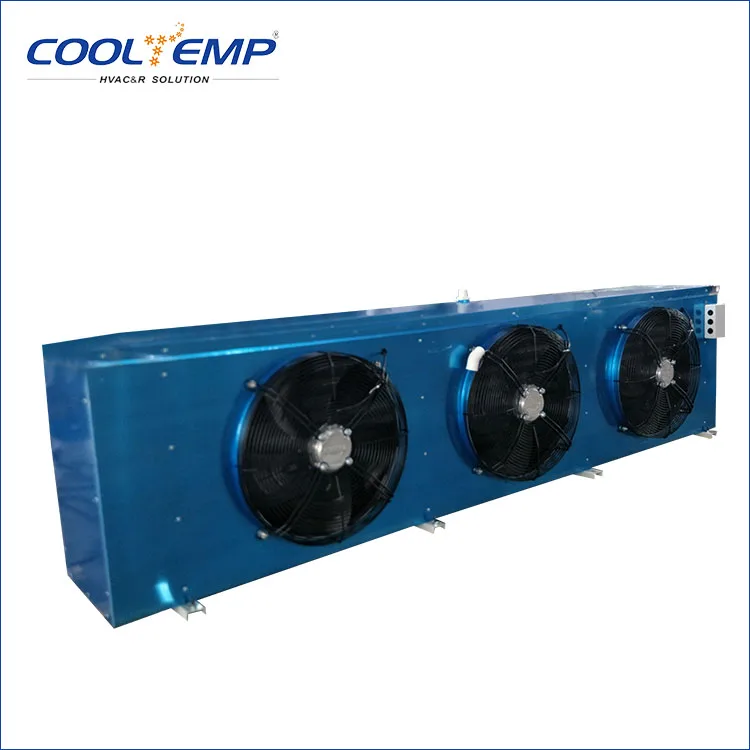

Hot Sale Finned Tube Evaporator Used With Condensing Unit
- Category: >>>
- Supplier: Shengzhou Lanco Refrigeration Equipment Co. Ltd.
Share on (60661999207):
Product Overview
Description
Product Description
Finned Tube Evaporator Used With Condensing Unit
Main Technical Parameter of LK-DDM Series Unit Cooler:
| Model | Norminal Cooling Capacity kw,troom=-18℃,Δt=(troom-t0)=7℃ | Cooling area | Pinch | FAN MOTOR | HEATING TUBE | Remark | |||||||
| QTY | DIA φ | air volume | range | motor power | voltage | coil | water pan | voltage | |||||
| m∧2 | mm | pcs | mm | m∧3 | m | w | v | kw | kw | v | Can be used for R134a R404A AND R502 | ||
| LK-DDM7 | 1.4 | 7 | 6 | 1 | 300 | 1*2000 | 6 | 1*130 | 220 | 0.9 | 0.6 | 220 | |
| LK-DDM12 | 2.6 | 12 | 2 | 300 | 2*2000 | 6 | 2*130 | 0.9 | 0.6 | ||||
| LK-DDM15 | 3.0 | 15 | 2 | 300 | 2*2000 | 10 | 2*130 | 380 | 0.9 | 0.6 | |||
| LK-DDM22 | 4.0 | 22 | 2 | 350 | 2*2500 | 10 | 2*135 | 1.2 | 0.6 | ||||
| LK-DDM30 | 5.0 | 30 | 2 | 400 | 2*3500 | 12 | 2*190 | 2.5 | 0.8 | ||||
| LK-DDM40 | 8 | 40 | 2 | 400 | 2*3500 | 12 | 2*190 | 2.8 | 0.8 | ||||
| LK-DDM60 | 12 | 60 | 2 | 450 | 2*5000 | 17 | 2*370 | 4.5 | 1 | ||||
| LK-DDM80 | 15.9 | 80 | 2 | 500 | 2*6000 | 17 | 3*1500 | 6 | 1 | ||||
| LK-DDM100 | 20 | 100 | 3 | 500 | 3*6000 | 17 | 3*550 | 7 | 1.2 | ||||
| LK-DDM120 | 24 | 120 | 3 | 500 | 3*6000 | 17 | 3*550 | 7.7 | 1.4 | ||||
| LK-DDM140 | 28 | 140 | 4 | 500 | 4*6000 | 17 | 4*550 | 9 | 1.5 | ||||
| LK-DDM160 | 32.1 | 160 | 4 | 500 | 4*6000 | 17 | 4*550 | 10.5 | 2 | ||||
| LK-DDM200 | 37.4 | 200 | 2 | 600 | 2*10000 | 20 | 2*1500 | 12.5 | 2.2 | ||||
| LK-DDM250 | 46.8 | 250 | 3 | 600 | 3*10000 | 22 | 3*1100 | 14 | 2.2 | ||||
| LK-DDM310 | 56.2 | 310 | 3 | 600 | 3*10000 | 22 | 3*1100 | 15 | 2.6 | ||||
| LK-DDM360 | 65.2 | 360 | 3 | 700 | 3*14000 | 22 | 3*2200 | 28 | 3 | ||||
| LK-DDM440 | 79.6 | 440 | 3 | 700 | 3*14000 | 22 | 3*2200 | 18.8 | 3.2 | ||||
As for the cooling capacity under condition of the refrigeration is R22,troom=-18℃,At=7℃,we need to multiply the correction factor for the cooling capacity with refrigerant R134,QoR134a=QoR22*f.
Main Technical Parameter of LK-DDL Series Unit Cooler:
| Model | Norminal Cooling Capacity kw,troom=-18℃,Δt=(troom-t0)=7℃ | Cooling area | Pinch | FAN MOTOR | HEATING TUBE | Remark | |||||||
| QTY | DIA φ | air volume | range | motor power | voltage | coil | water pan | voltage | |||||
| m∧2 | mm | pcs | mm | m∧3 | m | w | v | kw | kw | v | Can be used for R134a R404A AND R502 | ||
| LK-DDL8 | 1.2 | 8 | 9 | 1 | 300 | 1*2000 | 8 | 1*85 | 220 | 0.8 | 0.8 | 220 | |
| LK-DDL12 | 1.9 | 12 | 2 | 300 | 2*2000 | 8 | 2*85 | 0.9 | 0.9 | ||||
| LK-DDL15 | 2.3 | 15 | 2 | 350 | 2*2500 | 10 | 2*135 | 380 | 1.8 | 1 | |||
| LK-DDL20 | 4.0 | 20 | 2 | 400 | 2*3500 | 12 | 2*190 | 2.4 | 1 | ||||
| LK-DDL30 | 5.1 | 30 | 2 | 400 | 2*3500 | 12 | 2*190 | 3.5 | 1 | ||||
| LK-DDL40 | 7.8 | 40 | 2 | 450 | 2*5000 | 17 | 2*550 | 4.8 | 1.2 | ||||
| LK-DDL55 | 9.8 | 55 | 2 | 500 | 2*6000 | 17 | 2*550 | 6.8 | 1.2 | ||||
| LK-DDL70 | 12.8 | 70 | 3 | 500 | 3*6000 | 17 | 3*550 | 7.8 | 1.5 | ||||
| LK-DDL80 | 15.7 | 80 | 3 | 500 | 3*6000 | 17 | 3*550 | 8.5 | 2 | ||||
| LK-DDL100 | 18.8 | 100 | 4 | 500 | 4*6000 | 17 | 4*550 | 10 | 2.2 | ||||
| LK-DDL115 | 21.6 | 115 | 4 | 500 | 4*6000 | 17 | 4*550 | 12 | 2.2 | ||||
| LK-DDL140 | 23.8 | 140 | 2 | 600 | 2*10000 | 22 | 2*1100 | 15 | 2.4 | ||||
| LK-DDL170 | 29 | 170 | 3 | 600 | 3*10000 | 22 | 3*1100 | 16 | 2.4 | ||||
| LK-DDL210 | 35.9 | 210 | 3 | 600 | 3*10000 | 22 | 3*1100 | 19 | 3 | ||||
| LK-DDL250 | 42.7 | 250 | 3 | 700 | 3*14000 | 22 | 3*2200 | 28 | 3 | ||||
| LK-DDL300 | 50.3 | 300 | 3 | 700 | 3*14000 | 22 | 3*2200 | 28.8 | 3.2 | ||||
As for the cooling capacity under condition of the refrigeration is R22,troom=0℃,At=7℃,we need to multiply the correction factor for the cooling capacity with refrigerant R134,QoR134a=QoR22*f.
Main Technical Parameter of LK-DDH Series Unit Cooler:
| Model | Norminal Cooling Capacity kw,troom=-18℃,Δt=(troom-t0)=7℃ | Cooling area | Pinch | FAN MOTOR | HEATING TUBE | Remark | |||||||
| QTY | DIA φ | air volume | range | motor power | voltage | coil | water pan | voltage | |||||
| m∧2 | mm | pcs | mm | m∧3 | m | w | v | kw | kw | v | Can be used for R134a R404A AND R502 | ||
| LK-DDH10 | 2.2 | 10 | 4.5 | 1 | 300 | 1*2000 | 8 | 1*130 | 220 | 0.5 | 0.5 | 220 | |
| LK-DDH15 | 3.3 | 15 | 2 | 300 | 2*2000 | 8 | 2*130 | 0.8 | 0.8 | ||||
| LK-DDH20 | 4.2 | 20 | 2 | 300 | 2*2000 | 10 | 2*135 | 380 | 0.9 | 0.6 | |||
| LK-DDH25 | 5.2 | 25 | 2 | 350 | 2*2500 | 10 | 2*135 | 1.2 | 0.6 | ||||
| LK-DDH40 | 8.1 | 40 | 2 | 400 | 2*3500 | 12 | 2*190 | 1.4 | 0.6 | ||||
| LK-DDH55 | 11.2 | 55 | 2 | 400 | 2*3500 | 12 | 2*190 | 1.8 | 0.8 | ||||
| LK-DDH80 | 16.2 | 80 | 2 | 450 | 2*5000 | 17 | 2*550 | 2.8 | 0.8 | ||||
| LK-DDH105 | 21.6 | 105 | 2 | 500 | 2*6000 | 17 | 2*550 | 3 | 0.8 | ||||
| LK-DDH125 | 25.5 | 125 | 3 | 500 | 3*6000 | 17 | 3*550 | 4.5 | 0.8 | ||||
| LK-DDH160 | 34.2 | 160 | 3 | 500 | 3*6000 | 17 | 3*550 | 5.5 | 0.8 | ||||
| LK-DDH185 | 38.7 | 185 | 4 | 500 | 4*6000 | 17 | 4*550 | 6 | 1.2 | ||||
| LK-DDH210 | 42.8 | 210 | 4 | 500 | 4*6000 | 17 | 4*550 | 7.5 | 1.4 | ||||
| LK-DDH260 | 52.6 | 260 | 2 | 600 | 2*10000 | 22 | 2*1100 | 9 | 1.5 | ||||
| LK-DDH330 | 67.7 | 30 | 3 | 600 | 3*10000 | 22 | 3*1100 | 11 | 1.5 | ||||
| LK-DDH410 | 82.6 | 410 | 3 | 600 | 3*10000 | 22 | 3*1100 | 12.5 | 2 | ||||
| LK-DDH470 | 95.6 | 470 | 3 | 700 | 3*14000 | 22 | 3*2200 | 15 | 2.5 | ||||
| LK-DDH580 | 117 | 580 | 3 | 700 | 3*14000 | 22 | 3*2200 | 16.2 | 2.7 | ||||
we need to multiply the correction factor for the cooling capacity with refrigerant R134,QoR134a=QoR22*f.

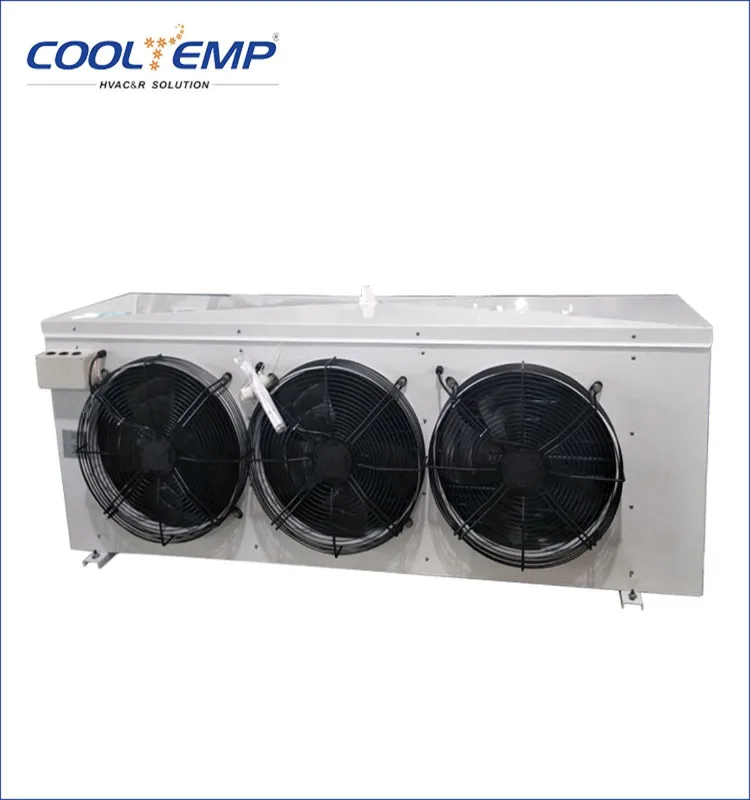

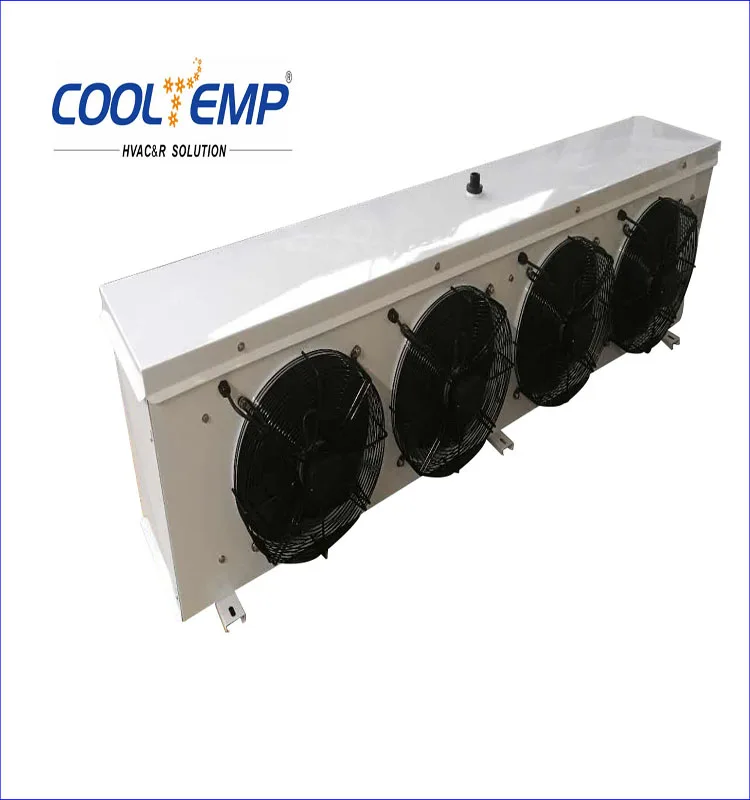

Product Images
Related Products
Packaging & Shipping
♣.We Offer many types packages to meet customers' requirements according to different products,and we design reasonable loading way to arrange containers to be fill with all goods as order.
♣.We and our professional shipping agents work together for many years ,we always can get a competitive price and best service for many shipping lines.
Our Services
We have exported our goods to many countries with our own Brand "COOL TEMP" ,our Products' Warranty is 1 Year,any Manufacturing defect ,you can contact us by Email /Call,we will try to solve first time till you are satified.
Also OEM and ODM Welcome , Distributors and Agents welcome !
Company Information
Why We Say We Should Be Your Preferred Supplier ?
Service:
We put our Customer first no matter Big or Small,Your Business is most important to us We are here to support you.
Technology
With the support of a Competent R & D team giving strong technical support to help you make your job more easy.
Factory Equipment
we have a fully fitted factory for sheet metal processing offering a range of materials to suit the what the Customer demands are.
Coil heat exchanges manufacturing offering rang fin profiles and material required from flat type to hydrophilic fin coil where corrosion control is required.Fully painting service either our standard choice Blue ,Green,Black,White or Customized to your Choice.
Sales Marketing
Are Customer Focused Solve purpose of bringing you an easy pleasant company to deal with.
Factory Location Advantage
We are Closed to Shanghai, Ningbo,Hangzhou,Yiwu etc City ,it takes around 1.5 - 3 hours to our factory from one of those cities by car, and it takes 2 hours from Guangzhou/Shenzhen to our airport(Hangzhou xiaoshan airport),Welcome to visit Us When you are avaliable.
Factory Show
♣.We Manufacture Work of Arts for HVAC System in our Standard Workshop.
