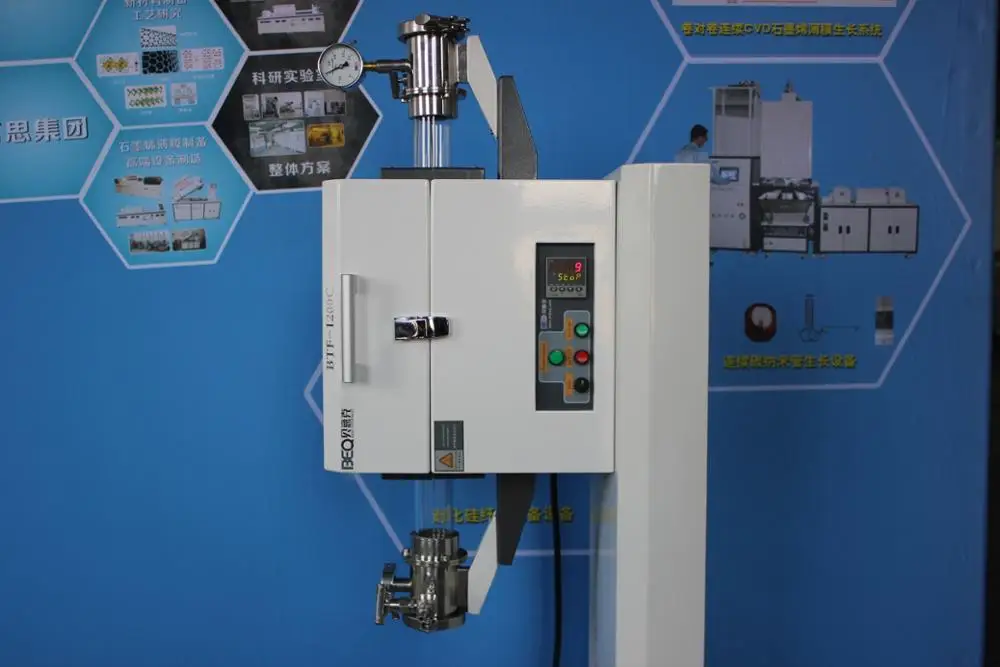

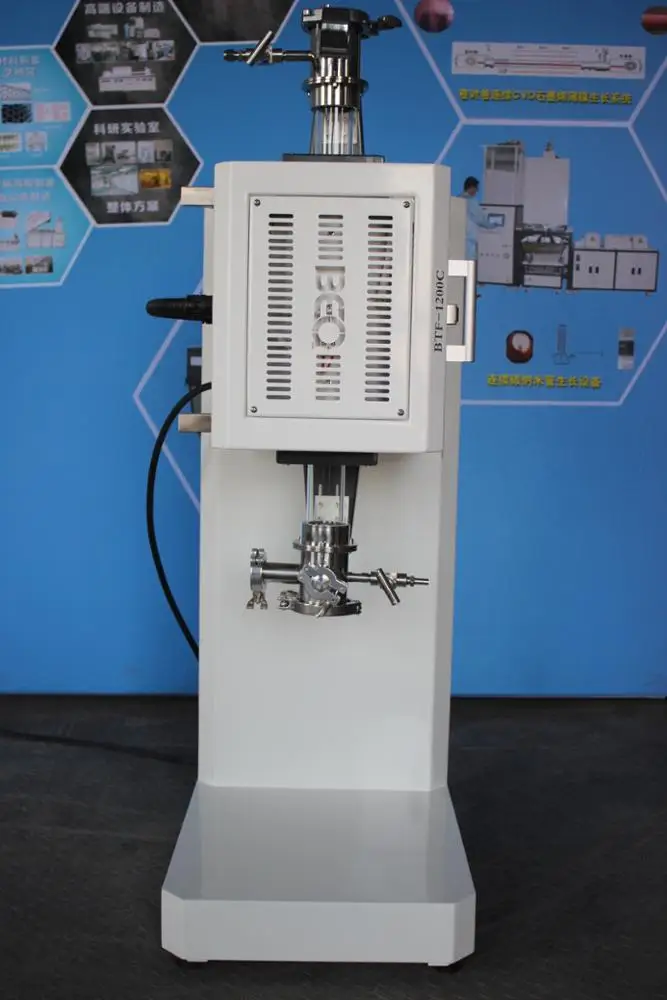

BTF-1200C-VTis a split Vertical Tube Furnace with vacuum sealed quartz tube, which can achieve faster sample heating
and quenching in vacuum or flowing gas. Precision temperature controller can provide 30 segments heating and cooling
steps with +/- 1°C accuracy. It is an idea furnace for making quenching test and temperature measurement. The vertical tube
furnace is installed in a heavy-duty mobile for easy moving.
Parameter:
Furnace structure
Double layer steel structure with air cooling

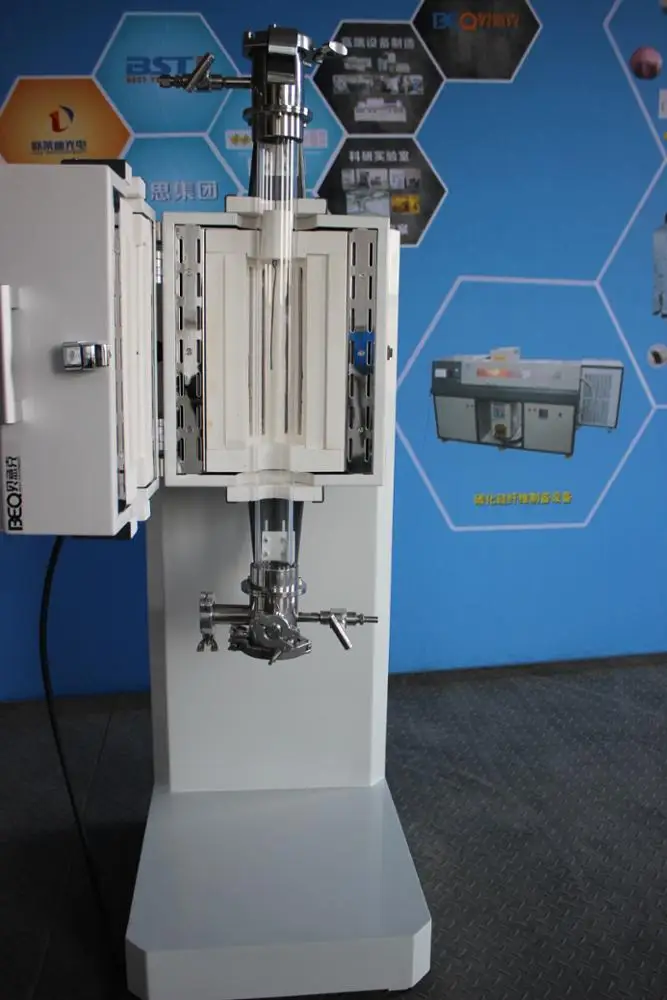

Split door design for easy installation of tube
High purity Al2O3 fibrous insulation designed for maximum energy saving
Power
3KW
Voltage
AC208-240V 50/60HZ
Working temperature
Max. Temperature: 1200 °C (<1 hour)
Continuous working temperature: 1100 °C
Suggested hating rate:≤10°C /min
Zone length
Heating Zone Length:440mm Constant Temperature Zone: 200mm
Temperature controller
PID automatic control and auto-tune function.
30 programmable segments for precise thermal processing.
Built-in protection for over-heated and broken thermocouple.
Heating element
Fe-Cr-Al Alloy doped by Mo
Temperature accuracy
+/- 1 °C.
Thermocouple
K-type
Processing tube
O.D50/60/80/100*1000mm(optional)
Two fibrous ceramic tube blocks are included for blocking heat radiation generated from tube center. (Ceramic blocks must be fully inserted into the furnace chamber before heating).
Quartz blocks (optional) are ideal for cleaner processing environment and higher vacuum efficiency .
