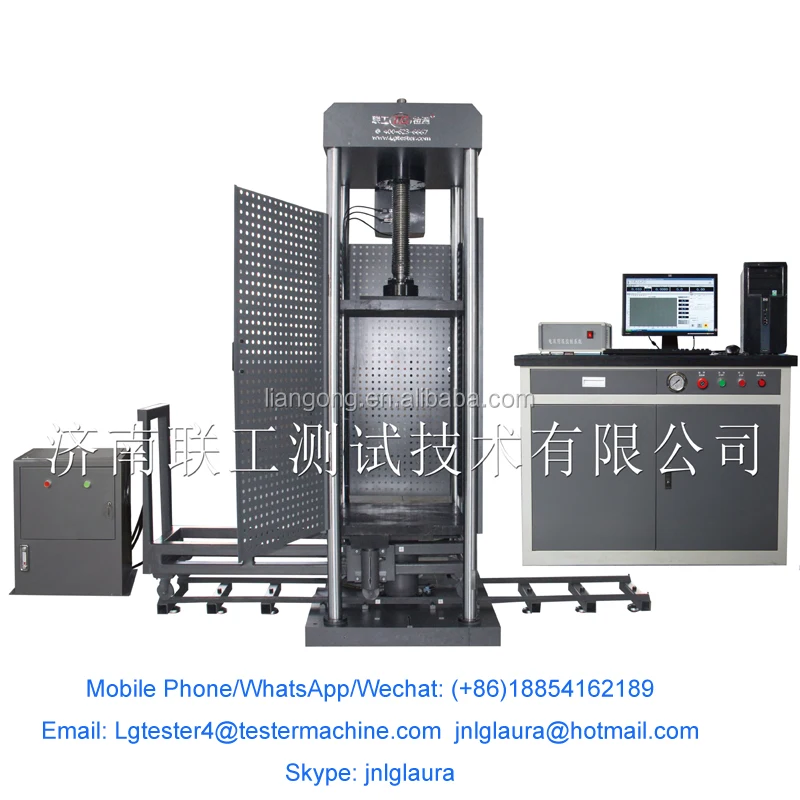

hydraulic Compression Testing Machine usage wind tunnel pressure testing machine

Share on (60662148969):


Price:$16,800.00

Quantity:


Product Overview

Description

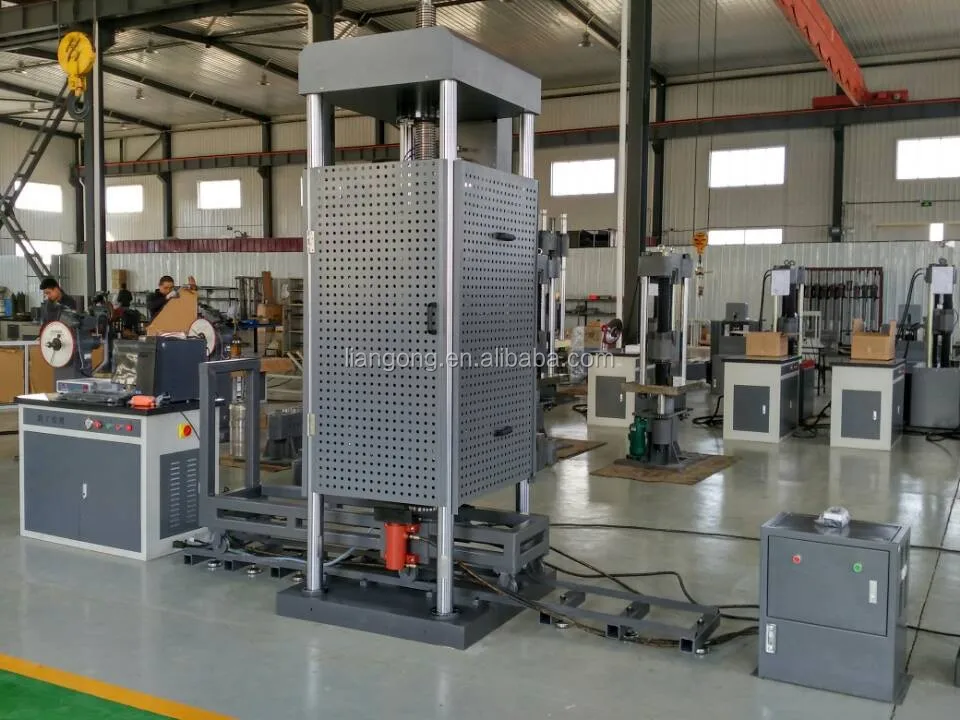

F979B4D135DAFA864D4E9E6EFA257030.jpghydraulic Compression Testing Machine usage wind tunnel pressure testing machine



Product Description




 Application:


This testing machine is mainly used for the test of pressive strength of duct finished products, which is applied to the standard for the JG/T194-2006.


Main technical specifications:


1. Max. Test force: 300kN


2. Test force measuring range:                  4%-100%FS


3. Test force value relative error             ≤±1%


4. Test force resolution                      0.01kN


5. Hydraulic pump rated pressure                     25MPa


6. Upper and lower compression plate size                      700×600mm


7. Max. Distance between upper and lower compression plate          1550mm


8. Compression plate hardness ≥HRC40


9. Piston diameter                        φ130mm


10. Piston stroke                          100mm


11. Lifting motor                         0.75 KW


12. Oil pump motor     1.5 KW


13. Protective device Metal protective net


14. Host dimension(L*W*H) 1150X950X3000mm


15. Host weight                         about 2000kg













Company Information


      Liangong Group, a well-known enterprise in testing machines industry as well as a state-level high-tech enterprise which specialized in R & D production and sales fo testing equipment for metal and nonmetal materials. Liangong Group include Jinan Liangong Testing Technology Co., Ltd, Shandong Liangong Testing Machine Co., Ltd, ASTM Testing Equipment Co.,Ltd. Our company covers an area of 30,000 square meters, construction area of 10,000 square meter, with a total investment of 80 million yuan. Our company has a well experienced, strong and large-scale R & D team and is based on high-quality technical personnel. By means of advanced science and technology, strong production capacity and financial support, we cooperate with many domestic and foreign well-known educational institutions and research institutions closely to make our company be in domestic leading position in research and development of new products.





Our service objective: reliable quality, Credit and Reputation First, and service in time!


We promise to provide each customer with timely, efficient and high-quality service!





www.lgtester.com       www.jnliangong.com     www.testermachine.com





https://youtu.be/eV36YIy20fY








LIANGONG GROUP:
















  CUSTOMER VISITS AND INSTALLATION & TRAINING AT SITE






















Our Services


Warranty:


The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).


Training:


1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.


2. We can arrange engineer to train the operation of equipment to customer's company when you need.


Maintenance services:


Consultation services. We answer your question timely via the telephone or email.


Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
