USB Downloadable Small Infrared Sensor LINE IN Mini Ceiling Audio Loudspeaker
- Category: >>>
- Supplier: Guangzhou Waytronic Electronics Co. Ltd.
Share on (60662172082):
Product Overview
Description

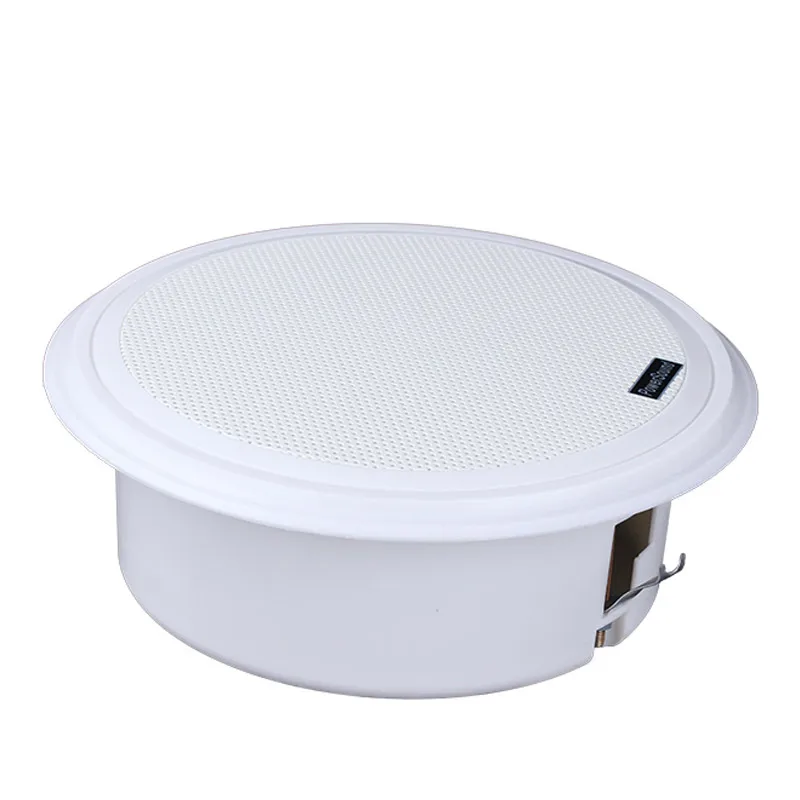

USB Downloadable Small Infrared Sensor LINE IN Mini Ceiling Audio Loudspeaker
Product Description
This in-ceiling audio loudspeaker adopts our own WT2003S-16S voice chip, support DIY function, MP3 audio file playback.
When detect people passing by, the loudspeaker will play voice immediately.
You can download voice files from computer to have different sound effects.
Product Features

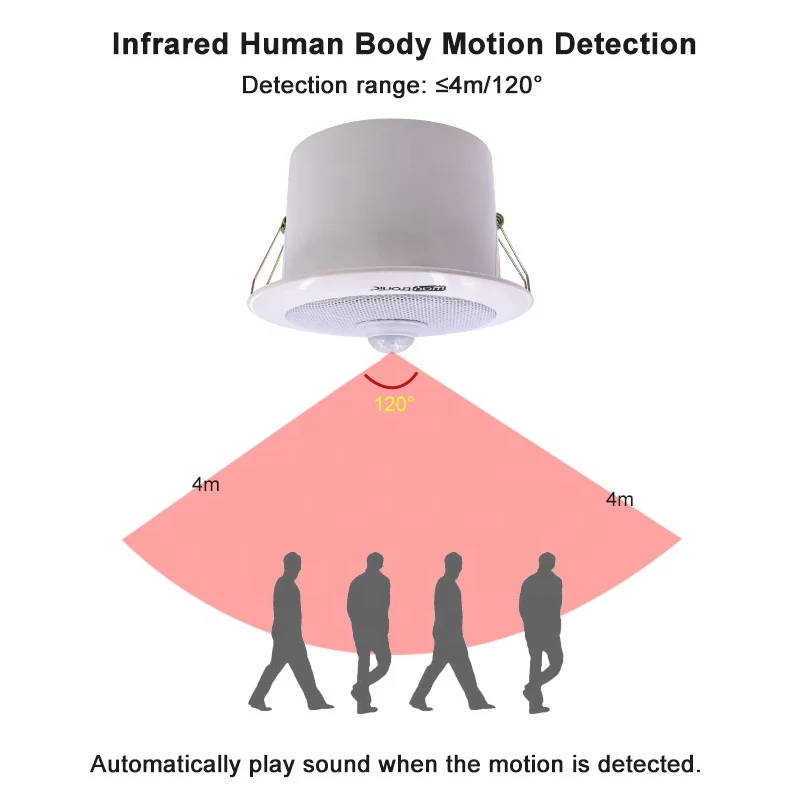

- Infrared pyroelectric induction.
- Can download voice files from computer through micro USB port(data transfer function).

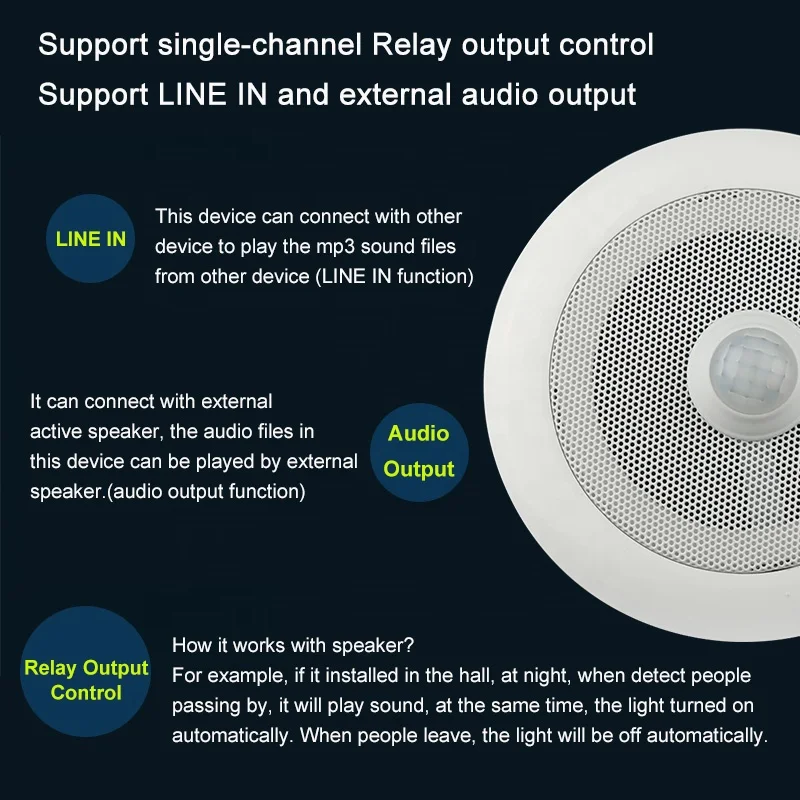

- LINE IN and external audio output function.

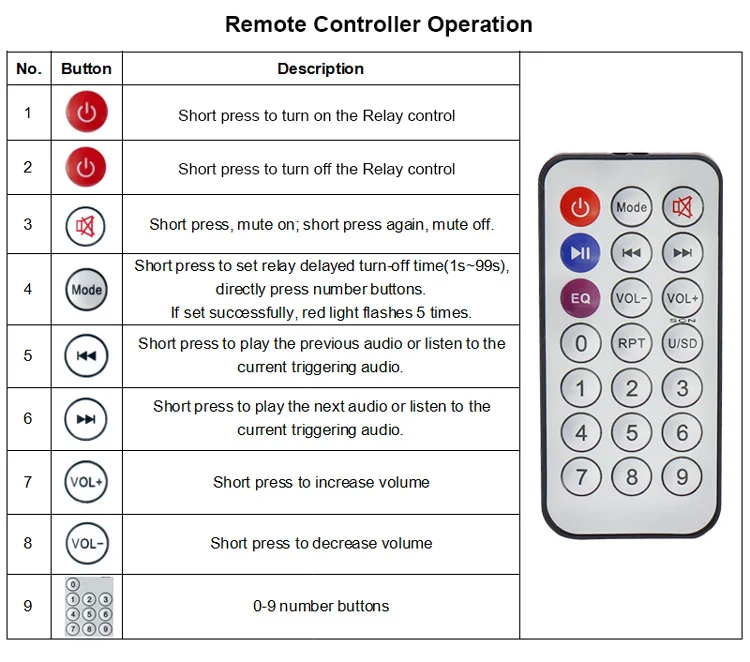

- Infrared remote control function.
- Support one-channel relay output control.
- Support external trigger playing function.

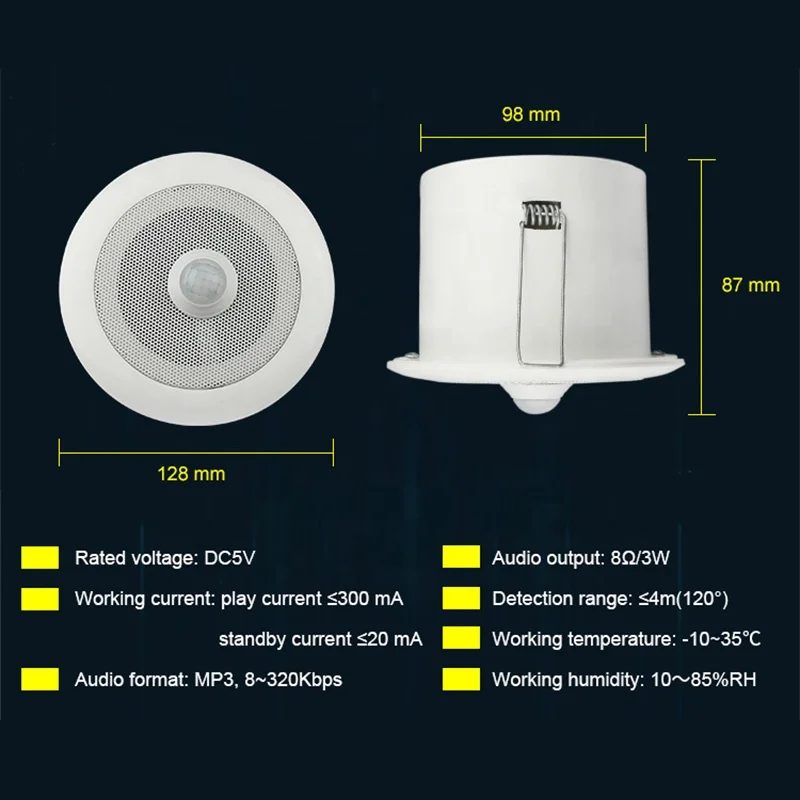

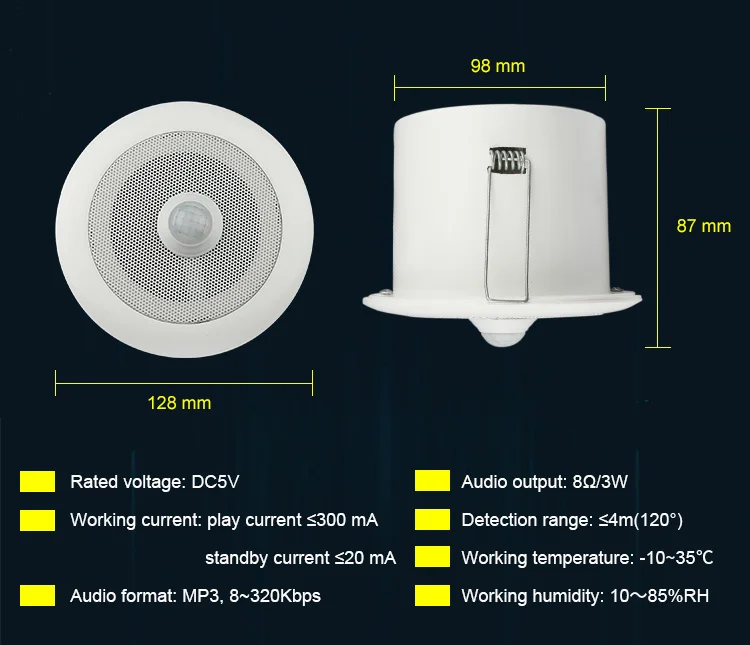

- Built in 8Ω/3W speaker.
- Power down memory function.
- Support DC 5V external power supply
Applications
Operation instruction:

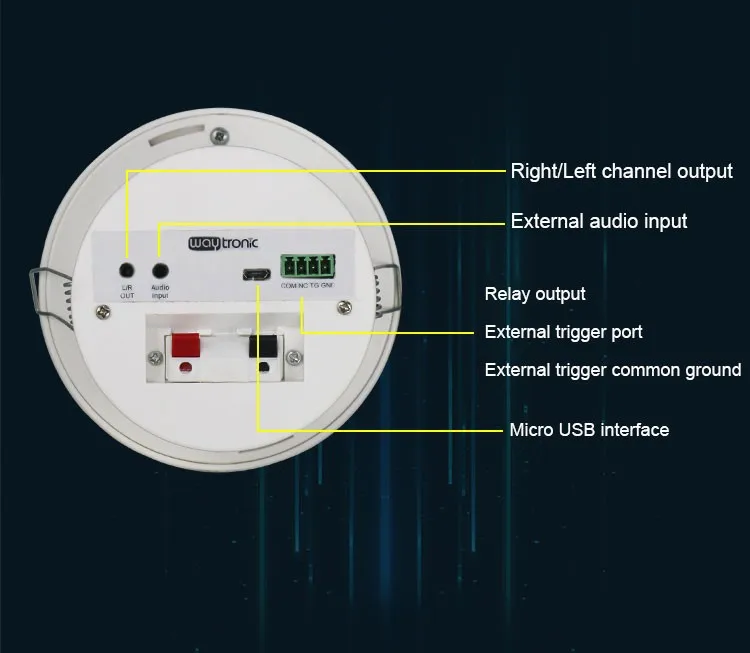

Function | Description |
Human body induction | When walk through the induction area, trigger to play. What it plays is the audio last time you listened to. Red light on when playing, light off when finish playing. |
External audio input switch (PH1) | Input audio signal through 3.5mm audio port. When detecting external audio signal, automatically switch and play external audio. |
Left/right channel output (PH2) | Output left channel and right channel through 3.5mm audio port, used for external amplifier. |
Relay output | When sensor induction triggers to play, relay closure; after audio play ends, 10 seconds later, relay open(default). You can set delayed turn-off time(up to 99s). |

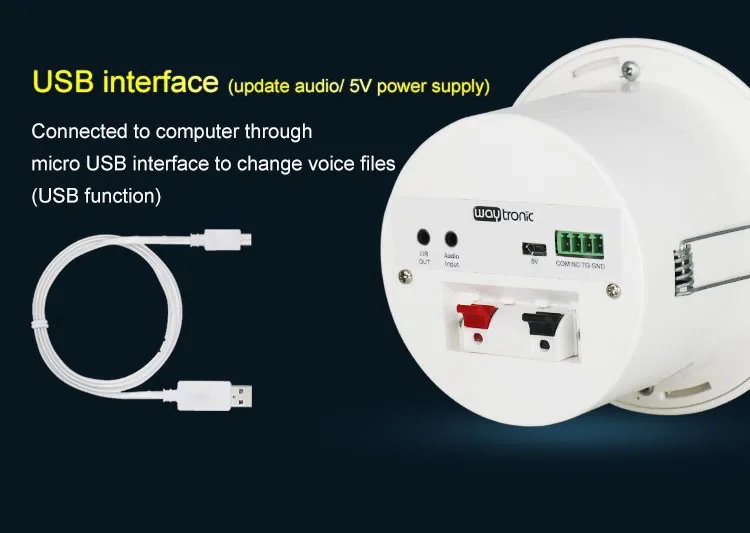

Replace audio | Connect to computer through micro USB interface to replace audio. |
External trigger | One external trigger port, low pulse or low active, low pulse interruptable, low level continuous loop playback |
Indicator light | Light on when playing, light off when stop playing. |

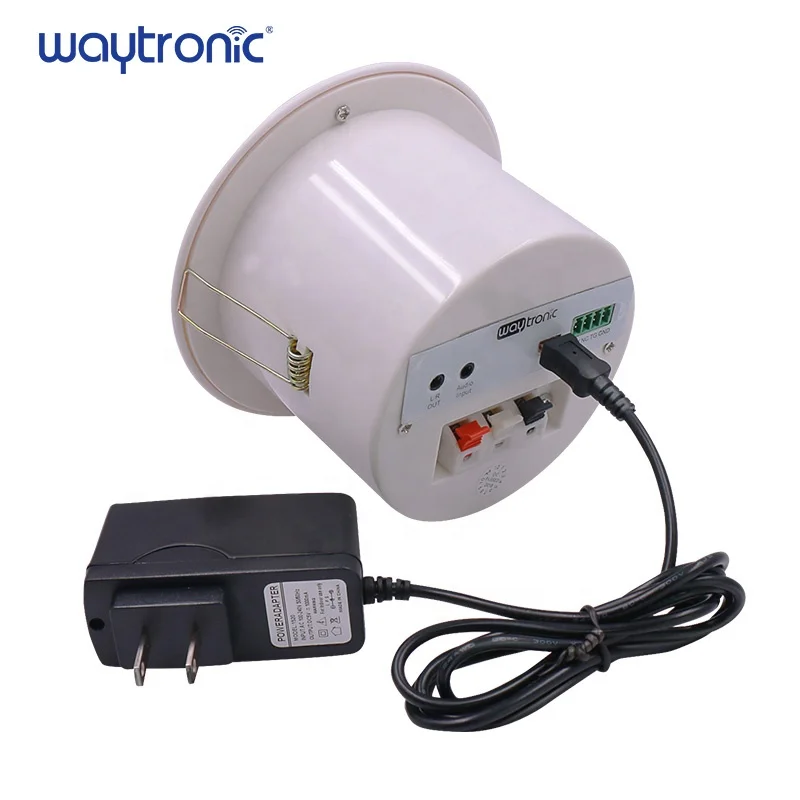

Micro USB interface | DC5V power supply |
Audio output | 8Ω/3W speaker |
Induction distance | ≤4meters |
Related Products

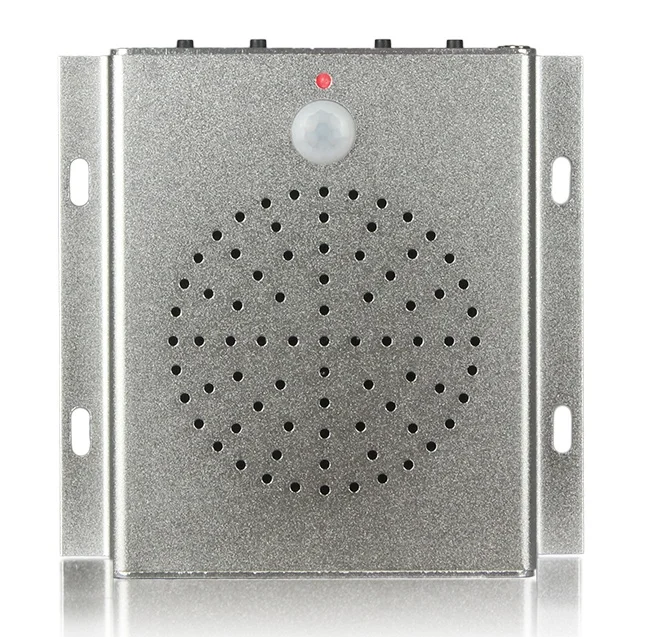

| Microwave Sensor Audio Speaker | Big Power Infrared Sensor Speaker | Infrared Sensor Speaker |
 |  |  |
