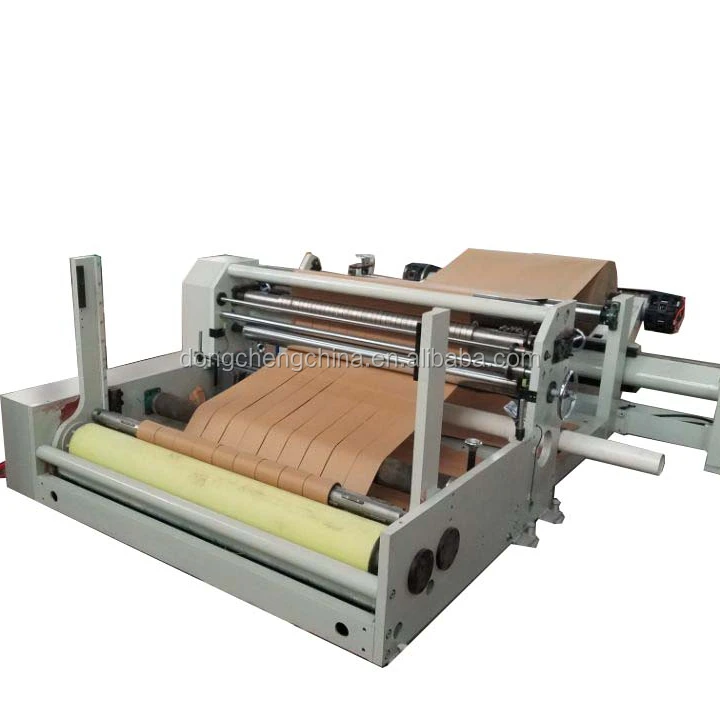

PAPER ROLL SLITTING AND REWINDING MACHINE MODEL ZFJ-1600
Usage and Features:
ZFJ Series paper roll slitting rewinding machine is mainly used for processing bobbin paper, coated paper, craft paper, white cardboard and other heavy GSM papers. It will slit and rewind big size jumbo roll to required width and diameter finished rolls.
The main features as follows:
1. Unwind and rewind diameter could up to 1350mm.
2. Adopt hydraulic shaft less unwind stand, easy for loading and adjust
3. Unloading type choose hydraulic rotary, more safe and stable
4. Automatic tension constant control, ensure slitting quality
5. Equipped with blade positioning reference function, improve work efficiency and accuracy.
ZFJ Series paper roll slitting rewinding machine is mainly used for processing bobbin paper, coated paper, craft paper, white cardboard and other heavy GSM papers. It will slit and rewind big size jumbo roll to required width and diameter finished rolls.
The main features as follows:
1. Unwind and rewind diameter could up to 1350mm.
2. Adopt hydraulic shaft less unwind stand, easy for loading and adjust
3. Unloading type choose hydraulic rotary, more safe and stable
4. Automatic tension constant control, ensure slitting quality
5. Equipped with blade positioning reference function, improve work efficiency and accuracy.
Parameter/Model | ZFJ-1300 | ZFJ-1600 | ZFJ-1800 | ZFJ-2200 |
Jumbo roll width | Max.1300mm | Max.1600mm | Max.1800mm | Max.2200mm |
Jumbo roll diameter | Max.1350mm | Max.1350mm | Max.1350mm | Max.1350mm |
Unwind core | 76mm | 76mm | 76mm | 76mm |
Loading roll type | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Slitting Width | 50~1300mm | 50~1600mm | 50~1800mm | 50~2200mm |
Rewinding diameter | Max.1350mm | Max.1350mm | Max.1350mm | Max.1350mm |
Unloading type | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Working speed | 200m/min | 200m/min | 200m/min | 200m/min |
Detailed Images
Introduction of product advantages or application effect or application mode
Hydraulic Shaftless Loading
Hydraulic loading paper roll
Suitable for 1350mm diameter
Choose strong structure
Equipped with Multipoint pneumatic brake system
Cutting Unit
Standard Equipped 20 sets of blades
Circle knife choose size OD140mm
Easy loose and tighten with bottom blade
Bottom blade choose double-edged type
Automatic Blade Positioning Function
With Automatic blade positioning device
Choose step-servo motor control movement, high accuracy
Input required width information on HMI
Electric Control System
PLC control, HMI input
Automatic Tension Control system, SMC electropneumatic proporation valve
Automatic Blade Positioning function
Hydraulic unloading type, safe and reliable
Certificate
Company Introduction
JINAN CHENGDONG MACHINERY MANUFACTURE CO.,LTD. was founded in 1993 and have more than 20 years for manufacturing experience of paper-processing equipment in China. There are a group of senior engineers and technicians and R&D department to ensure the producing capacity and high quality. The company successively develops a group of leading products in homeland based on the ideology of constant development and creation. The main products including Paper roll slitting and rewinding machine, Spiral paper tube/core winding machine, Fibre/Paper drum production line, Composite can production line, Paper tube/core cutting machine, High-speed rotary paper roll to sheet cutting machine, paper board laminating machine, paper corner protector machine, Paper tube polishing machine and other different paper processing machines.
