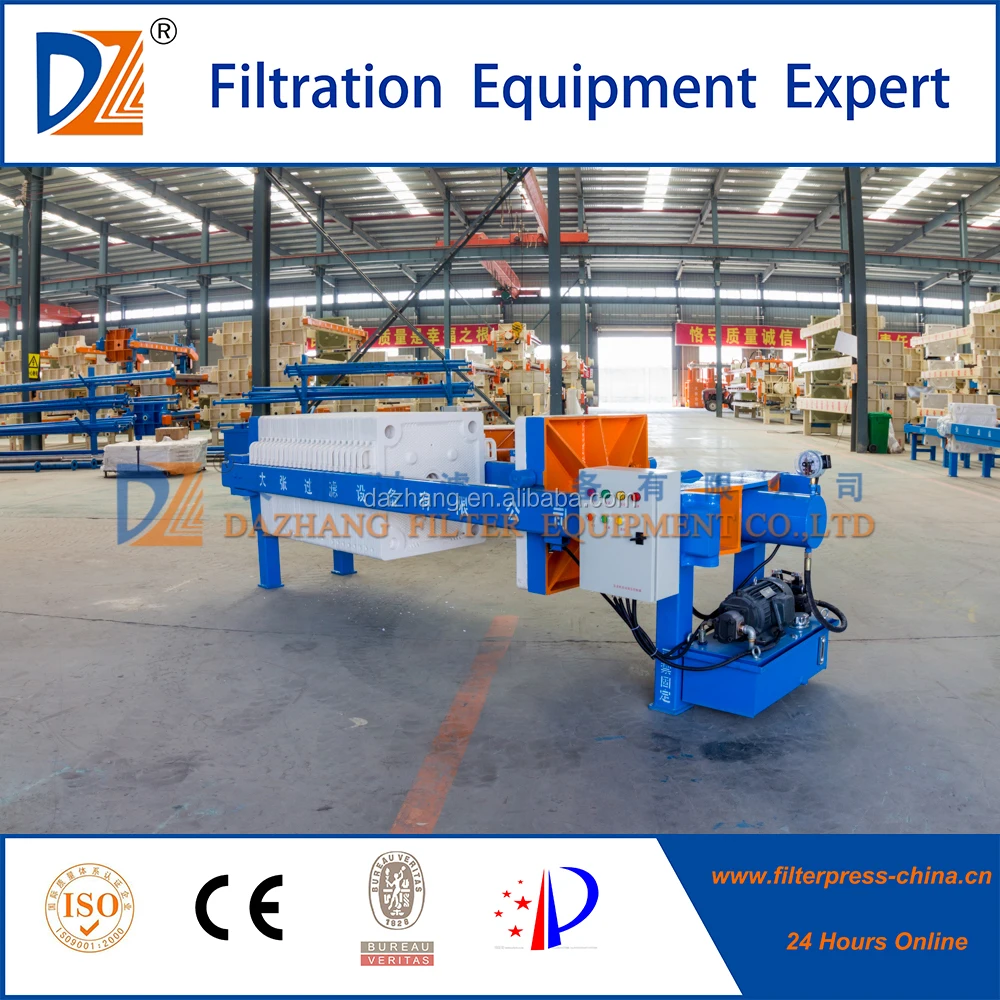

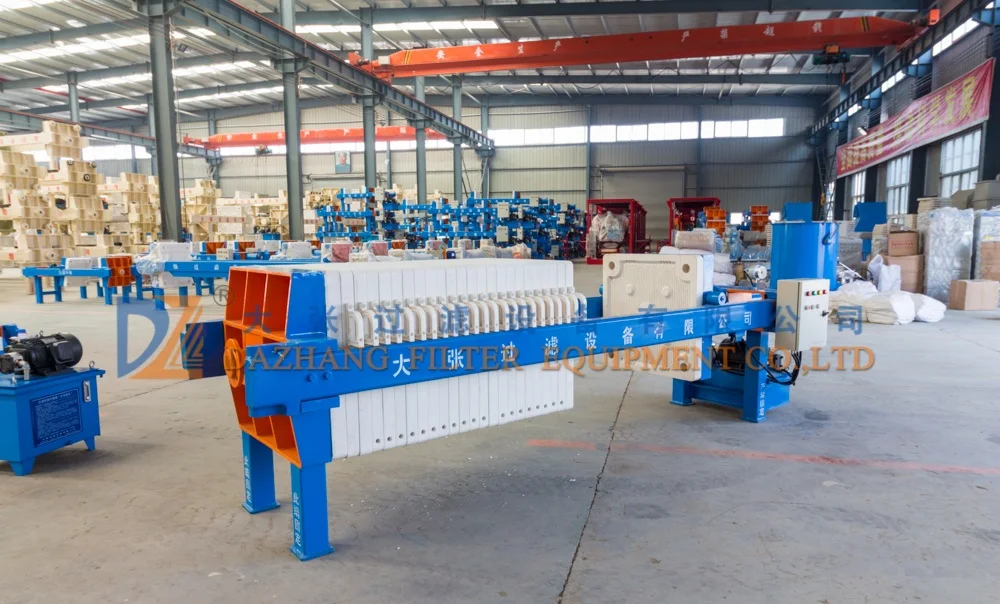

Hydraulic Chamber Filter Press for ceramic sludge treatment/wastewater treatment

Working principle:

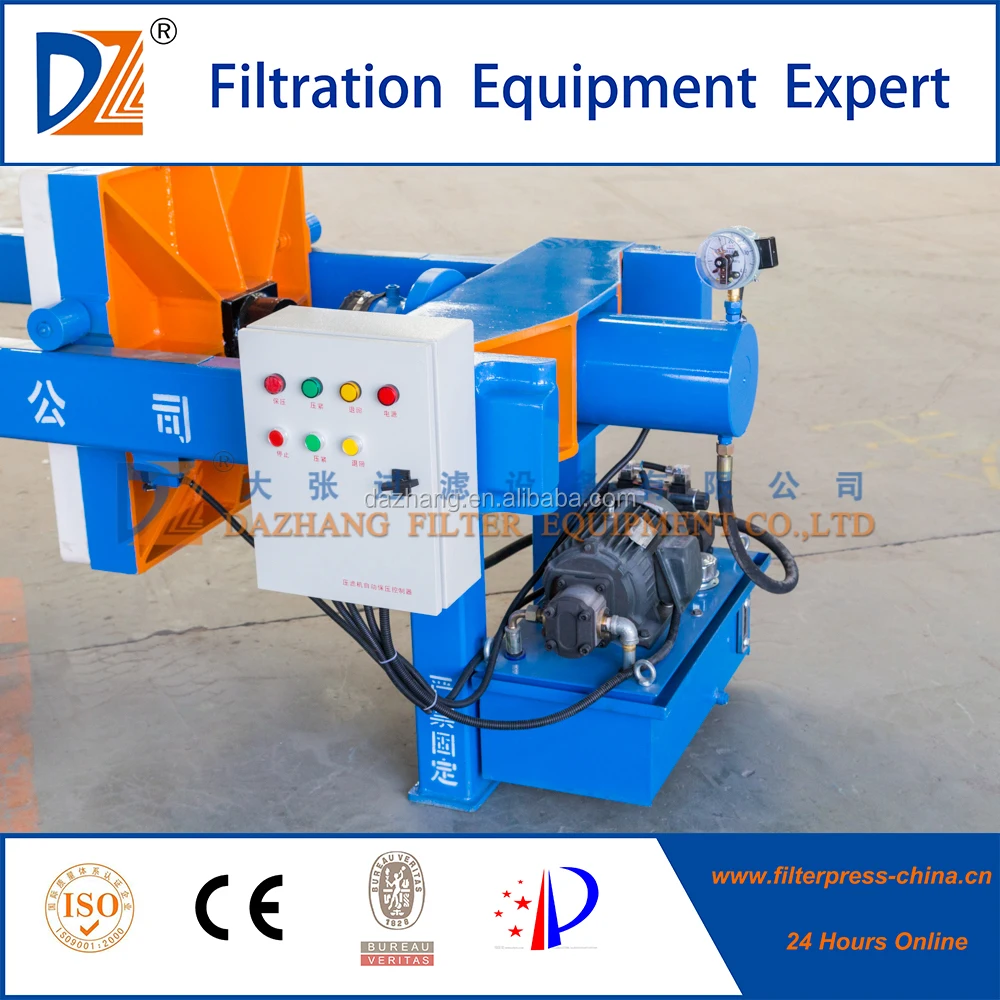

Hydraulic station provides high press oil,component chamber formed by oil cylinder and piston is filled with oil.

When pressure is higher than the fraction drag of push plate,it compresses filter plates slowly,when the compressing pressure reach the default setting of overflow valve(shown on the pointer of pressuremeter),filter plates and frames are compressed.

And overflow valve starts to decompress,now turn down the power,one circle is completed.

Reversing valve changes direction,pressure oil enters the chamber of oil cylinder,push plate returns when the oil pressure overpowers the fraction drag of it.

Features of DaZhang chamber filter press:
1, Hydraulic components are German Bosch Rexroth Series, famous brand, high quality guarantee.
2, The main material of frame is carbon steel:Q235,durable and long use life.
3, Descaling process, using sand blasting processing, more thorough cleaning
4, Professional paint in paint room, durable and anti- corrosion.

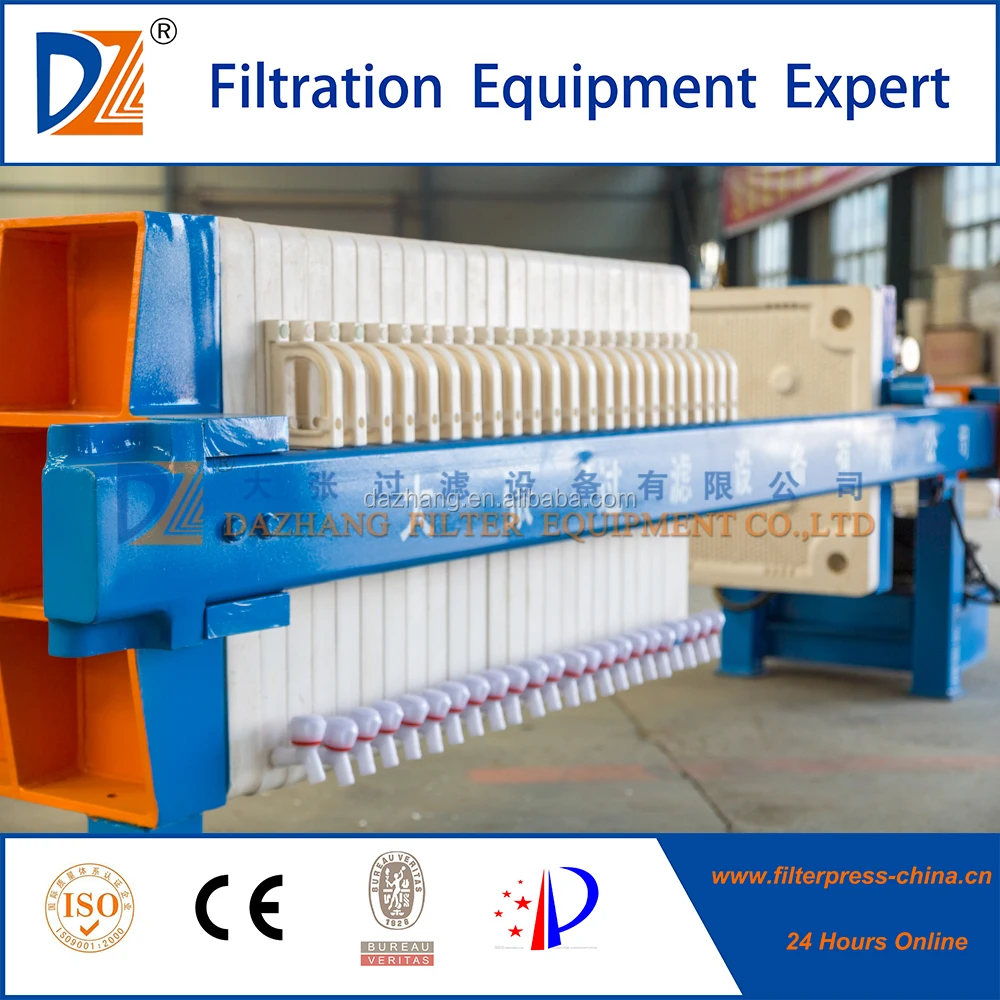

5, Filter plates do not contain other filler. not recycled material, high strength, light weight, corrosion resistance, acid and alkali, non-toxic and tasteless.
6, Various kinds of filter cloth which suit for different kinds of material, improving the filtering accuracy.

1. We will supply operation manual of filter press and filtration elements which introduced the specifications and warnings.

2. We also can optimize the technical data of filtration and constitute operation regulations for customers accordingly.

3. We can supply the filtration flow chart according to different material and demands.

4. We can offer the filtration testing free of charge.

5. We could offer training in free.

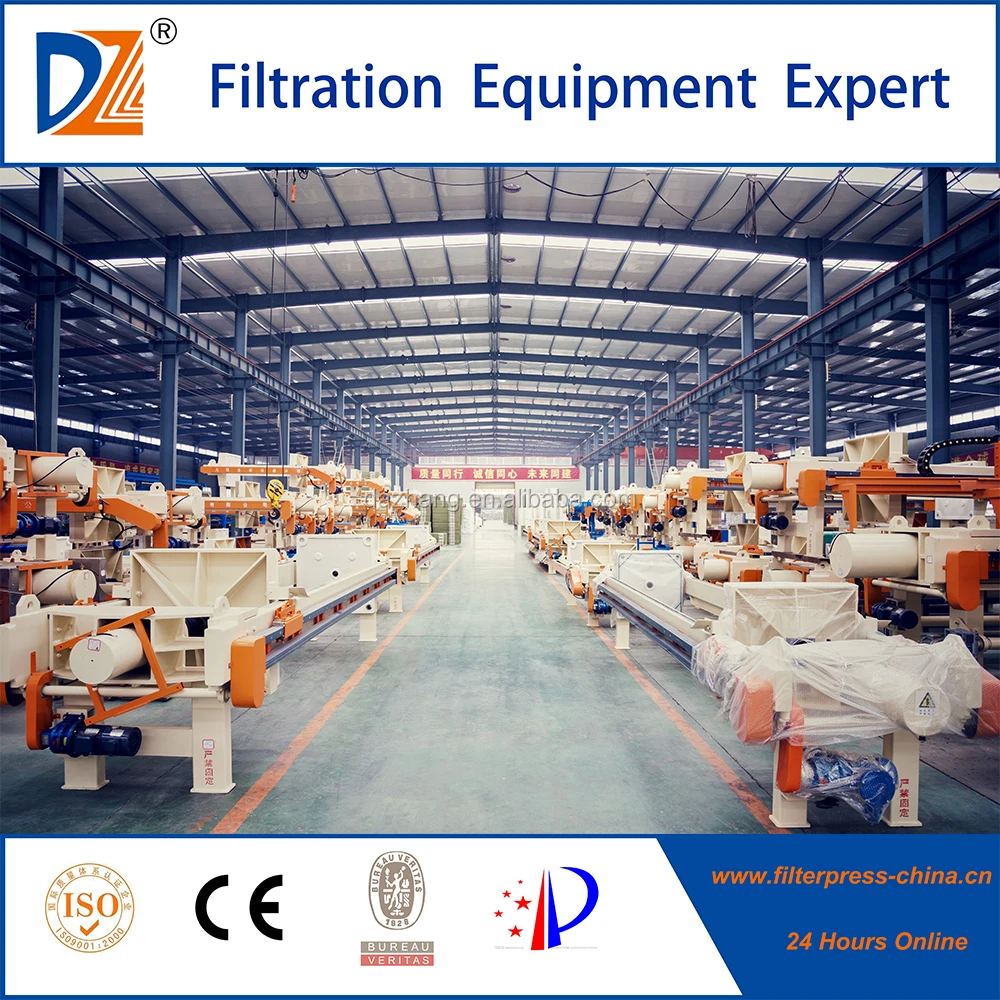

Henan Dazhang Filter Equipment Co.,Ltd was founded in 2007. We are specialized in design, manufacture and sales of various equipment, as well as comprehensive filtration solutions and projects. Our factories cover 250,000 square meters with advanced production line and precise testing equipment. With top class R & D personnel, experienced workers and high qualified sales team, we are all devoting to provide best products for our clients.

Quality is our culture and DaZhang will be your best friend forever.

1. DaZhang Filter Equipment is the biggest factory in north-central of China, and we have the biggest injection molding machine with 4000 tons.

2. The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide protection welding.

3. DaZhang self-developed flter press with the biggest filter area of 1000M2 goes well in Vietnam.

4. The main beam of DaZhang filter press is designed by adopting welded box construction, and manufactured by making use of submerged arc auto welding technology.

5. The chain cover which is indenpendently developed by DaZhang has the characteristic of high hardness and anti-corrosion.

6. All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO exoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhesion. It can save hundreds tons of putty every year, thus not only reduce the cose, but also protect the environment. More important, it improves the adhesion of the paint and antisepsis class of the filter press.
