Camera | ||
sensor | 1/2.9" CMOS | |
Definition | 2.0M pixels 1920(H)X 1080(V) | |
Video System | PAL/NTSC | |
Minimum illumination | colour :0.1Lux B/W:0.01Lux | |
Video output | AHD-H(1Vp-p 75Ω) CVI TVI CVBS 4in1 signal | |
noise-signal ratio | ≥50DB | |
Lens | ||
lens | 4.7 to 94mm(F1.6 to F2.7) | |
Optical power | 18X | |
function | ||
IR control | Depending on the focal length | |
IR distance | 200m (Not with IR leds built-in, external led light required for night vision) | |

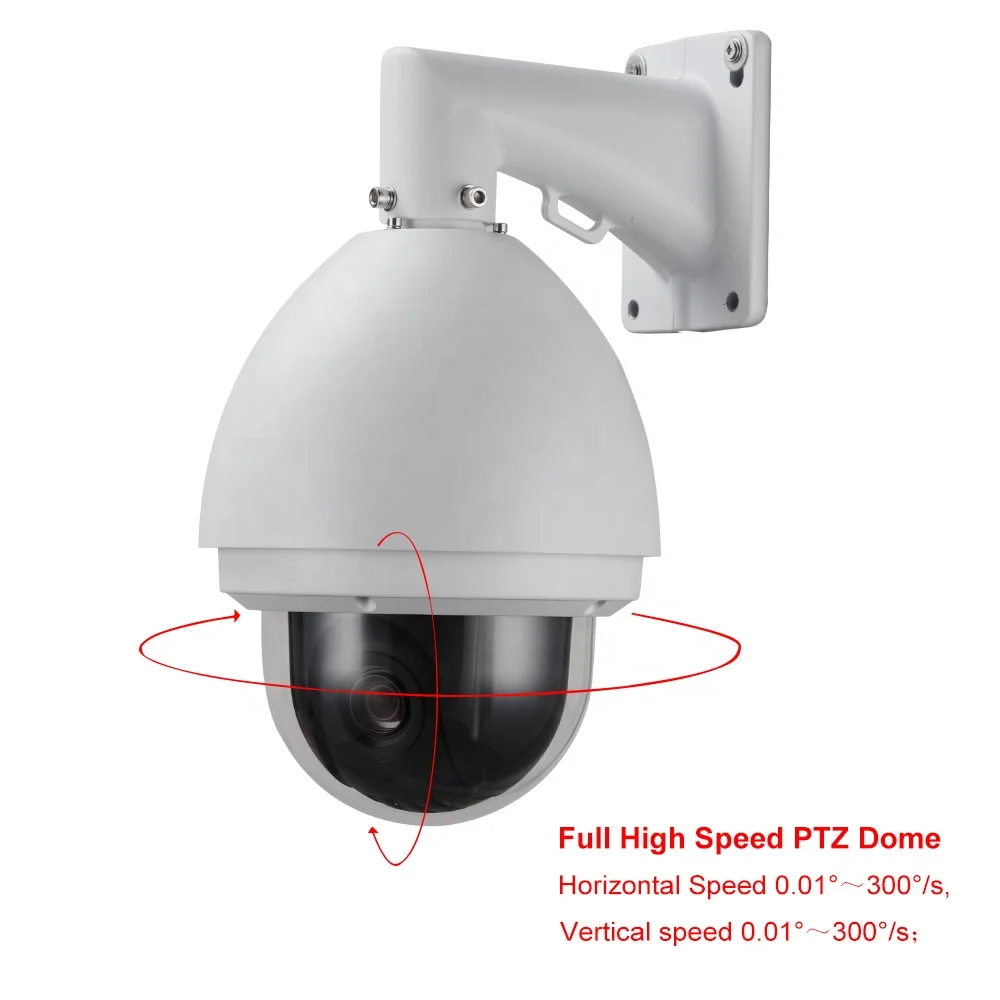

Rotation range | Vertical:0°~360°; Horizontal:-15°~90° | |
Rotational speed | 0°~240°/s High Speed PTZ | |
Presets | 255 | |
Cruise scan | 4 ( Each set of 10 preset positions, the residence time can be adjusted ) | |
Area scanning | Support | |
Horizontal scanning | Support | |
Park action | Preset / Area scanning / Horizontal scanning / Cruise scan | |
INPUT/OUTPUT | ||
Analog video output | 1.0Vpp/75Ω,NTSC or PAL,BNC Interface | |
control interface | Support: Coaxial control and RS485 | |
General specification | ||
Power Supply | DC12V4A | |
Power waste | 30W | |
work environment | temperature -20~60℃; humidity <90% | |

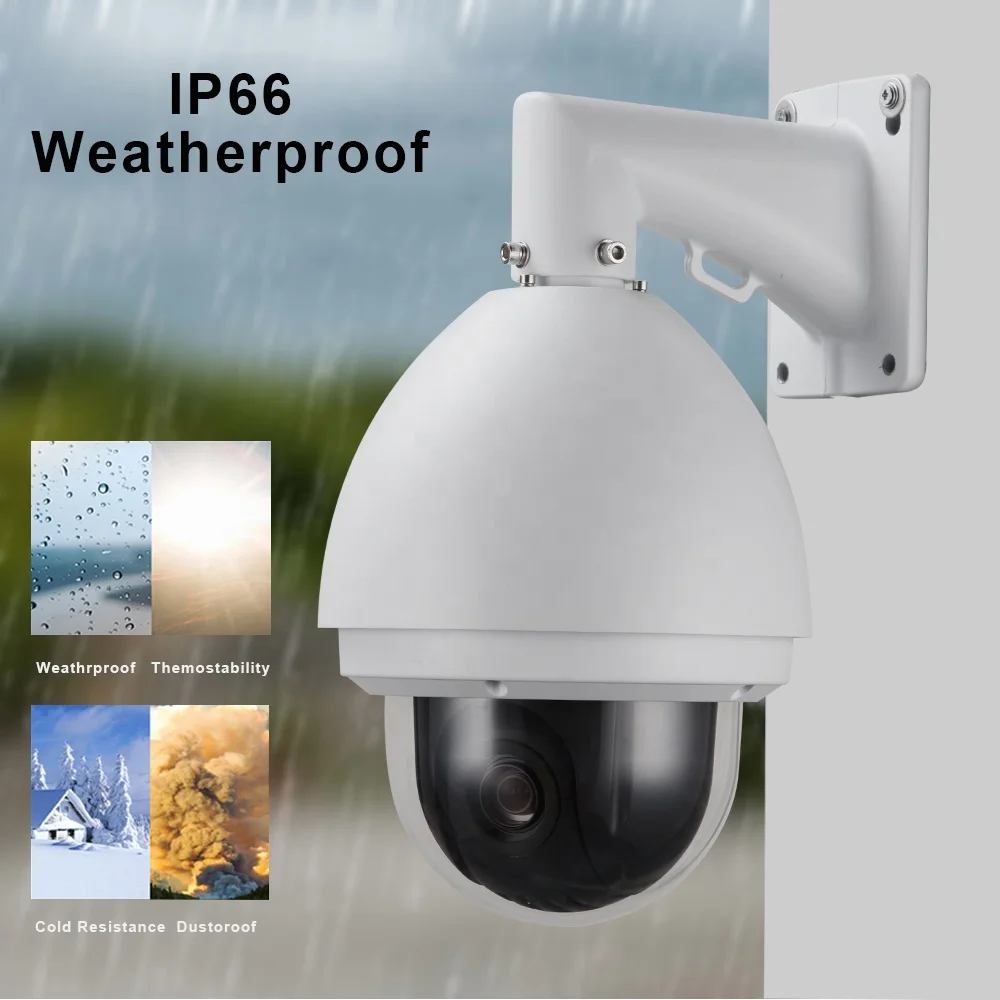

Protection level | IP66,6000V Lightning protection, surge protection and surge protection | |
material quality | Metal aluminum | |

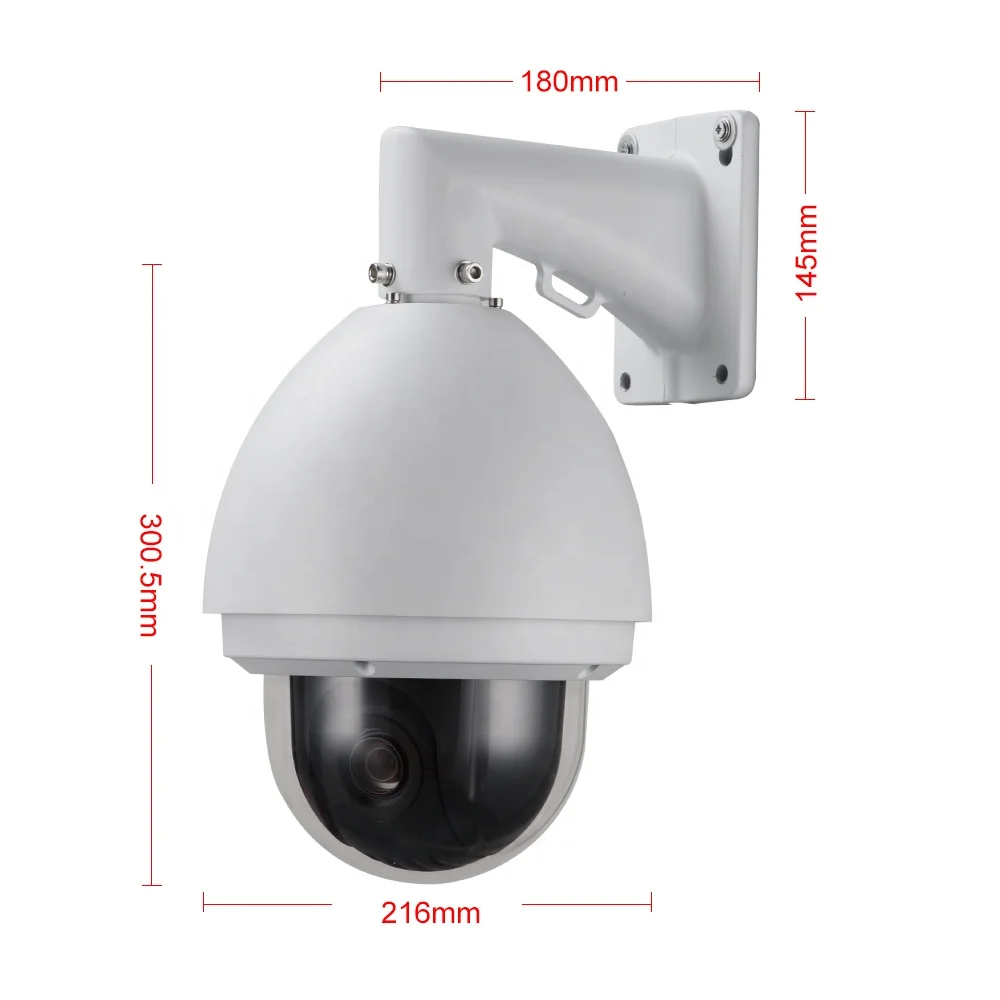

Product size | Φ200.0 (mm)×310.0(mm) | |

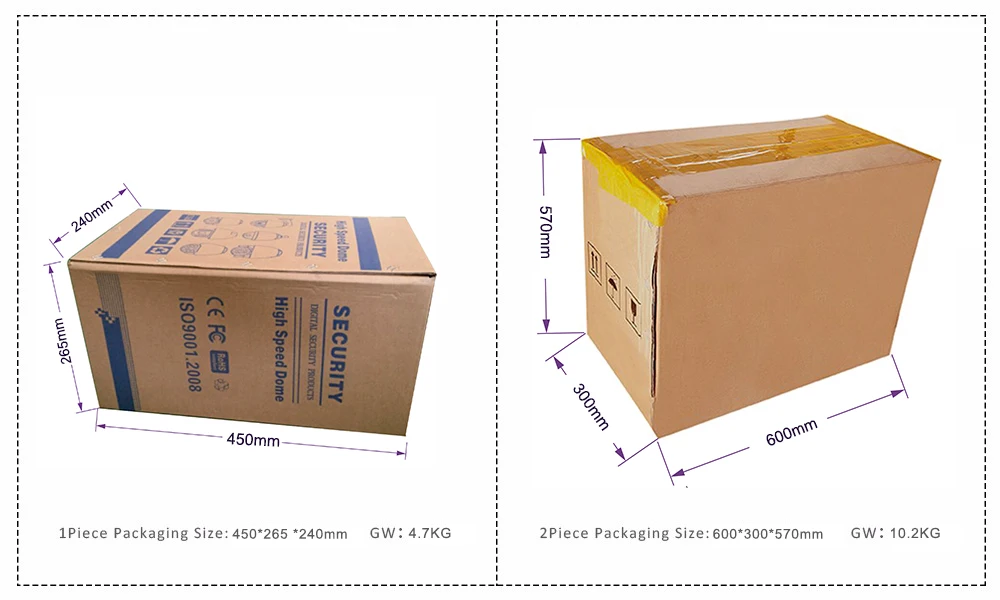

Single package size | 28*28*50cm | |
2pcs packing size; | 57*29*52cm | |
weight | 4.9kg | |
