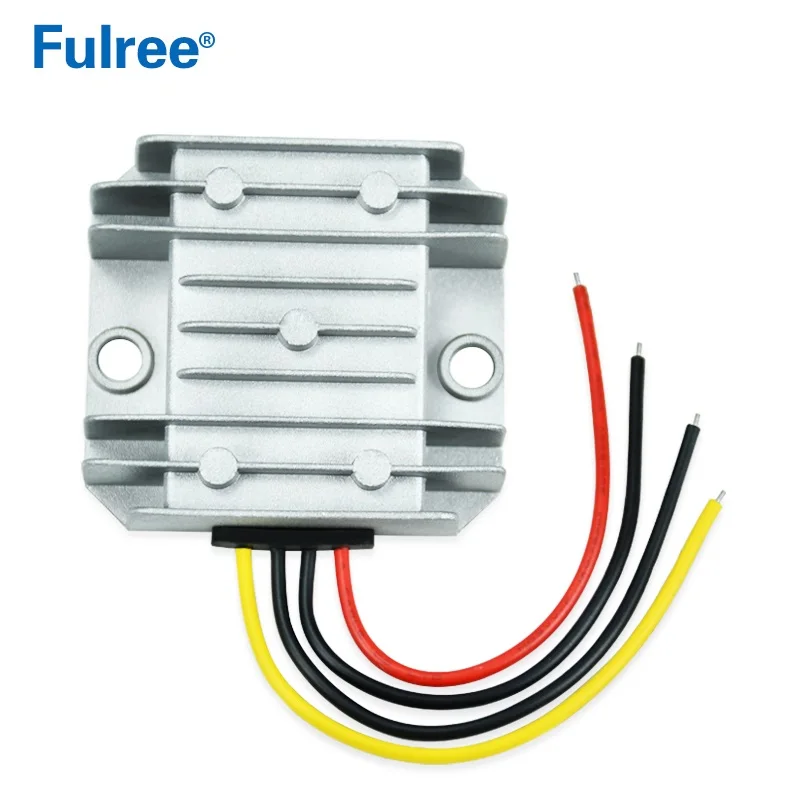

12V 24V to 5V 6V 9V 3.3V 3.7V 4.2V 7.5V 5A DC DC Step Down Buck Voltage Car Power Converter 12 24 Volt to 5 6 9 3.3 4.2 7.5 Volt
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60662419668):
Product Overview
Description
12V 24V to 5V 6V 9V 3.3V 3.7V 4.2V 7.5V 5A DC DC Step Down Buck Voltage Car Power Converter 12 24 Volt to 5 6 9 3.3 4.2 7.5 Volt
Product Overviews
| Model | F35J**V5A4L (Old:24**05) |
| Input rated voltage | DC 12V 24V |
| Input voltage range | DC 8-35V (Minimum differential pressure 3V) |
| Efficiency | 96% |
| Output voltage | 3.3V 3.7V 4.2V 5V 6V 7.5V 9V |
| Output current | 5A Max |
| Output rated power | 16.5W 18.5W 21 W 25W 30W 37.5W 45W Max |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -20°c ~+85°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolate module |
| Rectification | synchronous rectification |

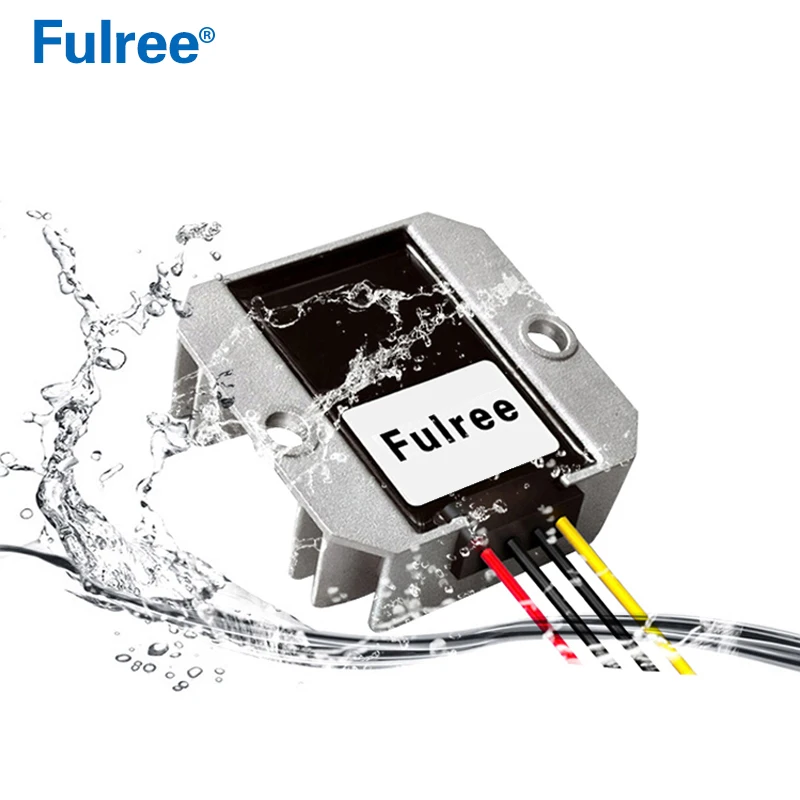

| Waterproof rating | IP67 |
| Full load temperature rise: | 45°c |
| Protection | Over-current, Over-temperature protection,Output Reverse Polarity Protection |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | approx 100G |

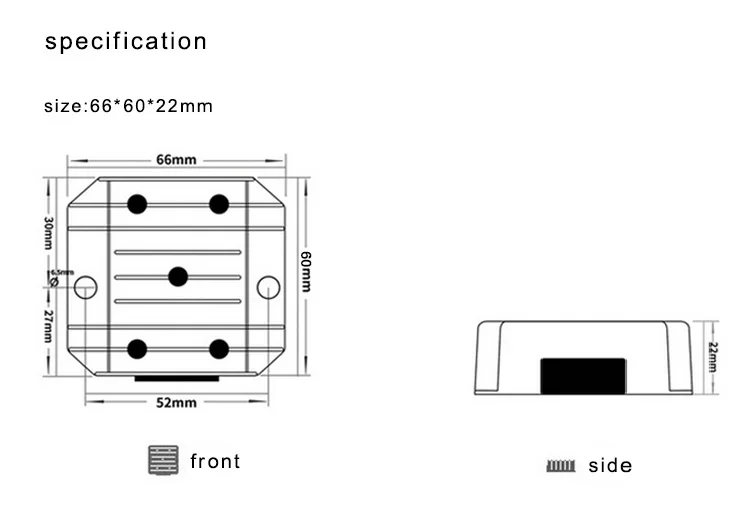

| Product size | 66*60*22mm |
Other output current option DC DC Converter 12V24V TO 3.3-9V | 3A/8A/10A/15A (pls contact with our sales manager if need) |
Attention: | |
