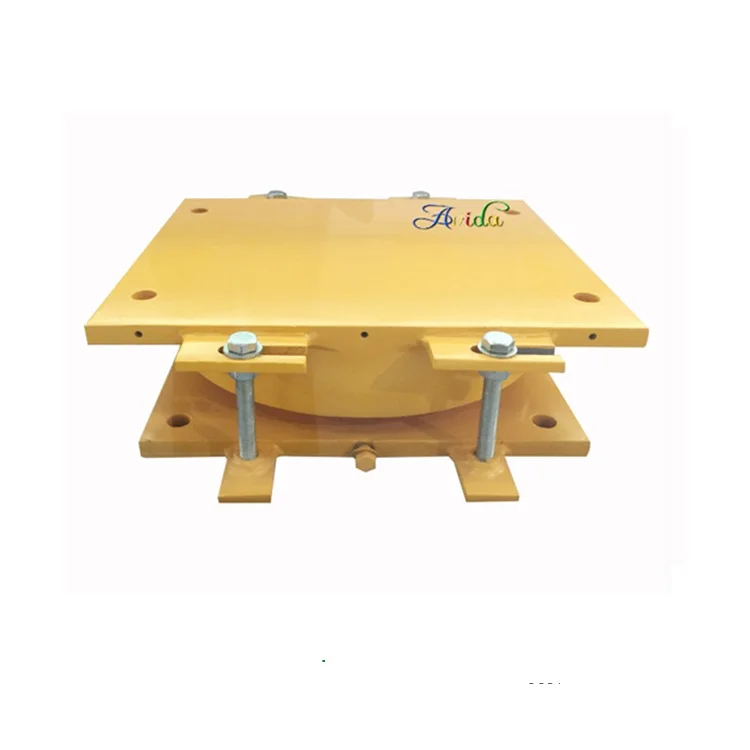

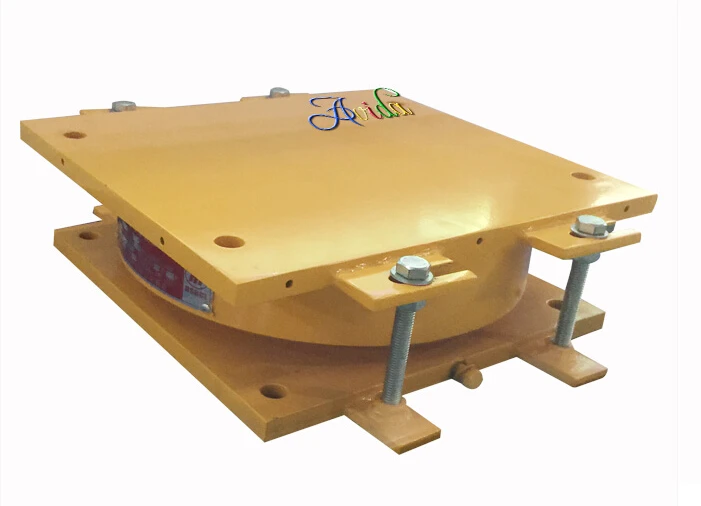

Сейсмостойкие конструкционные подшипники и расширительные соединения для мостов

Earthquake Resistant Pot Type Structural Bearings and Expansion Joints for Bridges

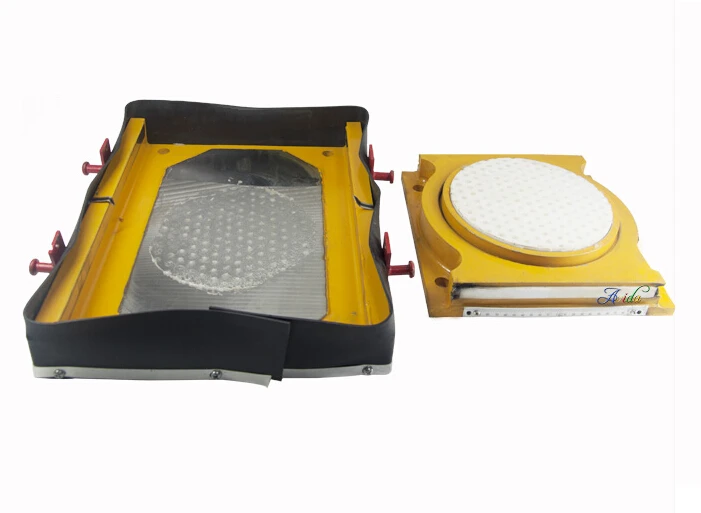

AVIDA pot bearings ensure the transfer of loads between a structure’s superstructure and its sub-structure. Meanwhile they can accommodate rotation and movements of the superstructure. AVIDA POT bearings are generally suitable for the use in any type of structure, and can be subjected to low or high loading and frequent movements and rotation.

AVIDA pot bearings are designed and manufactured acc. to customer requirements, in accordance with relevant standards such as EN 1337, AASHTO, BS5400 or AS 5100.a.

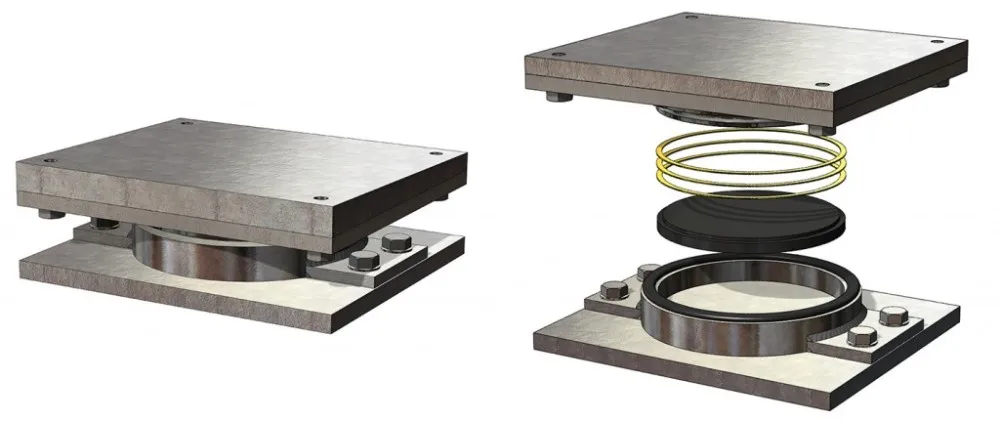

Structure

Rubber Physical&Mechanical Properties

The austenitic steel used for sliding surfaces is X5CrNiMo17-12-2 in accordance with EN 10088-2 1.4401 with a minimum thickness of 1.5 mm. The roughness is Ry5i ≤ 1 μm, The hardness ≥ 150 HV1 and ≤ 220 HV1.

Different Types Bridge Bearings

Rubber Bearing

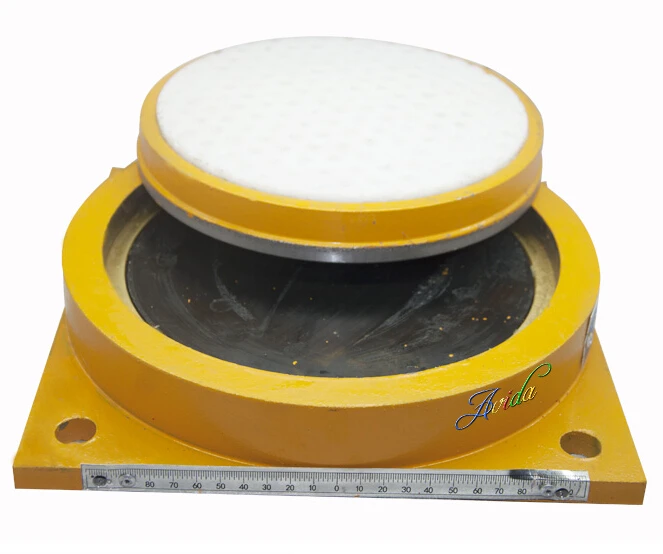

Pot Bearing

Spherical Bearing

Features

1, With low-profile yet high loading capability over 50,000 KN.
2, Maximized shearing strength of elastomer pad through the method of encasing it in the steel pot.
3, Allow for large rotations ranging from 0 to 0.03 rad.
4, Low friction coefficient between 1% and 3%.

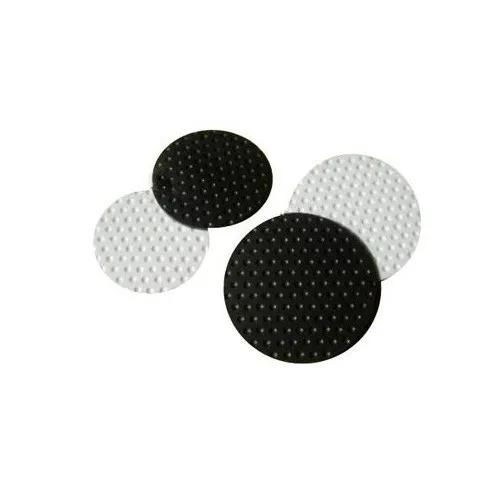

5, Excellent fatigue, impact and aging resistance of the layer of PTFE.
6, All the metallic parts are protected against corrosion by galvanization and epoxy painting according to EN 1337-9 (other       protective coatings are available as your requirements).
7, Complying with BS EN-1337, KS4424, AASHO, ISO or other custom standards.

Please kindly give us your drawing. We will design the most suitable product for you.

Since the early 2005, Nanjing AVIDA Engineering Materials Co.,Ltd has provided expansion joint systems for bridge around the world. With over ten years steady development, We have over 100 staff and 3500 square meters workshop today.

Until now, AVIDA has supplied various of building expansion joints, bridge expansion joints, waterstops and other assemblies for bridge and road in different construction projects. With the ISO and SGS standard, AVIDA is devoting himself to become one of the asia’s outstanding building and bridge components suppliers. Embracing with a clear company vision, we're now ready to progressively march towards excellence and take on a much bigger role in the international arena.

Office

Our sales team is willing to solve every question from our clients

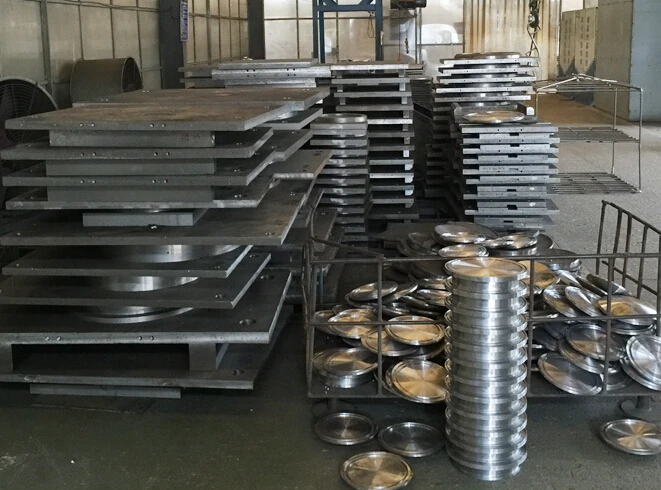

Workshop

We have professional engineers to design unique product to meet your any requirements.

We have advanced equipments and complete inspection and testing system to guarantee our product quality.

Packing Details : 1.pearl cotton as separation 2.carton for inner package 3.Container
Delivery Details : 1.Safety package
2.100% test before delivering (ensure the quality)
3.Item is shipped in about 15-30 working days against payment depends on the quantity
4.Tracking number will be sent to you as soon as we ship the product

Avida elastomeric bearings are designed and manufactured in accordance with the requirements of the new European standard EN 1337-3 and have the qualification of the CE mark. Avida can also supply elastomeric bearings complying with other standards. The elastomer used in the moulding process can be polychloroprene (neoprene), natural rubber or SBR depending on the specifications requested. Every single steel component is mechanically worked and assembled by fully qualified and trained workers at the factory with regular external inspections according to EN 1337 and under strict ISO 9001:2008 quality control standards.
