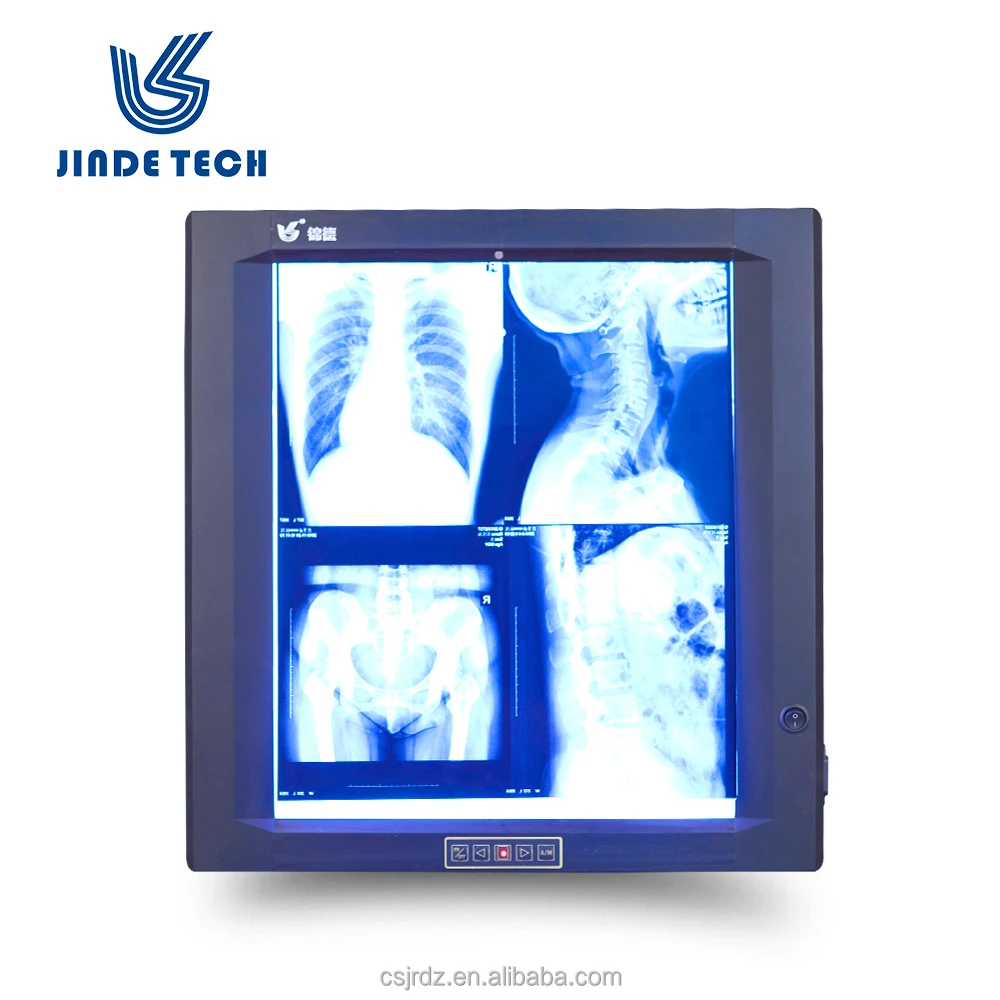

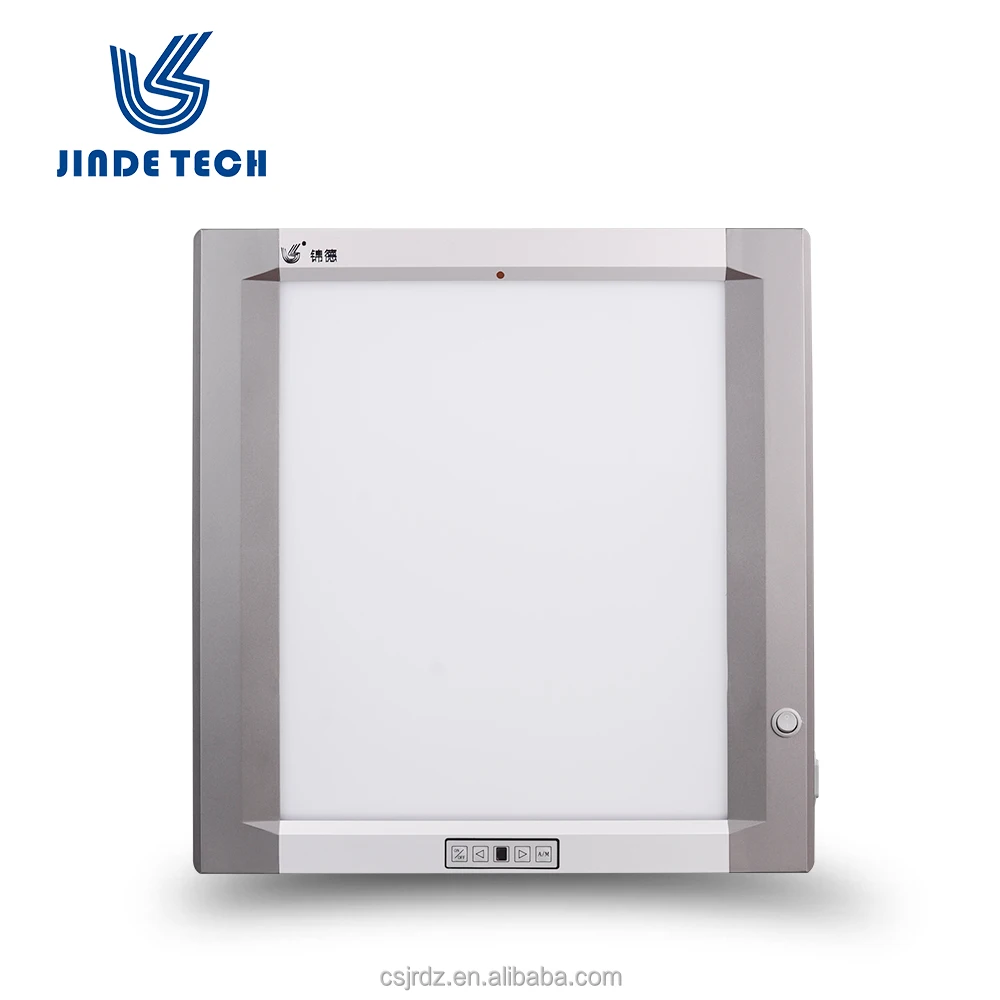

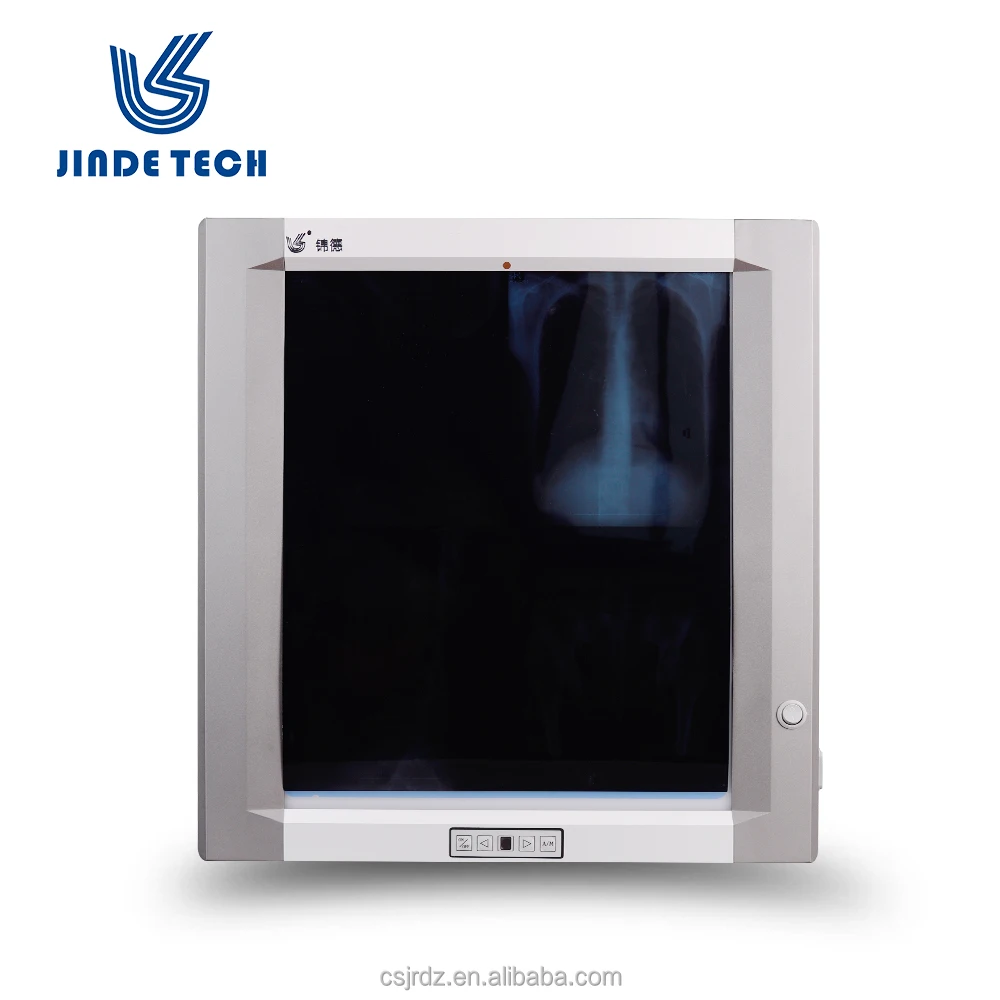

Jinde JD 01AIII Single bank radiaography led film viewer X ray medical negatoscope film viewer
- Category: >>>
- Supplier: Changsha Jinde Technology Co. Ltd. [Hunan China]Changsha
Share on (60662455773):
Product Overview
Description
Jinde JD 01AIII Single bank radiaography led film viewer X ray medical negatoscope film viewer

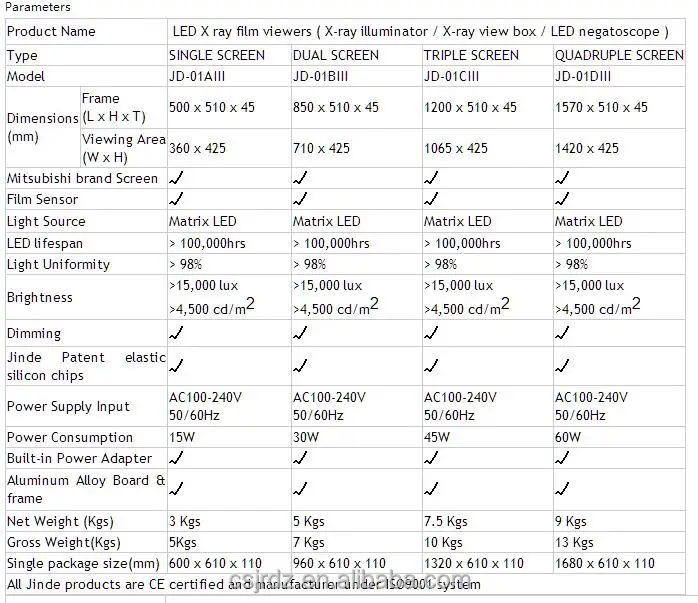

Technical Parameters | |||||
Product Name | LED X ray film viewers ( X-ray illuminator / X-ray view box / LED negatoscope ) | ||||
Type | SINGLE SCREEN | DUAL SCREEN | TRIPLE SCREEN | QUADRUPLE SCREEN | |
Model | JD-01AIII | JD-01BIII | JD-01CIII | JD-01DIII | |
Dimensions | Frame | 500 x 510 x 45 | 850 x 510 x 45 | 1200 x 510 x 45 | 1570 x 510 x 45 |
Viewing Area (W x H) | 360 x 440 | 736 x 440 | 1112 x 440 | 1488 x 440 | |
Mitsubishi brand Screen | √ | √ | √ | √ | |
Film Sensor | √ | √ | √ | √ | |
Light Source | Matrix LED | Matrix LED | Matrix LED | Matrix LED | |
LED lifespan | > 100,000hrs | > 100,000hrs | > 100,000hrs | > 100,000hrs | |
Light Uniformity | > 98% | > 98% | > 98% | > 98% | |
Brightness | >15,000 lux >4,500 cd/m2 | >15,000 lux >4,500 cd/m2 | >15,000 lux >4,500 cd/m2 | >15,000 lux >4,500 cd/m2 | |
Dimming | √ | √ | √ | √ | |
Jinde Patent elastic silicon chips | √ | √ | √ | √ | |
Power Supply Input | AC100-240V | AC100-240V | AC100-240V | AC100-240V | |
Power Consumption | 15W | 30W | 45W | 60W | |
Built-in Power Adapter | √ | √ | √ | √ | |
Aluminum Alloy Board & frame | √ | √ | √ | √ | |
Net Weight (Kgs) | 3 Kgs | 5 Kgs | 7.5 Kgs | 9 Kgs | |
Gross Weight(Kgs) | 5Kgs | 7 Kgs | 10 Kgs | 13 Kgs | |
Single package size(mm) | 600 x 610 x 110 | 960 x 610 x 110 | 1320 x 610 x 110 | 1680 x 610 x 110 | |
All Jinde products are CE certified and manufacturer under ISO9001 system | |||||
Basic Feature
1. Adopt with the acrylic euphotic panel, long lifetime, no light fades,uniformity>98%.
2. Self-adaptive regional illumination, with high brightness over 4500cd/m2, can control separately by dimmer.
3. Brightness adjustable separately, allowed turn on & off of each view box panel by digital keypad.
4. Patented elastic silica rubber clip instead of rolling needle layout, avoid the film getting stuck or dropping.
5. Use of LED Dot-Matrix light source with long lamp life-span100,000hours.378nr. LED lamps on each section.
6. Automatically light on/ off with film sensor. Multi-functions by dimmer available.
7. Internal built-in electric power, unique design with 45mm thickness.
8. Wide voltage: 110v-230v, with power 25w-100w.
9. Through with CE, ISO9001:2008,ISO13485 certificates.
Parameters
Single bank LED x-ray viewer | |
Model | JD-01AIII |
Viewing Dimension(inch) | 14×17 |
External Dimension(mm) | 500×510×45 |
Net weight | 3.0 kgs |
Light source | LED,lifespan>10000 hours |
Color temperature | >6500K |
Brightness | max >4500cd/m2 ,adjustable |
Light uniformity | >90% |
Dimming | 10 phase digital dimmer |
Film activation switch | yes |
Power adapter | built-in |
Film Clip | Invisible silica rubber clip (patented technology) |
Thickness | 4.5cm |
Installation | For wall mounting (desktop mounting is optional) |
Screen | Mitsubishi acrylic screen |
Power input | 110V-240V/50HZ |
Power consumption | ≤25W |
Certificate | CE, ISO9001-2008 |
Trade Terms
Delivery Time: Usually within 5 days after payment
Delivery Terms: EX-work Changsha,China
Package: Each unit packed into a standard export carton box
Payment Terms: 100% T/T in advance
Warranty: 2 years
Manufacturer: Changsha Jinde Technology Co., Ltd.
Exporter: Changsha JInde Technology Co., Ltd.
Validity: Within ONE WEEK after the quotation date.
Minimum Quantity: 50 units
