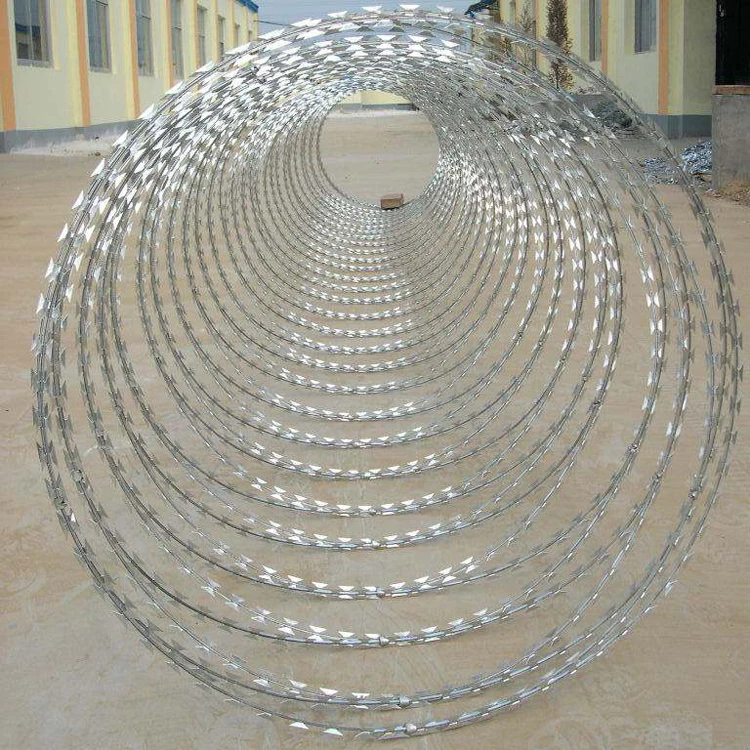

Caltrops barbed wire
- Category: >>>
- Supplier: Hebei Xiangguang Metal Net Co. Ltd.
Share on (60662549921):
Product Overview
Description
1.Product Description:

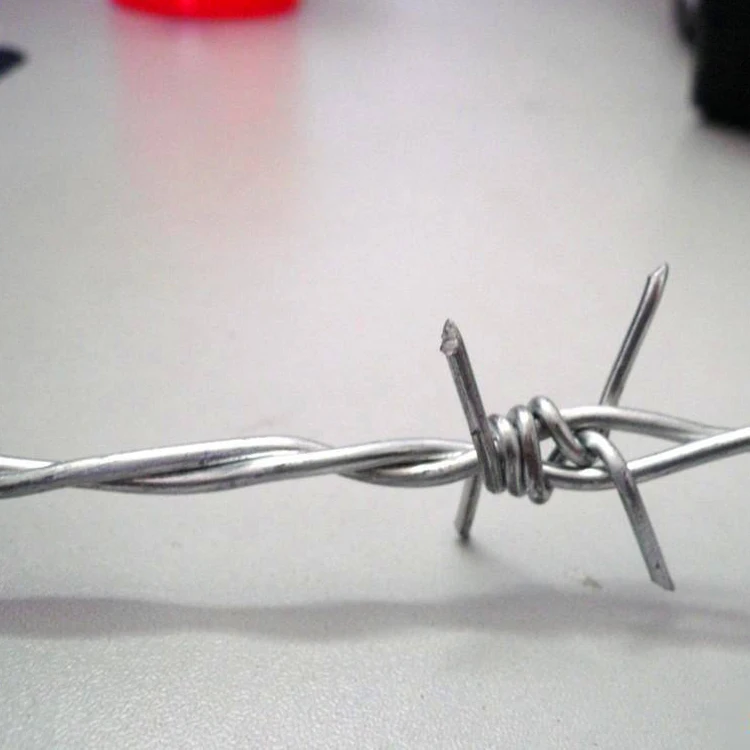

Barbed Wire
Material:Galvanized steel wire,stainless steel wire, PVC coated wire
Types of Barbed Wire:

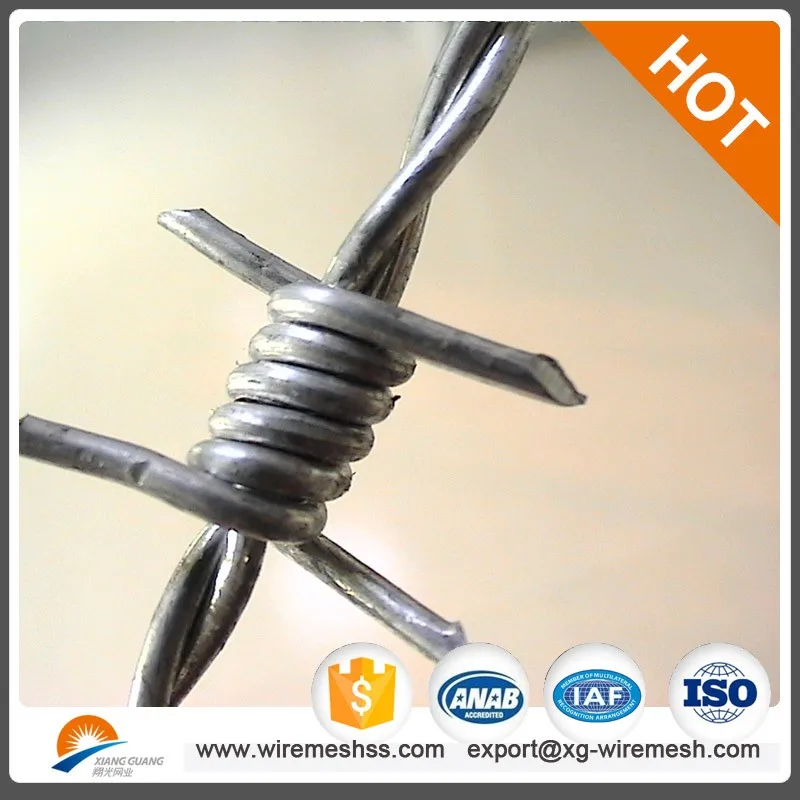

Galvanized Barbed Wire
Galvanized swg galvanized barbed wire is used in defending of farm land, sport ground, or used together with concertina razor wire. Normally it's settled above the fence, for example chain link fence and welded fence, avoiding climbing across. Galvanized barb wire can also form a swg galvanized barbed wire wall with wooden sticks or iron sticks. The weaving methods are one main wire, one swg galvanized barbed wire; one main wire, twin swg galvanized barbed wire; and twin main wire, twin swg galvanized barbed wire.
PVC Coated Barbed Wire
Core of PVC coated swg galvanized barbed wire can be galvanized iron wire
A variety of colors like green, blue, yellow, orange, gray

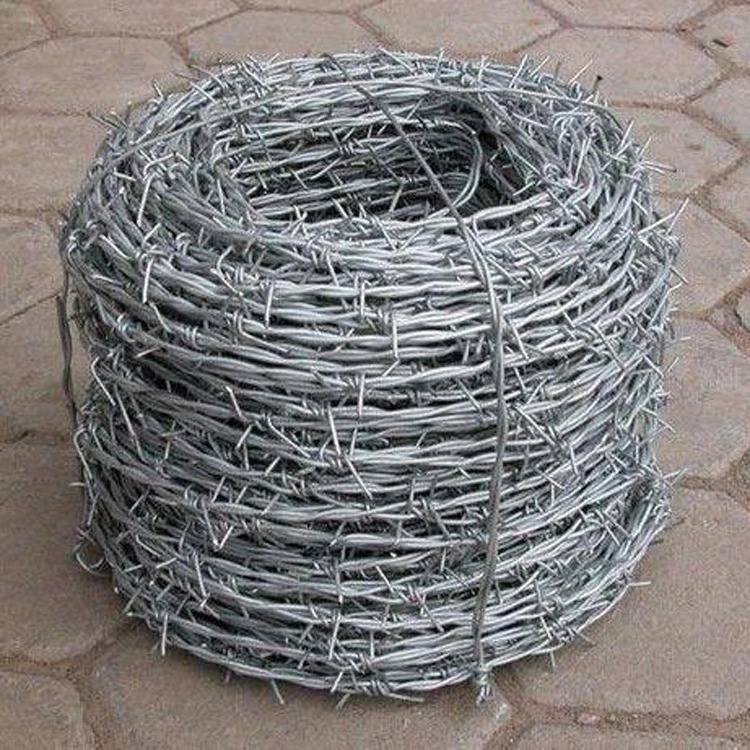

Packing: In coil of 25 kilos or 50 kilos , lined with PVC strips, then wrapped with P.V.C or hessian cloth
Barbed wire weave types:
1) single strand barbed wire,
2) double strand double twisted barbed wire;
3) double strand common twisted barbed wire
Common Uses
1. the protection net in industry
2.agriculture,animal husbandy,dwelling houses
3.plantation of fencing,grass boudary
4. ranch and livestock farn, detention houses
5.railways and highways
5. Our product info:
wire Gauge: 16#-12#
Barb Wire Gauge: 16#-12#
Barbed length:1-3cm
Barbed spacing:7.5-15cm
Weaving way: Twist, standard
Surface finished: Electro galvanized,Hot dipped galvanized,PVC coated
Weight of packing in coil: 25kg/coil,50kg/coil as standard
Note: Customer request acceptable.
2. Specifications:

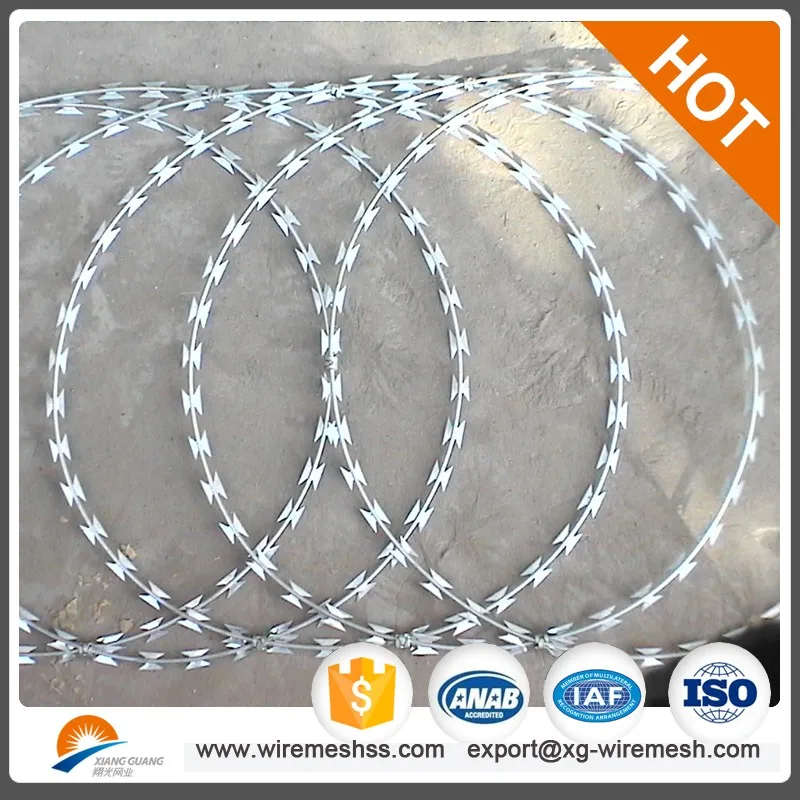

| Razor type | Razor thickness (mm) | Wire diameter | Razor length | Razor width | Razor space |
| BTO-10 | 0.5 ±0.05 | 2.5 ± 0.1 | 10 ±1 | 13 ± 1 | 26 ± 1 |
| BTO-12 | 0.5 ±0.05 | 2.5 ± 0.1 | 12±1 | 15 ± 1 | 26 ± 1 |
| BTO-18 | 0.5 ±0.05 | 2.5 ± 0.1 | 18 ±1 | 15 ± 1 | 33 ± 1 |
| BTO-22 | 0.5 ±0.05 | 2.5 ± 0.1 | 22 ±1 | 15 ± 1 | 34 ± 1 |
| BTO-28 | 0.5 ±0.05 | 2.5 ± 0.1 | 28 | 15 | 45 ± 1 |
| BTO-30 | 0.5 ±0.05 | 2.5 ± 0.1 | 30 | 18 | 45 ± 1 |
| BTO-60 | 0.6 ±0.05 | 2.5 ± 0.1 | 60 ±2 | 32 ± 1 | 100 ± 2 |
| BTO-65 | 0.6 ±0.05 | 2.5 ± 0.1 | 65 ±2 | 21 ± 1 | 100 ± 2 |
Features:
* Barbed wire has the feature of extremely difficult to cut and hard to climb.
* Barbed wire is very strong and reinforced with a steel coil which makes it very hard to bend, while the barbs have a piercing and gripping action.
* Barbed wire enjoys good appearance.

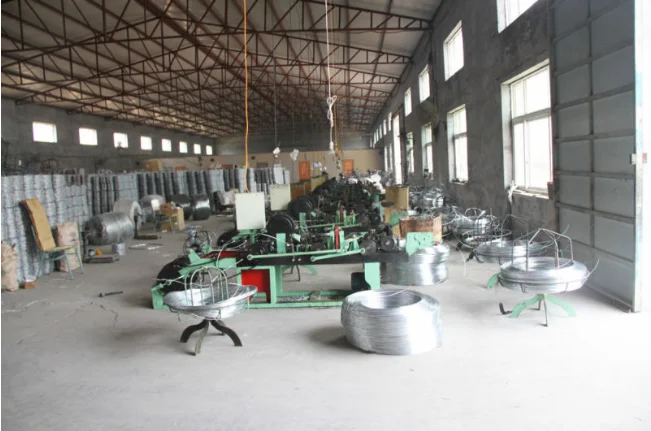

The manufacture machine and our factory

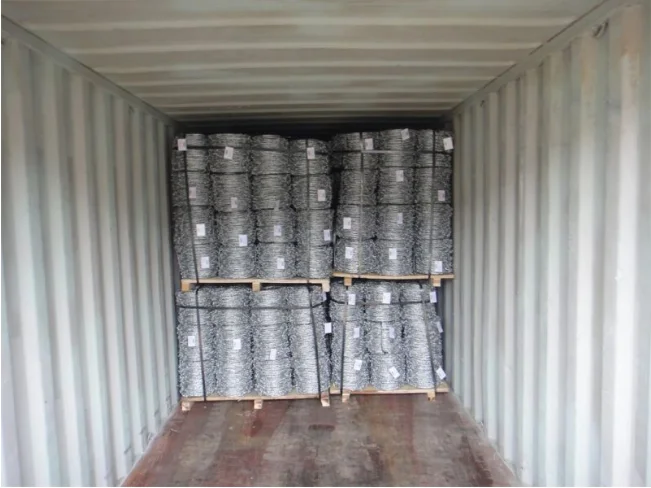

The packing
Plastic inside, hessian outside Plastic inside,waving bag outside
1)in nude 2)in iron axletree 3)in wood axletree ; 4) in wood pallet
Specification List
| Gauge of Strand and Barb in B.W.G. | Approximate Length per Kilo in Meter | ||||
| Barbs Spacing 3" | Barbs Spacing 4" | Barbs Spacing 5" | Barbs Spacing 6" | ||
| 12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 | |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 | |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 | |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 | |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 | |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 | |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 | |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 | |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 | |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 | |
| 14x16 | 15.3491 | 17.1144 | 18.4060 | 19.3386 | |
3.Product Pictures
Company Information:
Hebei XiangGuangMetal Product Co., Ltd is a premier manufacturer and supplier of wire mesh products located in
Anping Town, the famous Wire Mesh Land of China. We have engaged in wire drawing, wire mesh weaving and
metal fabricating for about ten years and have accumulated rich experiences in this field.
Our Products:
Hexagonal wire netting, gabions, chain link fence, wire mesh fences, welded wire mesh, welded wire panels,expanded
metal mesh, barbecue grill netting, razor wire, barbed wire and fencing accessories.
Contact Information:
| Office Tel: | +86-318-5189919 |
| Whatsapp: | +86-18932806733 |
| Email: | export(at)xg-wiremesh.com |
| Website: | www.wiremeshss.net |
