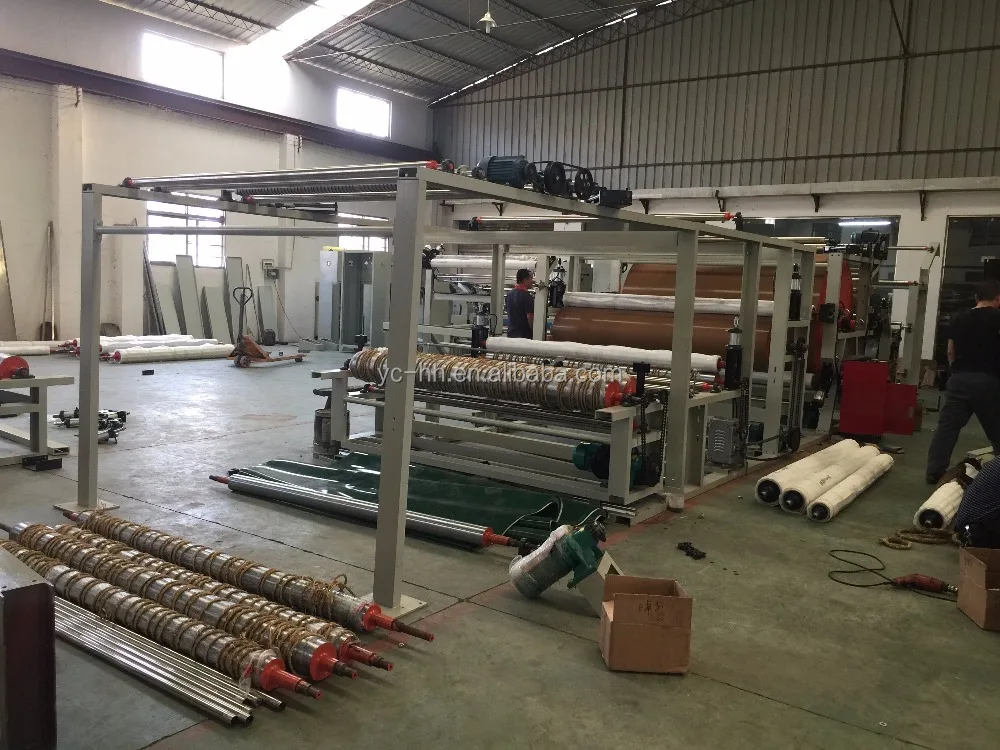

HH A137 automatic fabric silicone coating machine

Product Overview

Description







HH-A137 automatic fabric silicone coating machine





machine uses:

       Mainly applied to the composite membrane and membrane coating or membrane and between the sheets. Such as cashmere, fleece, plush, brown velvet, non-woven, sponge, cloth, EVA, leather, glue cotton and other raw materials. Widely used in plastic composite materials clothing, footwear, bags, gloves, leather, automotive interior and toys.

Features:
1, when the composite coating white latex binder and water for Wimbledon with a high resistance to pressing to make it become a layer composite, while having a network with automatic correction function, so that the composite material out of the neat, flat, without deviation, etc.

2, the whole operating system with frequency synchronization control linkage.

3, according to the characteristics of different materials can be changed to achieve the final desired portion of the device.

4, special beads specifications can be customized



specification for HH-A137 automatic fabric silicone coating machine

Width of fabric	1600mm,1800mm,2000mm according to customers' requirement
Machine Roller Surface	1800mm,2000mm,2200mm according to customers' requirement
Machine Speed	max 50m/min, normal 40m/min

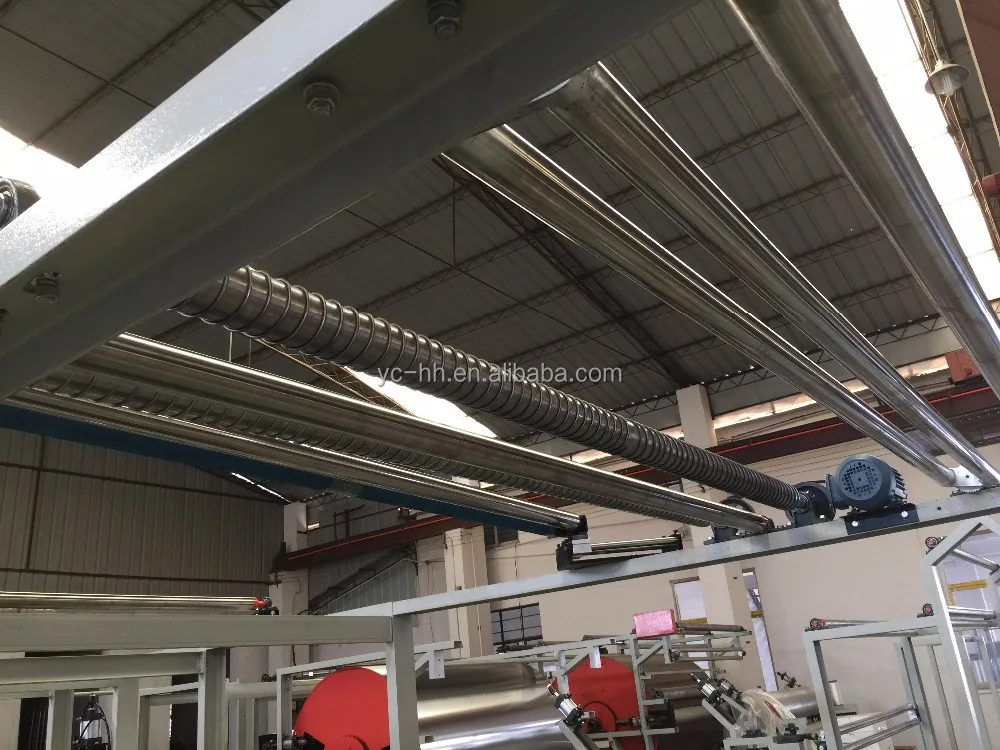

Heating system	heating pipes inside
Driven Type	Electric
Machine Heating Power	45kw
Machine Drive Powder	4.5kw
Diameter of drying roller	1.2m, 1.5m
Voltage	Customizable
Estimated Machine Dimension	6800×2500×2700mm(L*W*H)
Estimated Machine Weight	4500kg

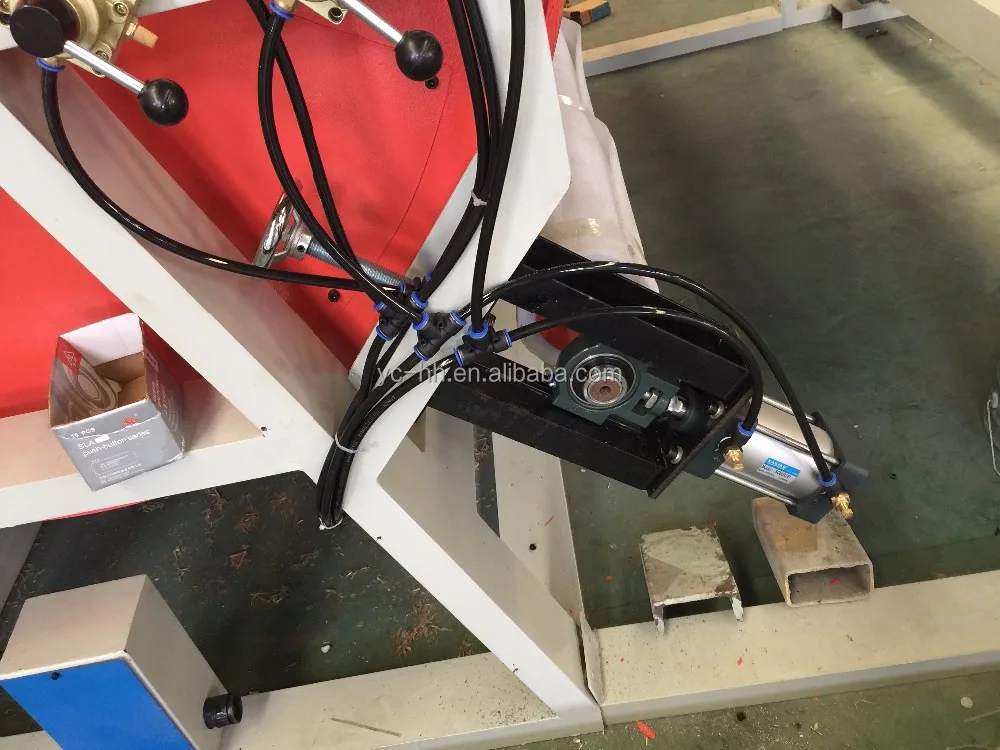

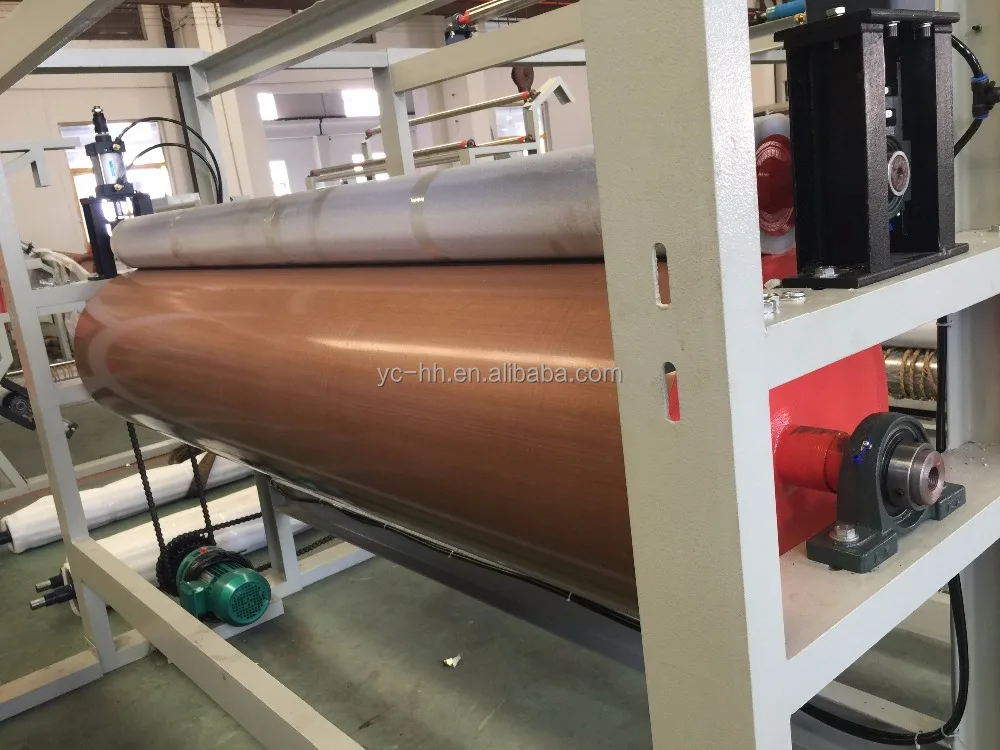

details parts explain in machine HH-A137 automatic fabric silicone coating machine

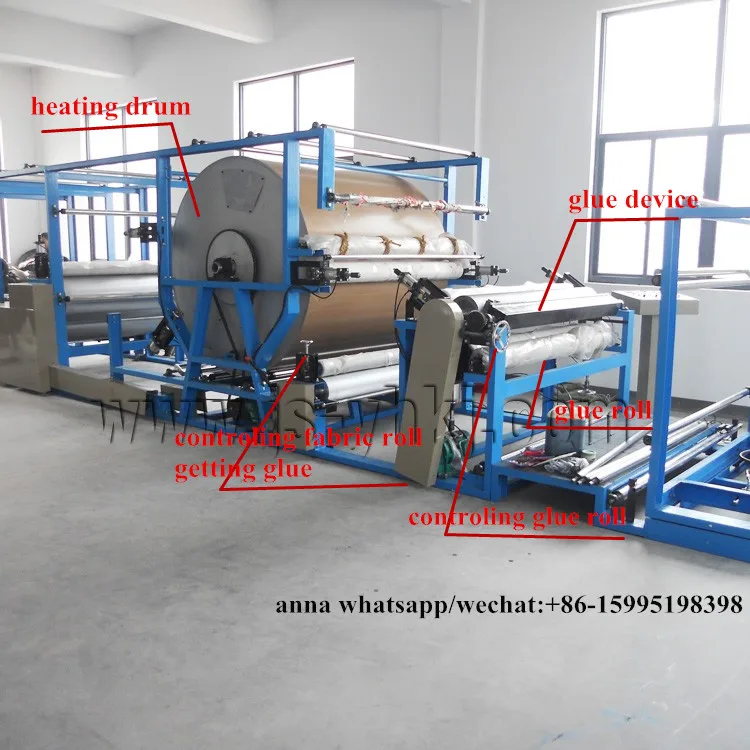

HH-A136 automatic electric fabric coating machine, glue device, winding device, inspection device...

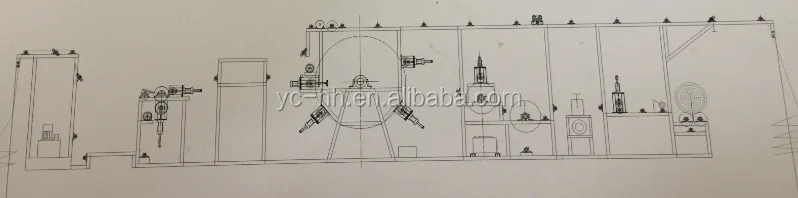

working process of HH-A137 automatic fabric silicone coating machine

feeding material -- glue device -- drying and laminating -- inspection -- meter meter -- wrap up

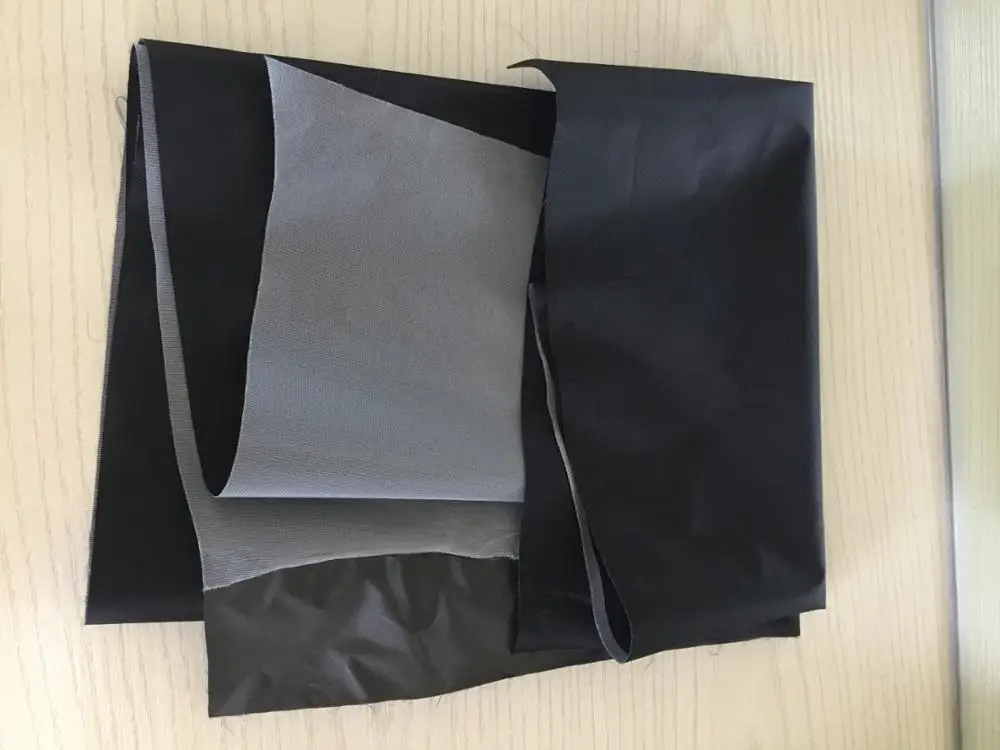

finished product showing:



functional products for HH-A137 automatic fabric silicone coating machine
