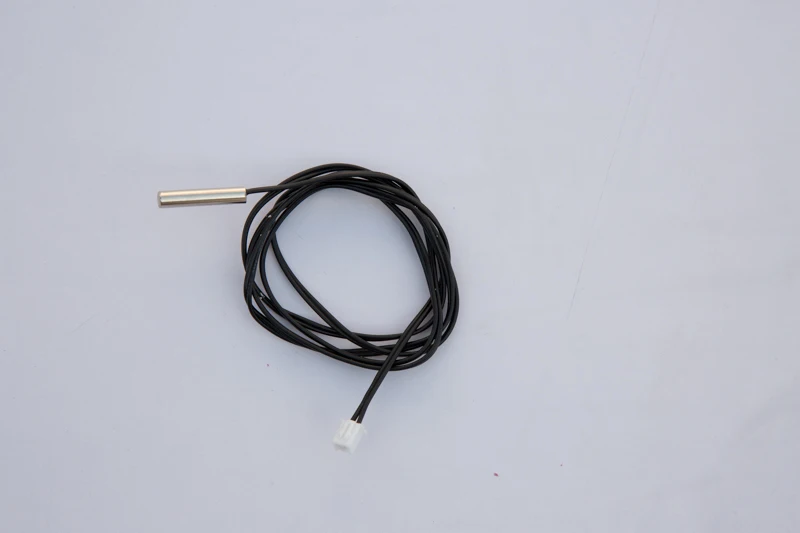

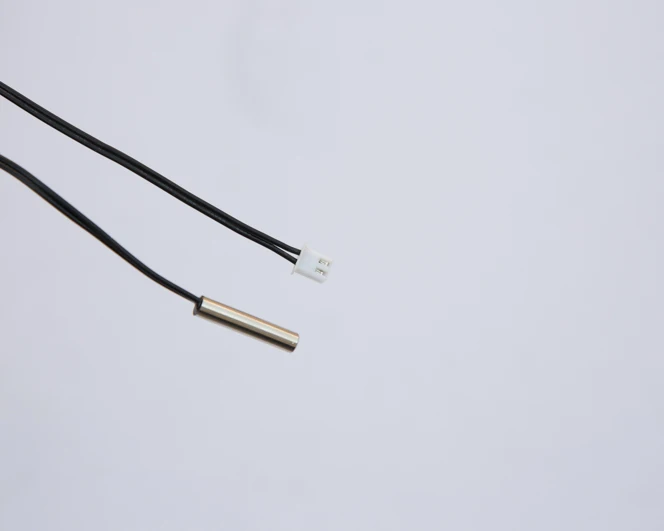

Temperature Sensor NTC Thermistor 200K

Product Overview

Description

Resistance	5K,10K,15K,20K
Accuracy	1%
Response Time	5S
B25/50 Value	3380,3950,3470
Shell Tpye	Copper
Shell Size	5x25mm
Connector	XH-2Y
Wire Type	UL2651 26AWG
Wire Length	460mm
Temperature Range	-30~105 celsius
Product Keywords	thermostat ntc 10k thermistor,thermistor with ntc sensor,thermistor water



Features:1. Wide operating temperature range, good stability and reliability. · 2. Easy to installation and manipulation as the sealing can be done according to environment and conditions there it is applied by customer. · 3. Accurate testing can reflect temperature change precisely. · 4. Insulating resistance(MΩ): over 100MΩ at DC500 V · 5. Working temperature range(°C): -50 to +150 · 6. Dissipation factor(mw/°C): 1-2 (in still air) · 7. Thermal time constant(s): within 10-20 sec (in air)
