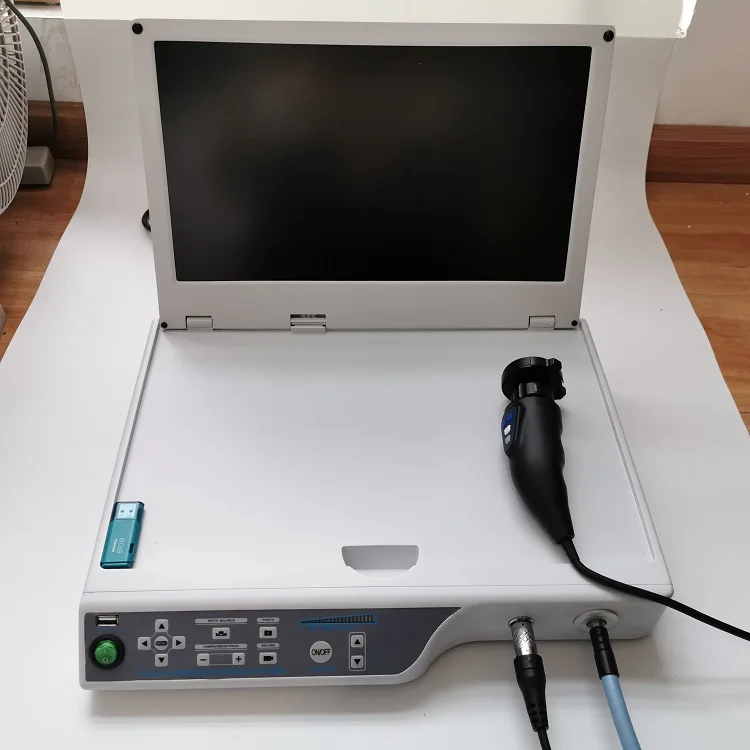

Medical Integrated surgical nasal endoscope camera with Monitor

Protable endoscopy camera bring a new solution for endoscopy surgery,especially in clinic inspection,samll size telescope operation.It gather HD camera,LED light source and HD LED Monitor together. Compare to "Tower" endoscopy system,it bring a new world for endoscopic surgery.

Technical Data

IMAGING SYSTEM :1/2.8" Progressive Scan CMOS 1080P/60fps

INPUT VOLTAGE RANGE: 100-240v@50/60Hz

POWER CONSUMPTION:90W

VIDEO OUTPUT:VGA/DVI/HD-SDI/CVBS(PAL/NTSC) Up to five HD signal output

NOISE:0.01Lux

OPTICAL COUPLER:C-mount 1"-32UN-2A

LED LIGHT POWER: 30W

ILLUMINATION: 1100000Lux

COLOUR TEMP:5700K

COMPLIES WITH MEDICAL SAFETY STANDARDS:

IEC 60601-1:2005

IEC 60601-2-18:2005

IEC60601-1-2:2014

CLASSIFICATION: Tvpe BF Applied part
