Factory Hot Sales Warp Knitted Unidirectional Glass Fiber Fabric For Pipe Line
- Category: Fiberglass Cloth >>>
- Supplier: Jiangsu Hanovo New Material Co. Ltd.
Share on (60662862394):
Product Overview
Description
Product Description

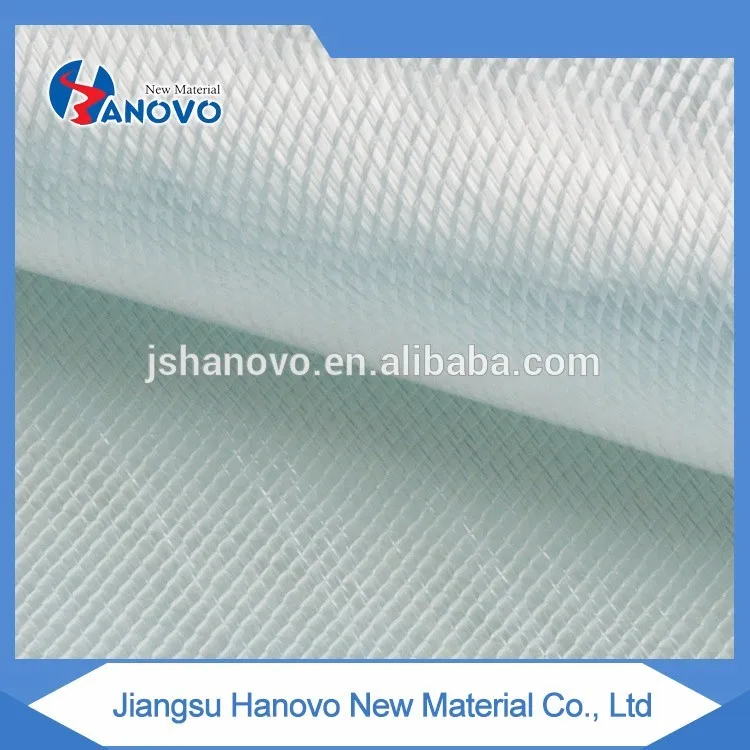

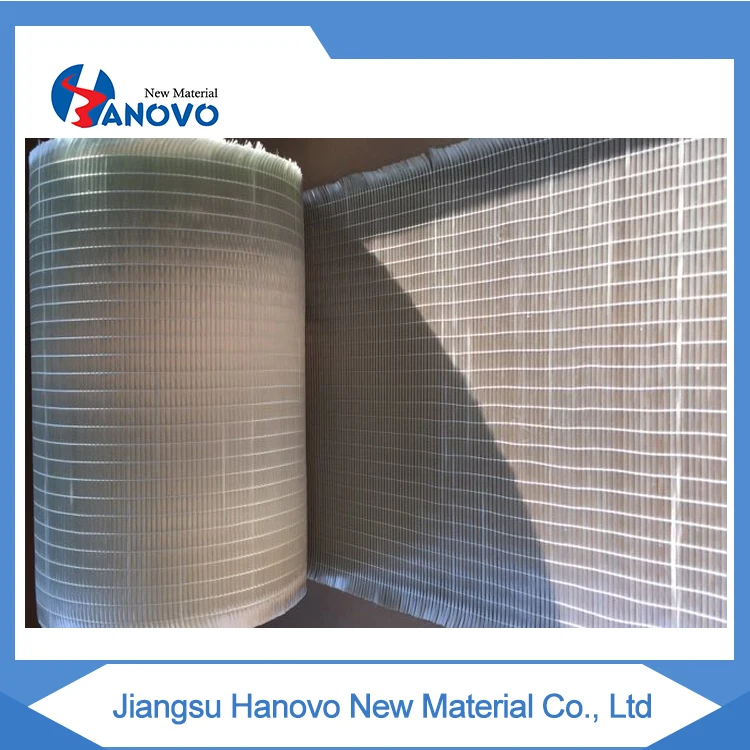

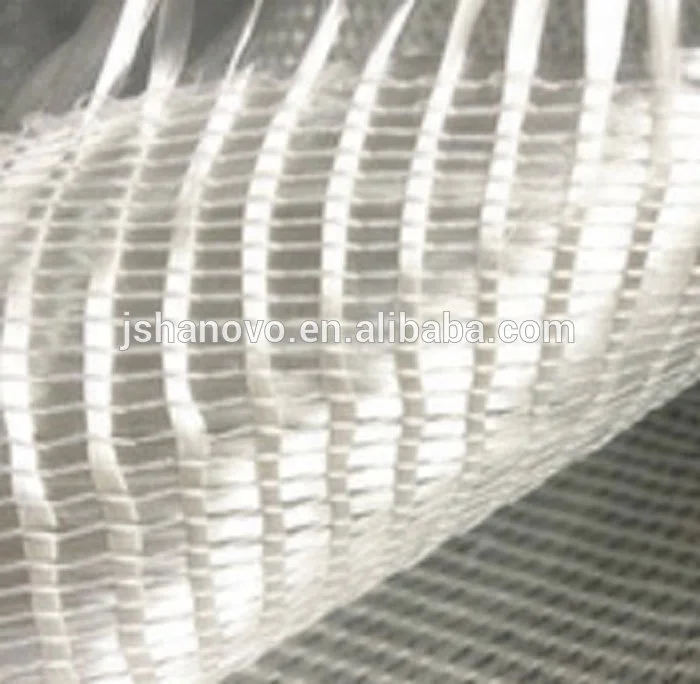

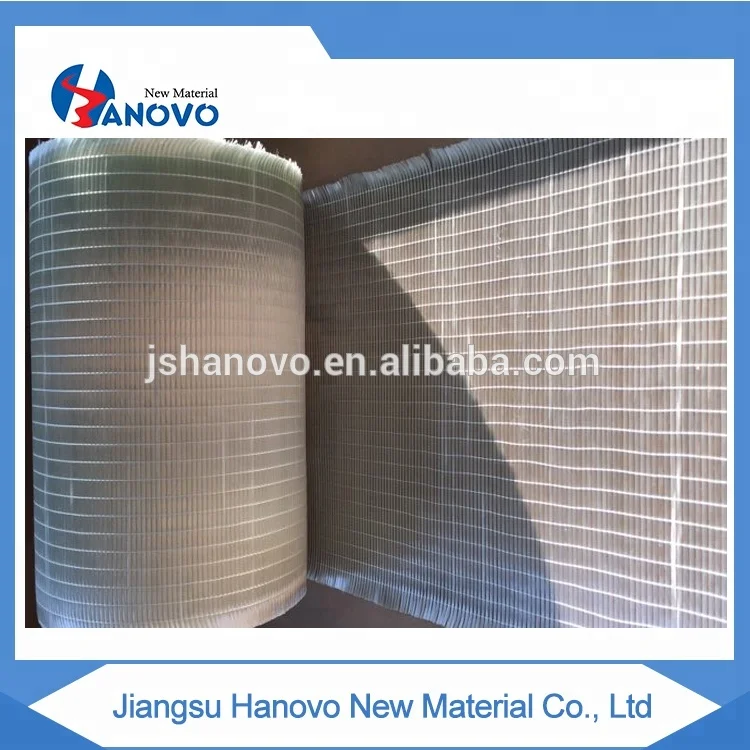

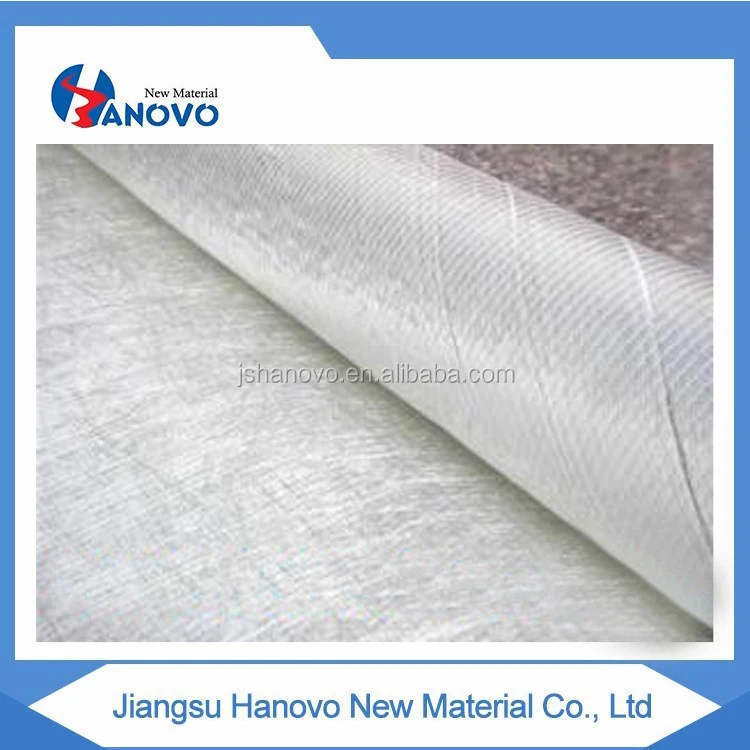

Factory Hot Sales Warp Knitted Unidirectional Glass Fiber Fabric For Pipe Line
Weft 90° Unidirectional Fabric is a FRP composite based on 90°weight, attaching (50-500)g/m2 CSM or Nonwoven fabric on the bottom.
The weight of the weft direction is 150-1200g/m2, the width is from 5-210 inches.
This fabric is suitable for Polyester resin, Vinyl resin, Epoxy resin, Phenolic resin etc. It is mainly used in FRP pipes, containers industry etc.
Product Features
- Wide Width,the maximum width up to 210inch
- Ease of handling and cutting
- High Strength and Quick Wet out
- Stability
- Stiffness
Product Application
The main usage is pipeline industries.

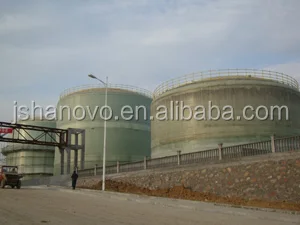

Such as FRP pipe, FRP tank, FRP chimney, rod material, pole material, water tower, vessel and pultrusion techniques in width direction reinforcement.
Technical Data
STYLE | Total Weight (g/m2) | 0° Layer (g/m2) | 90° Layer (g/m2) | Mat (g/m2) | RESIN COMPATIBILITY |
ET227 | 227 | / | 223 | / | UP or Epoxy resin |
ET260 | 264 |
| 260 | / | UP or Epoxy resin |
ET300 | 307 | / | 300 | / | UP or Epoxy resin |
ET350 | 357 | / | 350 | / | UP or Epoxy resin |
ET400 | 407 | / | 400 | / | UP or Epoxy resin |
ET450 | 459 | / | 450 | / | UP or Epoxy resin |
ET525 | 536 | / | 525 | / | UP or Epoxy resin |
ET300-M300 | 609 | / | 300 | 300 | UP or Epoxy resin |
packing and shipping

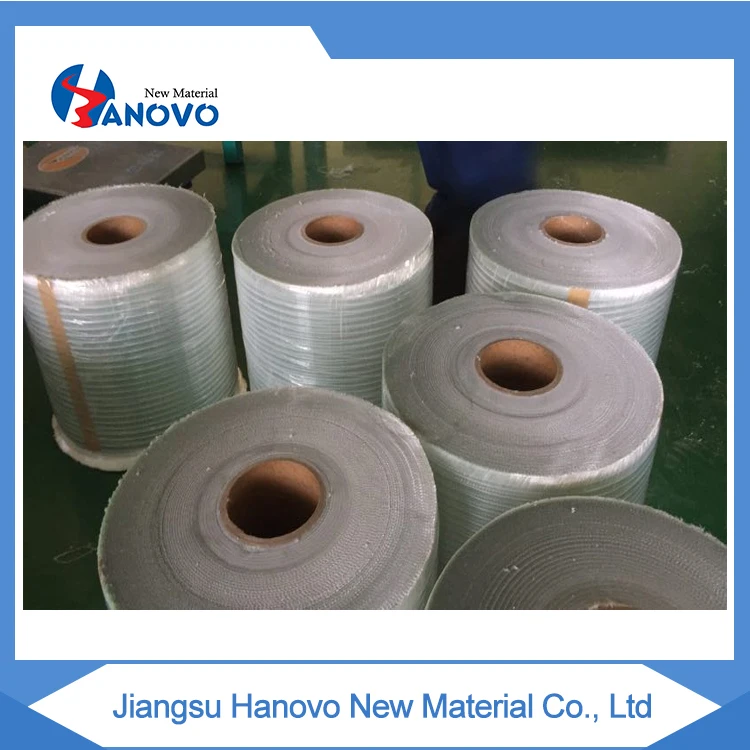

Each fabric is wound onto a paper tube,and the roll is wrapped up with plastic film,and then packed in a cardboard box or wrapped up with kraft paper. The rolls can be horizontally placed. For transportation, the rolls can be loaded into a cantainer directly or on pallets.
