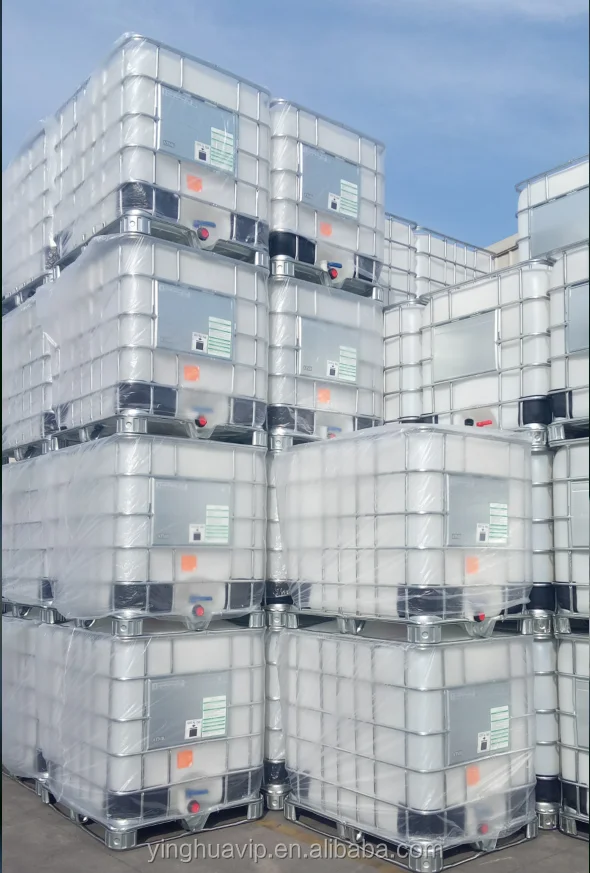

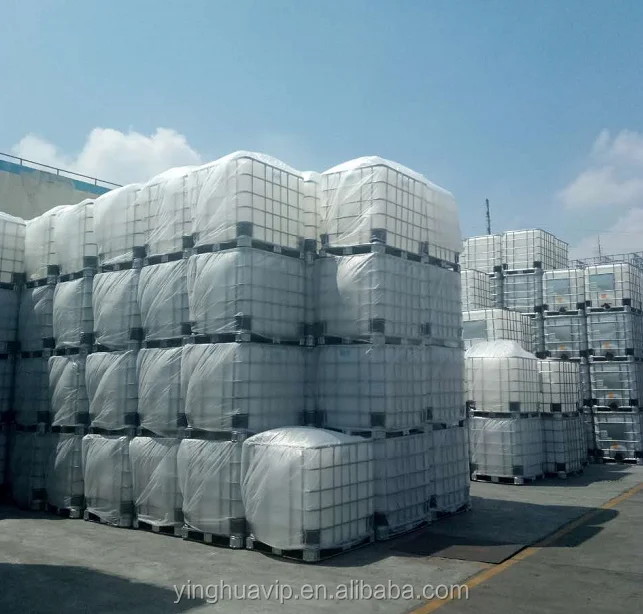

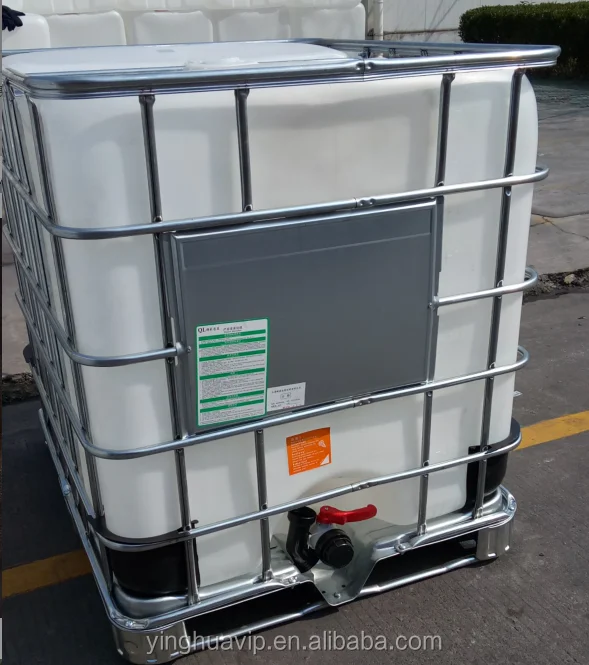

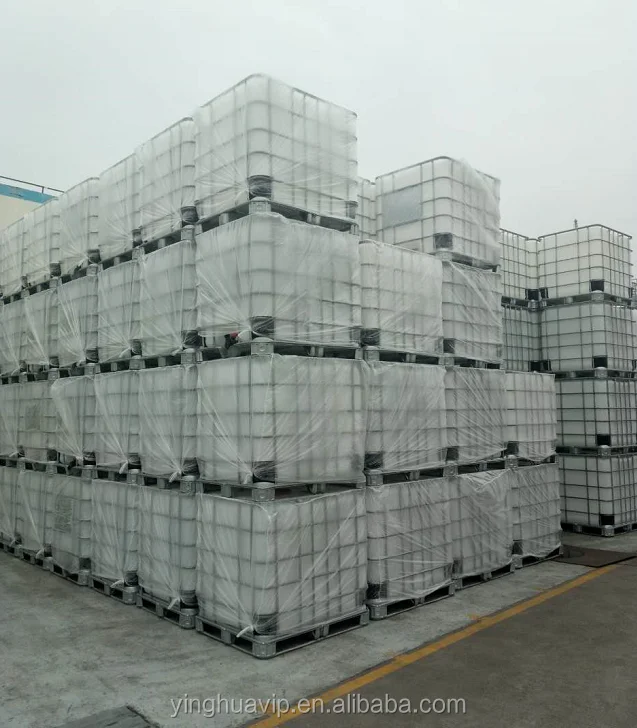

1000L Liquid Square IBC Tank, ibc tote tank 1000l for oil petrol storage or transport
- Category: >>>
- Supplier: Shanghai Yinghua Plastic Products Co. Ltd.
Share on (60662872061):
Product Overview
Description
1000L Liquid Square IBC Tank, ibc tote tank 1000l for oil petrol storage or transport
Product Description
IBC medium bulk container. Is a modern warehousing, transportation of liquid products, the necessary tools. The container barrel inner container and galvanized steel framework combination, the content of high molecular weight high density polyethylene blow molding, high strength, corrosion resistance, good health.
The Technical Date of 1000L HDPE ibc tank of YingHua | ||
Item Specification Tolerance | ||
Item | Specification | Tolerance |
Rated Volume(L) | 1000 | / |
Brimful Volume(L) | ≥1050 | / |
Overall Dimension(mm) | 1200x1000x1150 | ±5 |
Top cap Mouth diameter | 142(diameter of thread SLCS 160mm,Pitch 7mm) | ±2 |
Weight for Inner Tank(kg) | 15.5 | ±0.5 |
Weight for IBC Tank(kg) | 58 | ±2 |
Valve outside diameter(mm) | 50 | ±1 |
Wall Thickness(min) | ≥1.5mm | / |
Outlet Valve(discharge valve) | DN50 ball valve& butterfly valve | / |
Height for Pallet(mm) | 120 | / |
Height for forklift holes(mm) | 90 | / |
Length for forklift holes(mm) | 795 | |
Other detailed date for our IBC Tank 1000L
1.Model:YH-1000L
2.UNMark:each IBC Tank will mark exclusive UN Uumber
3.Overall dimensiobn:1200*1000*1150mm(±5mm)
4.Max Allowable Weight:2013 kg
5.Tare Weight:58±2kg
6.Allowable Stacking Weight:4056kg
7.Material of inner Receptacle: HDPE
8.Material of outer Casing :Galvanized steel DCD51D
9.Material of pallet: Galvanized steel DC53D
10.Material of seal :EPDM,FKM,Nitrile,PE
11.Valve and Material:Ball Valve DN50 or Butterfly Valve DN 50
12.Stacking Test Weight;4056kg
13.Dropping Test Height:1.9mm
14.Hydraulic Test pressure:100kpa
15.Vibration Test:Amplitude:25±5%mm,Time Duration:1 hour
