Hydraulic Rotary air chuck fixture for CNC lathe machine
- Category: >>>
- Supplier: Kunshan Omatei Mechanical And Electrical Equipment Co. Ltd.
Share on (60662904419):
Product Overview
Description
Product Description

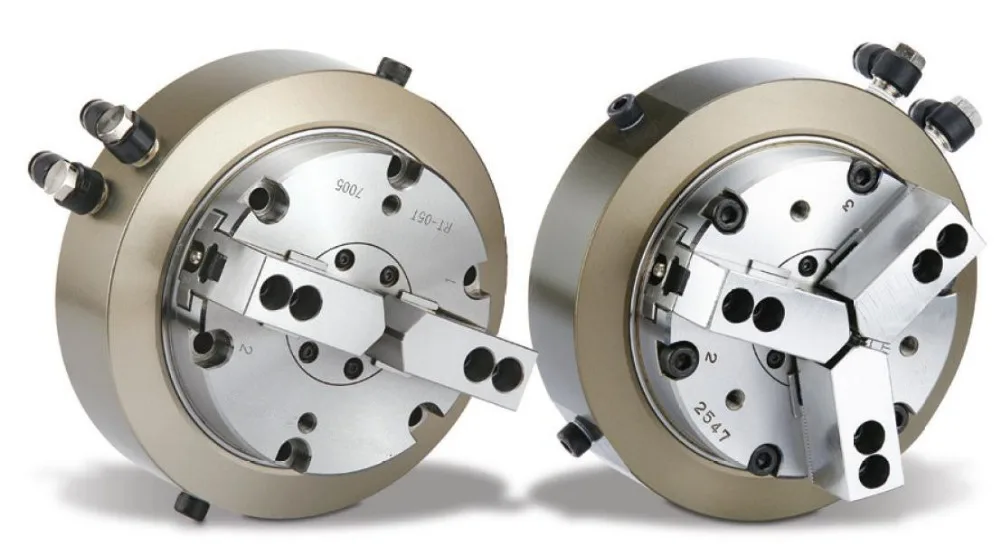

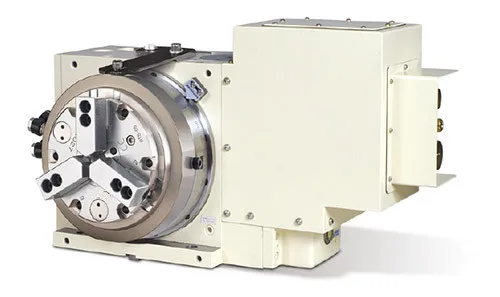

Rotary Air Chuck Fixture
Low Torque / Built-In Check Valve
Dust and Liquid proof cover: Design with Labyrinth Seal Rings, prevent the metal chips and coolant into the internal cylinder to guarantee chuck's performance and service life.
Built in Check Vale: Design with built in Check Valve.It's doesn't need to supply the air continuously and remain low working torque also reduce the air consumption.
Higher Rotation Speed: The rotation speed from 100RPM to 180RPM, higher rotation speed to fit with more kind of working.
Integral pneumatic cylinder: Connect chuck and built-in cylinder to each other directly;thus enables operation stability. Moreover,it is more convenient for installation and operation since the use of draw tube and draw bar are no longer necessary.
Rustproof treated cylinder: The cylinder won't get rusty and seized even wet or high moisture working environment.
Subject to the different products spec and craft, and different exchange rate, The price here is just for your reference, please get the right price from our sales when you order.
Products Details
MODEL / SPEC. | Thru-Hole(Diameter)(mm) | Piston Area (cm2) | Plunger Stroke (mm) | Jaw Stroke(Diameter) (mm) | Torque m (k.m) |
RTS-05 | 16 | 74 | 10 | 4.6 | 1 (9.8) |
RTS-06 | 20 | 120 | 13 | 5.5 | 1 (9.8) |
RTS-08 | 30 | 190 | 16 | 6.8 | 1 (9.8) |
RTS-10 | 43 | 280 | 19 | 8 | 1 (9.8) |
RTS-05T | 16 | 74 | 10 | 4.6 | 1 (9.8) |
RTS-06T | 20 | 120 | 13 | 5.5 | 1 (9.8) |
MODEL / SPEC. | Max.Speed r.p.m | Max. Pressure kgf/cm2 (Mpa) | Gripping Force At Air Pressure 7kgf/cm2 (0.7Mpa) kgf | Gripping Force At Air Pressure 7kgf/cm2 (0.7Mpa) KN | Gripping Range |
RTS-05 | 180 | 7 (0.7) | 1340 | 13.1 | Ø4-Ø136 |
RTS-06 | 150 | 7 (0.7) | 2330 | 22.8 | Ø25-Ø166 |
RTS-08 | 120 | 7 (0.7) | 3730 | 36.5 | Ø33-Ø215 |
RTS-10 | 100 | 7 (0.7) | 5480 | 53.7 | Ø43-Ø255 |
RTS-05T | 180 | 7 (0.7) | 1340 | 13.1 | Ø4-Ø136 |
RTS-06T | 150 | 7 (0.7) | 2330 | 22.8 | Ø25-Ø166 |
Quality Promise
Item | Omatei Promise on Quality |
1 | 100% inspected and 100% qualified |
2 | In case of quality defects before use, buyer should notify Omatei within a week after receiving goods, Omatei is responsible for returning and resending freight charge. Buyer should package the goods firmly for returning transportation safety. |
3 | If buyer need changing before use, buyer should notify Omatei within a week after receiving goods, Buyer is responsible for returning and resending freight charge, Buyer should package the goods firmly for returning transportation safety. |
Contact us
Packing & Delivery
Packing Details : Our packing is firm and safe and suitable for air or sea shipping way.
Lead time: 1 day after received payment if in stock, otherwise, the lead time is 30 days.
