Product Overview
Description
Applications
The external slab panel is widely applied for villas, municiple projects, large residential estate and other large-scale office buildings.
Product Description
resin exterior wall decorative panel with pu xps tps panel

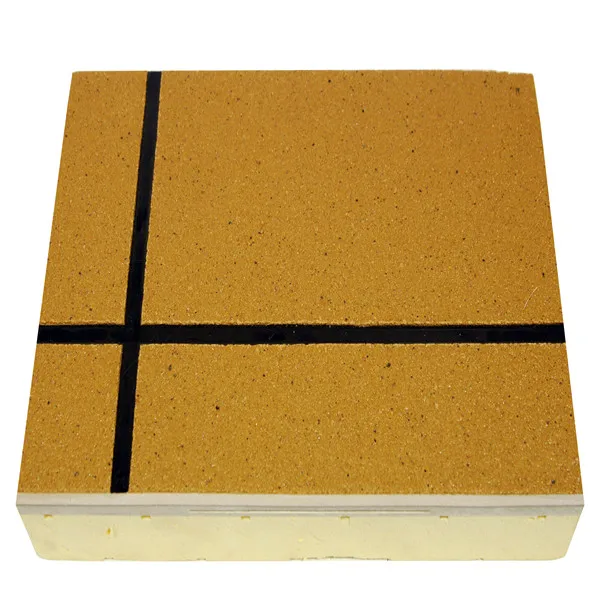

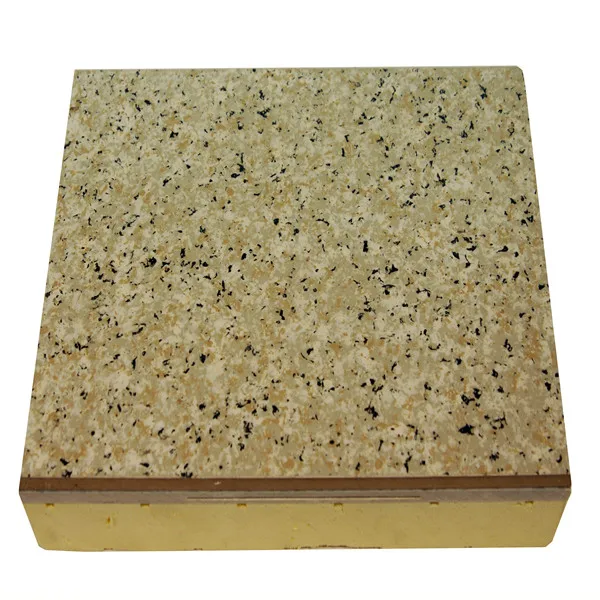

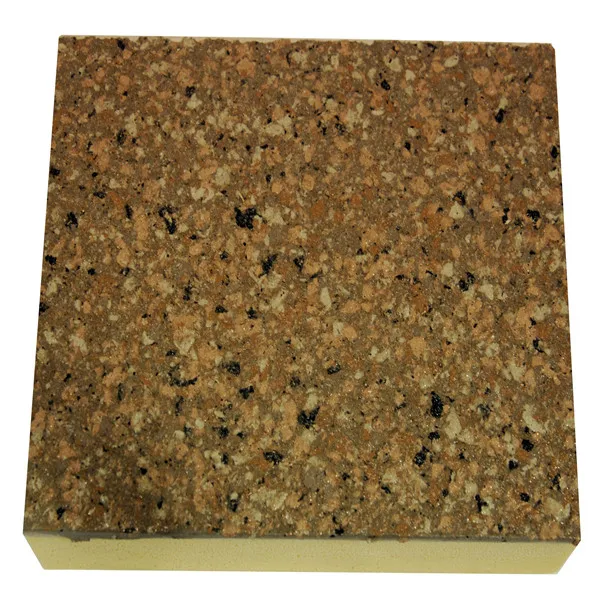

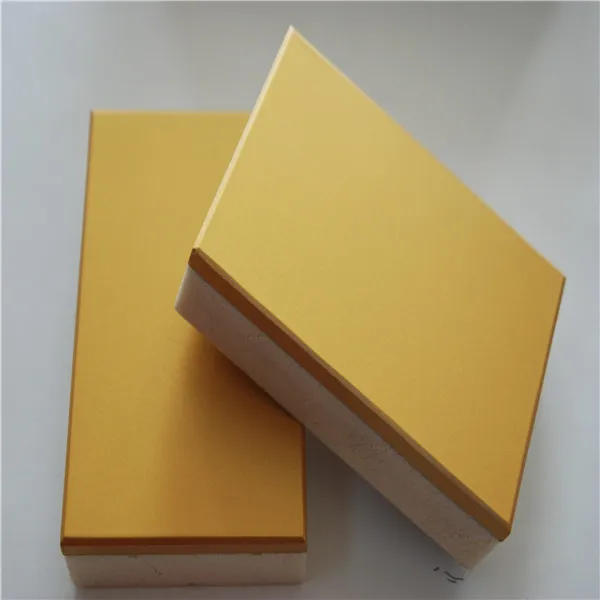

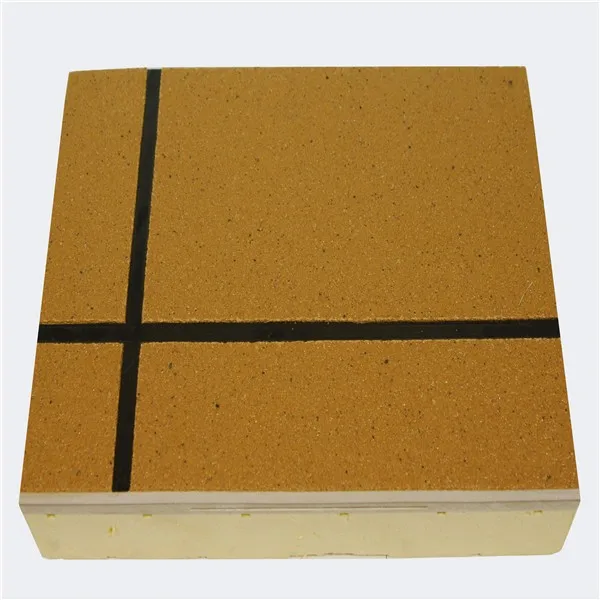

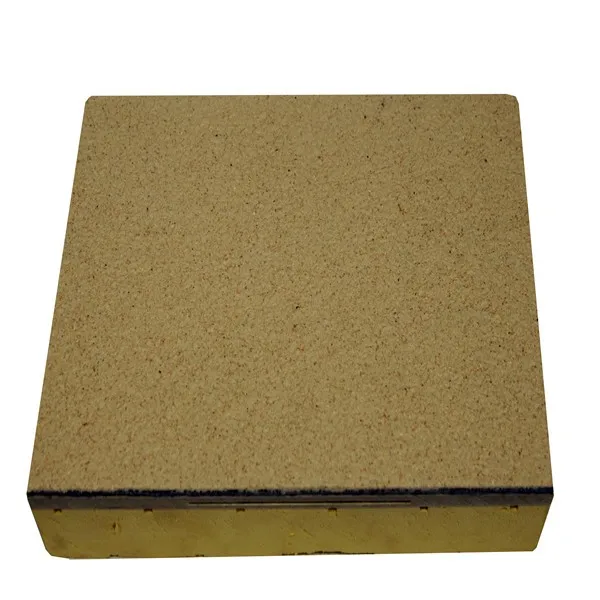

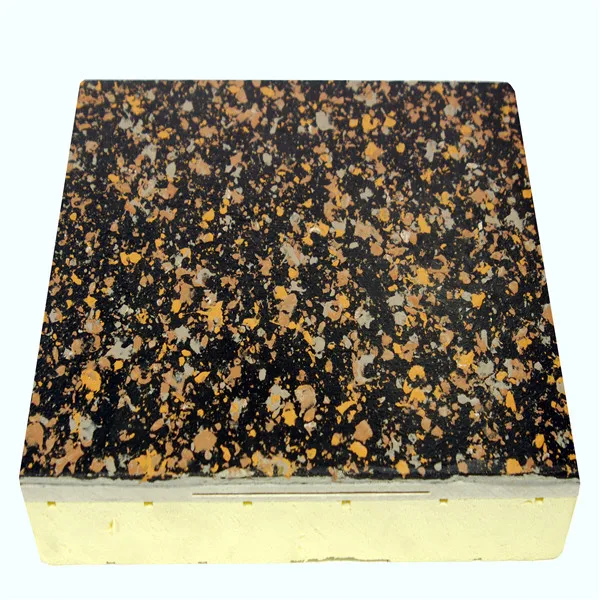

External slab panel is an ideal building material which is used as the insulation decorative layer for the exterior building facades. It is composed of three parts, such as the coating layer, the carrier layer and the insulation layer. The coating layers are divided into natural stone paint, water-in-water paint, sand-in-water paint, PVDF and texture paint. The carrier layer is the calcium silicate board while materials of the insulation layer include rock wool, EPS, XPS, TPS and PU. Besides, there is another kind of exterior insulation decorative panel, the natural stone panel, which is composed of the natural stone and the insulation layer. The external wall cladding is widely applied for the commerical and residential buildings.
Detailed Images
Coating layer | natural stone paint |
Carrier layer | Calcium silicate board |
Insulation layer | Rock wool, EPS, XPS, TPS, PU |
Flame resistance | Grade A, B, B, A2, B |
Density of insulation material | 140, 5 - 30, 30, 30 - 35, 42 KG/M3 |
Thickness of carrier layer | 6 - 8 mm |
Thickness of insulation layer | 20 - 50 mm |
Width | 1220 mm |
Length | 2440 mm |

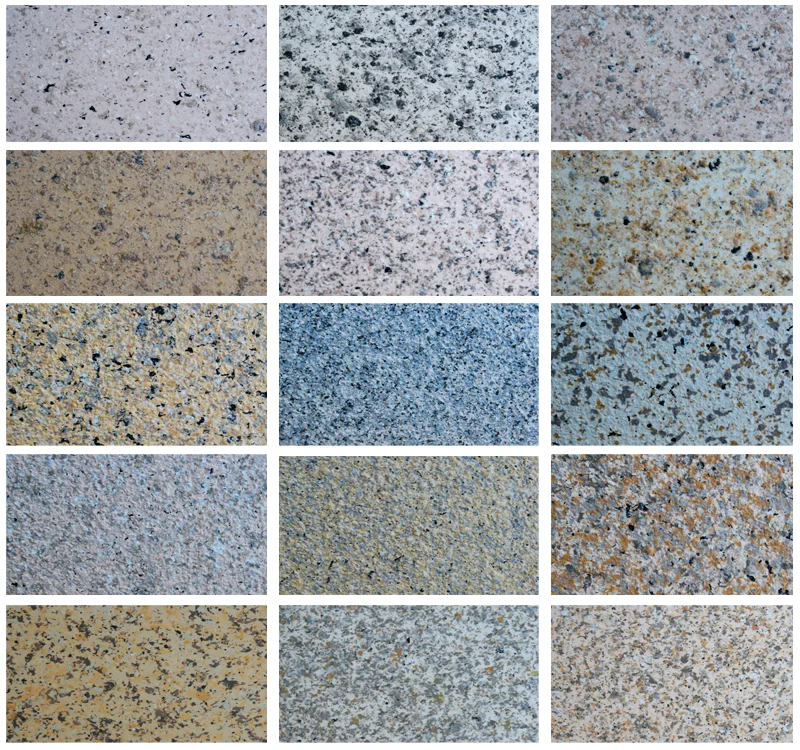

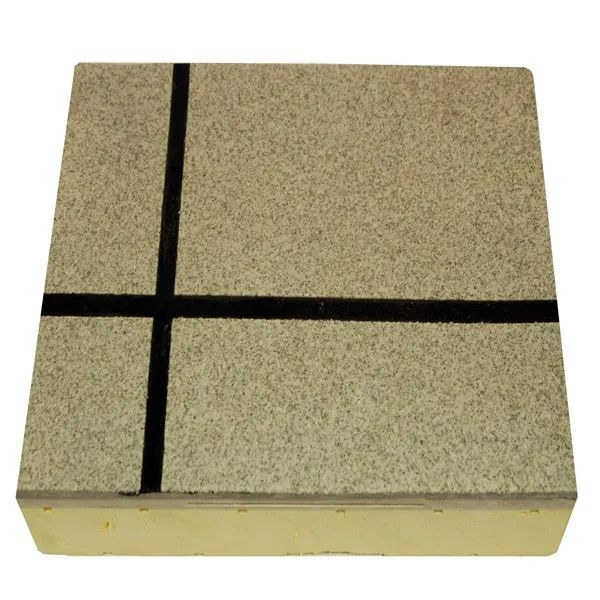

Samples of the natural stone coating layer:
This product has 5 different insulation materials for the insulation layer: the rock wool, EPS, XPS, TPS and PU.
Items | rock wool | EPS | XPS | TPS | PU | |||||
Advantages | fireproof, grade A | cheap, light weight | light weight, high intensive | fireproof, grade A2, light weight | waterproof, light weight, insulated | |||||
Considering from different aspects, such as cost, flame resistance, water resistance, thermal conductivity and self weight, these insulation materials can meet different requirements. | ||||||||||
Installation
1.\tcheck the basement wall
1)\tbe dry and clean
2)\teliminate embossing and empty drum parts
3)\tmake sure there is no efflorescence and no shedding.
2.\tmake the division
According to the design drawing, the horizontal and vertical datum lines should be set up and then the locations for all of the insulation decorative integrative panels.
3, drill holes and place expansion anchor bolts in advance
After the division is well done, workers should drill holes and place expansion anchor bolts in advance.
4, install anchoring parts in advance

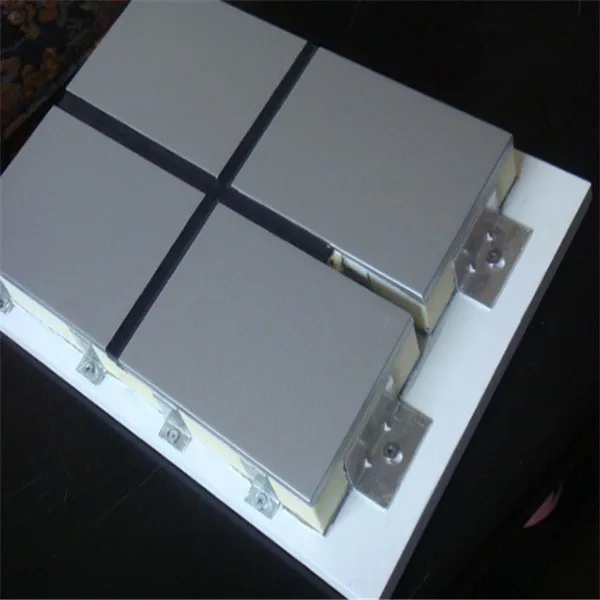

Constructors fasten the L-shape and H-shape anchoring parts onto the wall by using anchor bolts.
5, make the adhesive mortar
It is better to use out the made-up adhesive mortar in 1.5 hours and the adhesive size on the reverse side should be more than 50%.
6, splice and fasten
Put the inner and outer sides of H-shape anchoring parts into the panel’s edge slots and fasten the panel on to the wall by the use of expansion anchor bolts and adhesive mortar.
7, fill in the foam strips and stick masking tapes
Do as what the upper pictures show and fill in the foam strips in the edge slot. Then stick masking tapes by the sides of edge slots.
8, seal gaps with the silicone sealant
Put the mouth of spray gun into the gaps more than 4mm deep and fill the silicone sealant slowly and evenly.
9, rip mask tapes carefully
Scrape the needless gel, and after the whole work is done, rip the masking tapes carefully.
Company Introduction
Henan BRD New Material Co., Ltd is a professional manufacturer of new building materials and existing products include sandwich panels, exterior insulation decorative panels, steel truss decks, steel structures and container houses. BRD was establised in 1995 and nowadays it has developed into an enterprise which has a total asset of 500 million RMB and 500 empolyees. After 19-year efforts, BRD's products are widely accepted by more and more customers from home and abroad and at present the foreign trade covers Russia, Brzil, Peru, Trinidad and Tobago, Vietnam, Australia, New Zealand and some other countries and places.
The advance Italian totally automatic production line of the exterior insulation decorative panel
Certifications
Customers
Till now, BRD products have been exported to over 21 countries and places and more and more customers have made twice or third order, which proves BRD is worth of your reliance.
FAQ
1, Is your company a manufacturer or a trade company?
Yes, BRD is a 100% professional manufacturer.
2, Are your products made mechanically or manually?
Our products are made totally mechanically.
BRD has introduced the Italy third-generation total automatic producing line, 165 meter long.
3, What is your company’s producing capacity per month?
The producing capacity is 90,000 square meters per month.
4, Whether the order can be delivered on time?
Yes, BRD’s mature production management system ensures the order will be delivered on time.
5, How long the order can be delivered?
After your payment, products can will delivered in 4 to 7 days.
6, Which countries are your products exported to?
BRD’s export business covers Australia, New Zealand, South America, Europe, Middle Asia and Southeast Asia
and other places.
7, Do you provide free samples?
Yes, BRD can provide free samples. Besides, we can also provide the arrangement drawing related to your project.
More details, please consult our salespersons.
