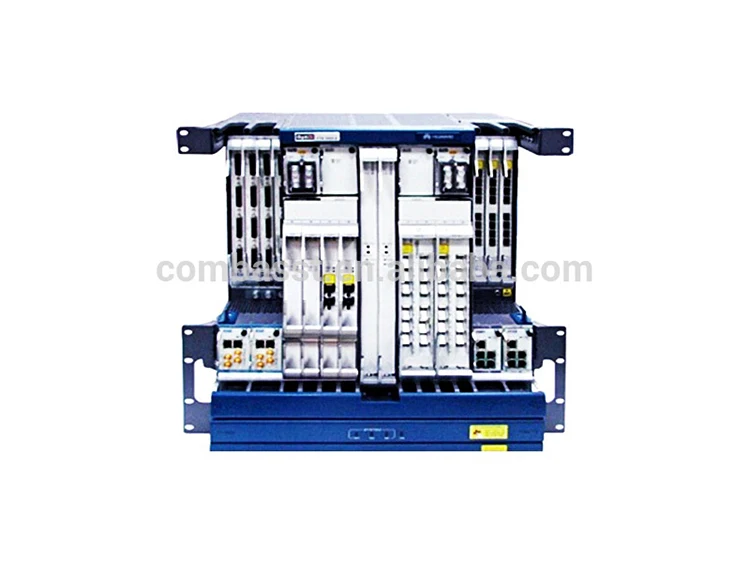

Huawei Packet Transport Network Devices Optical Transceiver PTN 3900
Product Description

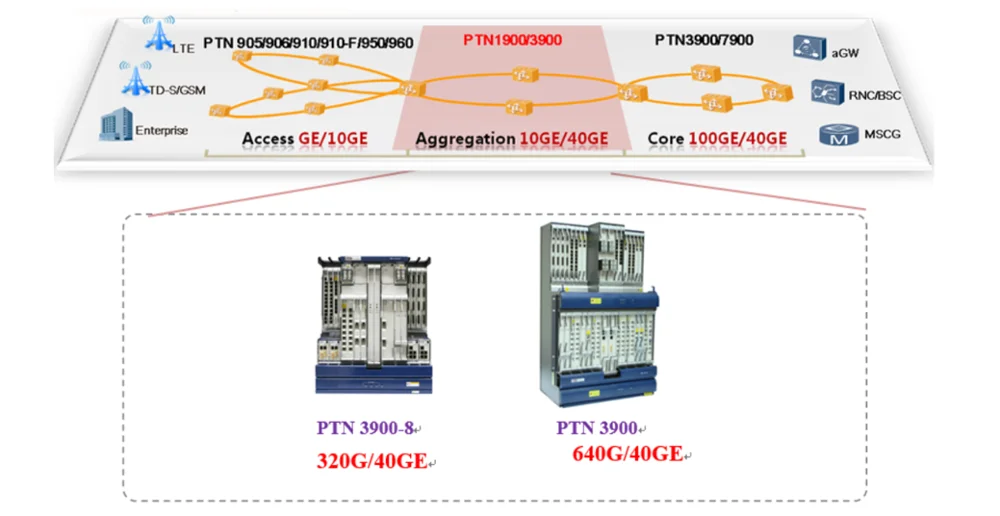

3900 NEs are the new generation of multi-service chassis-shaped devices applicable to the aggregation layer on packet transport networks. 3900 NEs support 40GE bandwidth aggregation, adaptable to various application scenarios. They provide device- and network-level protection and reliably aggregate and forward traffic.
PTN 3900-8/3900: Supports 40GE interfaces. A PTN 3900-8 or 3900 NE meets the high-bandwidth aggregation requirement. A PTN 3900-8 or 3900 NE has a distributed architecture with the separate control and forwarding planes. The NE provides 1+1 redundancy protection for the main control boards, cross-connect boards, and power supply modules. The PTN 3900-8 or 3900 NE provides high reliability and high-capacity aggregation.
Product Features
High-Bandwidth Aggregation:
- Supports the 640 Gbit/s capacity and 40GE high-bandwidth interfaces, which aggregate high-bandwidth services.
- Supports Circuit Emulation over Packet (CEP) interfaces used to aggregate VIP VC4 private line services.
- Supports various types of interface, such as E1, FE, GE, STM-1, and STM-4 interfaces.
Storing Environment Adaptability
- Uses a subrack with the depth of 300 mm (11.81 in.), which is applicable to an ETSI cabinet with the depth of 300 mm (11.81 in.).
- Provides a heat dissipation system with better performance and minimized noise.
- Has low power supply consumption and supports two 63 A power supply modules.
High Reliability:
- Provides high-reliability device-level 1+1 redundancy protection for main control boards, cross-connect boards, and power supply modules, which ensures that the device is running stably.
- Supports various network-level protection functions, such as dual homing, virtual private network (VPN) fast reroute (FRR), and label switched path (LSP) automatic protection switching (APS), to reliably forward services.
- Supports industry-leading ring protection that protects traffic from multi-node faults.
- Supports operation, administration and maintenance (OAM) mechanisms, such as Y.1731 and Multiprotocol Label Switching Transport Profile (MPLS-TP), which rapidly detect fault and monitor device performance.
Specifications
| Item | PTN 3900-8 | PTN 3900 |
|---|---|---|
| Subrack dimensions (H x W x D) | 525 mm x 442 mm x 294 mm (20.67 in. x 17.4 in. x 11.57 in.) | 800 mm x 496 mm x 295 mm (31.50 in. x 19.53 in. x 11.61 in.) |
| Fully loaded subrack weight | 41.5 kg (91.51 lb) | 60 kg (132.3 lb) |
| Working voltage | –38.4 V to –72.0 V | –38.4 V to –72.0 V |
| Standard power consumption | 635W | 900W |
| Switching capacity | 320Gbit/s | 640 Gbit/s |
| Number of slots | 16 slots: 8 slots for processing boards 8 slots for interface boards | 32 slots: 16 slots for processing boards 16 slots for interface boards |
| Environment requirements | Long-term working temperature: 0ºC (32ºF) to 50ºC (122ºF); short-term working temperature: –5ºC (23ºF) to 55ºC (131ºF); storage temperature: –40ºC (–40ºF) to 70ºC (158ºF); relative humidity: 5% RH to 95% RH; altitude ≤ 4000 m | |
| Interface capacity of the equipment | E1: 256 ATM STM-1: 72 Channelized STM-1 (T1): 16 Channelized STM-1:72 STM-1/STM-4 POS: 16 FE electrical port: 96 FE optical port: 64 GE electrical port: 64 GE optical port: 112 10GE:32 40GE:8 | E1: 512 ATM STM-1: 128 Channelized STM-1 (T1): 32 Channelized STM-1: 128 STM-1/STM-4 POS: 32 FE electrical port: 192 FE optical port: 128 GE electrical port: 128 GE optical port: 224 10GE: 64 40GE: 16 |
| Service types | E-Line, E-LAN, L3VPN, CES, and ATM | |
| Service protection | LMSP, LAG, LSP APS, MC-PW APS, ring protection, VRRP, MC-LAG, IP FRR, and VPN FRR | |
| Clock synchronization | External clock, IEEE 1588v2, synchronous Ethernet, and TDM clock synchronization | |
| HQos | Five-level QoS scheduling and traffic shaping | |
| MPLS | RSVP-TE, LDP, and static LSPs | |
| OAM | Y.1731, MPLS-TP, birdirectional forwarding detection (BFD), 802.1ag, 802.3ah, link-state pass through (LPT), and pseudo random binary sequence (PRBS) | |
| Alarms and performance monitoring | Supported | |
| Security | 802.1x and user authentication | |
Packaging & Shipping
Trade Information
Trade terms: FOB,CIF,CFR,etc
Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
Payment Terms: T/T in advance
MOQ:1 pcs
FOB Price:US $1 - 1,000 / Piece
Port: Shanghai
Lead time: Within 5 working days after receipt payment.
Shipment: Express, Air, Sea
Supply capability: 200 Piece/Pieces per Week
Sample availability: Yes( not free)
Package information: carton package with Huawei original package
