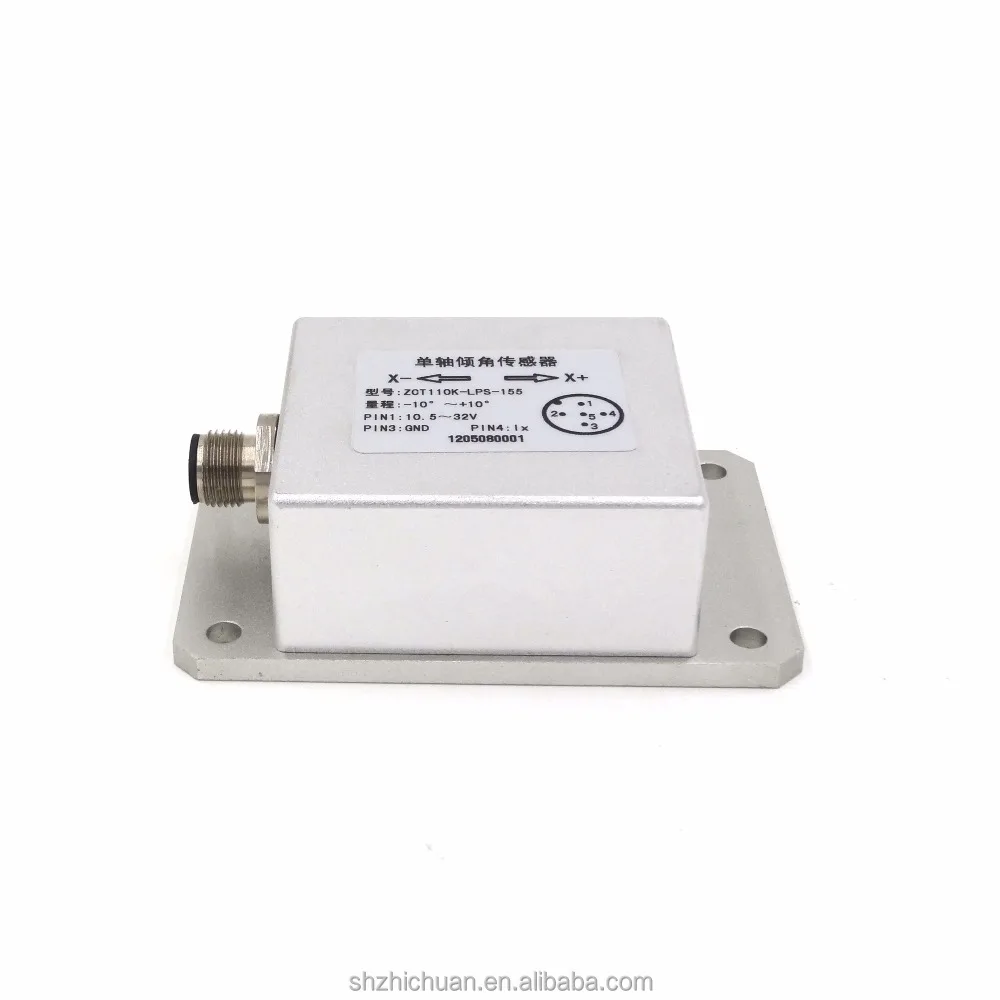

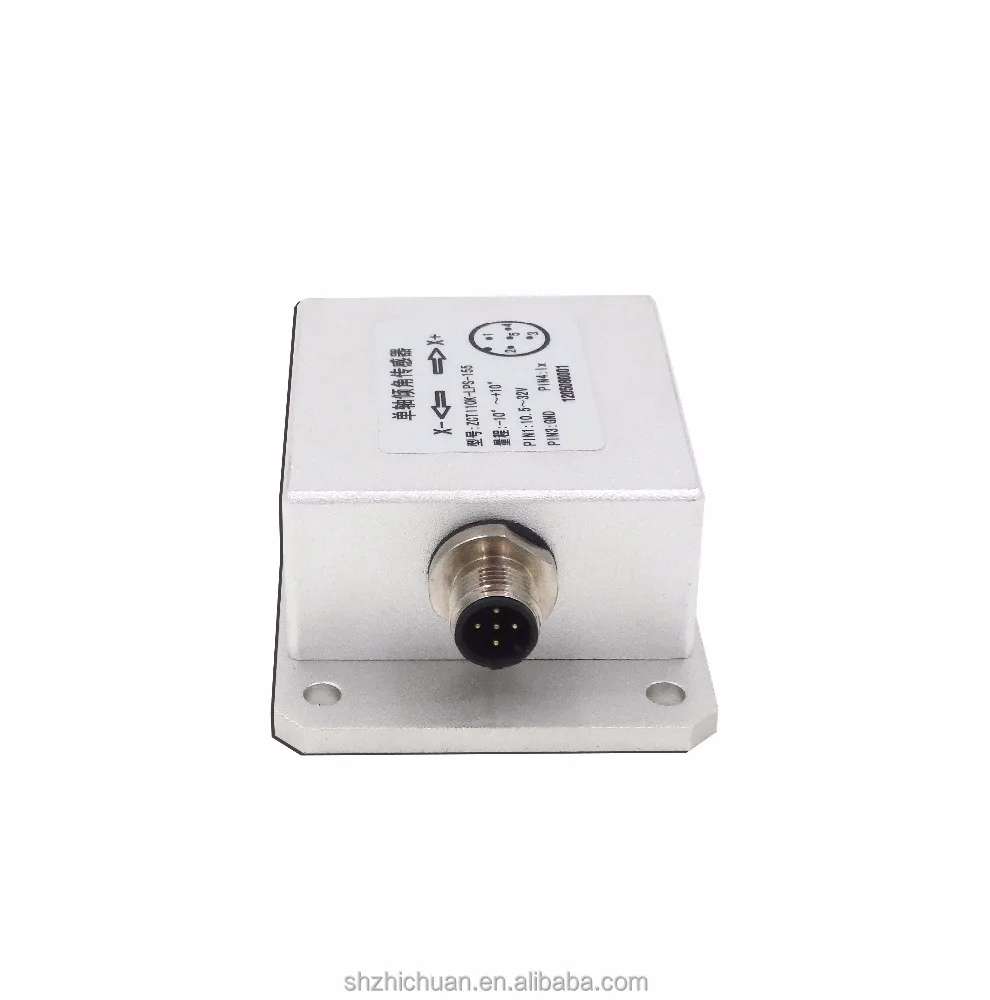

2019 Hot Sale 1 Axis IP67 Analog Current Output Inclinometer Tilt Sensor

parameter

Test condition

Min.

Type.

Max.

unit

Supply voltage

10.5

32

V(DC)

Quiescent current

Vcc=24V,without load

30

35

mA

Load resistance

VCC=24V

600

Ω

Operating temperature

-40

+85

°C

waterproof

IP67

Response frequency

optional

0.5

3

6

Hz

Case size

90*58*30

mm

P/N

Measuring range

resolution

Non-linearity

sensitivity

Zero output current

Zero temperature drift

ZCT105K1-LPS-155

Single axis ±5

0.01

±0.3

1.6

12

±0.008

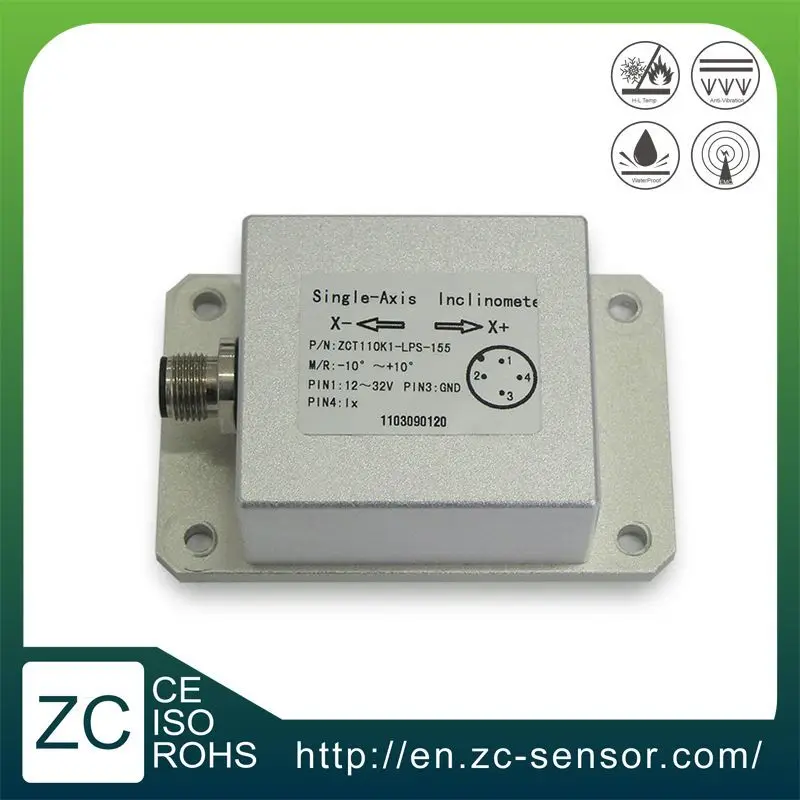

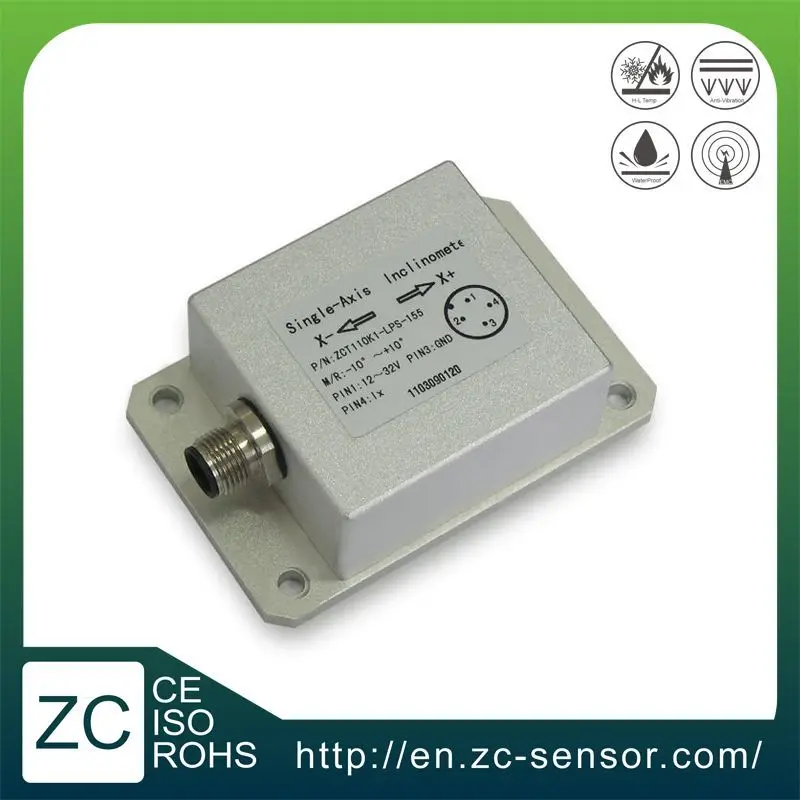

ZCT110K1-LPS-155

Single axis±10

0.01

±0.25

0.8

12

±0.008

ZCT115K1-LPS-155

Single axis±15

0.01

±0.2

0.533

12

±0.008

ZCT130K1-LPS-155

Single axis±30

0.015

±0.2

0.267

12

±0.008

ZCT145K1-LPS-155

Single axis±45

0.022

±0.2

0.178

12

±0.008

ZCT160K1-LPS-155

Single axis±60

0.03

±0.2

0.133

12

±0.008

ZCT205K1-LPS-155

Dual axis±5

0.01

±0.3

1.6

12

±0.008

ZCT210K1-LPS-155

Dual axis±10

0.01

±0.25

0.8

12

±0.008

ZCT215K1-LPS-155

Dual axis±15

0.01

±0.2

0.533

12

±0.008

ZCT230K1-LPS-155

Dual axis±30

0.015

±0.2

0.267

12

±0.008

ZCT245K1-LPS-155

Dual axis±45

0.022

±0.2

0.178

12

±0.008

ZCT260K1-LPS-155

Dual axis±60

0.03

±0.2

0.133

12

±0.008

unit

°

°

%/FS

mA/°

mA

°/°C
