Industrial chemical mineral inorganic fertilizer powder auger precompression dry double roller compacting briquette plant
- Category: >>>
- Supplier: Changzhou Shengong Granulation Equipment Co. Ltd.
Share on (60663099585):
Product Overview
Description
We are small factory but dedicated in roller compactor for granulating & briquetting powders
Roller press briqueting machine hydraulic applications
Roller press briqueting machine hydraulic(takes FGD gypsum for instance)
Type Item | SG-360B | SG-500B | SG-600B | SG-650B |
Roller dia. (mm) | Φ360 | Φ504 | Φ600 | 650 |
Effective width (mm) | 180 | 300 | 310 | 330 |
Roller rotating speed (r/min) | 16 to 22 | 14 to 20 | 12 to 18 | 10 to 16 |
Power of feeder (kw) | 7.5 | 11 | 11 | 15 |
Pre-pressure of accumulator (Mpa) | 5 to 6 | 6 to 10 | 8 to 10 | 8 to 12 |
Max. pressure rate (kN/cm) | 55 | 55 | 55 | 55 |
Briquette's size and shape(mm) | On request | On request | On request | On request |
Briquette output (kg/h) | 3,000 to 5,000 | 6,000 to 8,000 | 8,000 to 10,000 | 10,000 to 12,000 |
Power of compacting machine (kw) | 30 | 75 | 90 | 110 |
Installed capacity (kw) | 42 | 88 | 104 | 129 |
Dimension (l*w*h) (mm) | 1,850*1,5000*1,650 | 3,650*2,250*2,500 | 3,660*2,450*2,700 | 4,000*2,600*3,300 |
Weight of feeder and compacting machine (kg) | 6,000 | 15,000 | 20,000 | 25,000 |
Production time(d) | 30 | 45 | 60 | 60 |

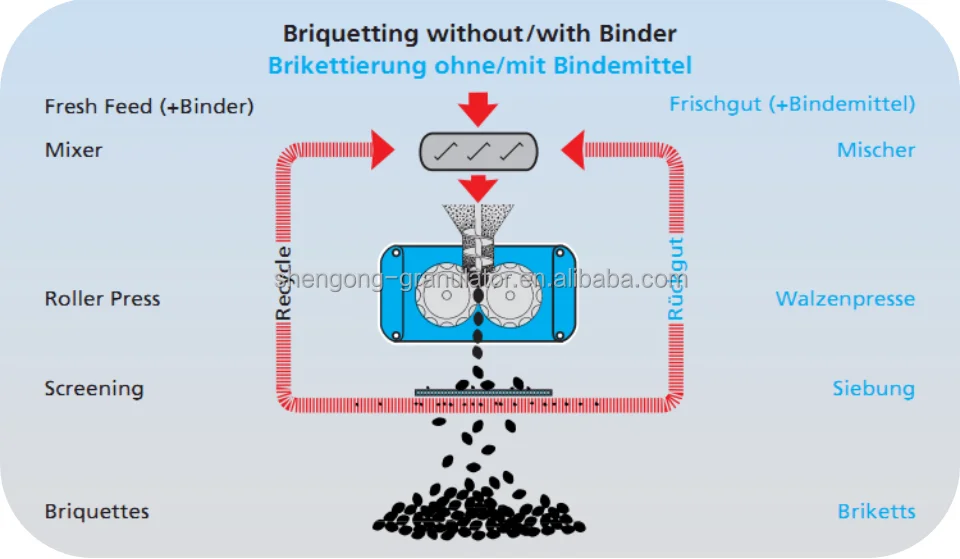

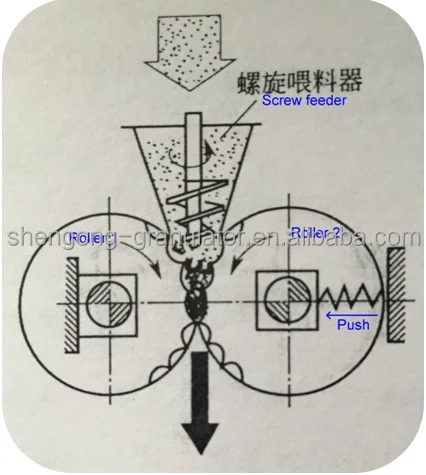

Roller press briqueting machine hydraulic principle
Difference of roller press briqueting machine hydraulic type A and type B.

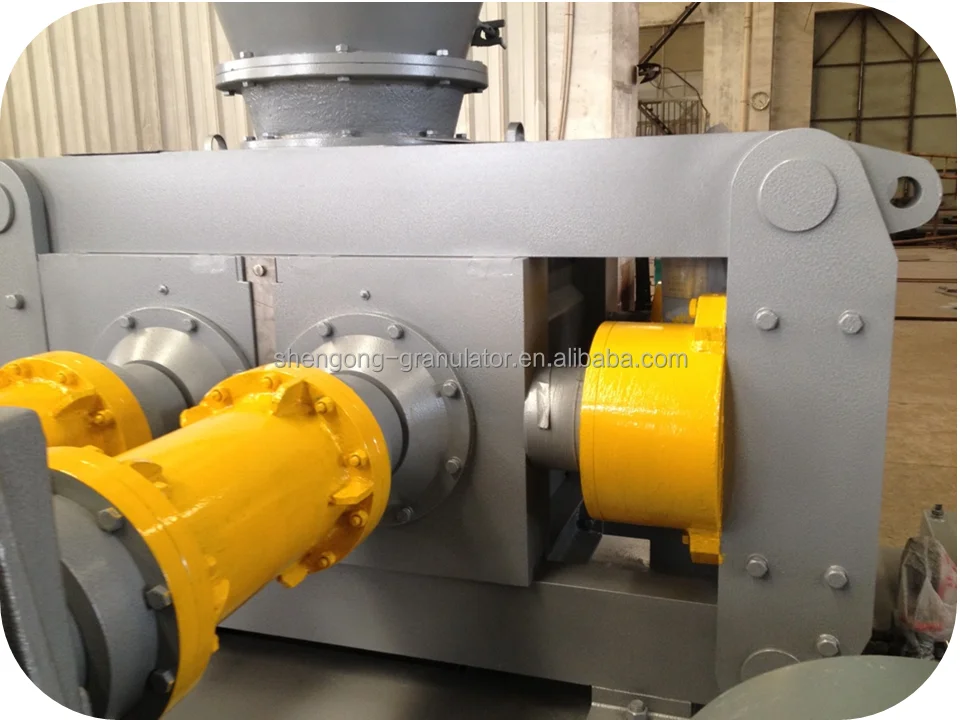

Roller press briqueting machine hydraulic consists of screw feeder (upper taper) and double roller compactor

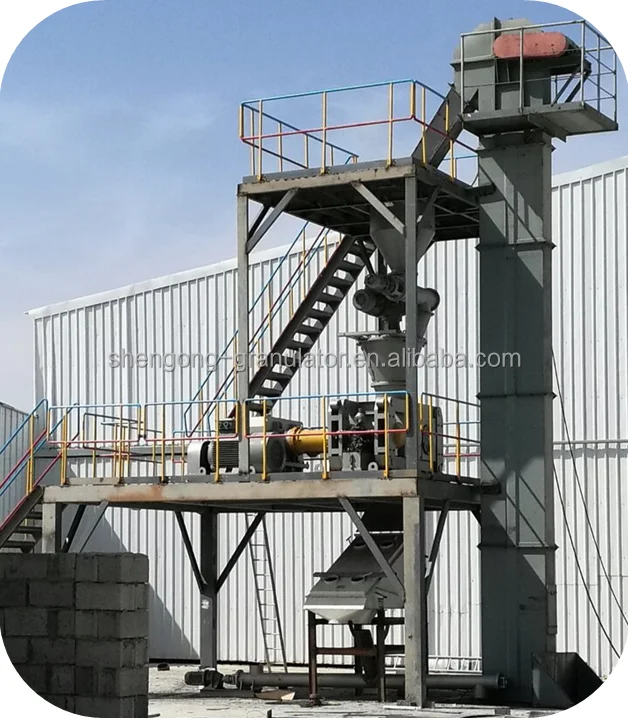

Roller press briqueting machine hydraulic peripheral equipments

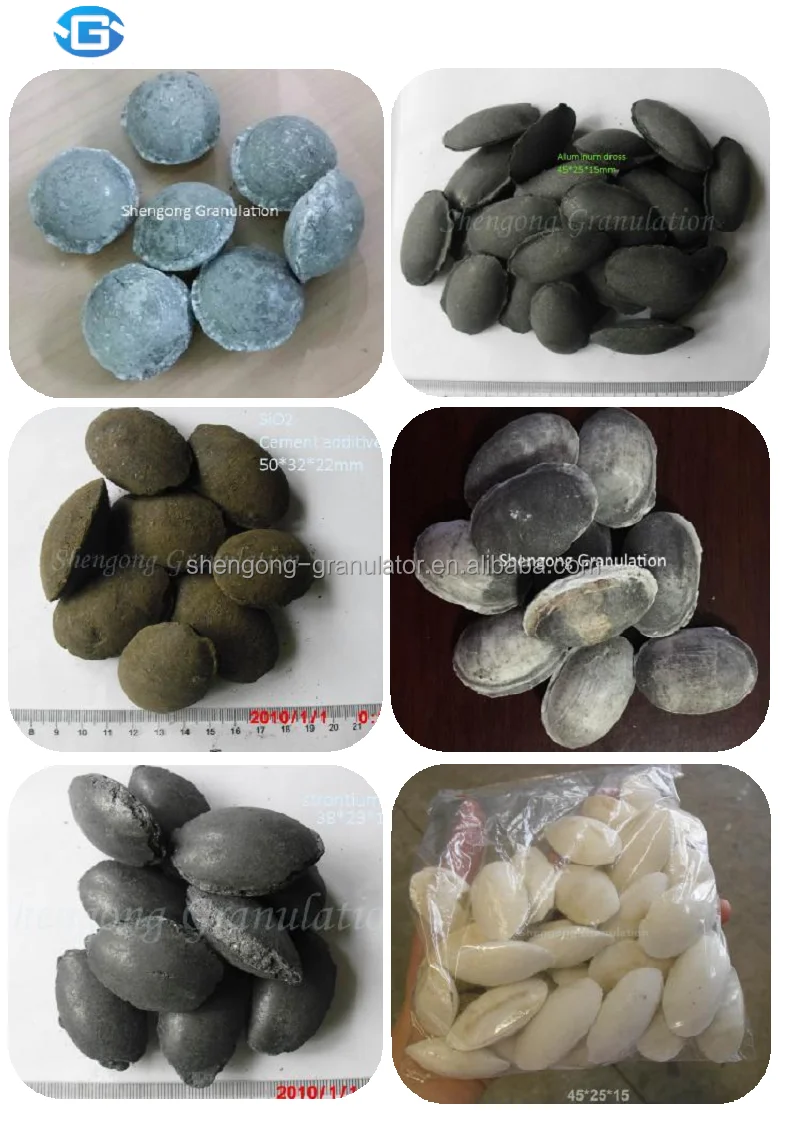

Briquette vairable shapes
Briquette and its rollers
Roller press briqueting machine hydraulic and its peripheral equipments are being loaded in one 40ft. container
