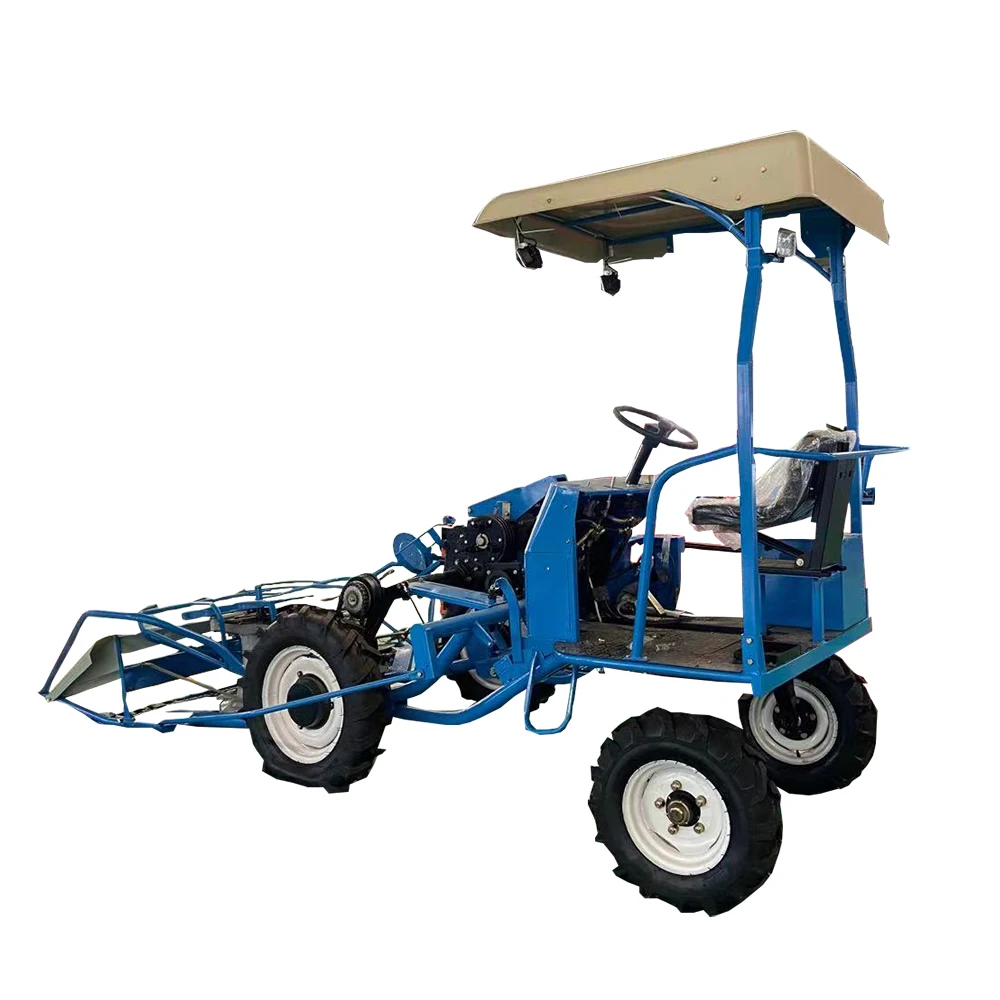

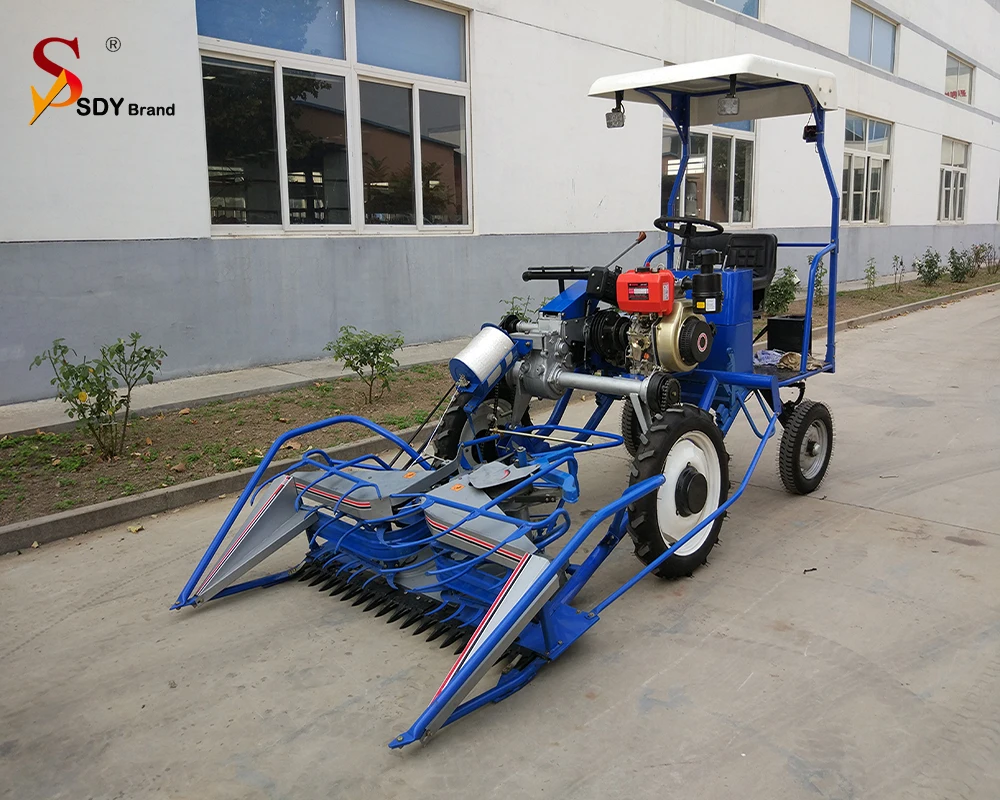

3 wheels wheat reaper binder /high efficiency rice reaper and binder
- Category: >>>
- Supplier: Weifang Shengchuan Machinery Co. Ltd.
Share on (60663133090):
Product Overview
Description
| Technical parameters | ||
| Item | Specification | |
| overall size(L*W*H) | 3550*1950*1330mm(without overhead guard) (L*W*H) | |
| Total weight | 640.00kgs | |
| Engine | Model | 192F DIESEL ENGINE |
| Engine type | Single-cylinder, vertical, 4-stroke, air-cooled, direct injection | |
| Displacement | 0.499L | |
| Output shaft rated speed(rpm) | 1800pm | |
| Calibration power | 7.7/10.5 kw/ps | |
| Start mode | electric starter | |
| Lubricating oil capacity | 1.65L | |
| Use fuel / tank capacity | diesel (0#)/6L | |
| Walking unit | Gears/speed km/h | 1st:2.9;2nd:5.3; 3rd:8.5;reverse:2.1; |
| Clutch type | Main clutch -dry dual-plate clutch, harvesting unit clutch-jaw clutch | |
| steering system | steering wheel control, differential steering system | |
| Minimum turning radius | 3M | |
| Brake mode | hydraulic disc brakes | |
| Transmission mode | shaft , flexible connection | |
| Harvesting unit | Cutting width | 1400mm |
| Cutting platform lifting mode | Electric (self-locking) | |
| Binding height: | 30cm up stubble | |
| Total loss rate | ≤1% | |
| Bundling rate | ≥95% | |
| Productivity | 0.4hm2/h | |
| Fuel consumption | 1.8-2.3L/H | |
